Plan 31597GF

One-Story American Craftsman House Plan with Attached Garage - 1854 Sq Ft

Heated S.F.
1,854
Beds
3 - 4
Baths
2.5
Stories
1-2
Cars
1

Floor Plan

Plan 31597GF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 31597GF

M-F 9am-5pm EST |

1-203-761-8500

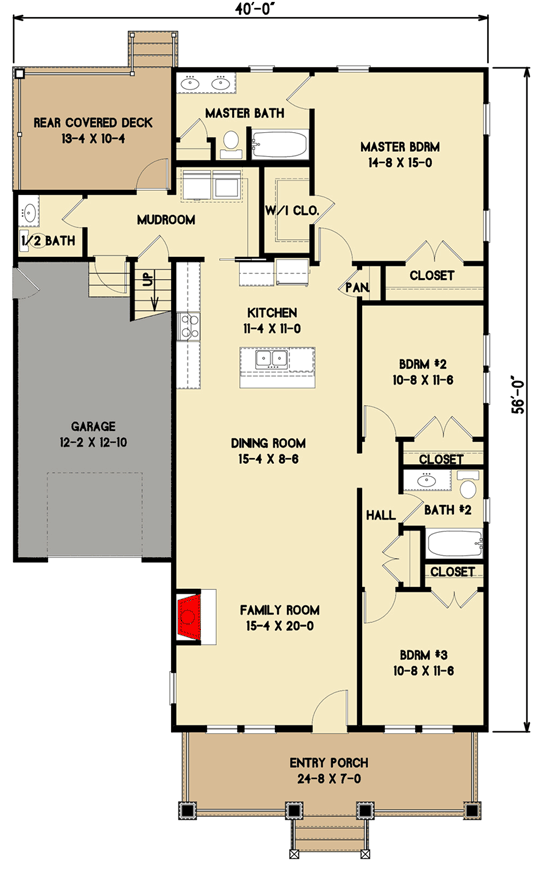

Main Level

Plan 31597GF: One-Story American Craftsman House Plan with Attached Garage - 1854 Sq Ft - Floor Plan - Main Level - Bungalow, Cottage, Country, Craftsman, Northwest

2nd Floor

Plan 31597GF: One-Story American Craftsman House Plan with Attached Garage - 1854 Sq Ft - Floor Plan - 2nd Floor - Bungalow, Cottage, Country, Craftsman, Northwest

Plan Details

  • This one-story house plan with an attached garage is ideal for a 50-foot lot. It is designed to incorporate the architectural details the American Craftsman style.
  • This home features a clerestory dormer that adds volume to the principal living space as well as additional light to the living room.
  • The bedrooms are clustered together on one side leaving the rest of the space for entertaining.
  • Stairs lead to expansion space above the garage.

What's Included

  • Cover Sheet: Shows typical notes and requirements.

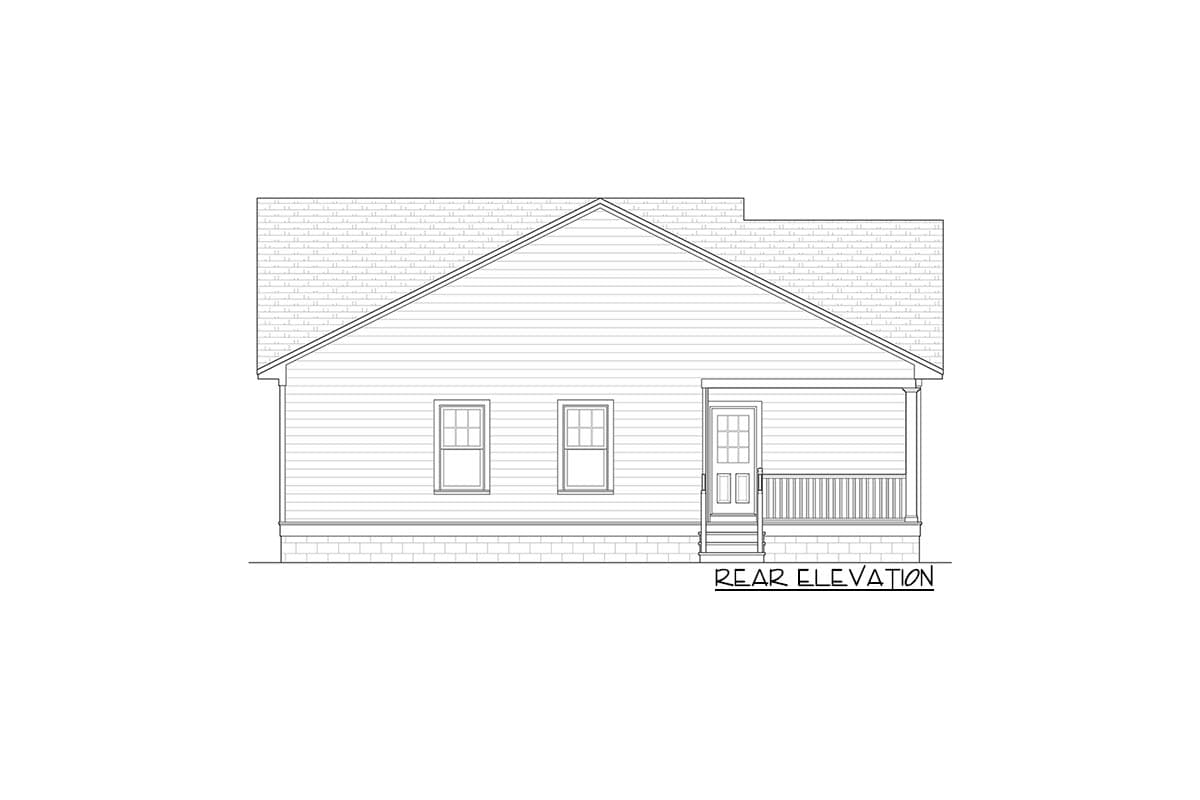

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plan: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - handled by your subcontractors
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - handled by your subcontractors
  • Energy calculations - handled locally when required
  • Electrical Layout - handled by your builder and subcontractor
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,854 sq. ft.

1st Floor

1,573 sq. ft.

2nd Floor

281 sq. ft.

Porch, Front

187 sq. ft.

Porch, Rear

138 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

41' 0"

Depth

52' 0"

Max Ridge Height

17' 0"

Garage

Type

Attached

Area

338 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Bungalow

Cottage

Country

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room
