Plan 444069GDN One-story Craftsman House Plan with 16'6" Cathedral Ceiling in the Great Room and Screened Porch

1,668 2-3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

One-story Craftsman House Plan with 16'6" Cathedral Ceiling in the Great Room and Screened Porch

Plan 444069GDN

  • 1,668

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This one-story, split bedroom Craftsman house plan design has an attractive stone and siding exterior.
  • Step in off the 25'8" wide and 5'8" deep front porch and find an open floor plan with the kitchen, dining room and great room are wide open, creating a feeling of spaciousness.
  • Angled columns in the dining room and an angled kitchen counter add visual interest to the space. In the great room, a 16'6" cathedral ceiling adds even more volume.
  • The private master suite features a cathedral ceiling, generous walk-in closet and a space-saving pocket door in the master bathroom.
  • Across the home, Two additional bedrooms share a hall bath. Turn the front room into a study and work from home under a 13' cathedral ceiling.
  • In back, the spacious screened porch can be accessed through the kitchen, great room and one of the bedrooms and has a 16'6" cathedral ceiling.
  • Expand over the garage with and get 415 square feet of space in the bonus room, perfect for a media room, hobby room or play room.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

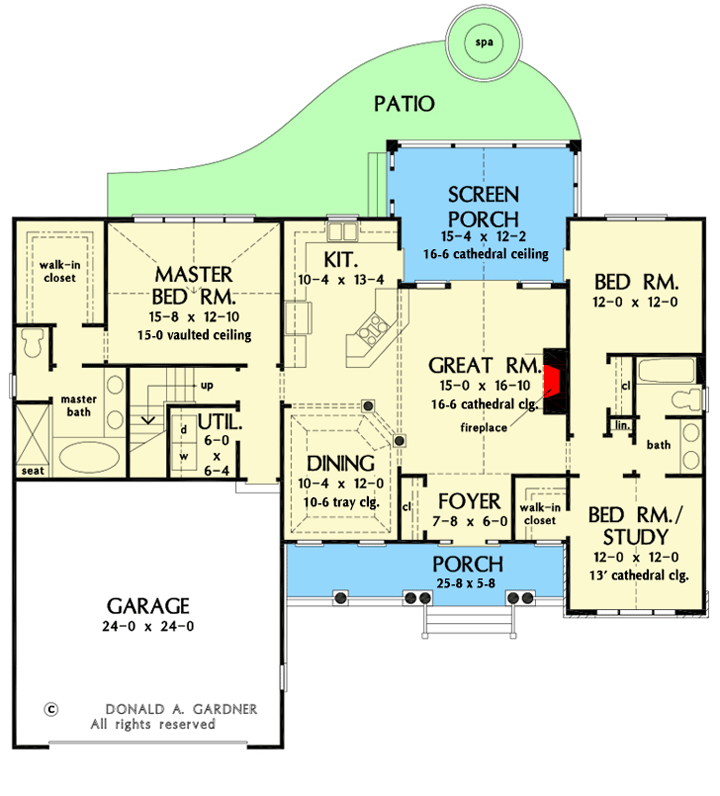

One-story Craftsman House Plan with 16'6" Cathedral Ceiling in the Great Room and Screened Porch - 444069GDN floor plan - Main Level

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

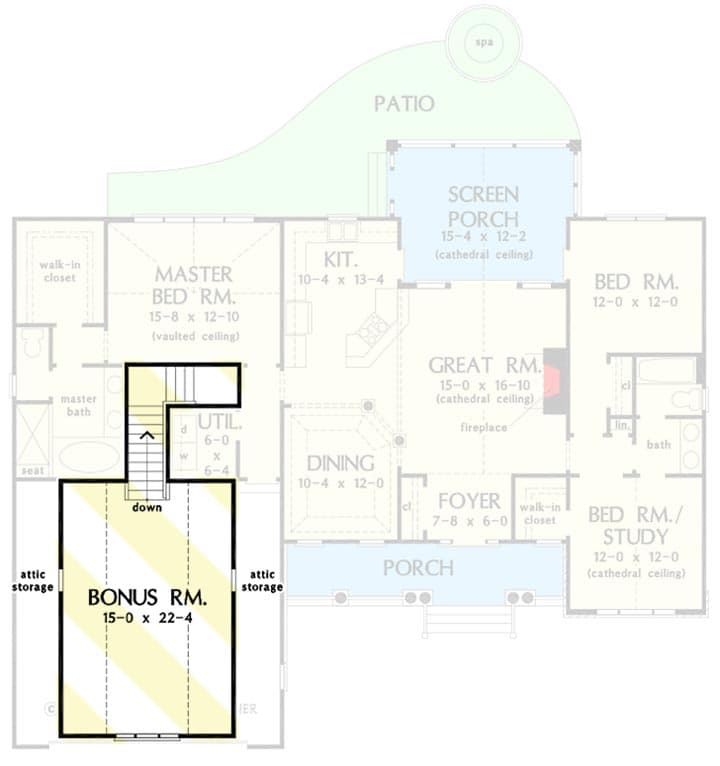

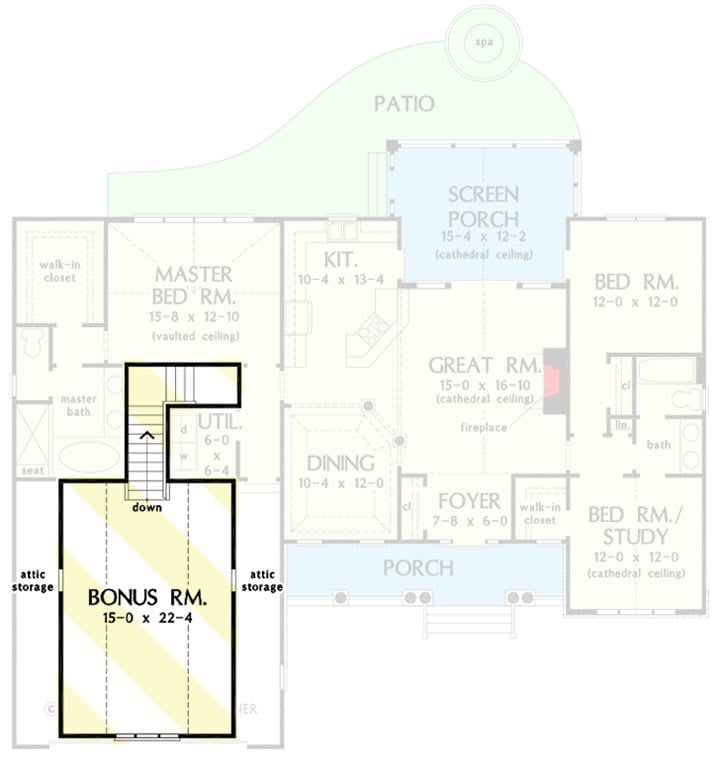

One-story Craftsman House Plan with 16'6" Cathedral Ceiling in the Great Room and Screened Porch - 444069GDN floor plan - Bonus Room

Basement Option

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

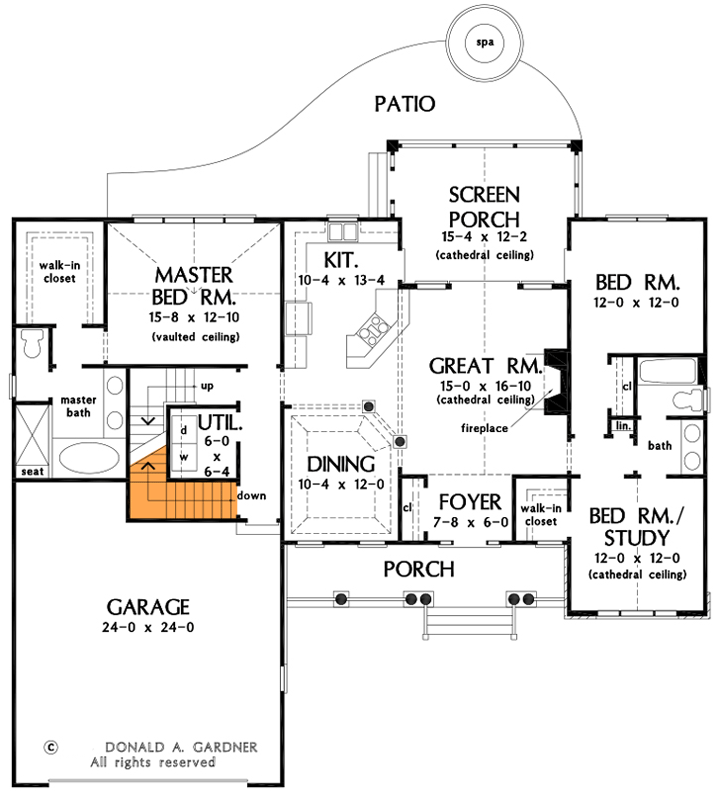

One-story Craftsman House Plan with 16'6" Cathedral Ceiling in the Great Room and Screened Porch - 444069GDN floor plan - Basement Option

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,668 sq. ft.
  • 1st Floor: 1,668 sq. ft.
  • Porch, Combined: 341 sq. ft.
  • Bonus: 415 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 55' 4"
  • Max ridge height: 26' 11"

Garage

  • Type: Attached
  • Area: 598 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Cathedral 16' 6"
Dining Room Tray 10' 6"
Study Cathedral 13' 0"
Master Bedroom Vaulted 15' 0"
Screened Porch Cathedral 16' 6"

Roof Details

  • Primary Pitch: 11 on 12
  • Secondary Pitch: 11 on 12
  • Framing Type: Stick

Architectural Style

Special features

One-story Craftsman House Plan with 16'6" Cathedral Ceiling in the Great Room and Screened Porch

  • 1,668

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $955
  • PDF - Single-Build $1,155
  • 5 Sets + PDF $1,355
  • CAD Unlimited + PDF $2,310
  • View all purchase option online

About This Plan

  • This one-story, split bedroom Craftsman house plan design has an attractive stone and siding exterior.
  • Step in off the 25'8" wide and 5'8" deep front porch and find an open floor plan with the kitchen, dining room and great room are wide open, creating a feeling of spaciousness.
  • Angled columns in the dining room and an angled kitchen counter add visual interest to the space. In the great room, a 16'6" cathedral ceiling adds even more volume.
  • The private master suite features a cathedral ceiling, generous walk-in closet and a space-saving pocket door in the master bathroom.
  • Across the home, Two additional bedrooms share a hall bath. Turn the front room into a study and work from home under a 13' cathedral ceiling.
  • In back, the spacious screened porch can be accessed through the kitchen, great room and one of the bedrooms and has a 16'6" cathedral ceiling.
  • Expand over the garage with and get 415 square feet of space in the bonus room, perfect for a media room, hobby room or play room.

Floor Plans

  • Main Level

  • Bonus Room

  • Basement Option

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,668 sq. ft.
  • 1st Floor: 1,668 sq. ft.
  • Porch, Combined: 341 sq. ft.
  • Bonus: 415 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 55' 4"
  • Max ridge height: 26' 11"

Garage

  • Type: Attached
  • Area: 598 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 11 on 12
  • Secondary Pitch: 11 on 12
  • Framing Type: Stick
