Plan 72836DA
One Story Craftsman with Lower Level Boat Storage
Heated S.F.
2,520
Beds
3
Baths
2.5
Stories
1
Cars
2
Plan Details
  • Get a media room, lots of attic storage and a lower level boat storage garage with this Craftsman house plan.
  • Choose from three bedrooms, or two and a study - owner's choice.
  • Spacious vaulted covered porches in back let your family enjoy outdoor space.
  • The L-shaped main living area is all open concept, with walls of windows on two sides.
  • From the kitchen sink, you are just a few steps away from the big walk-in pantry.
  • Homeowners get a large master suite with two walk-in closets and double sinks in the master bathroom.
  • Attic space on the second floor is easily reachable.
  • More storage and a half bath lie on the ground level where the boat storage is.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

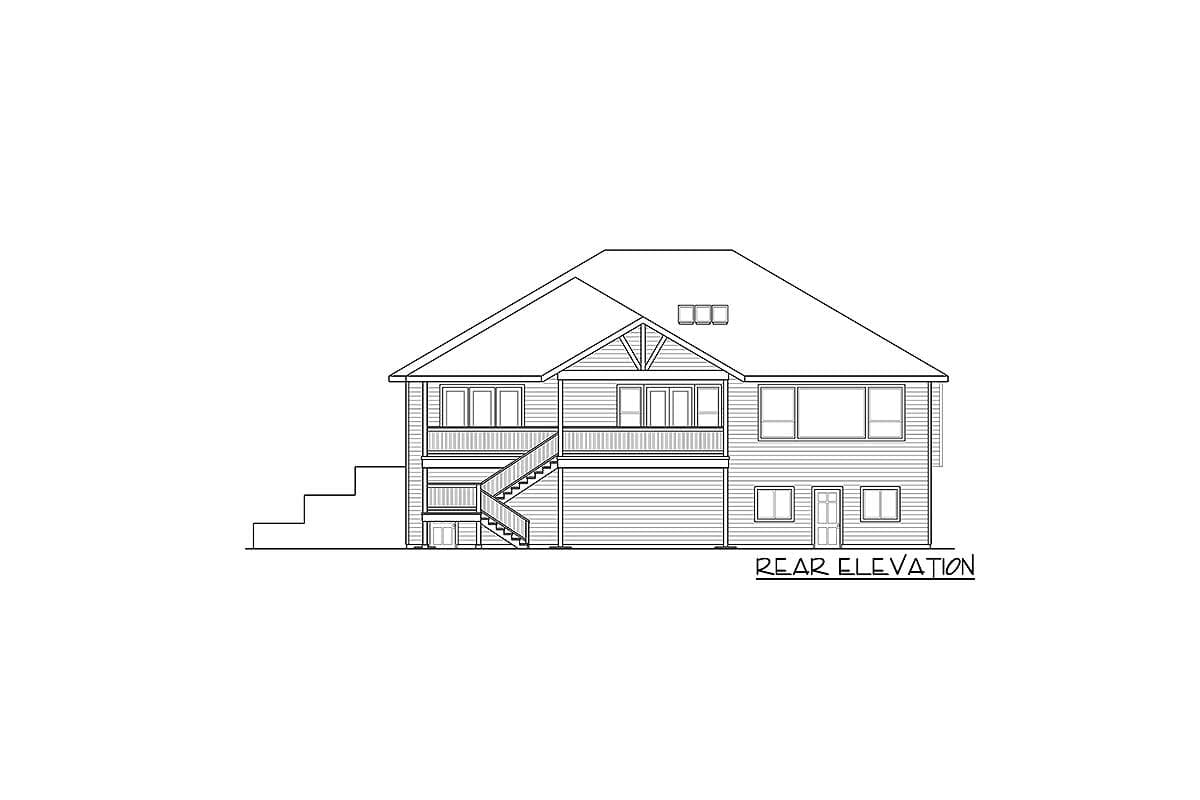

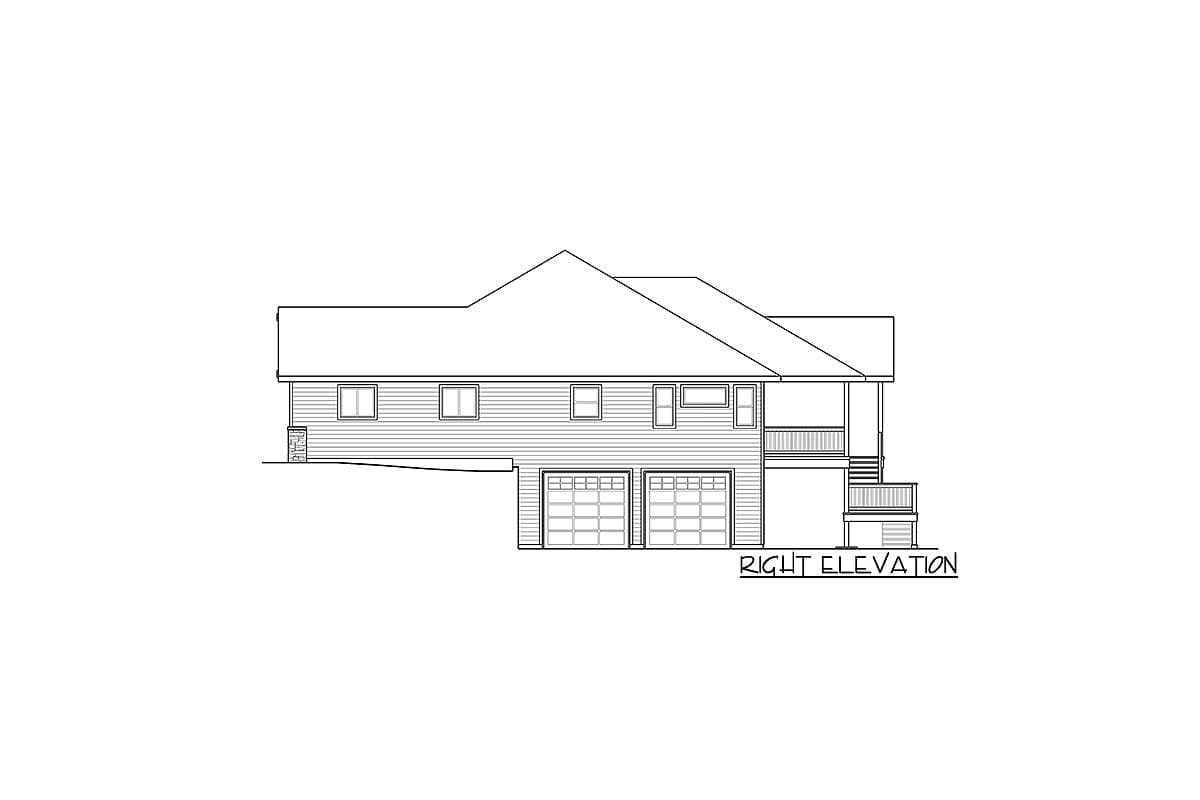

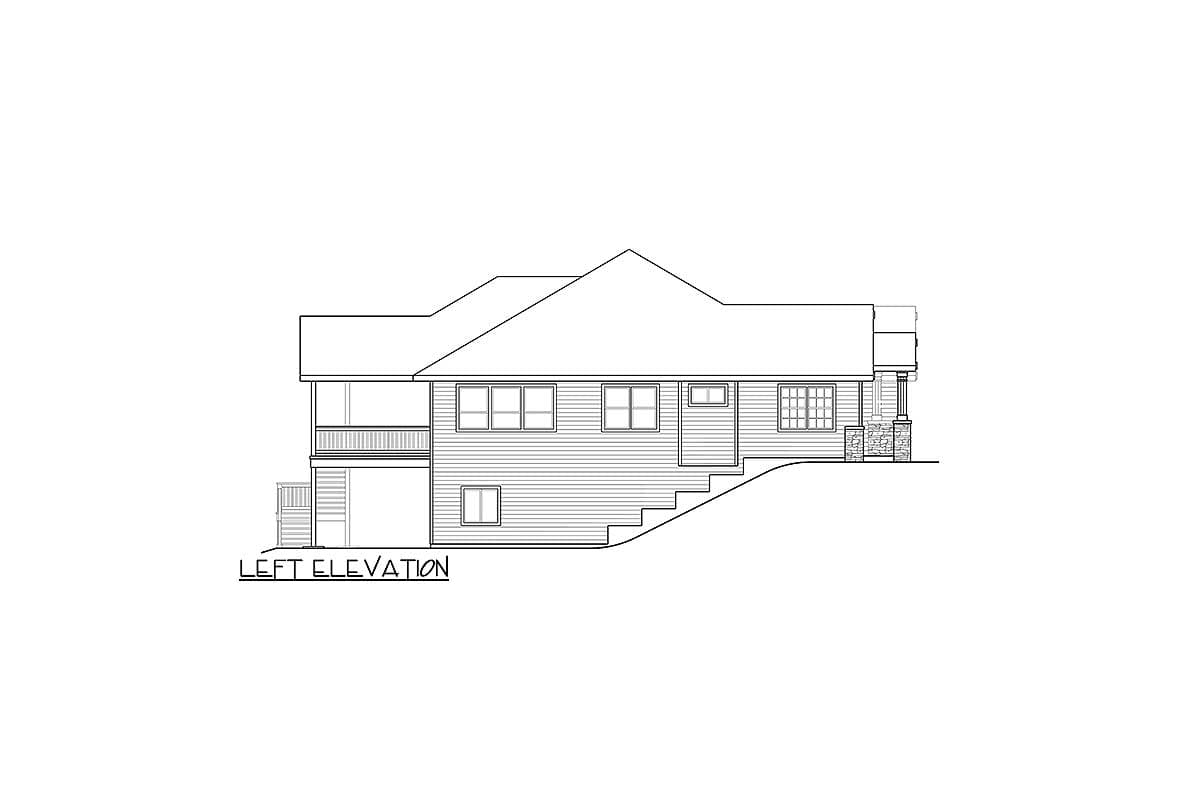

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One Story Craftsman with Lower Level Boat Storage

  • 2,520

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

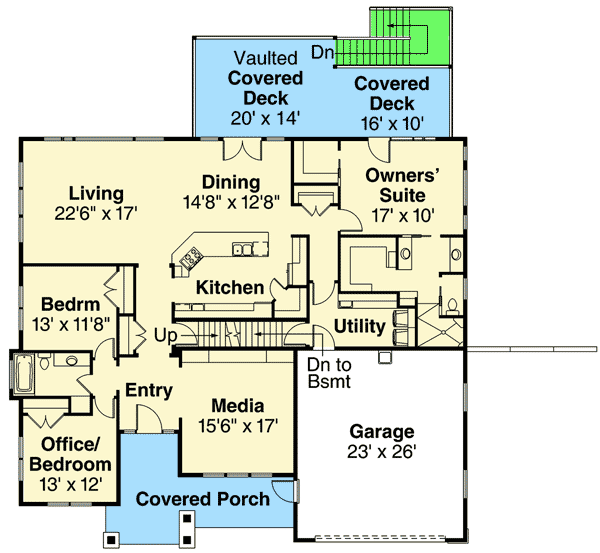

  • Main Level

  • 2nd Floor

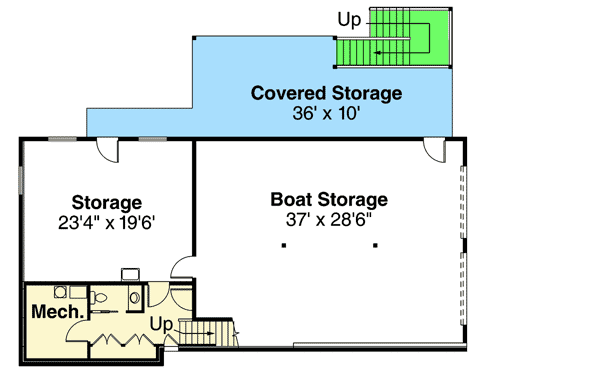

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,520 sq. ft.
  • 1st Floor: 2,520 sq. ft.

Dimensions

  • Width: 63' 4"
  • Depth: 70' 0"
  • Max ridge height: 25' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached, Drive Under
  • Area: 1248 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 7 on 12
