One-Story Duplex House Plan - 2 Beds, 2 Baths - 1398 Sq Ft

Heated S.F.
2,796
Units
2
Width
Depth

Floor Plan

Plan 59616ND

Main Level
Main Level

Plan 59616ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

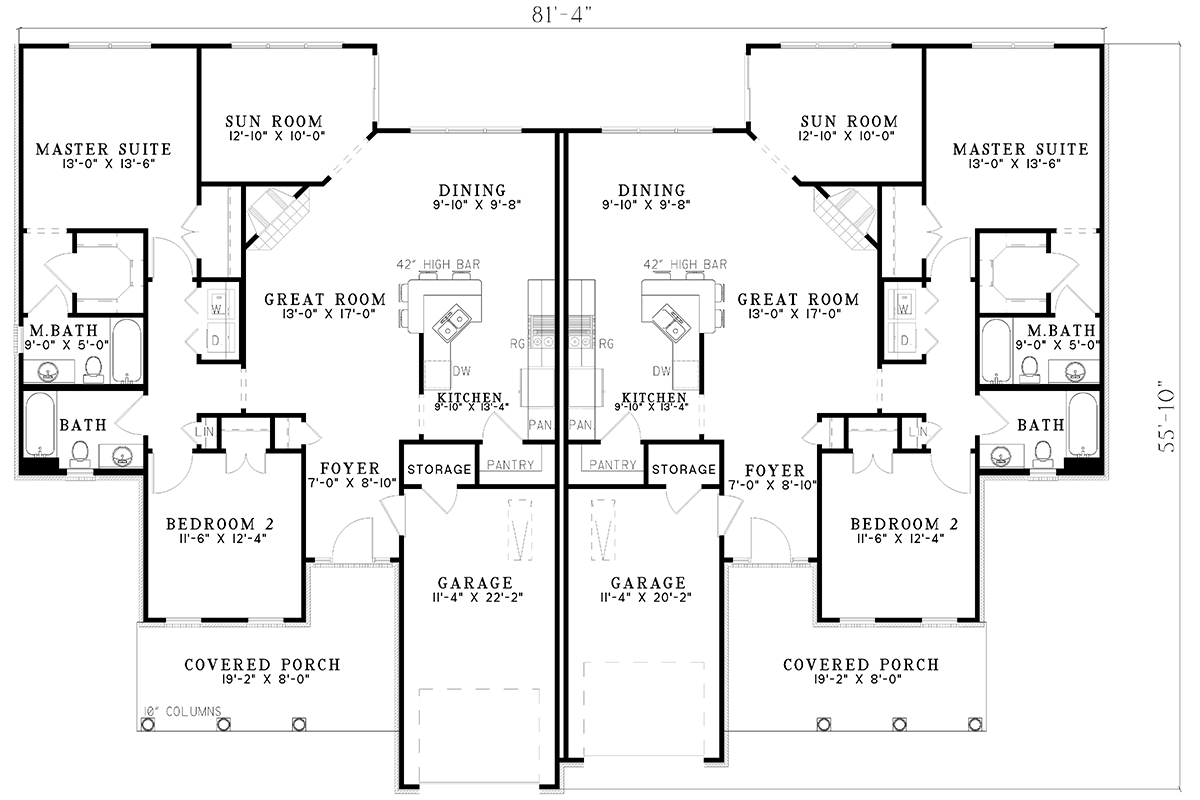

Plan 59616ND: One-Story Duplex House Plan - 2 Beds, 2 Baths - 1398 Sq Ft - Floor Plan - Main Level - Traditional

Plan Details

  • This one-story duplex house plan gives you side-by-side 2 bed, 2 bath units each with 1398 square feet of heated living.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes.
  • Our vast collection of multi-family home plans, encompasses various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
Unit A
Heated Area
1,398Sq. Ft.
1389 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
286 Sq. Ft.
Dimensions
40' 8"width
55' 10"depth
27'height
Unfinished Areas
286 Sq. Ft. Garage
185 Sq. Ft. Porch, Combined
Unit B
Heated Area
1,398Sq. Ft.
1398 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
262 Sq. Ft.
Dimensions
40' 8"width
55' 10"depth
27'height
Unfinished Areas
262 Sq. Ft. Garage
185 Sq. Ft. Porch, Combined

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,796 sq. ft.

1st Floor

2,796 sq. ft.

Porch, Front

370 sq. ft.

Porch, Combined
