Plan 40408DB

One-story House Plan with Options for a Sloping Lot

One-story House Plan with Options for a Sloping Lot

Plan 40408DB

  • 2,390

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Designed for a sloping lot, all your living can be on the main level with extra room available on the walkout basement level.
  • Columns set off the formal dining room and a sloped ceiling highlights the great room with fireplace. The wonderful open floor plan allows the chef to enjoy views over the large island into the eating area and through to the covered porch beyond.
  • A room off the kitchen with lots of windows can be office space or a quiet retreat.

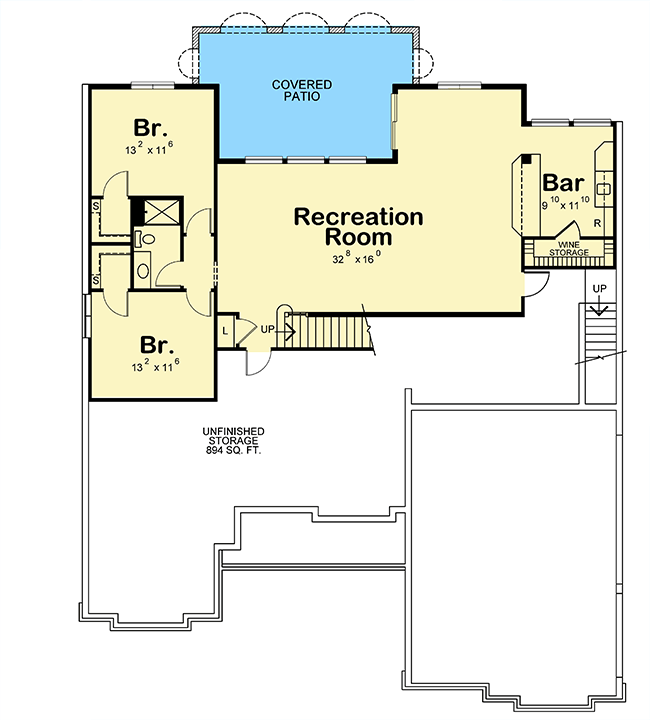

  • The optional lower level adds a huge recreation room with wet bar and two bedrooms with a shared bath.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

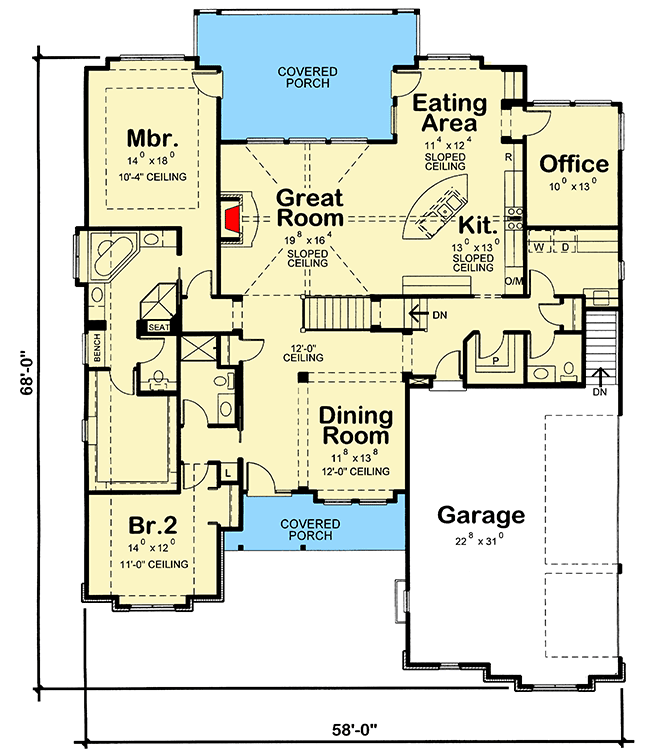

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



One-story House Plan with Options for a Sloping Lot

  • 2,390

    Heated s.f.

  • 2 - 4

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $665
  • PDF - single-use $1,015
  • 5 Sets $1,140
  • 5 Sets PLUS $1,185
  • 8 Sets $1,210
  • PDF - multi-use $1,515
  • CAD $1,776
  • CAD - multi-use $2,276
  • View all purchase option online

About This Plan

  • Designed for a sloping lot, all your living can be on the main level with extra room available on the walkout basement level.
  • Columns set off the formal dining room and a sloped ceiling highlights the great room with fireplace. The wonderful open floor plan allows the chef to enjoy views over the large island into the eating area and through to the covered porch beyond.
  • A room off the kitchen with lots of windows can be office space or a quiet retreat.
  • The optional lower level adds a huge recreation room with wet bar and two bedrooms with a shared bath.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,390 sq. ft.
  • 1st Floor: 2,390 sq. ft.
  • Porch, Rear: 98 sq. ft.
  • Porch, Front: 105 sq. ft.
  • Optional Lower Level: 1,322 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, & 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 68' 0"
  • Max ridge height: 23' 3"

Garage

  • Type: Attached
  • Area: 760 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
