Plan 42567DB

  • 2,140

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • This one-story house plan pairs the traditional beauty of brick with shake shingle siding and an arched entry.
  • Coming in from the garage, two coat closets, a drop zone, and convenient walk-through pantry help you keep things organized.
  • The kitchen has a long snack bar as well as open dining area that can easily expand for large get-togethers. There’s also a built-in desk providing workspace. The plans come with two layouts: one giving you three bedrooms and the other giving you two master suite (one in front and one in back): you choose which one to build.
  • Related Plan: Get an alternate exterior with house plan 42566DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

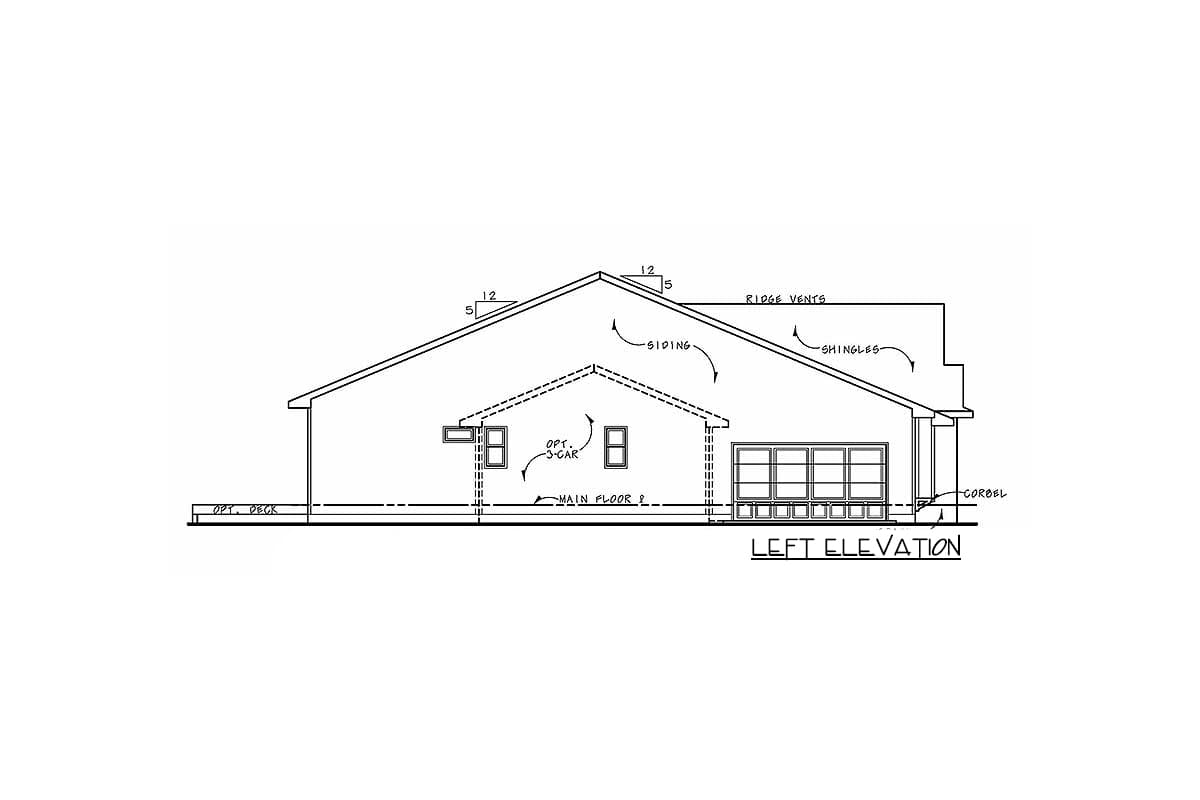

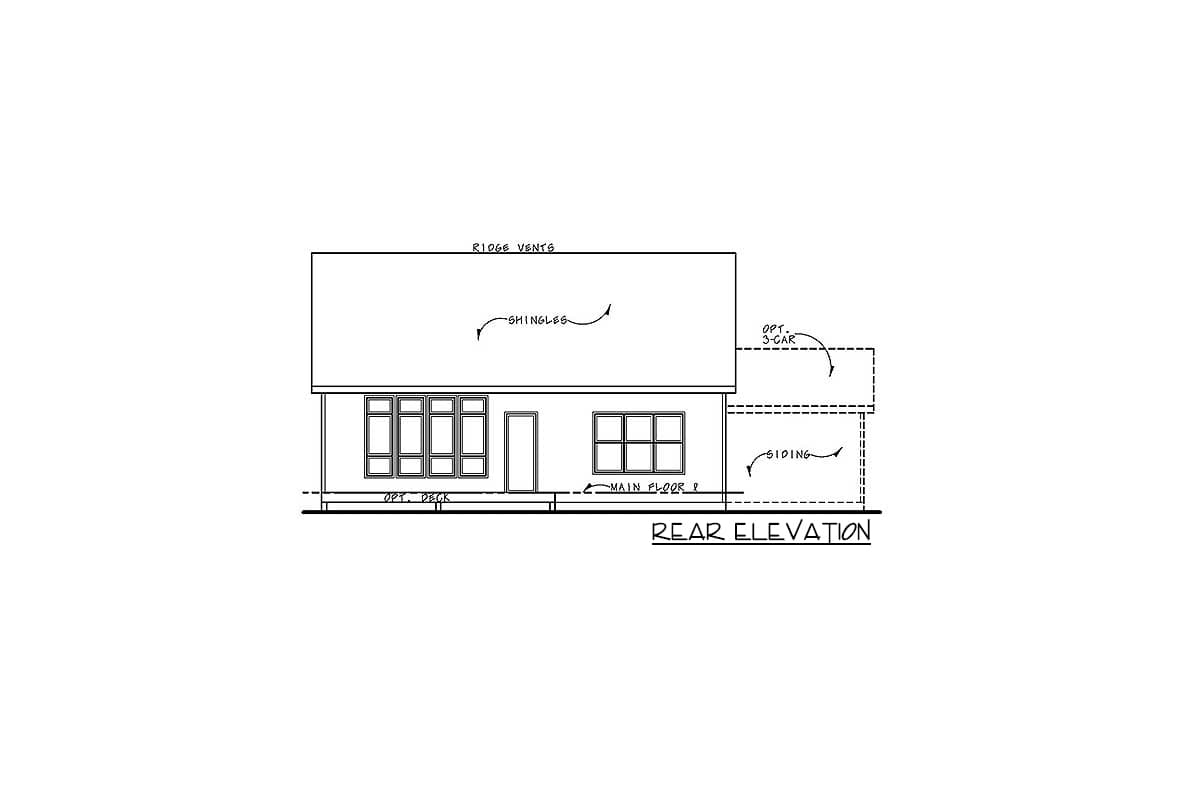

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

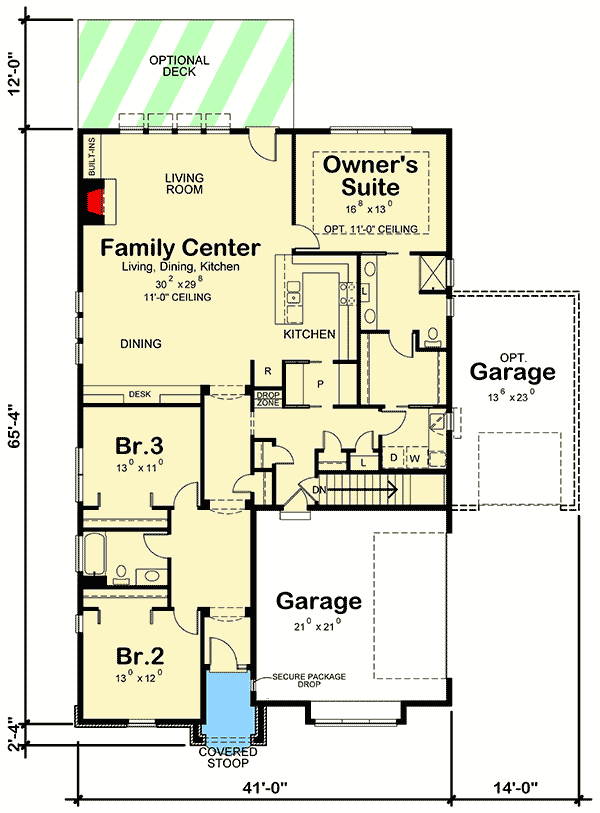

Floor Plan

Optional Layout

Pinit white
One-Story House Plan with Two Bedroom Layouts - 42567DB floor plan - Optional Layout

Plan details



One-Story House Plan with Two Bedroom Layouts

  • 2,140

    Heated s.f.

  • 2 - 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $655
  • PDF - single-use $995
  • 5 Sets $1,120
  • 5 Sets PLUS $1,165
  • 8 Sets $1,190
  • PDF - multi-use $1,495
  • CAD $1,741
  • CAD - multi-use $2,241
  • View all purchase option online

About This Plan

  • This one-story house plan pairs the traditional beauty of brick with shake shingle siding and an arched entry.
  • Coming in from the garage, two coat closets, a drop zone, and convenient walk-through pantry help you keep things organized.
  • The kitchen has a long snack bar as well as open dining area that can easily expand for large get-togethers. There’s also a built-in desk providing workspace. The plans come with two layouts: one giving you three bedrooms and the other giving you two master suite (one in front and one in back): you choose which one to build.
  • Related Plan: Get an alternate exterior with house plan 42566DB.

Floor Plans

  • Main Level

  • Optional Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,140 sq. ft.
  • 1st Floor: 2,140 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 0"
  • Depth: 67' 8"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 464 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 12 on 12
