Plan 4060DB

  • 2,040

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Metal accents decorate the facade of this pleasant home, adding country appeal. Five columns support the front porch, which is big enough for a couple of rocking chairs. Another covered rear porch extends living space outdoors.
  • Inside, varying ceiling heights provide contrast. The dining room is accessed from the foyer through a wide doorway, while the family room with its cathedral ceiling lies straight ahead. A fireplace serves as the focal point of the family room.
  • Open to the family and breakfast rooms, the kitchen includes a large island that houses double sinks, a dishwasher and an eating bar.
  • A four-fixture bath with two compartments can be reached from either bedroom two or bedroom three. On the other side of the house, the master bedroom opens to a splendid bath with his and her vanities, a garden tub, a separate shower and a walk-in closet.
  • A front-facing room could become a study, guest room or fourth family bedroom.
  • Upstairs, bonus space provides options for future expansion.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

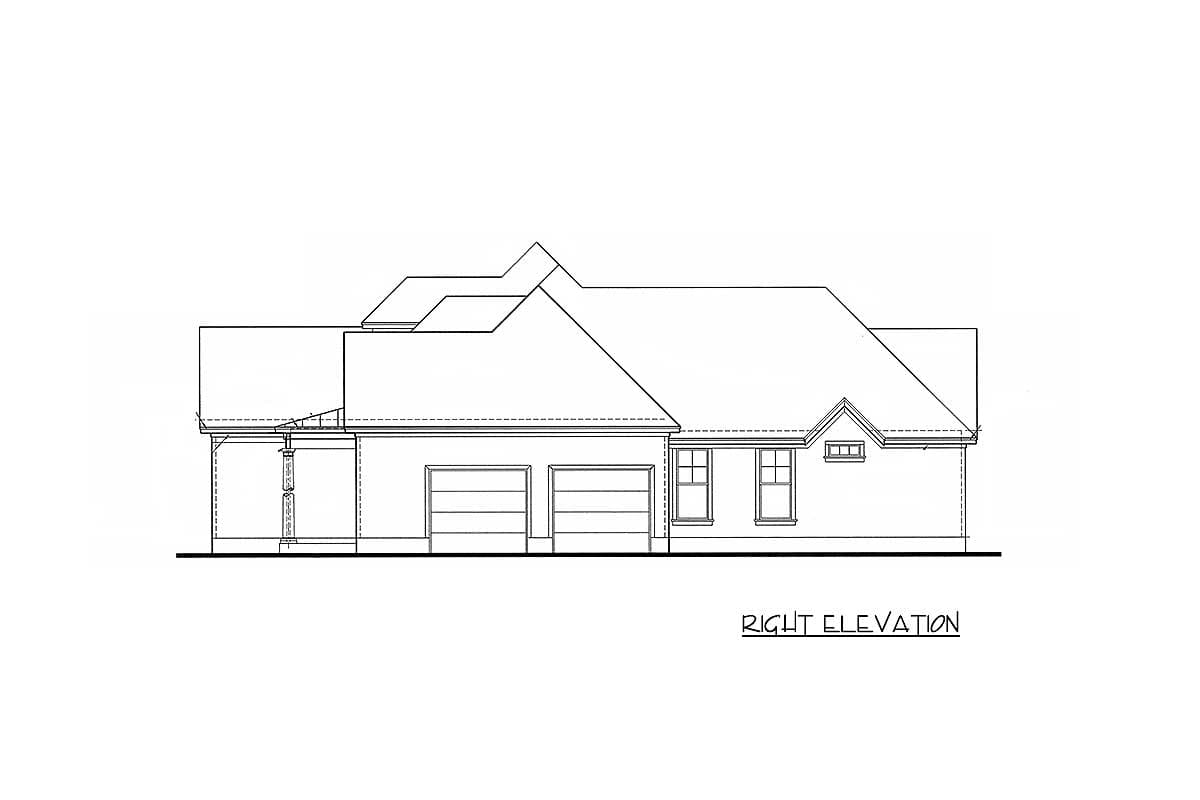

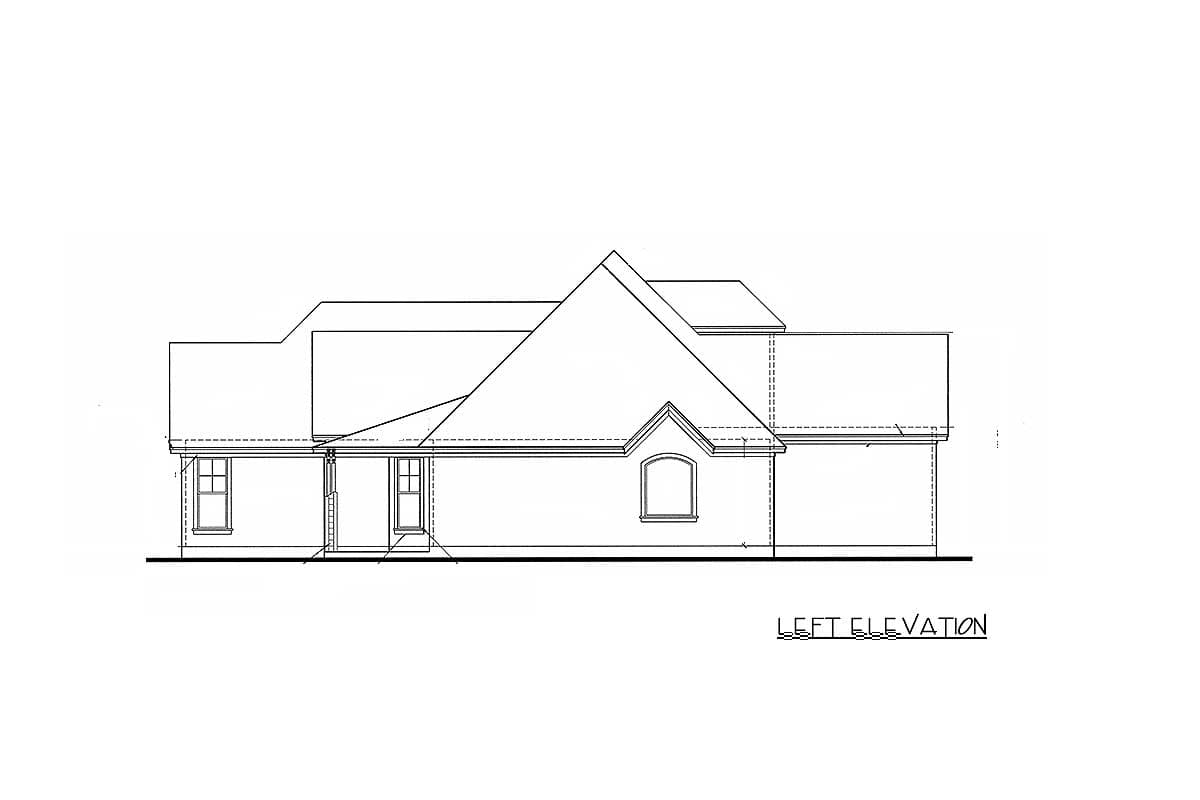

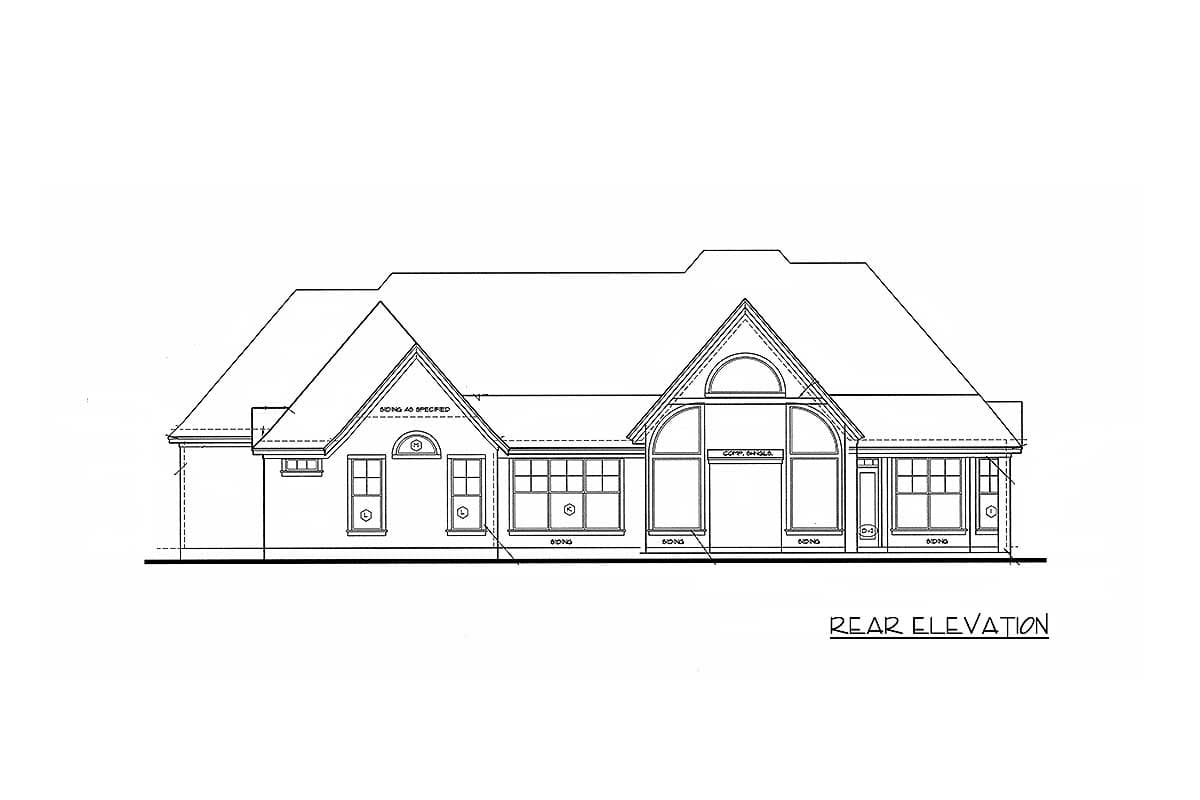

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details



One-Story House Plan with Two Porches

  • 2,040

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $650
  • PDF - single-use $985
  • 4 Sets $1,060
  • 5 Sets $1,110
  • 5 Sets PLUS $1,155
  • 8 Sets $1,180
  • PDF - multi-use $1,485
  • CAD $1,724
  • CAD - multi-use $2,224
  • View all purchase option online

About This Plan

  • Metal accents decorate the facade of this pleasant home, adding country appeal. Five columns support the front porch, which is big enough for a couple of rocking chairs. Another covered rear porch extends living space outdoors.
  • Inside, varying ceiling heights provide contrast. The dining room is accessed from the foyer through a wide doorway, while the family room with its cathedral ceiling lies straight ahead. A fireplace serves as the focal point of the family room.
  • Open to the family and breakfast rooms, the kitchen includes a large island that houses double sinks, a dishwasher and an eating bar.
  • A four-fixture bath with two compartments can be reached from either bedroom two or bedroom three. On the other side of the house, the master bedroom opens to a splendid bath with his and her vanities, a garden tub, a separate shower and a walk-in closet.
  • A front-facing room could become a study, guest room or fourth family bedroom.
  • Upstairs, bonus space provides options for future expansion.

Floor Plans

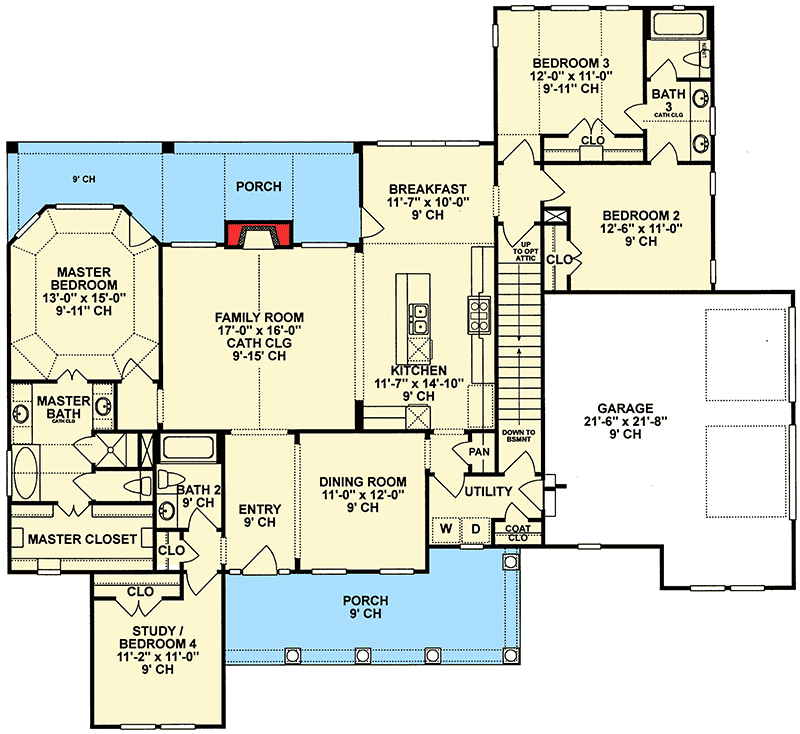

  • Main Level

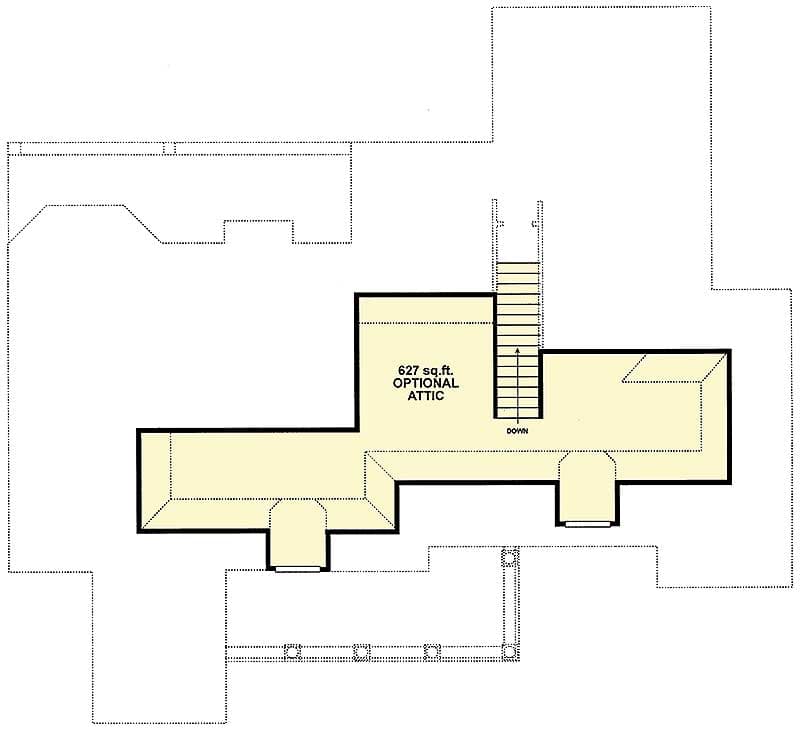

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,040 sq. ft.
  • 1st Floor: 2,040 sq. ft.
  • Attic: 627 sq. ft.
  • Basement Unfinished: 2,040 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 69' 5"
  • Depth: 63' 6"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 500 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
