Plan 51839HZ

One-Story New American House Plan - 1697 Sq Ft

Heated S.F.

1,697

Beds

3

Baths

2

Stories

1

Cars

2

Floor Plan

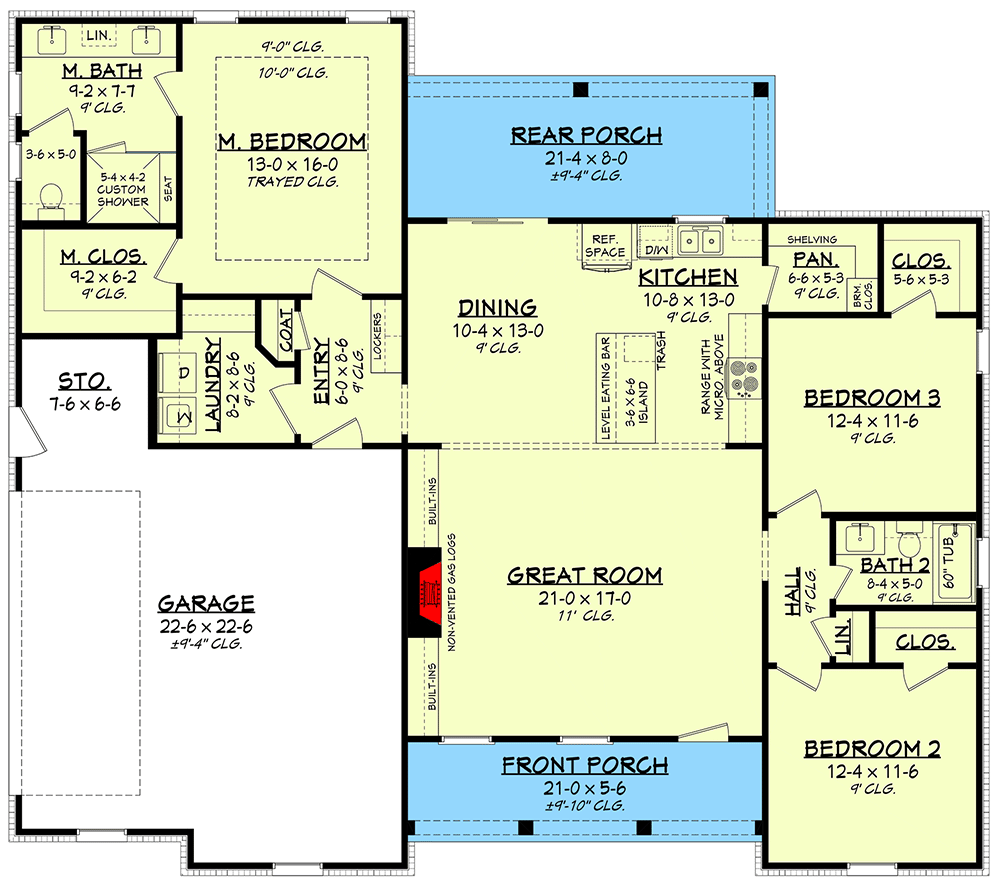

Main Level

Basement Stairs Location

Reverse Floor Plan

Plan Details

This one-story New American house plan has a board and batten exterior, exposed rafter tails and a shed dormer - decorative only - over the entry.
Inside, a large great room opens to the dining room and kitchen equipped with an eat-at bar and walk-in pantry.
The master bedroom has a 10' tray ceiling, a walk-in closet and four-fixture bathroom. Laundry is conveniently located nearby. The split bedroom layout places the remaibning two bedrooms across the home with the bathroom placed between them.
Enjoy the fresh air on your rear porch (171 sq. ft.) and the front porch (116 sq. ft.).

What's Included

The plan set comes with 12 pages as follows:

Page 1 Cover Sheet with abbreviations, rendering, sheet index

Page 2 Foundation Plan and Details

Page 3 Detailed floor plan(includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

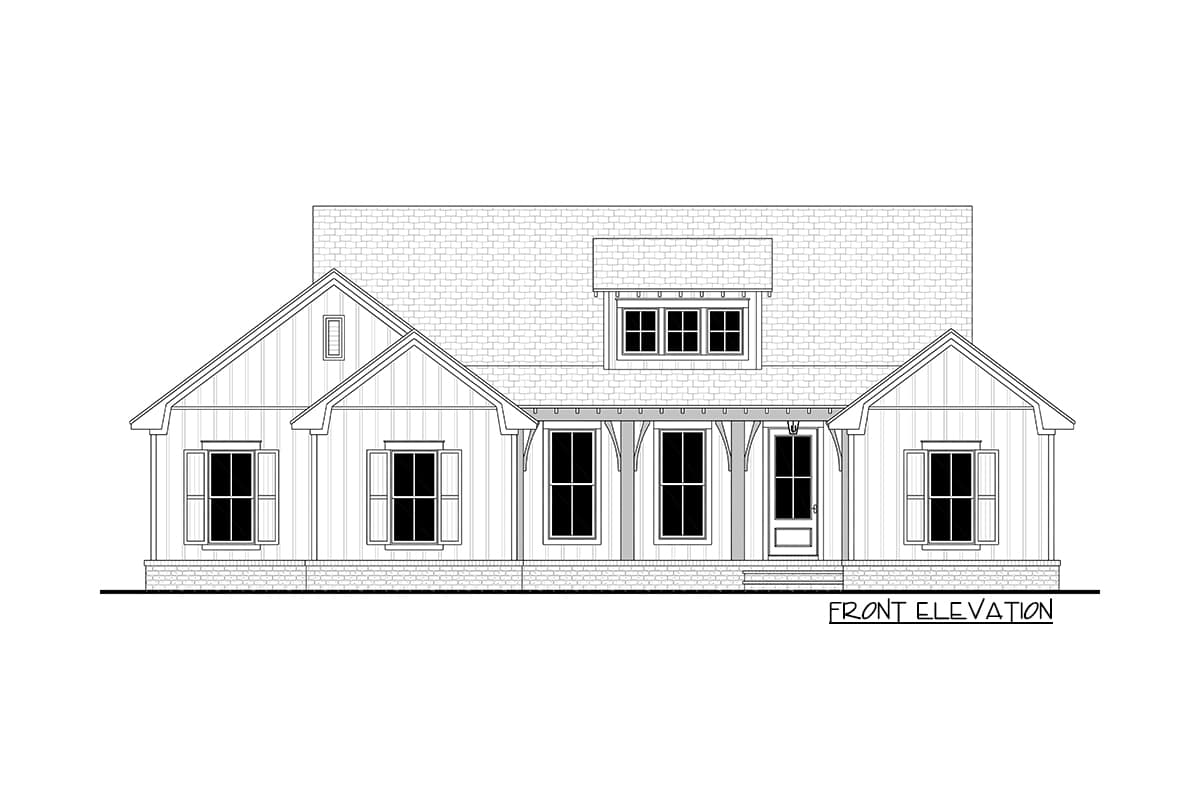

Page 4 Front and rear exterior views with additional details

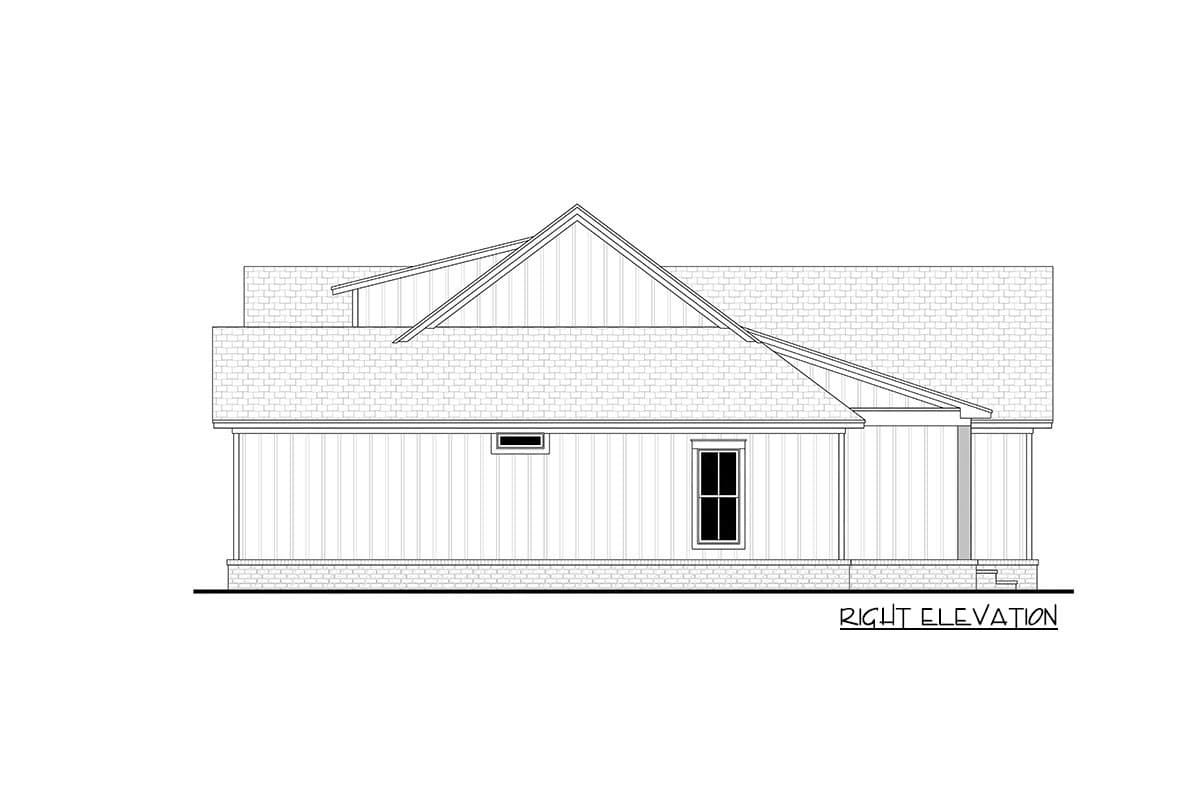

Page 5 Right and left exterior views with additional details

Page 6 Cross Section & kitchen cabinet views

Page 7 Roof plan and span charts with additional details

Page 8 Electrical plan & notes/ legend

Page N1 Code Information

Page N2 Code Information

Page N3 Code Information

Page N4 Energy Code Information

Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

PRINT DETAILS

Square Footage Breakdown

Total Heated Area:

1,697 sq. ft.

1st Floor:

1,697 sq. ft.

Porch, Rear:

171 sq. ft.

Porch, Front:

116 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Foundation Type

Standard Foundations:

Crawl, Slab

Optional Foundations:

Basement, Walkout

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

57' 2"

Depth:

50' 5"

Max Ridge Height:

23' 0"

Garage

Type:

Attached

Area:

600 sq. ft.

Count:

2 Cars

Entry Location:

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch:

9 on 12

Secondary Pitch:

4 on 12

Framing Type:

Stick

Architectural Style

Country

New American

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
