Plan 42166DB

One-story New American Ranch Home Plan with Hidden Pantry and 2 Owner's Suites

Heated S.F.
1,986
Beds
2
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 42166DB

Main Level
Main Level

Plan 42166DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

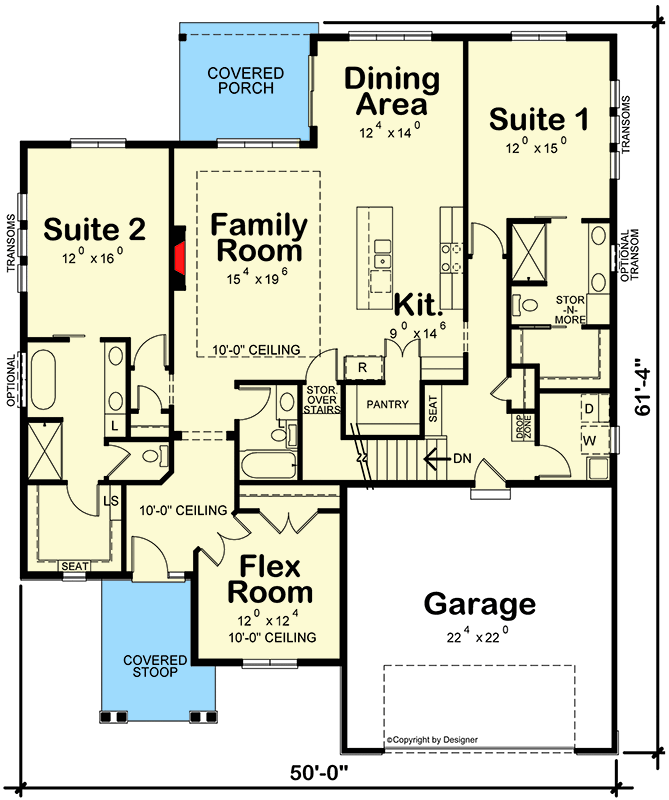

Plan 42166DB: One-story New American Ranch Home Plan with Hidden Pantry and 2 Owner's Suites - Floor Plan - Main Level

Plan Details

  • This one-story modern ranch home plan has a clapboard, stone and board and batten exterior.
  • The covered entry protects you from the elements and opens into a foyer with a flex room to the right that would make a great home office.
  • A hidden pantry and an 8'6" long island are two great features in the kitchen.
  • The open-concept living space lends itself to good-size gatherings, and the rear covered porch provides a nice fresh air space.
  • Two owners' suites of similar size each have their own bathrooms and walk-in closets. One of the en suites includes a separate tub and shower, along with a toilet room.

What's Included

  • General Notes

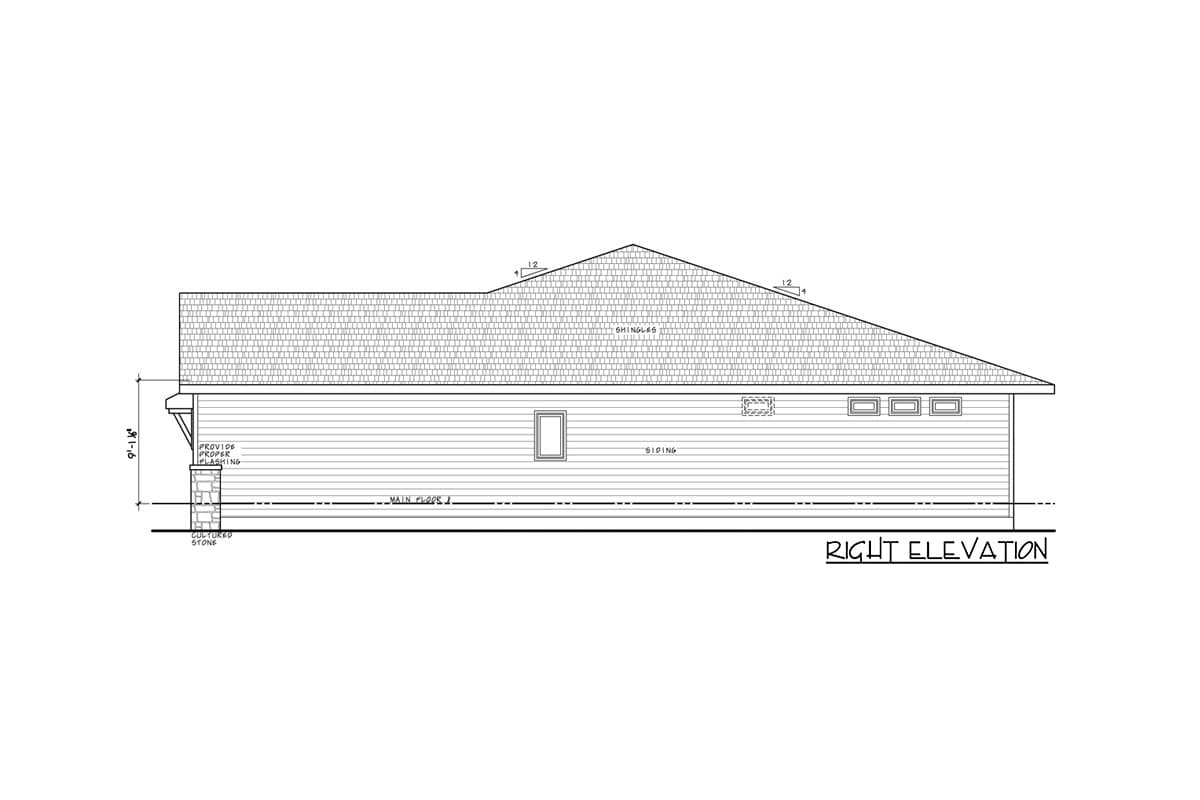

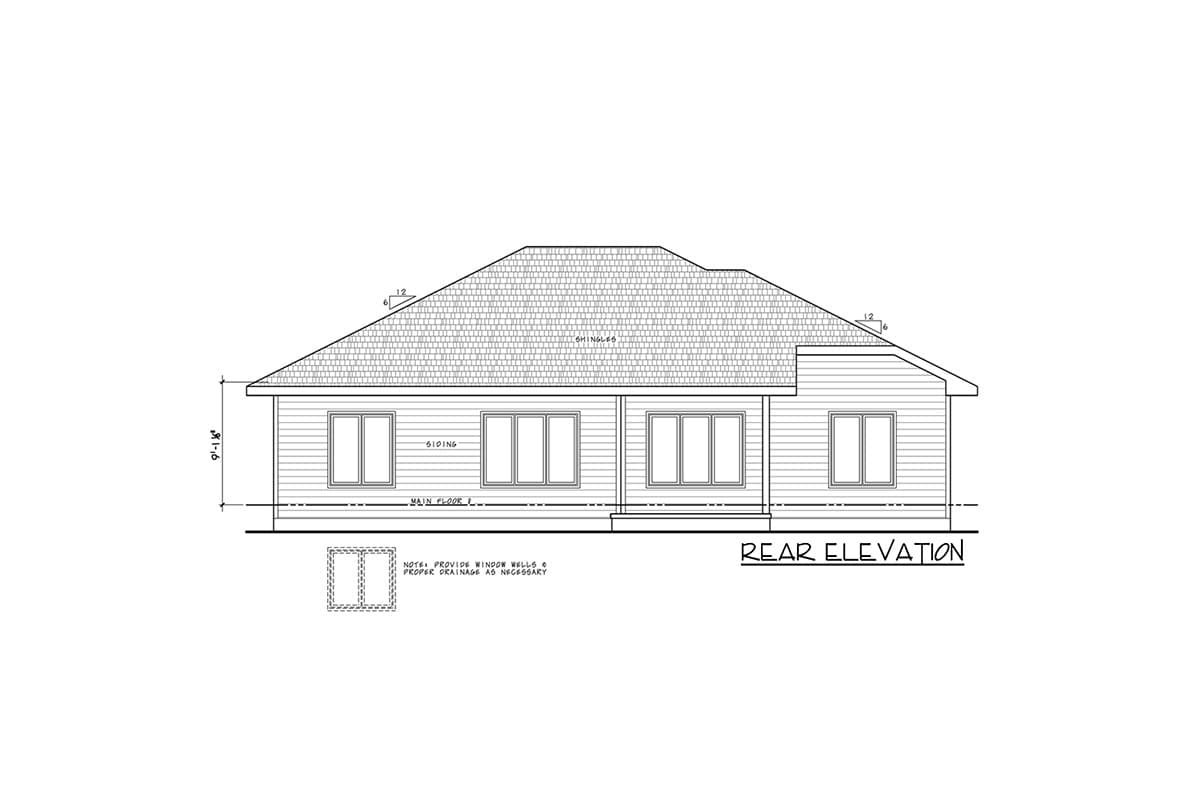

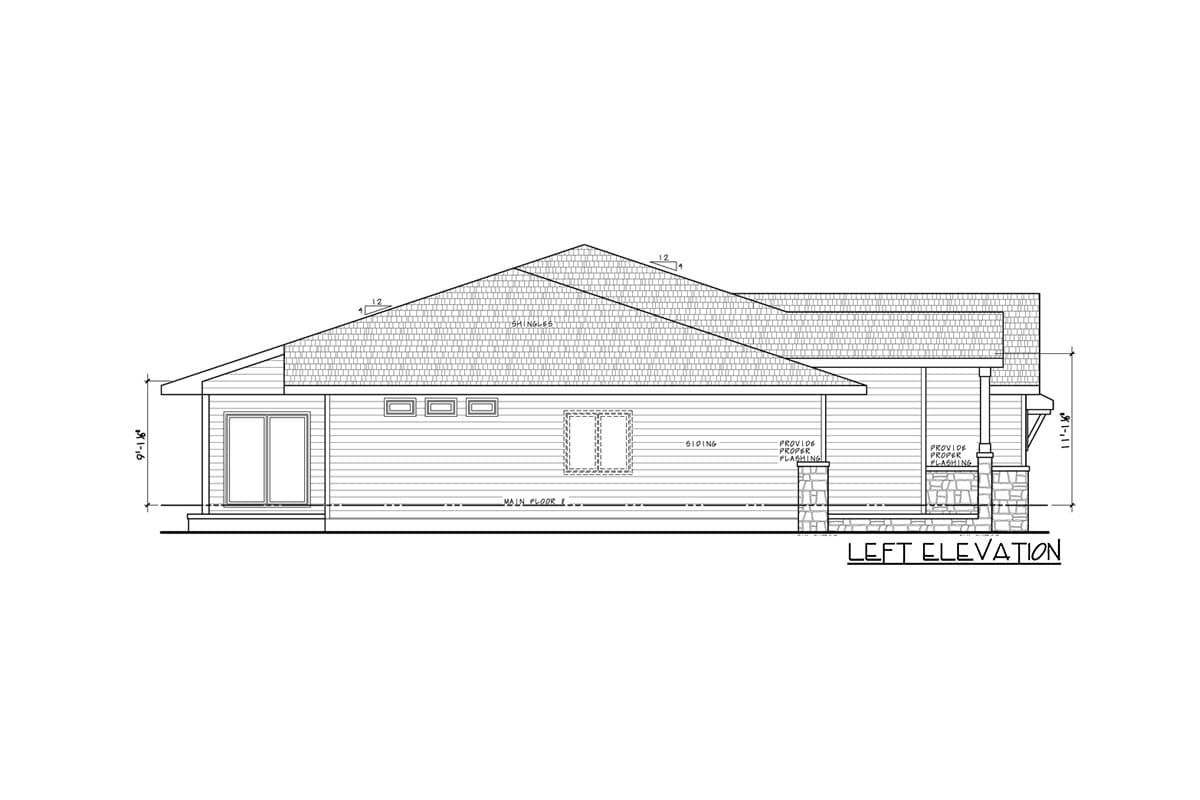

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,986 sq. ft.

1st Floor

1,986 sq. ft.

Porch, Front

100 sq. ft.

Porch, Rear

99 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

61' 4"

Max Ridge Height

21' 2"

Garage

Type

Attached

Area

509 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Special Features

Flex Room

Square Footage Breakdown

Total Heated Area

1,986 sq. ft.

1st Floor

1,986 sq. ft.

Porch, Front

100 sq. ft.

Porch, Rear

99 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

61' 4"

Max Ridge Height

21' 2"

Garage

Type

Attached

Area

509 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Special Features

Flex Room
