Plan 83838JW
One Story Southern House Plan
Heated S.F.
2,126
Beds
3
Baths
2 - 3
Stories
1
Cars
2
What's Included
Plan Details
  • Three of the most populer customer requests have been met in this lovely Southern house plan.
  • Split bedrooms, a large walk-in pantry and an open floor plan hit just the right note.
  • Using a column instead of walls in the dining room gives you wonderful sightlines.
  • All the main rooms can see out onto the rear covered porch and enjoy the family room fireplace.
  • Decorated with a lovely tray ceiling, the master suite projects elegance.
  • Across the house, the two family bedrooms share a hall bathroom with a double sink dressing area.
  • Bonus space over the courtyard style garage comes with a full bathroom.
What's Included
  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One Story Southern House Plan

  • 2,126

    Heated s.f.

  • 3

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

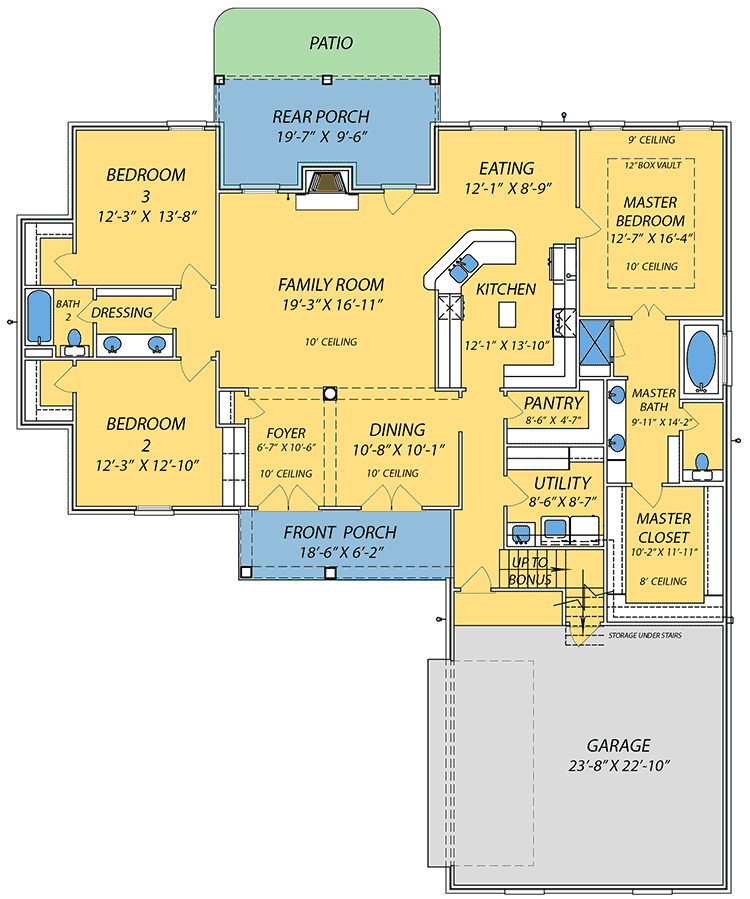

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,126 sq. ft.
  • 1st Floor: 2,126 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 70' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 603 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
