Plan 62405DJ
One-Story Two-Family House Plan
Heated S.F.
2,762
Units
2
Width
100'
Depth
48'
Cars
4
What's Included
Plan Details
  • One of the most appealing aspects of this one-story, multi-family house plan, is its feeling of casual comfort, both inside and out. A deep, covered front porch offers a friendly welcome to family and friends. Inside, the entry hall opens to the great room, with its corner fireplace, built-in entertainment center and bookshelves, all beneath a 10-foot-high ceiling. Each unit gives you 1,381 square feet of heated living space.
  • Open to the great room, is the breakfast area and kitchen, with wrapping counter space and breakfast bar. The breakfast area accesses a wide, rear covered porch for outdoor dining options.
  • The master suite is tucked away for privacy from the main living areas. It is brightened by plenty of natural light beneath a 10-foot-high ceiling in the bedroom, and a walk-in closet in the bath area. Secondary bedrooms 2 and 3 have views to the front and share a hall bath. A practical laundry area with bench also serves as a mud room between the great room and the 2-car-garage.
Unit A
1,381 Sq. Ft.
1381 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
2 Vehicle
Attached
550 Sq. Ft.
50' w 48' d 20' h
Unit B
1,381 Sq. Ft.
1381 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
2 Vehicle
Attached
550 Sq. Ft.
50' w 48' d 20' h
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Story Two-Family House Plan

  • 2,762

    Heated s.f.

  • 2

    Units

  • 100'

    Width

  • 48'

    Depth

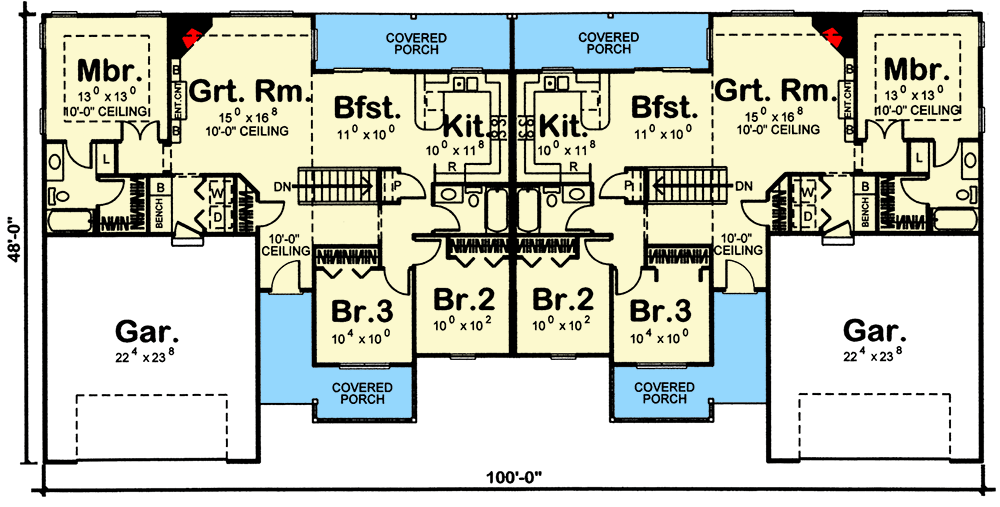

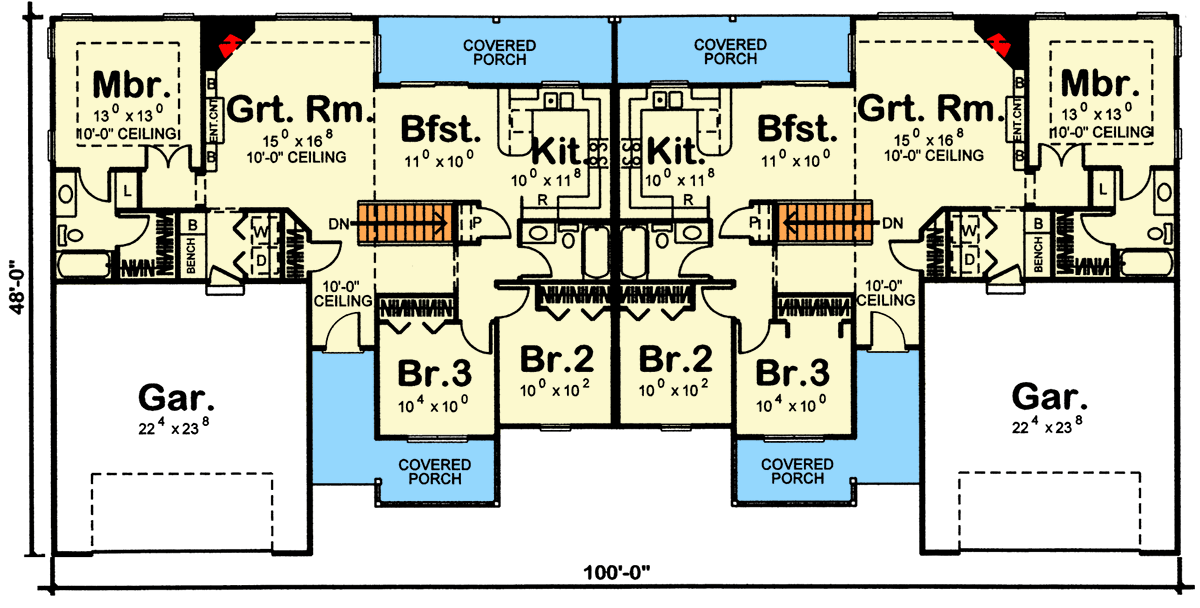

Floor Plan
