Plan 72489DA

Open-Air 2-Car Vaulted Carport with Rustic Timber Frame

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2

Floor Plan

Plan 72489DA

Main Level
Main Level

Plan 72489DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

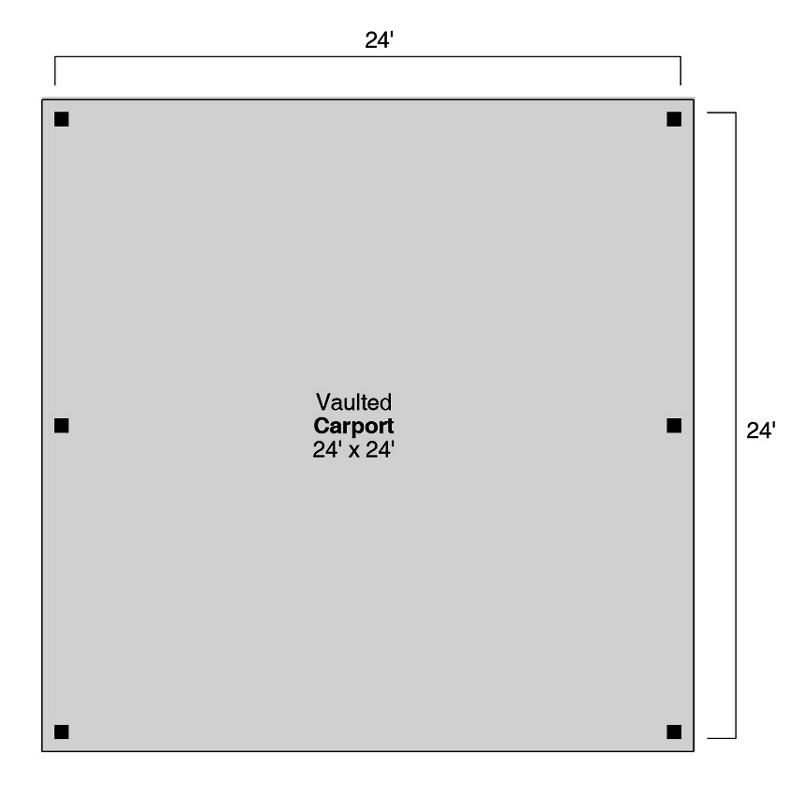

Plan 72489DA: Open-Air 2-Car Vaulted Carport with Rustic Timber Frame - Floor Plan - Main Level - Rustic

Plan Details

  • This 24' x 24' vaulted carport delivers 576 square feet of covered parking space, comfortably sheltering two vehicles beneath its open-sided design.
  • Crafted in a rustic timber frame with exposed trusses, the structure exudes warmth and charm—perfectly suited to natural, wooded, or rural settings.
  • The simple square footprint supports a gabled, vaulted roof that enhances ventilation and vertical clearance, ideal for tall trucks, SUVs, or recreational gear.
  • With no enclosed walls, the layout ensures easy drive-through access from multiple directions, offering practical flexibility in placement on your lot.
  • Designed as a freestanding unit, this carport serves as a versatile addition—use it as a car shelter, shade structure, or open-air pavilion for gatherings.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

6x6 Posts

Dimensions

Width

24' 0"

Depth

24' 0"

Max Ridge Height

17' 0"

Garage

Type

Carport

Area

576 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Rustic

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

6x6 Posts

Dimensions

Width

24' 0"

Depth

24' 0"

Max Ridge Height

17' 0"

Garage

Type

Carport

Area

576 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Rustic
