Open and Bright 3 Bed Home Plan

Heated S.F.
2,121
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 55172BR

Main Level
Main Level
2nd Floor
2nd Floor
Optional
Optional

Plan 55172BR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

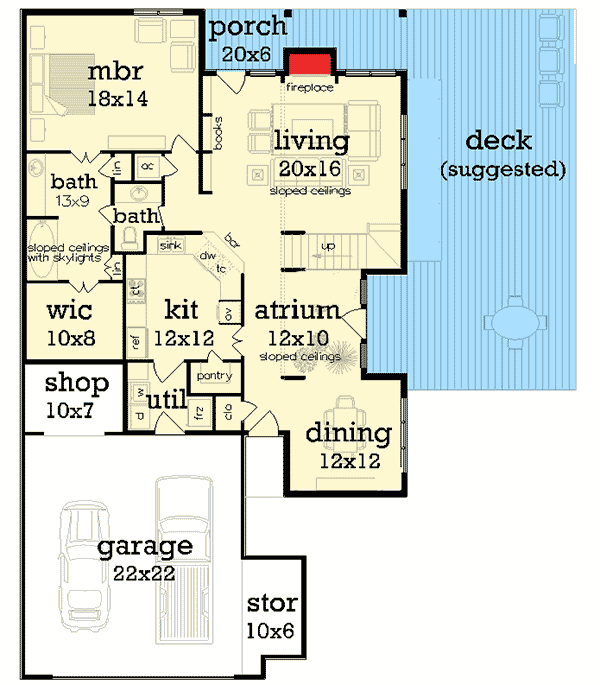

Plan 55172BR: Open and Bright 3 Bed Home Plan - Floor Plan - Main Level

2nd Floor

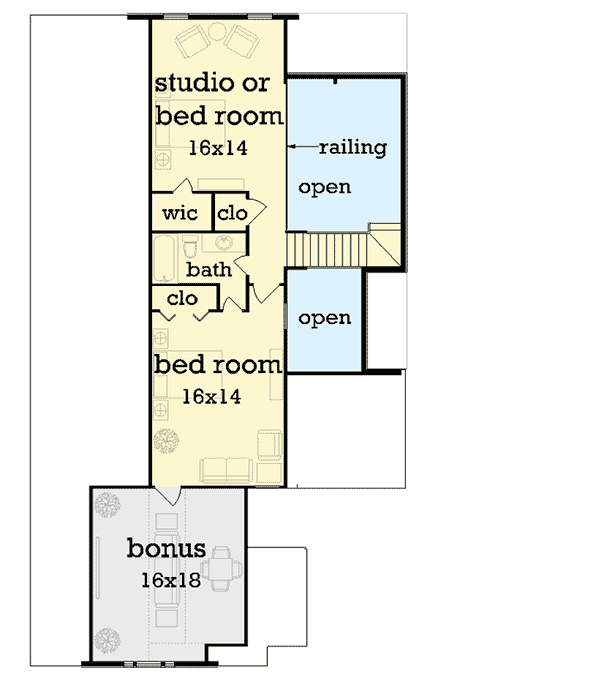

Plan 55172BR: Open and Bright 3 Bed Home Plan - Floor Plan - 2nd Floor

Optional

Plan 55172BR: Open and Bright 3 Bed Home Plan - Floor Plan - Optional

Plan Details

  • With expansive glass on the rear and side, this home is ideal for your view lot whether on the water or woods. With one side having no windows, it also is great for use in zero lot line projects.
  • The inside is bright and open with lots of glass and sloped ceilings in the living room and atrium that ascend to the upper level where a bedroom has an open view of the living room below (it can also be enclosed for privacy). The upper level bonus space is ideal as a home theatre or play room for the kids.
  • The master suite has a rear view and it is large and roomy. The adjoining bath also has sloped ceilings and natural light via skylights. There is an optional bath plan if one prefers a separate shower and toilet area.
  • The kitchen is fully appointed and it features an open view to the living room, an eating bar and a wonderful butler's pantry.
  • The garage has space for a workshop and lots of storage.
  • This home is a super energy saving design with 2x6 exterior walls.
  • The stick framed roof has an 8:12 pitch.

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,121 sq. ft.

1st Floor

1,449 sq. ft.

2nd Floor

672 sq. ft.

Bonus

280 sq. ft.

Porch, Combined

173 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

66' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

662 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Master Suite - 1st Floor

Optionally Finished Bonus Room

Playroom

Walk-in Pantry

Workshop

Square Footage Breakdown

Total Heated Area

2,121 sq. ft.

1st Floor

1,449 sq. ft.

2nd Floor

672 sq. ft.

Bonus

280 sq. ft.

Porch, Combined

173 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

66' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

662 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Master Suite - 1st Floor

Optionally Finished Bonus Room

Playroom

Walk-in Pantry

Workshop
