Open Concept Craftsman Home Plan with Split Bed Layout

Heated S.F.
2,112
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 790014GLV

Main Level
Main Level
Optional Master Bath
Optional Master Bath

Plan 790014GLV

M-F 9am-5pm EST |

1-203-761-8500

Main Level

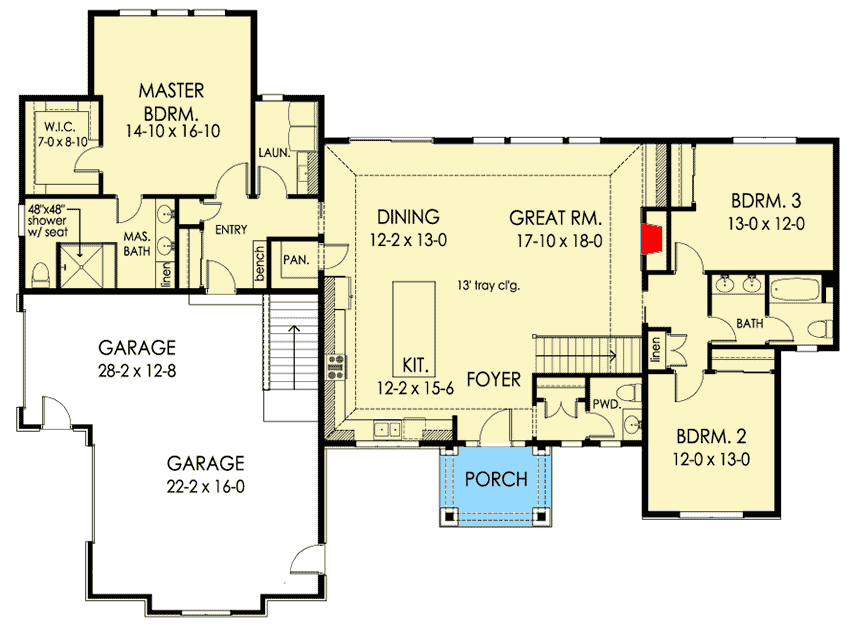

Plan 790014GLV: Open Concept Craftsman Home Plan with Split Bed Layout - Floor Plan - Main Level - Craftsman, Mountain, Northwest, Rustic

Optional Master Bath

Plan 790014GLV: Open Concept Craftsman Home Plan with Split Bed Layout - Floor Plan - Optional Master Bath - Craftsman, Mountain, Northwest, Rustic

Plan Details

  • This 3-bed Craftsman house plan has a rugged exterior with shakes, clapboard and timber-accented gables. A covered entry is supported by timbers set on stone bases and welcomes you to the front door transom and side lights.
  • The middle portion of the home has a 13' tray ceiling and is open concept. Sliding doors on the back wall of the dining room take you outside.
  • The master suite gives you a walk-in closet dual sinks in the bath. Laundry is tucked away by the family entry and drop-off area off the garage.
  • Across the home, two beds share a bath.

What's Included

  • Cover sheet with notes

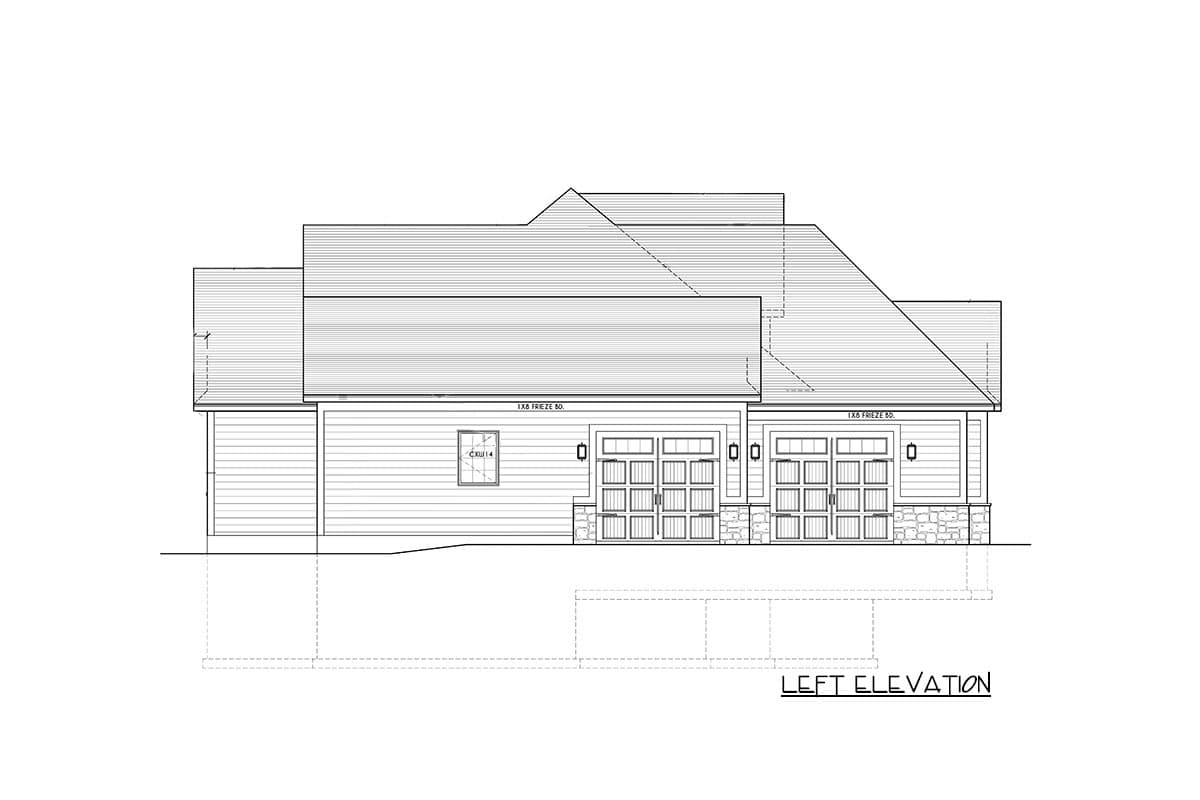

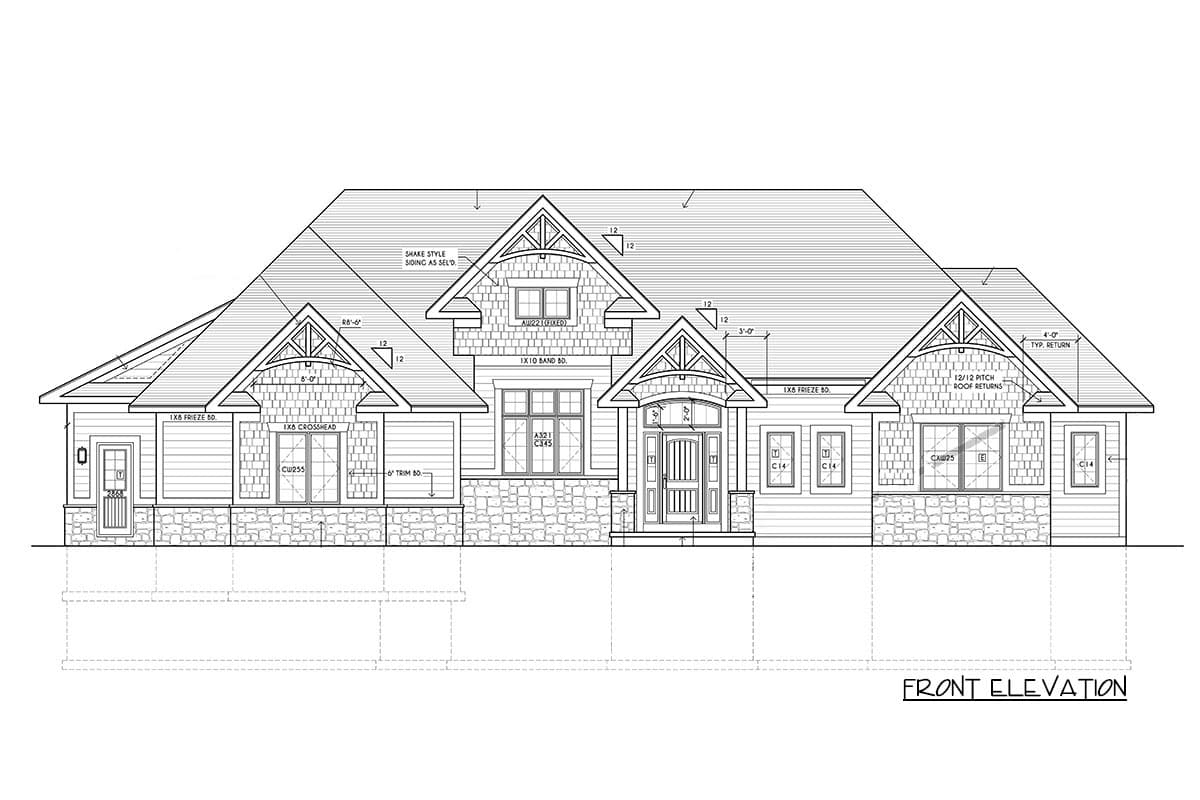

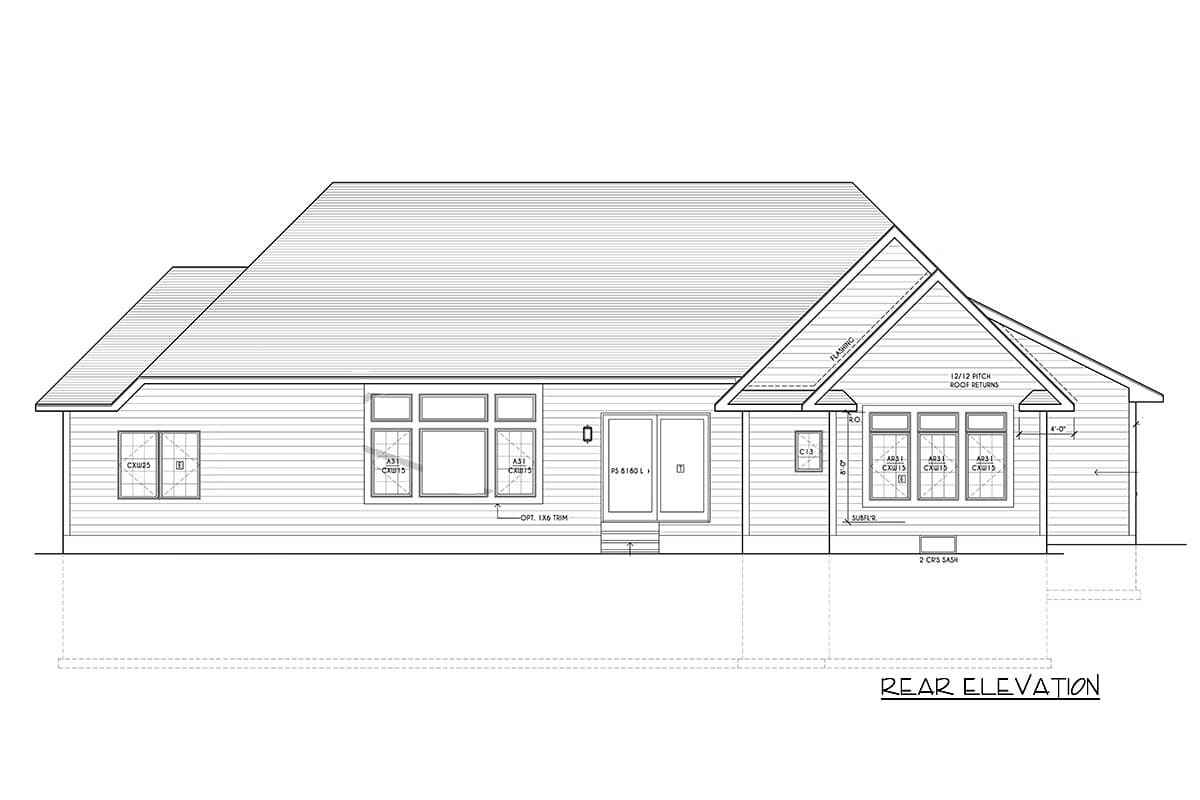

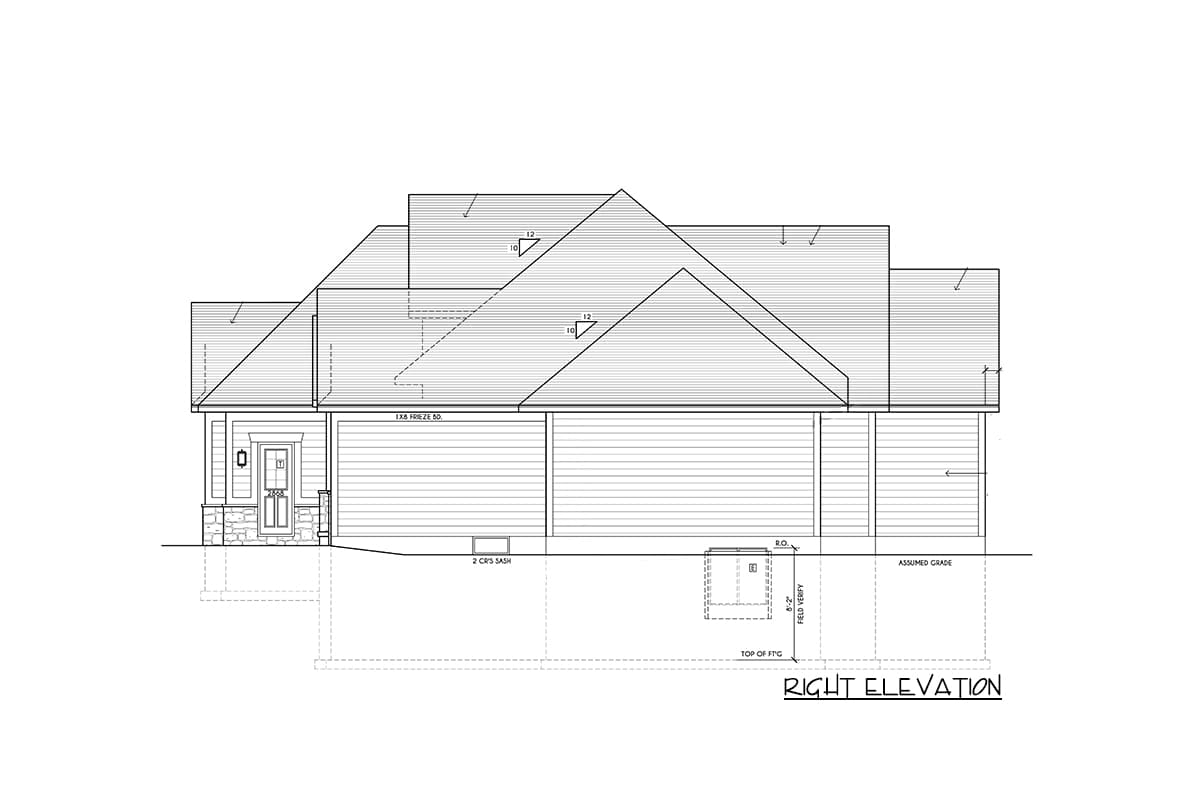

  • Elevations
