Plan 8157LB
Open Floor Plan Duplex
Heated S.F.
3,028
Units
2
Width
40'
Depth
48'
Cars
2
What's Included
Plan Details
  • Traditional in style, this duplex house plan offers each unit a one car garage, a home office and a master bedroom on the ground floor.
  • A big vaulted ceiling tops the second floor great room that has an open layout to make the most of the square footage.
  • Sliding glass doors lead out to a deck where you can bask in the sunshine.
  • Two family bedrooms face the front of your lot and they share a hall bathroom.
Unit A
1,514 Sq. Ft.
640 Sq. Ft. 1st Floor
874 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Vehicle
Attached
256 Sq. Ft.
20' w 48' d 39' h
Unit B
1,514 Sq. Ft.
640 Sq. Ft. 1st Floor
874 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Vehicle
Attached
256 Sq. Ft.
20' w 48' d 39' h
What's Included

What is Included in Our Plans?

We work with hundreds of designers and architects who work in a variety of styles.  It is important to note. Their plan packages may contain different details.

We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below are examples of sheets that may be included in plan sets - please be aware that not every plan includes every one of these pages:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

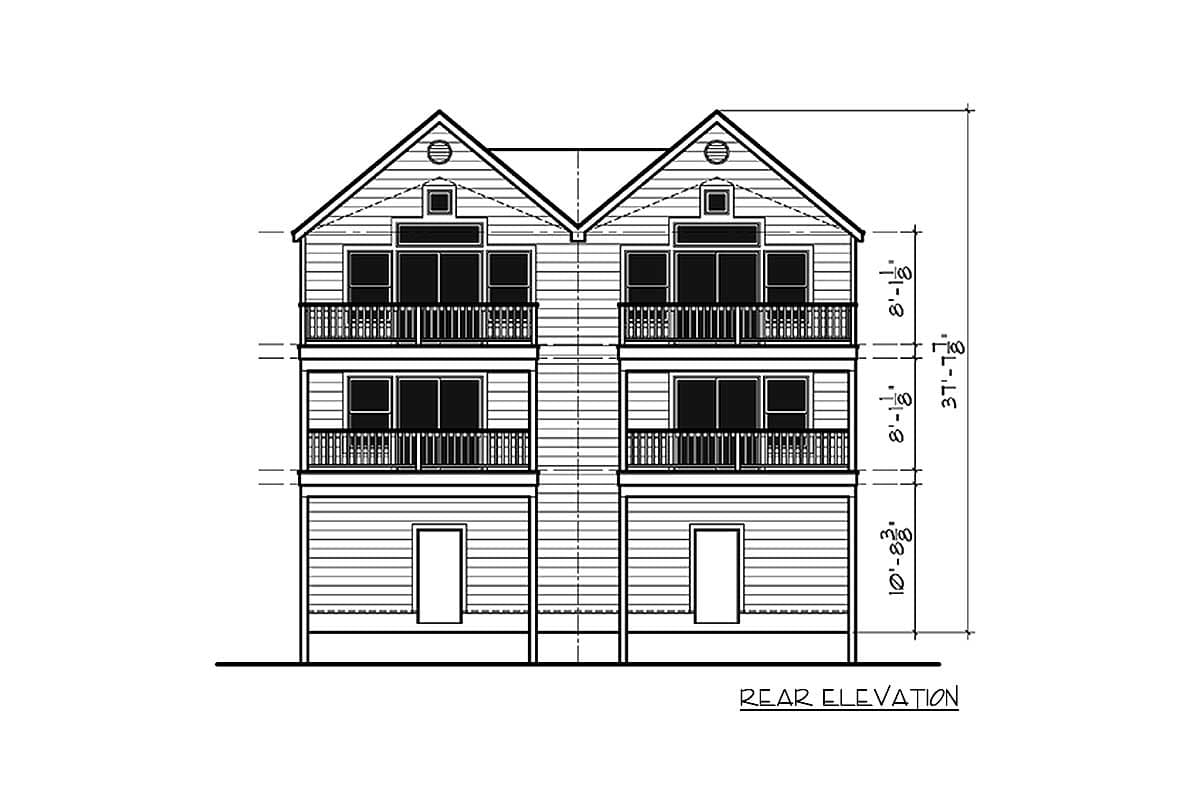

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Floor Plan Duplex

  • 3,028

    Heated s.f.

  • 2

    Units

  • 40'

    Width

  • 48'

    Depth

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,028 sq. ft.
  • 1st Floor: 1,280 sq. ft.
  • 2nd Floor: 1,748 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 48' 0"
  • Max ridge height: 39' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 512 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6
All house plans are copyright ©2024 by the architects and designers represented on our web site

Open Floor Plan Duplex

  • 3,028

    Heated s.f.

  • 2

    Units

  • 40'

    Width

  • 48'

    Depth

Open Floor Plan Duplex

  • 3,028

    Heated s.f.

  • 2

    Units

  • 40'

    Width

  • 48'

    Depth

Plan Details

Square Footage Breakdown

  • Total: 3,028 sq. ft.
  • 1st Floor: 1,280 sq. ft.
  • 2nd Floor: 1,748 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 48' 0"
  • Max ridge height: 39' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 512 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

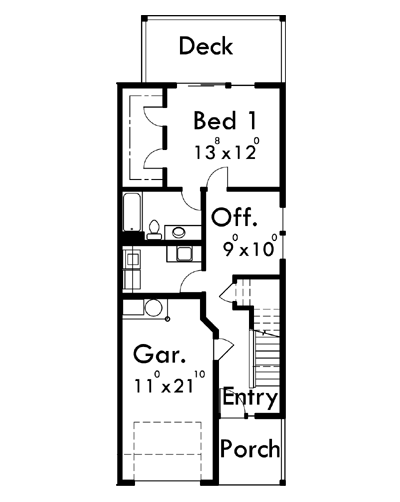

    Main Level

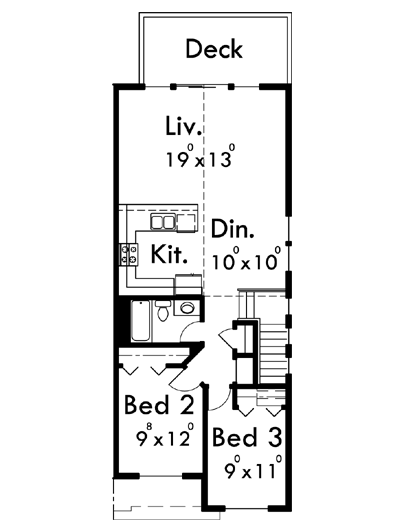

    2nd Floor
