Plan 31173D
Open Layout
Heated S.F.
1,732
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Less than 44' wide, this one level Traditional home plan fits well on a narrow lot.
  • A transom window over the front door brightens the foyer.
  • The family bedroom wing is to the left with two good-sized bedrooms.
  • An open layout lets you see all the way from the kitchen to the dining room with tray ceiling to the large family room that has a built-in entertainment center and tray ceiling.
  • A pass-through half wall lies between the dining room and family room.
  • The master suite enjoys a quiet location, large walk-in closet and two sinks in the bathroom.
  • Note the tech center in the hall that allows you to keep the family computer out of the main living space.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Layout

  • 1,732

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

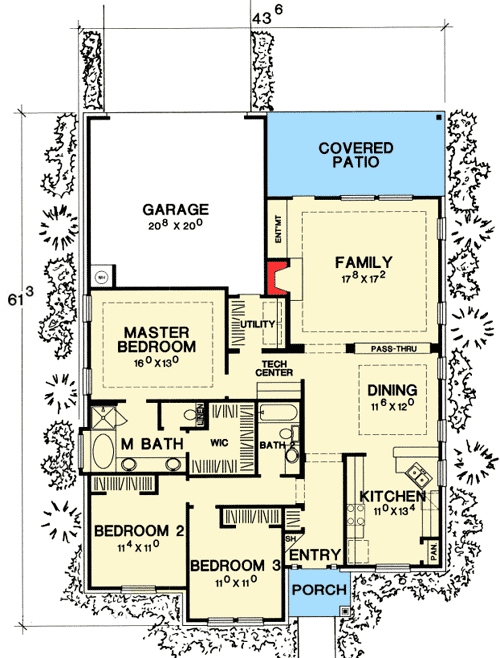

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,732 sq. ft.
  • 1st Floor: 1,732 sq. ft.

Dimensions

  • Width: 43' 6"
  • Depth: 61' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 414 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
