Open Plan Entertains

Plan 5951ND

  • 1,608

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Passersby will marvel at the lavish window accents and gabled roof lines of this home. Walking through the foyer affords a stunning view of am immense open plan that begs to entertain.
  • The walk-through kitchen features an angled bar and entry to the utility room and garage.
  • Isolated at the rear of the house is the master suite with a 10' boxed ceiling and corner whirlpool tub with glass block wall for natural lighting.
  • Foundation: basement, slab or crawl space. Please specify your preference when ordering.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

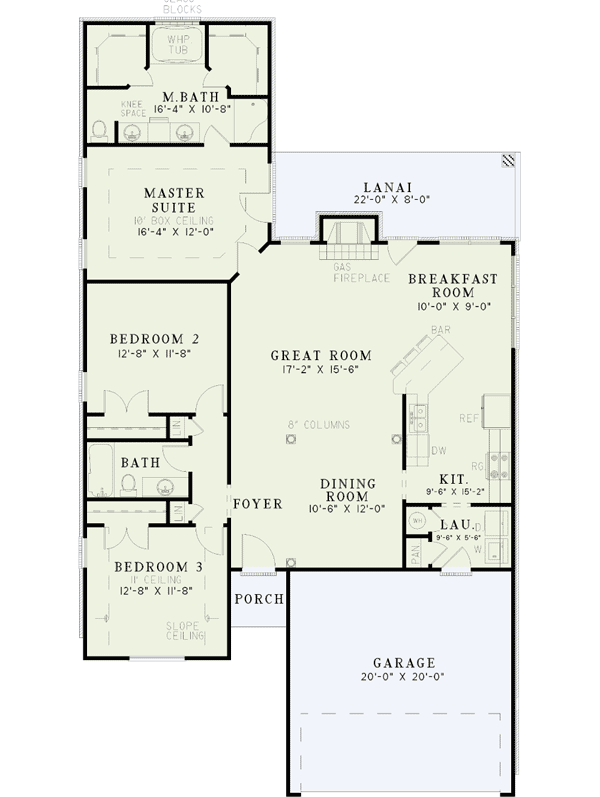

Open Plan Entertains - 5951ND floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,608 sq. ft.
  • 1st Floor: 1,608 sq. ft.
  • Entry: 45 sq. ft.
  • Lanai: 176 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 70' 0"
  • Max ridge height: 26' 9"

Garage

  • Type: Attached
  • Area: 400 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Open Plan Entertains

  • 1,608

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,608 sq. ft.
  • 1st Floor: 1,608 sq. ft.

Dimensions

  • Width: 39' 0"
  • Depth: 70' 0"
  • Max ridge height: 26' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 400 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
