Plan 3073D

Outdoor Living And Entertaining Spaces

Heated S.F.
1,994
Beds
3
Baths
2.5
Stories
1-2
Cars
2
Client Photos

Floor Plan

Plan 3073D

Main Level
Main Level
Bonus
Bonus

Plan 3073D

M-F 9am-5pm EST |

1-203-761-8500

Main Level

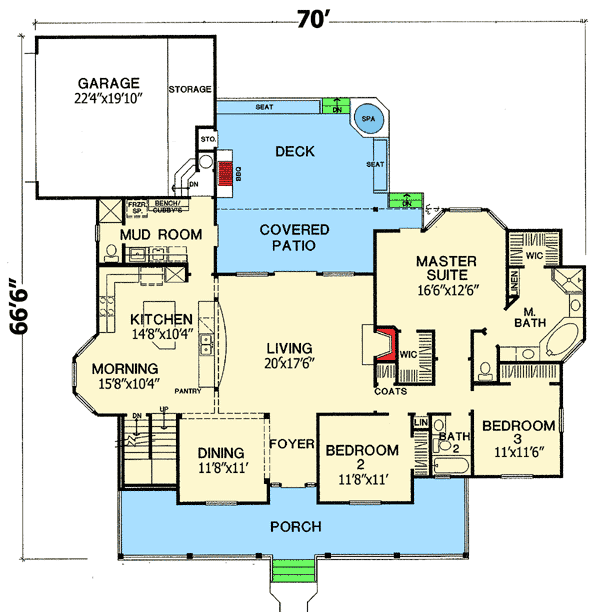

Plan 3073D: Outdoor Living And Entertaining Spaces - Floor Plan - Main Level

Bonus

Plan 3073D: Outdoor Living And Entertaining Spaces - Floor Plan - Bonus

Plan Details

  • In the rear of this country home, a covered patio extends to a roomy deck with a spa and built-in seating. In front, a wide porch provides another venue for outdoor living and entertaining. The side-entry garage suits the design to a wide or corner lot.
  • The open-plan interior revolves around the central living room with its fireplace. From here, you can view the formal dining room. A long counter with an eating bar and double sinks separates the living room from the islanded kitchen and the bayed morning room.
  • A second bay window graces the master suite, where separate his and her walk-in closets are sited. In the compartmented master bath, a corner garden tub is placed between two vanities. The secondary bedrooms share a hall bath.
  • Notice the convenient shower in the half bath off the mud room.
  • A stairway leads up to generous bonus space. The column in bonus room is used to break up a span of a concealed engineered beam in the ceiling framing system.
  • A pantry will come with the slab and crawl space versions of this home and it is located underneath the stairs to the second level.
  • The basement version will not have a pantry.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

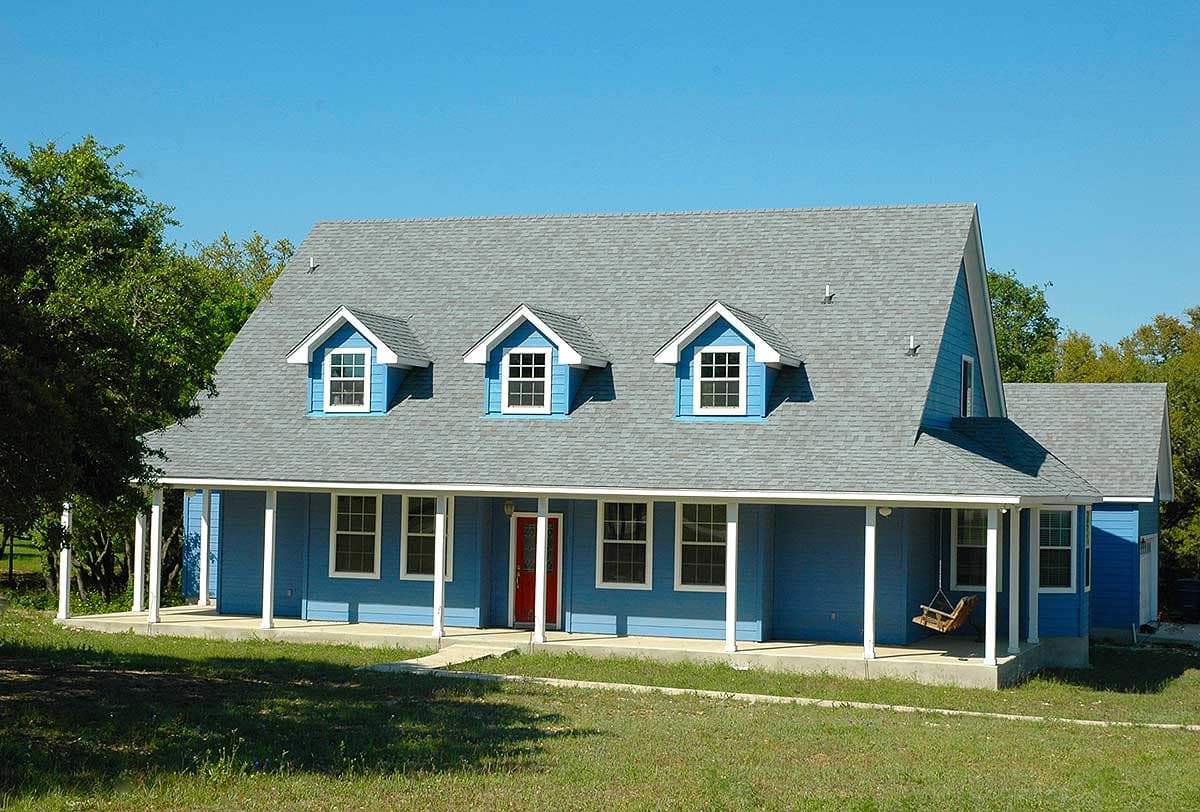

build gallery item - House Plan 3073D comes to life in Texas

House Plan 3073D comes to life in Texas

11

Photos

What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,994 sq. ft.

1st Floor

1,994 sq. ft.

Bonus

1,316 sq. ft.

Porch, Front

371 sq. ft.

Deck

495 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 0"

Depth

66' 6"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

466 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Formal Dining

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,994 sq. ft.

1st Floor

1,994 sq. ft.

Bonus

1,316 sq. ft.

Porch, Front

371 sq. ft.

Deck

495 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 0"

Depth

66' 6"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

466 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Formal Dining

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Optionally Finished Bonus Room

Plan Collections

Photo Gallery
