Plan 15672GE

Outdoor Spaces and Views

Heated S.F.

3,488

Beds

3-5

Baths

3.5

Stories

1

Cars

2

What's Included

Floor Plan

Basement

Reverse Floor Plan

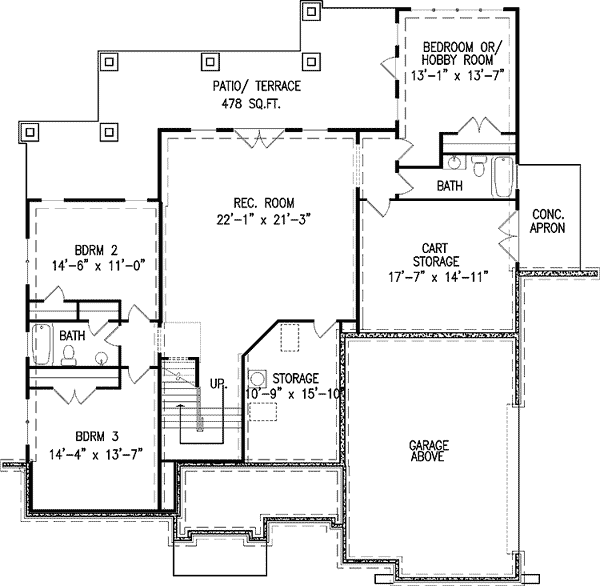

Outdoor Spaces and Views - 15672GE floor plan - Basement

Main Level

Reverse Floor Plan

Outdoor Spaces and Views - 15672GE floor plan - Main Level

Plan Details

Two sets of double doors lead to the rear outdoor space in this delightful mountain home plan with great rear views. A flexible layout gives you anywhere from 3 to 5 bedrooms.
Most of your informal family meals will be in the casual dining area that opens up to a screened porch.
The kitchen - with an angled eating bar - faces the lodge room to ensure views for all.
On the left side of the home, the elegant master suite has an extra-large closet and five-fixture bath.
Additional bedrooms can be found on the lower level along with a huge rec room made for entertaining.

What's Included

The plan set includes the following:

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

3,488 sq. ft.

Lower Level:

1,438 sq. ft.

1st Floor:

2,050 sq. ft.

Screened Porch:

126 sq. ft.

Covered Patio:

478 sq. ft.

Porch, Rear:

120 sq. ft.

Beds/Baths

Bedrooms:

3, 4, or 5

Full bathrooms:

3

Half bathrooms:

1

Foundation Type

Standard Foundations:

Walkout

Optional Foundations:

Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

56' 0"

Depth:

65' 0"

Garage

Type:

Attached

Area:

1108 sq. ft.

Count:

2 Cars

Entry Location:

Side

Ceiling Heights

Floor / Height:

First Floor / 10' 0"

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Plan Collections
