Plan 29802RL
Outdoor Views from Every Room
Heated S.F.
1,986
Beds
2 - 4
Baths
1.5 - 3.5
Stories
1
Cars
2
Floor Plan

Plan 29802RL

Main Level
slide image 0
Basement
slide image 1

Plan 29802RL

1-800-854-7852

1-262-521-4596

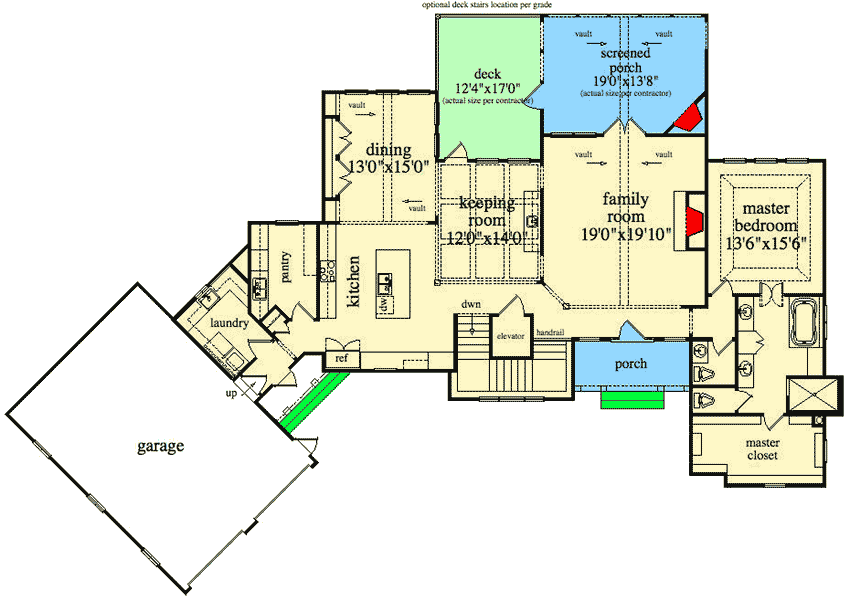

Main Level
floor plan image Main Level

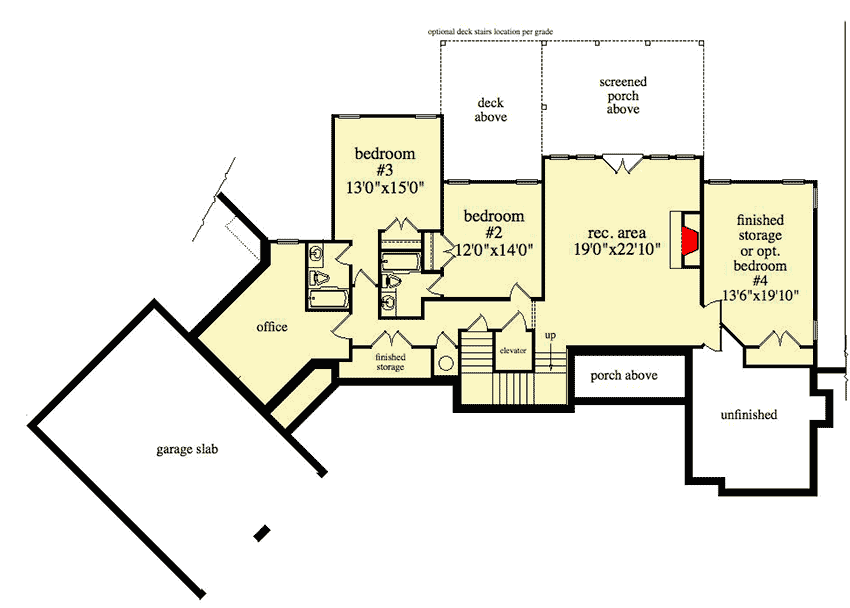

Basement
floor plan image Basement
Plan Details
  • House This plan works well on mountain lots with its secondary bedrooms and additional living space on the terrace level, which can be finished as needed.
  • Outdoor views from every room of the house as well as the home's architectural details and special features like the huge walk-in pantry with a second sink for the kitchen and built-in storage in the dining room make this a standout plan.
  • Don't overlook the fireplace in the screened porch, the designer master bath and closet or the sizable laundry room off the garage entry to the house.
  • The master suite features a double-tray ceiling and a luxury 5-fixture bath. There's loads of room in the walk-in closet.
  • A small porch is located off the angled 2-car garage.
What's Included

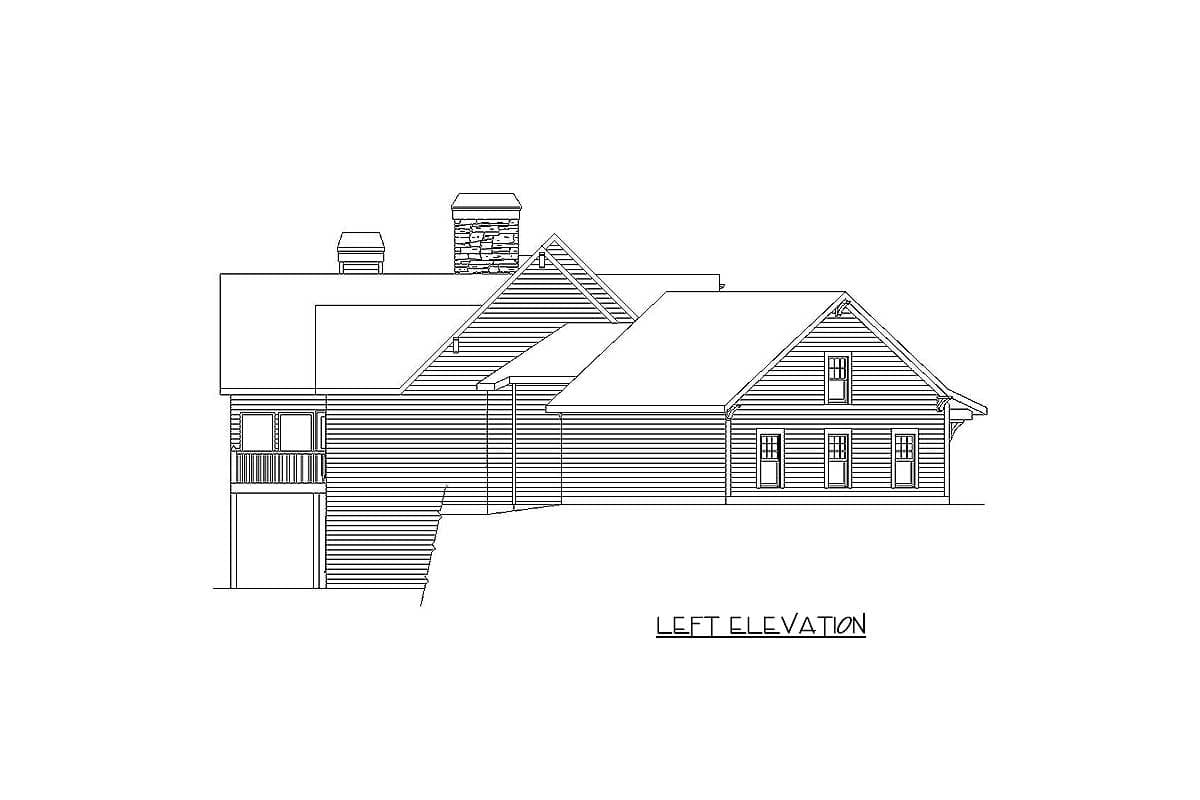

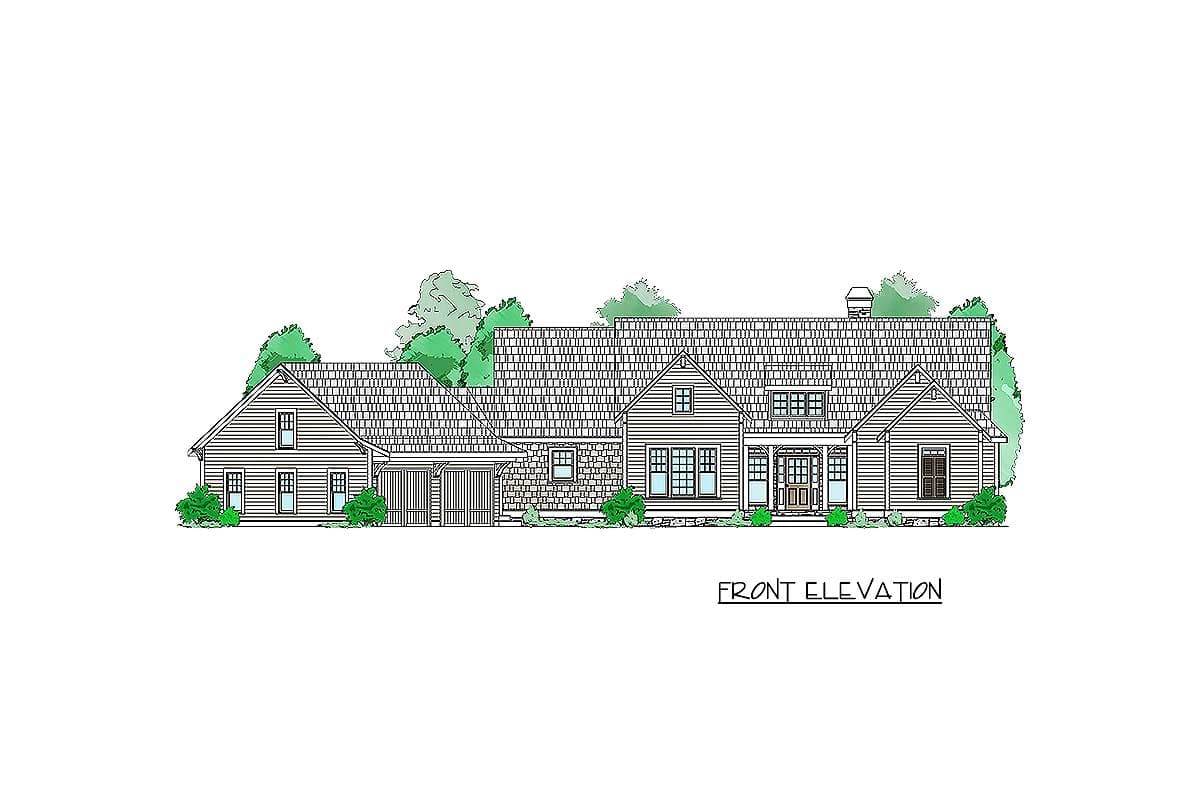

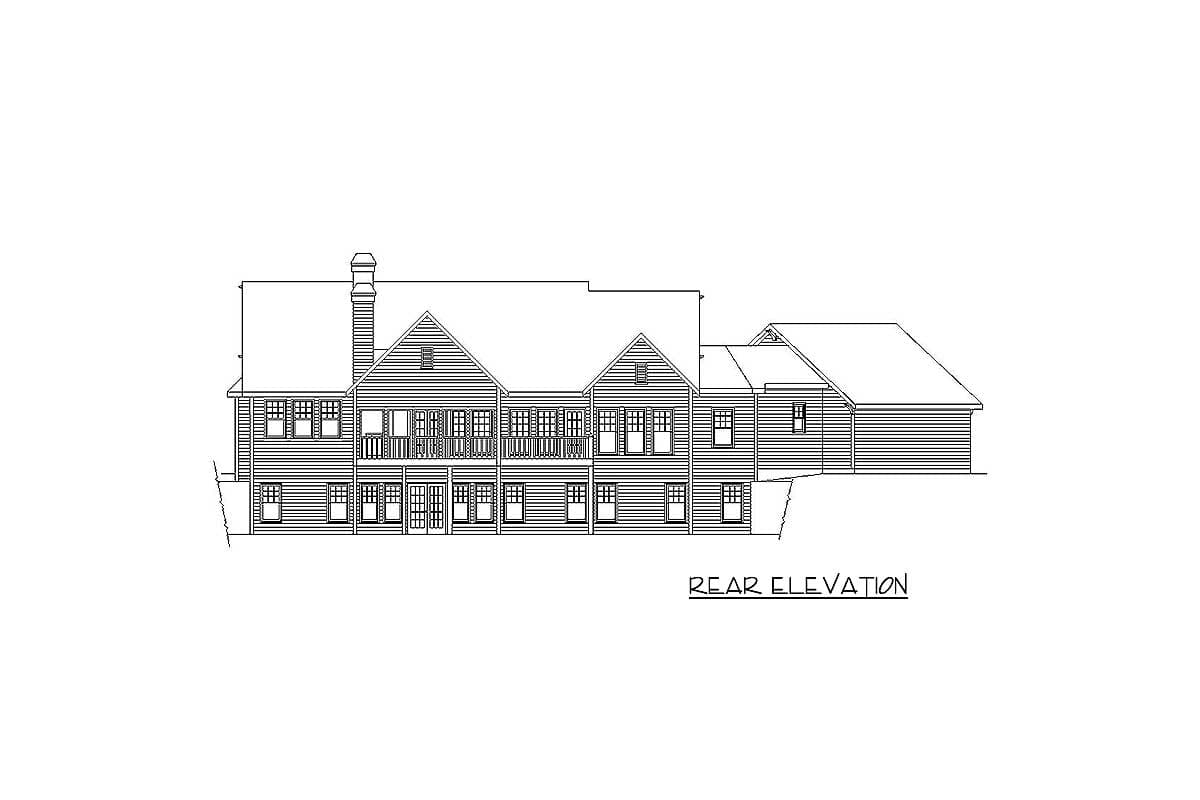

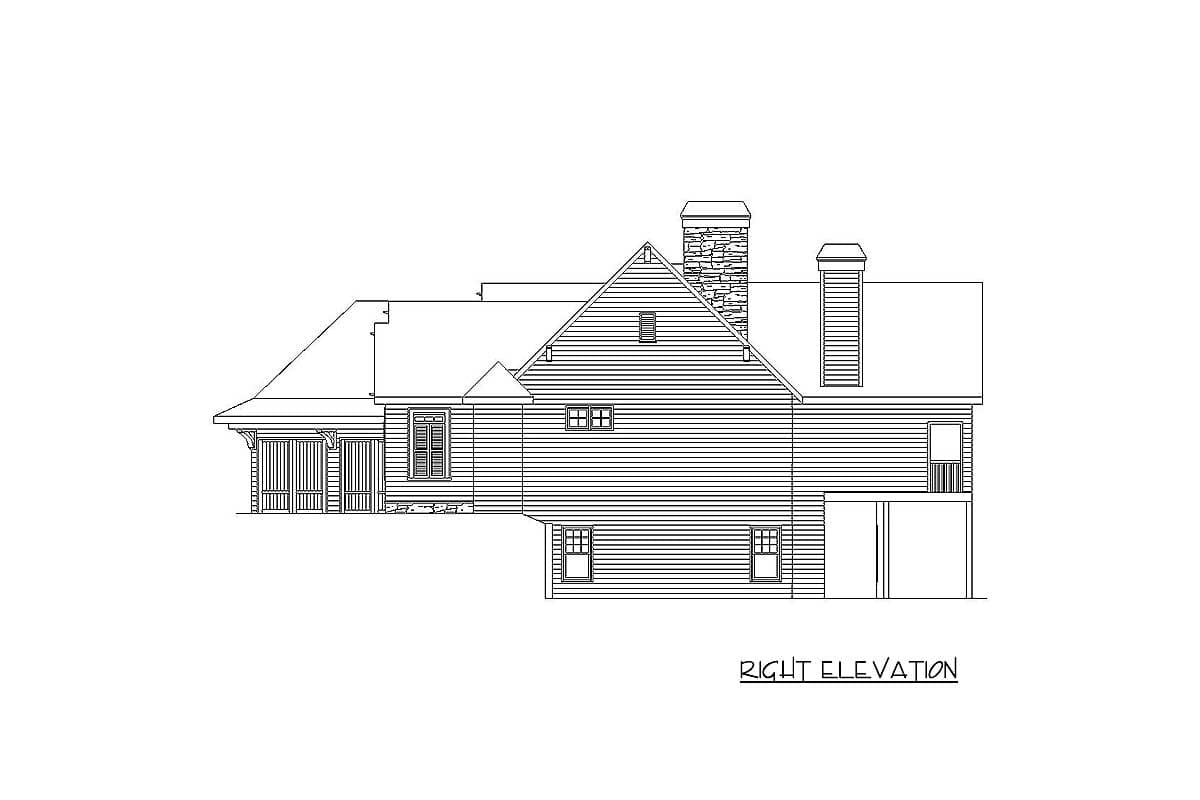

  • All Four Elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section (Typical Wall, Stairs (if applicable))
  • Typical Details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,986 sq. ft.

1st Floor

1,986 sq. ft.

Optional Lower Level

1,742 sq. ft.

Screened Porch

260 sq. ft.

Deck

210 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

1, 2, or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

99' 10"

Depth

59' 1"

Max Ridge Height

23' 8"

Garage

Type

Attached

Area

650 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Architectural Style

Craftsman

Mountain

Rustic

Special Features

Angled Garage

Bedrooms - Clustered

Butler Walk-in Pantry

Elevator

Flex Room

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Keeping Room

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Plan Collections
