Plan 60607ND

Oversized Master Suite

Heated S.F.
2,860
Beds
3 - 4
Baths
4
Stories
2
Cars
3

Floor Plan

Plan 60607ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60607ND

M-F 9am-5pm EST |

1-203-761-8500

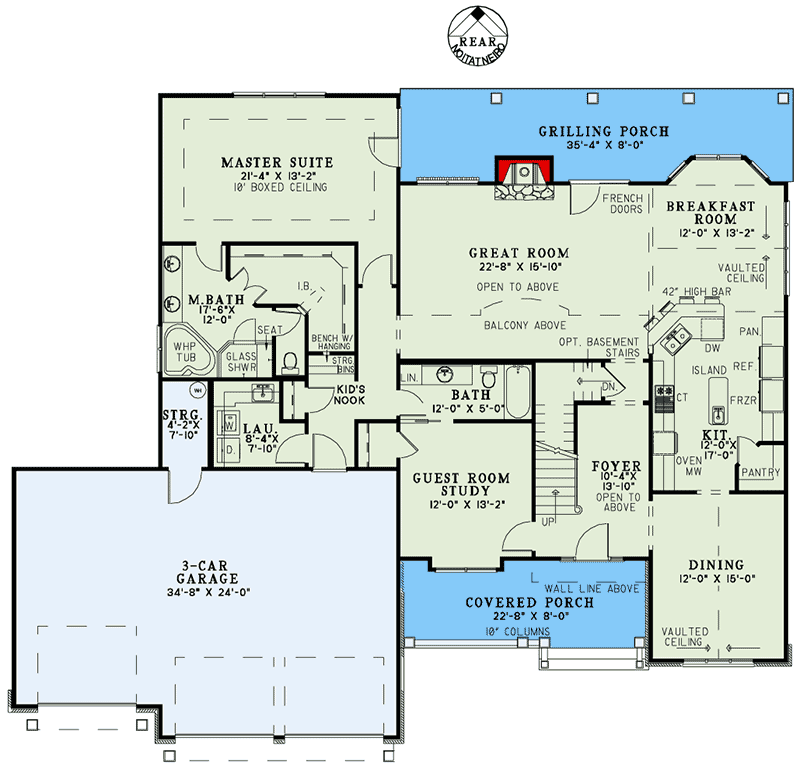

Main Level

Plan 60607ND: Oversized Master Suite - Floor Plan - Main Level - Craftsman, Northwest

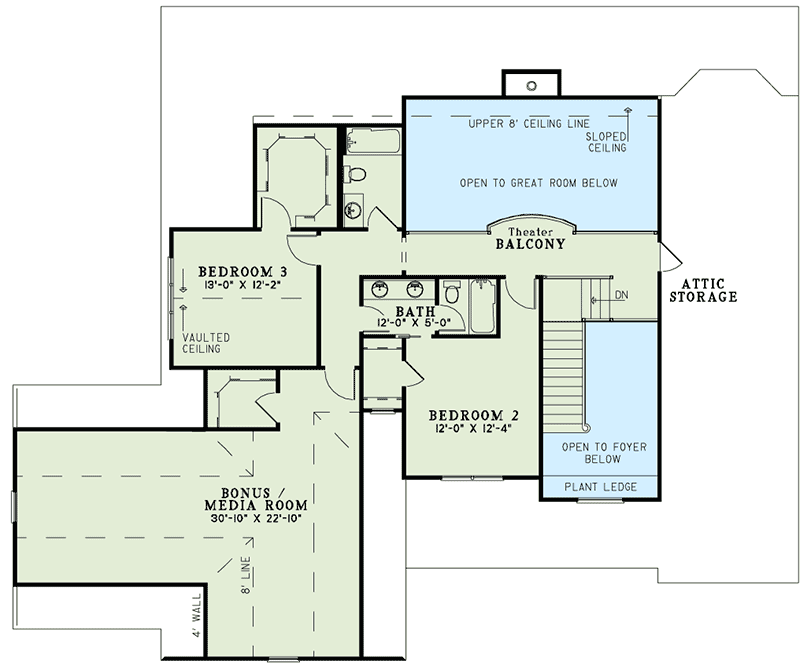

2nd Floor

Plan 60607ND: Oversized Master Suite - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • An interesting mix of stone, shakes and board and battan siding blend together beautifully in this Northwest home plan.
  • The front study can easily be used as a fourth bedroom due to the attached full bath.
  • A 2-story ceiling soars up in the great room with its big stone fireplace.
  • A bay window brightens the vaulted breakfast nook and the side by side refrigerator and freezer is geared for a large family.
  • Homeowners get to enjoy the huge master suite with its tray ceiling and spacious walk-in closet with a built-in ironing board.
  • Upstairs, the hall balcony overlooks the great room below and each of the bedrooms on this level gets a walk-in closet.
  • Bonus space lies over the garage and can be finished at your leisure.
  • The roof is stick framed and has a 12:12 pitch.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

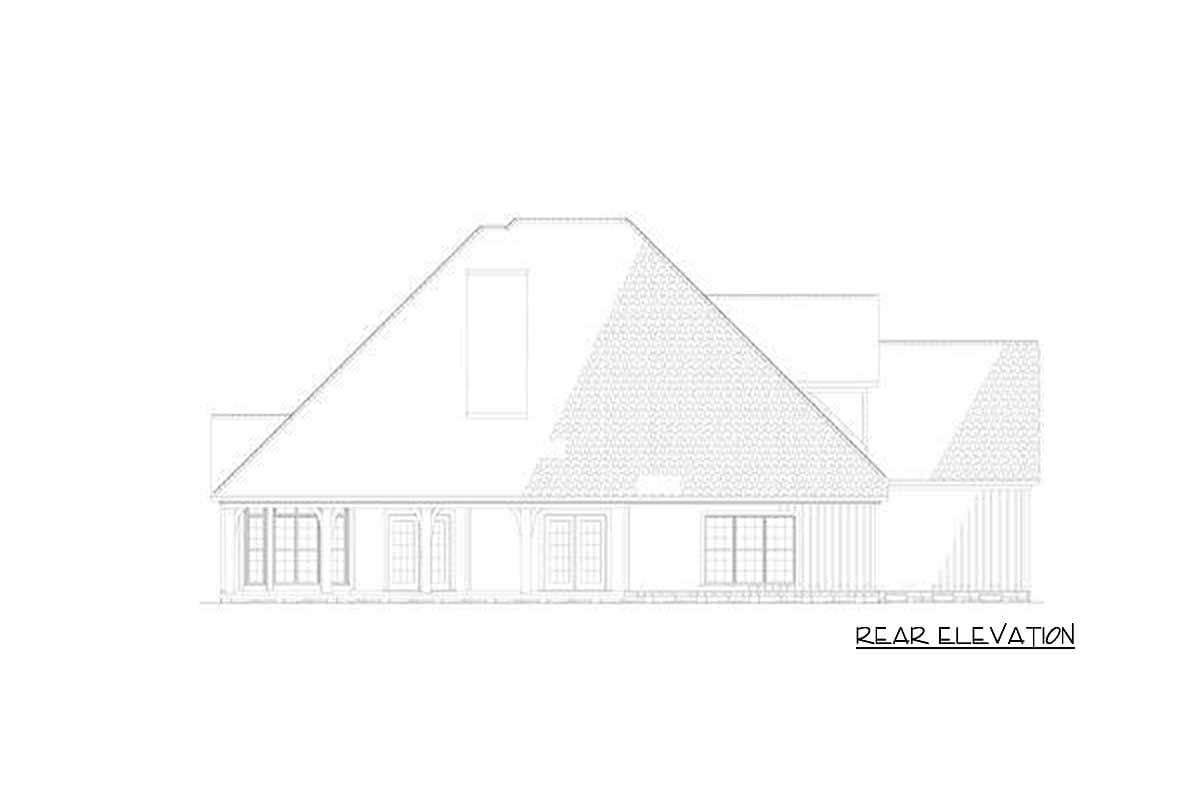

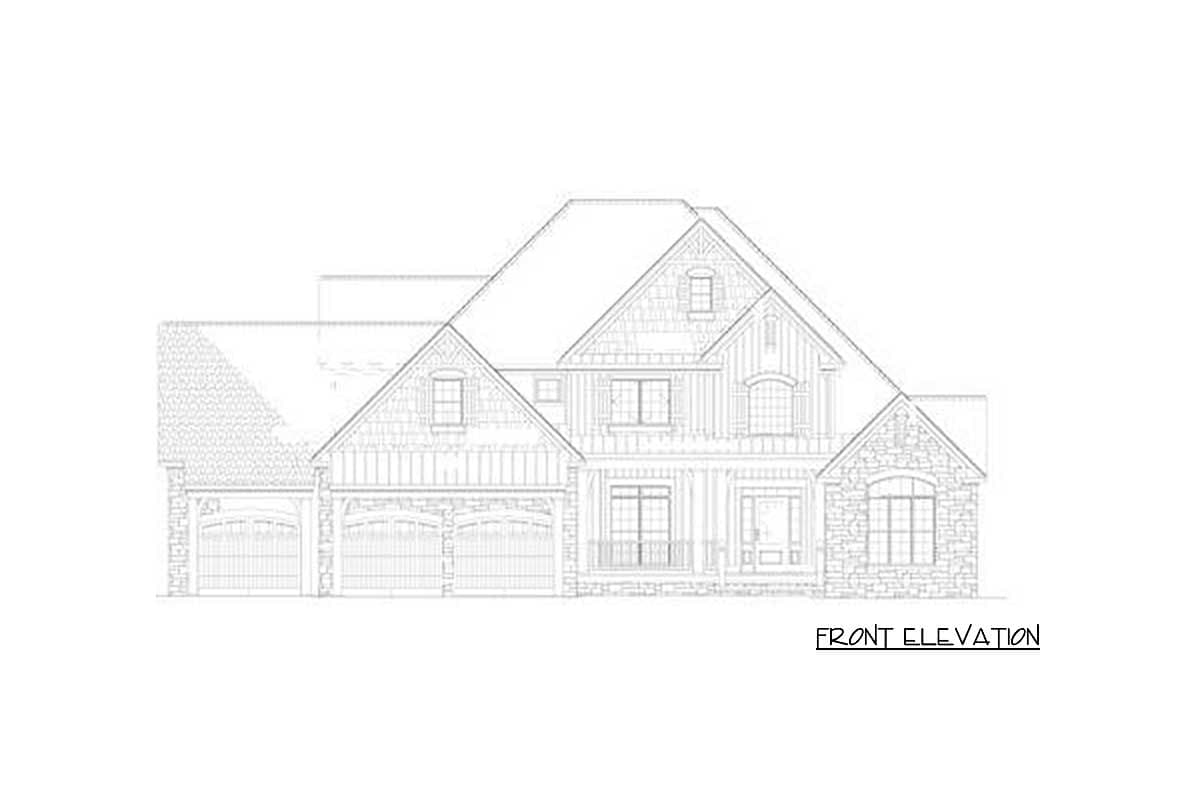

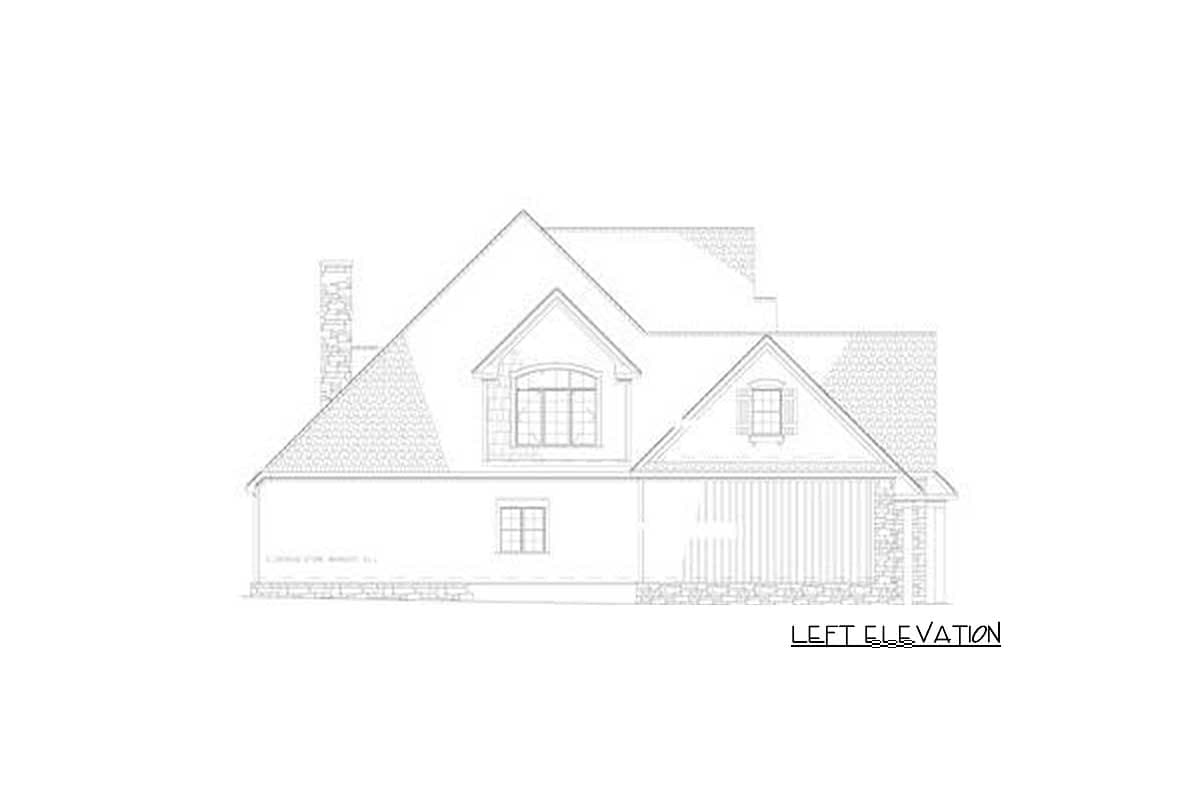

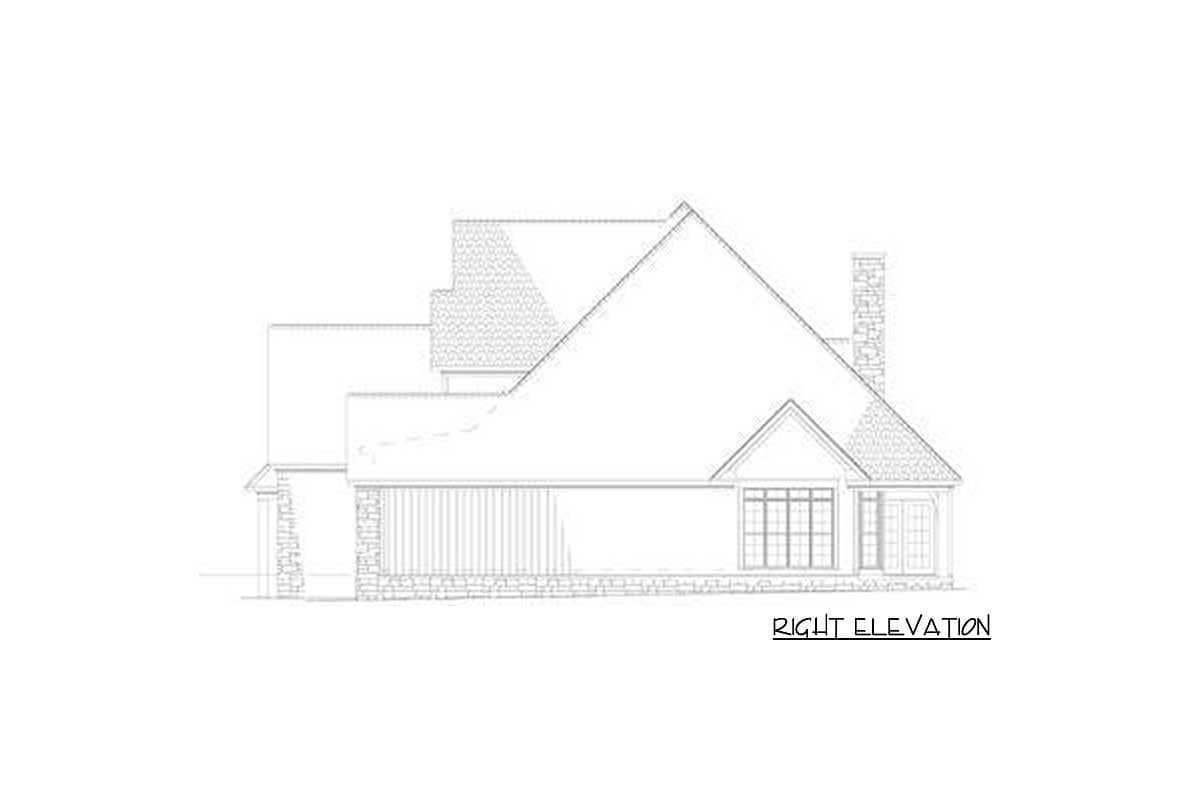

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,860 sq. ft.

1st Floor

2,095 sq. ft.

2nd Floor

765 sq. ft.

Bonus

620 sq. ft.

Porch, Combined

450 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 8"

Depth

60' 9"

Max Ridge Height

32' 10"

Garage

Type

Attached

Area

1732 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Flex Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry
