Plan 72830DA

Owners Suite with Private Exercise Room

Heated S.F.
3,812
Beds
4
Baths
3.5+
Stories
2
Cars
3

Floor Plan

Plan 72830DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72830DA

M-F 9am-5pm EST |

1-203-761-8500

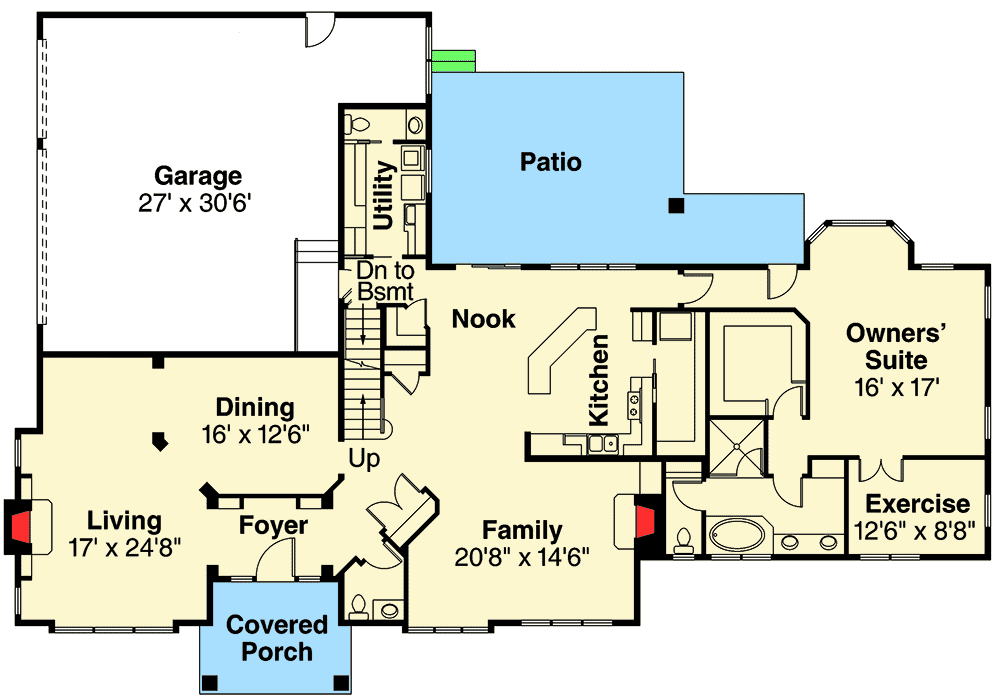

Main Level

Plan 72830DA: Owners Suite with Private Exercise Room - Floor Plan - Main Level - Northwest, Traditional

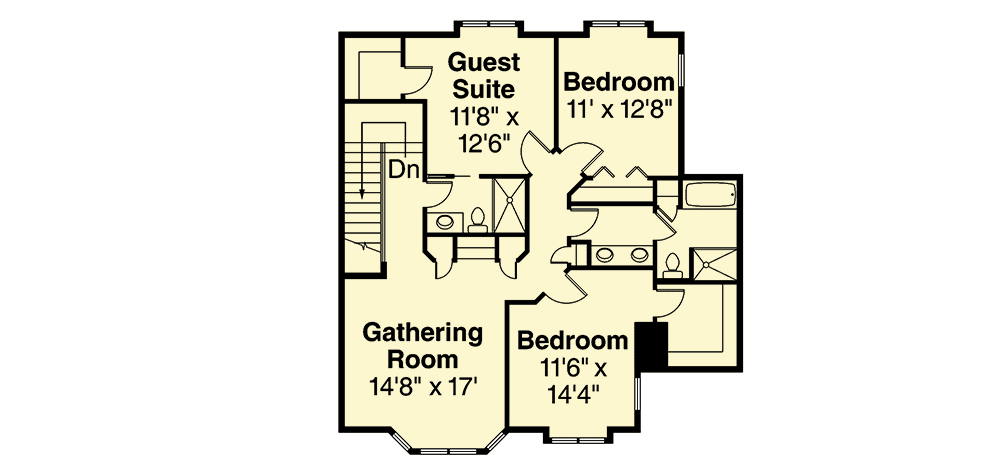

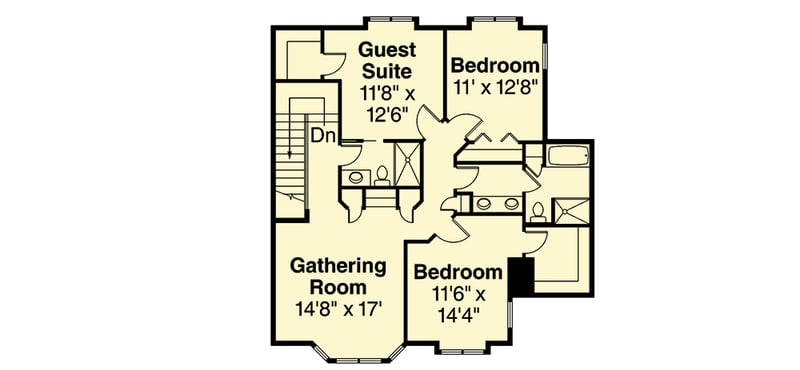

2nd Floor

Plan 72830DA: Owners Suite with Private Exercise Room - Floor Plan - 2nd Floor - Northwest, Traditional

Plan Details

  • No need to pay for a gym membership when you have your own private dedicated exercise room right off the master suite.
  • If you are not into exercise, it makes a wonderful sitting room.
  • This Northwest house plan is split into formal and informal areas, with both the living room and family room having fireplaces.
  • An oversized patio out back has plenty of room for parties or family gatherings.
  • Note the massive walk-in closet by the kitchen.
  • The three bedrooms on the second floor share a gathering room with a bay window.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,812 sq. ft.

1st Floor

2,628 sq. ft.

2nd Floor

1,184 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

61' 6"

Max Ridge Height

31' 1"

Garage

Type

Attached

Area

924 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

8 on 12

Architectural Style

Northwest

Traditional

Special Features

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,812 sq. ft.

1st Floor

2,628 sq. ft.

2nd Floor

1,184 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

61' 6"

Max Ridge Height

31' 1"

Garage

Type

Attached

Area

924 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

8 on 12

Architectural Style

Northwest

Traditional

Special Features

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry
