Plan 70744MK

Painted Brick One-Story Home Plan with Upstairs Expansion - 2019 Sq Ft

Heated S.F.
2,019
Beds
3 - 4
Baths
2 - 3
Stories
1
Cars
2

Floor Plan

Plan 70744MK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 70744MK

M-F 9am-5pm EST |

1-203-761-8500

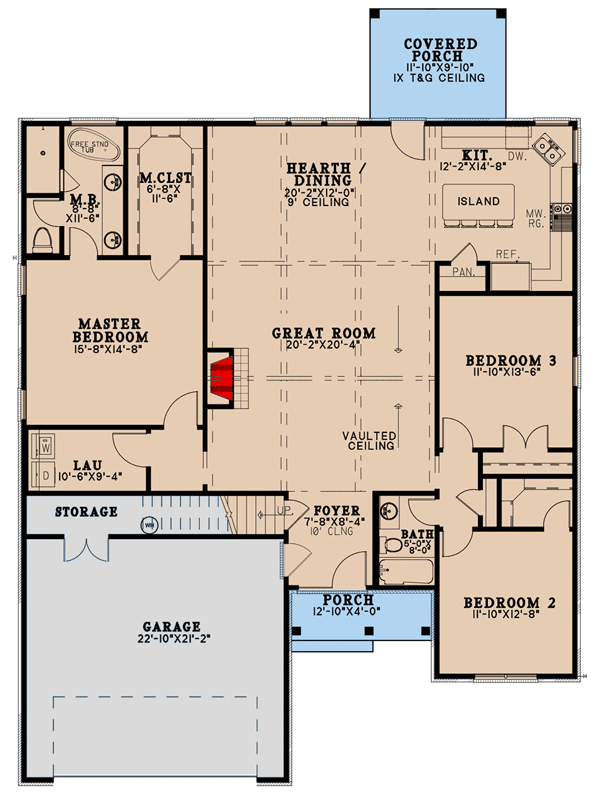

Main Level

Plan 70744MK: Painted Brick One-Story Home Plan with Upstairs Expansion - 2019 Sq Ft - Floor Plan - Main Level - Bungalow, Craftsman, European, Rustic, Traditional, Transitional

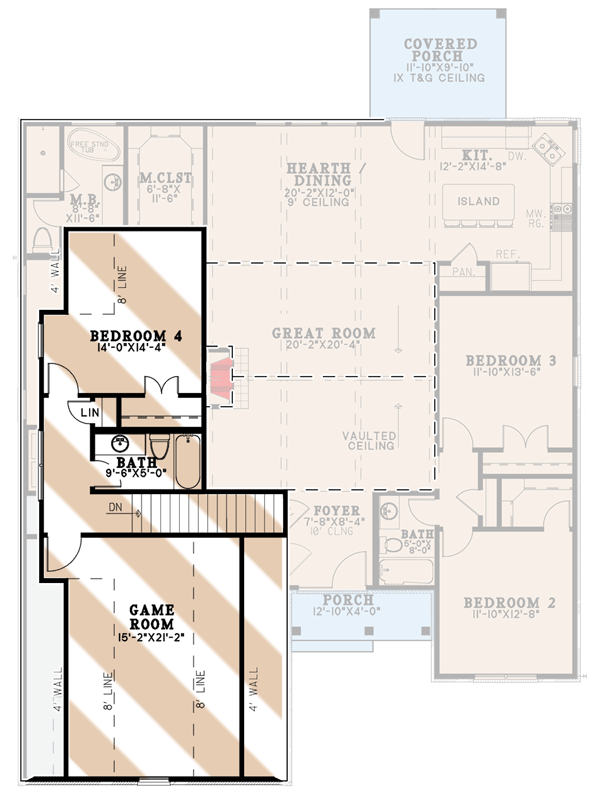

2nd Floor

Plan 70744MK: Painted Brick One-Story Home Plan with Upstairs Expansion - 2019 Sq Ft - Floor Plan - 2nd Floor - Bungalow, Craftsman, European, Rustic, Traditional, Transitional

Plan Details

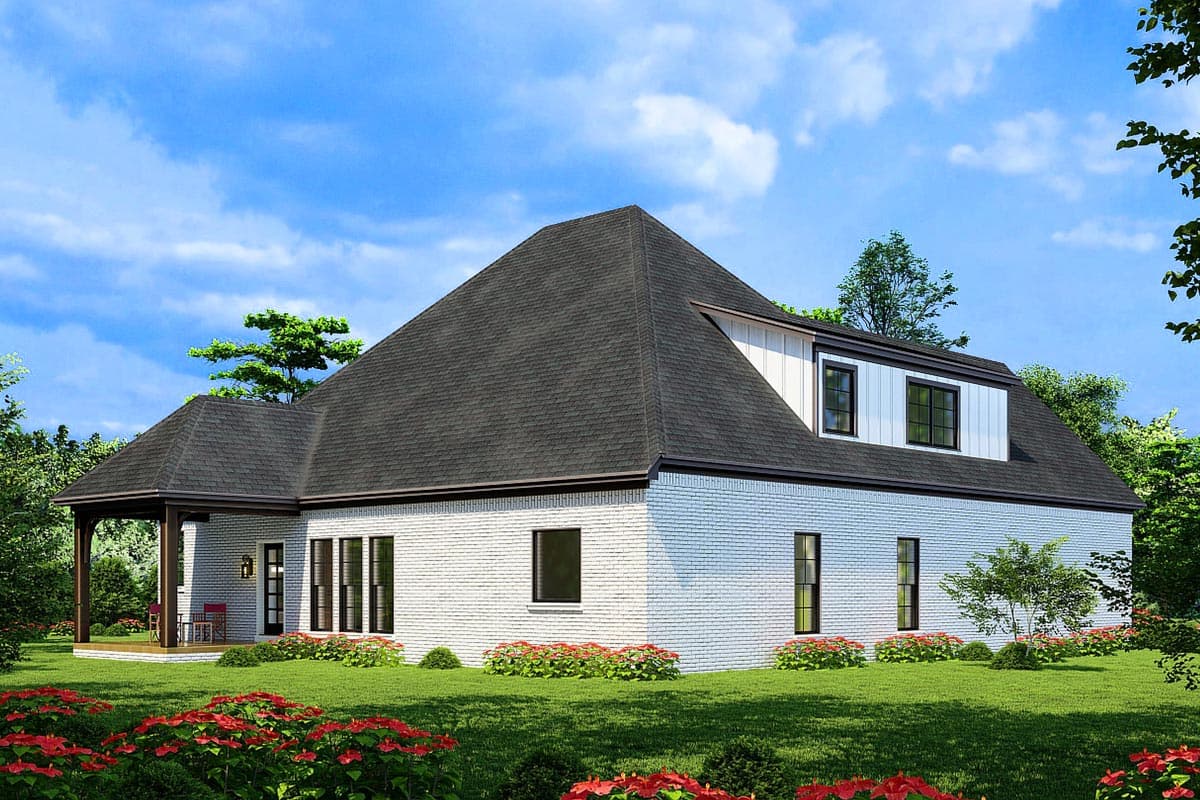

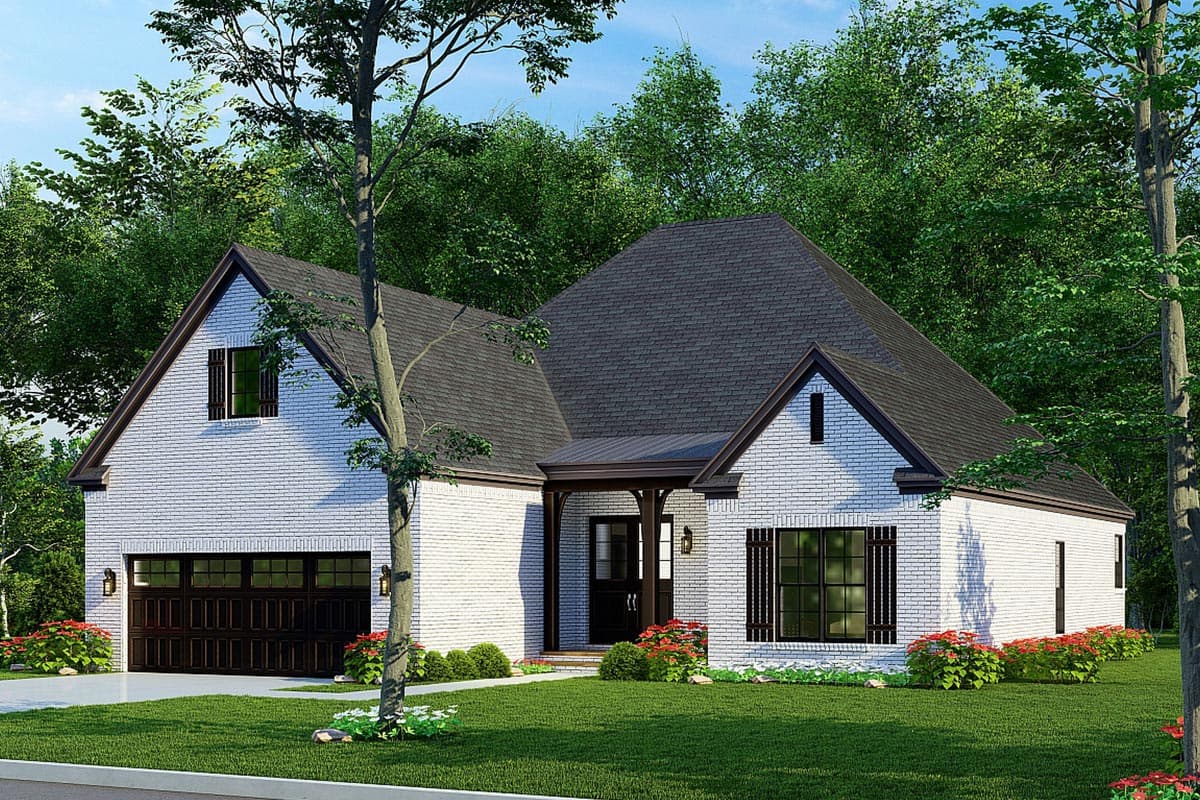

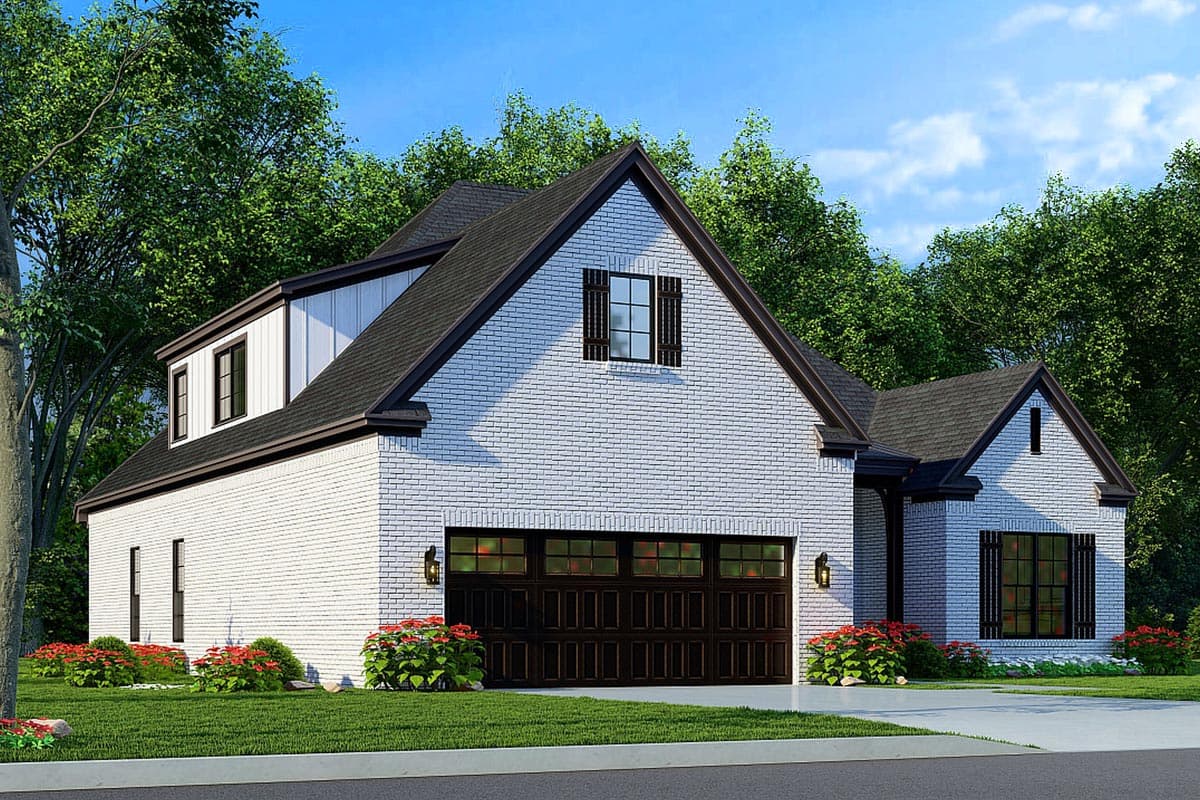

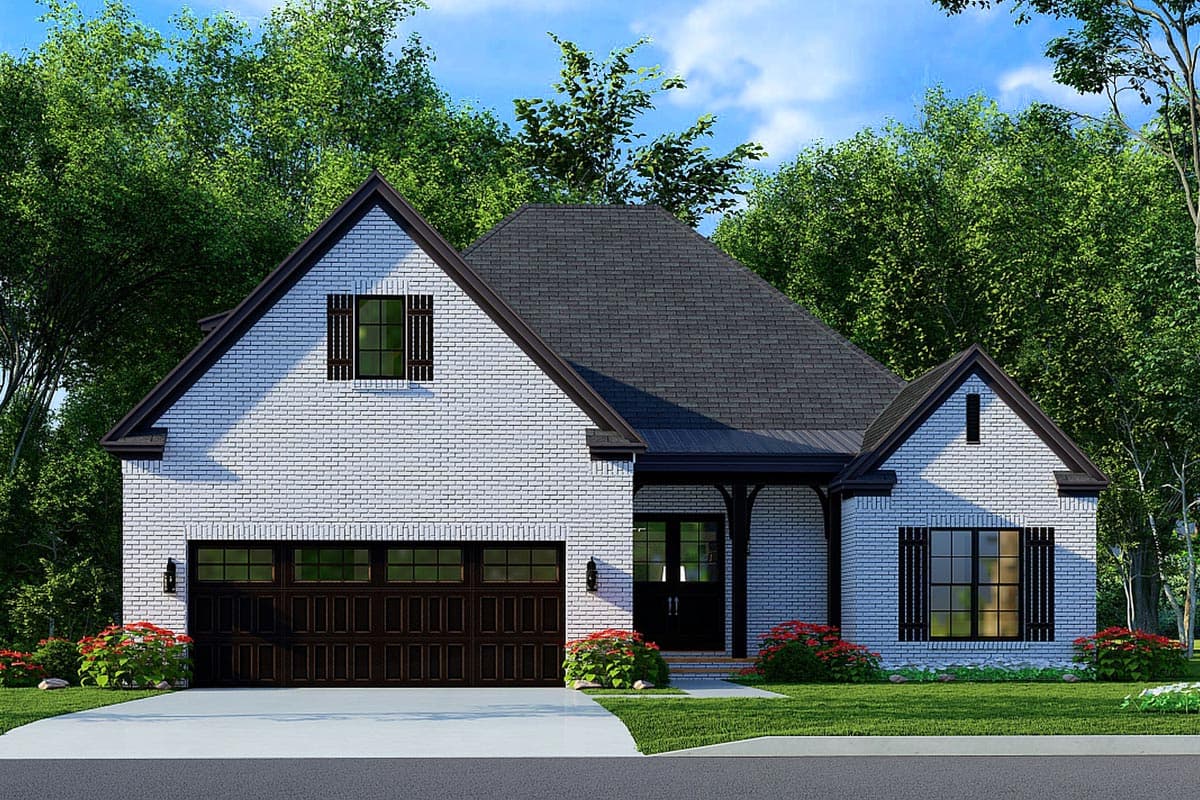

  • This one-story house plan has an attractive painted brick exterior with a shed roof over the front porch. A dormer on the left side gives you room for expansion over the garage.
  • The foyer leads you to the large great room that flows into the hearth/dining room and kitchen allowing for the perfect space to entertain your family and friends.
  • This kitchen features an abundance of cabinet and counter space along with a generous eat-at island for casual meals.
  • The home plan's split bedroom design allows privacy for the master from the two bedrooms.
  • A master bedroom has a large walk-in closet, a private toilet room, double vanity, garden tub and separate shower.
  • Finish out the optional bonus room above the garage and get a fourth bedroom and a game room.
  • Related Plans: Get alternate versions with house plans 59120ND, 60555ND and 70588MK.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,019 sq. ft.

1st Floor

2,019 sq. ft.

Bonus

719 sq. ft.

Porch, Rear

172 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

68' 4"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

506 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

3 on 12

Architectural Style

Bungalow

Craftsman

European

Rustic

Traditional

Transitional

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

2,019 sq. ft.

1st Floor

2,019 sq. ft.

Bonus

719 sq. ft.

Porch, Rear

172 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

68' 4"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

506 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

3 on 12

Architectural Style

Bungalow

Craftsman

European

Rustic

Traditional

Transitional

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room
