Plan 5518BR Palatial Design

5,560 4 4.5+ 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Palatial Design

Plan 5518BR

  • 5,560

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 3

    Cars

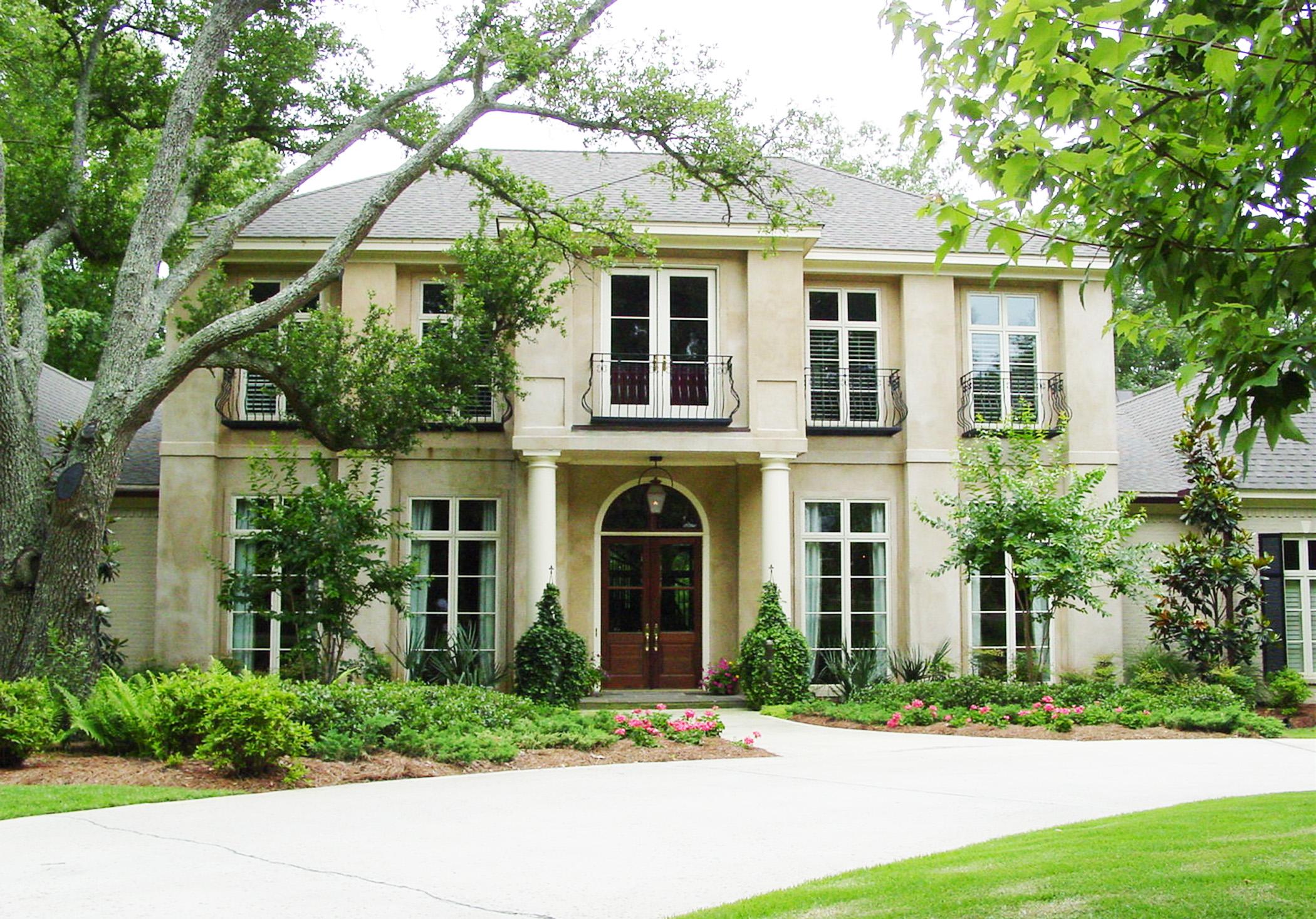

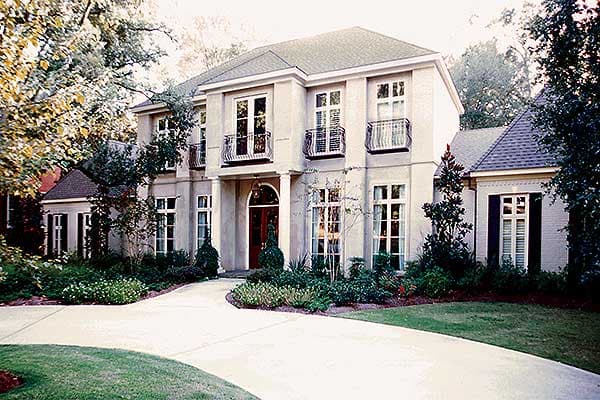

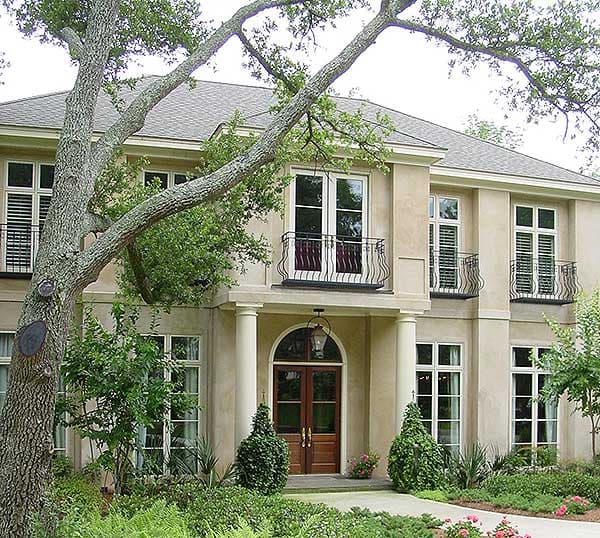

  • Be the king or queen of the castle in this palatial home plan with a two-story, pillared veranda.
  • Plenty of rooms to choose from with 4+ bedrooms.
  • Spend hours of quiet reflection in the library that boasts a full wall of built-in bookshelves.

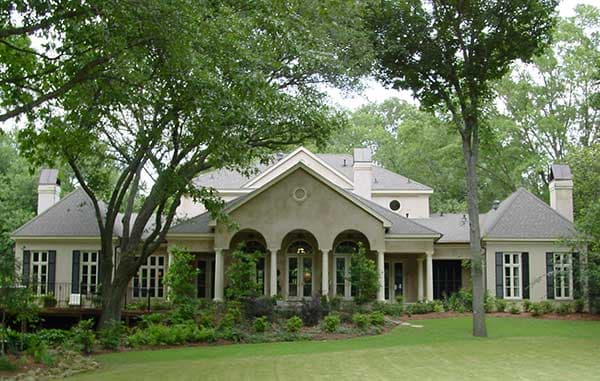

  • The two-story family room is a dramatic space. A fireplace provides a focal point and windows look out acrodd the rear veranda (and French doors will take you there as well).

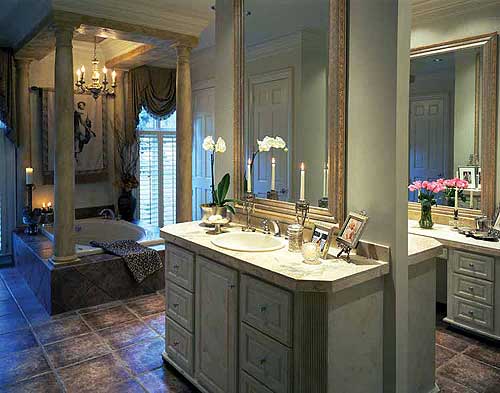

  • Escape from all cares in a truly royal master suite. Curl up in front of your own fireplace or take a long bath in the private bath with his and hers sinks and closets.
  • Walk up the grand central stair and find two bedroom suites with walk-in closets with built-in dressers and their own full baths. A game room offers lots of possibilities.
  • Related Plan: See an alternate exterior in plan 5592BR.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

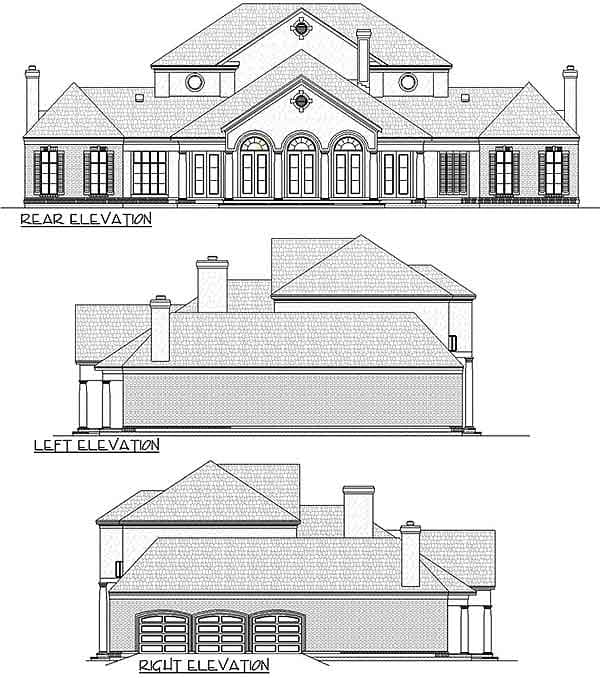

  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations



Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Palatial Design - 5518BR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Palatial Design - 5518BR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,560 sq. ft.
  • 1st Floor: 4,208 sq. ft.
  • 2nd Floor: 1,352 sq. ft.
  • Storage: 64 sq. ft.
  • Porch, Combined: 684 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 94' 0"
  • Depth: 68' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 638 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Palatial Design

  • 5,560

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,450
  • 4 Sets $1,555
  • 5 Sets $1,600
  • 5 Sets + PDF $1,700
  • 8 Sets $1,710
  • CAD - Single-Build $2,800
  • View all purchase option online

About This Plan

  • Be the king or queen of the castle in this palatial home plan with a two-story, pillared veranda.
  • Plenty of rooms to choose from with 4+ bedrooms.
  • Spend hours of quiet reflection in the library that boasts a full wall of built-in bookshelves.
  • The two-story family room is a dramatic space. A fireplace provides a focal point and windows look out acrodd the rear veranda (and French doors will take you there as well).
  • Escape from all cares in a truly royal master suite. Curl up in front of your own fireplace or take a long bath in the private bath with his and hers sinks and closets.
  • Walk up the grand central stair and find two bedroom suites with walk-in closets with built-in dressers and their own full baths. A game room offers lots of possibilities.
  • Related Plan: See an alternate exterior in plan 5592BR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,560 sq. ft.
  • 1st Floor: 4,208 sq. ft.
  • 2nd Floor: 1,352 sq. ft.
  • Storage: 64 sq. ft.
  • Porch, Combined: 684 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 94' 0"
  • Depth: 68' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 638 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
