Plan 36183TX

Palatial Estate of Your Own

Pageloader

Palatial Estate of Your Own

Plan 36183TX

  • 9,253

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 5

    Cars

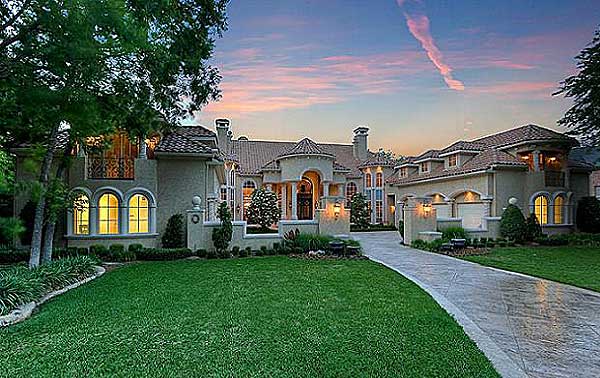

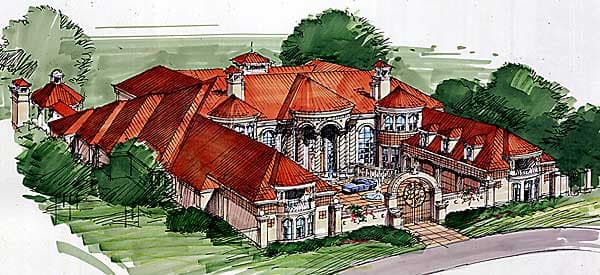

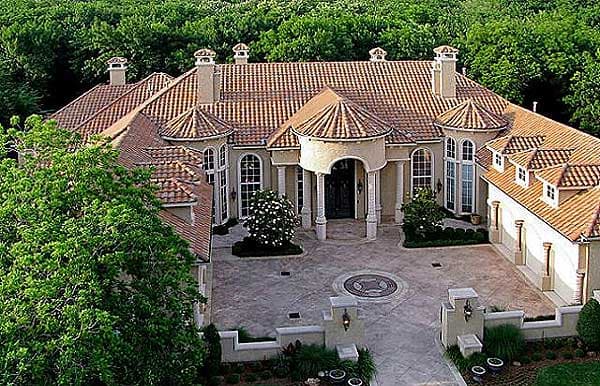

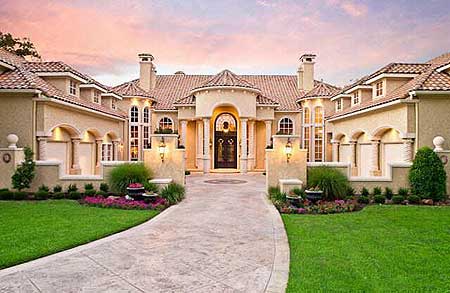

  • From the stucco exterior and tile roof, to the striking drive-up grandeur of this impressive residence, you will be amazed at this architectural masterpiece.

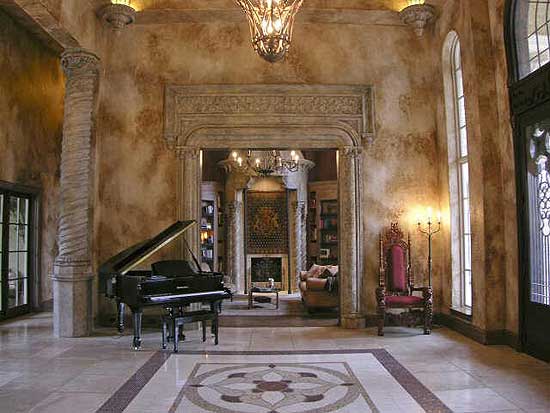

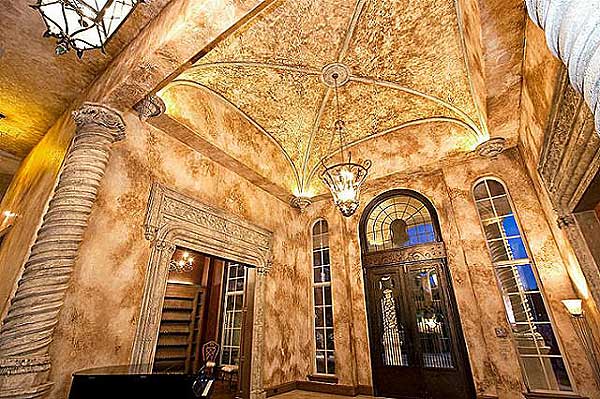

  • You are welcomed inside via a dramatic foyer with a groin vault ceiling, just one of the many custom ceiling treatments found inside.

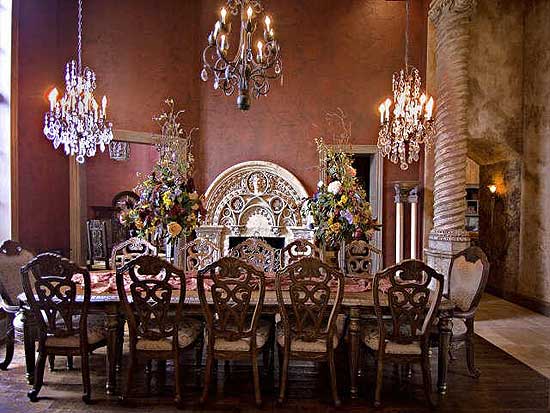

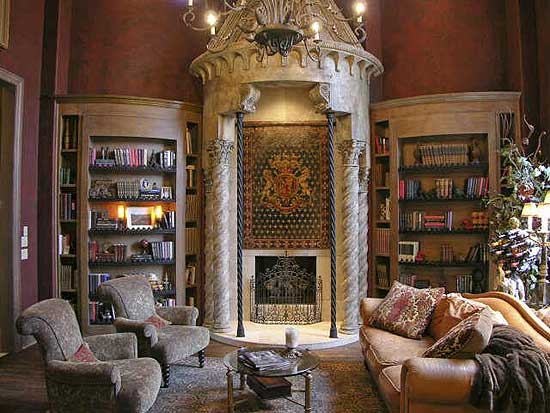

  • To the right find the stately library with floor-to-ceiling bookshelves and dramatic fireplace. To your left is the elegant main dining room, which comfortably seats 12, featuring a unique tray ceiling.

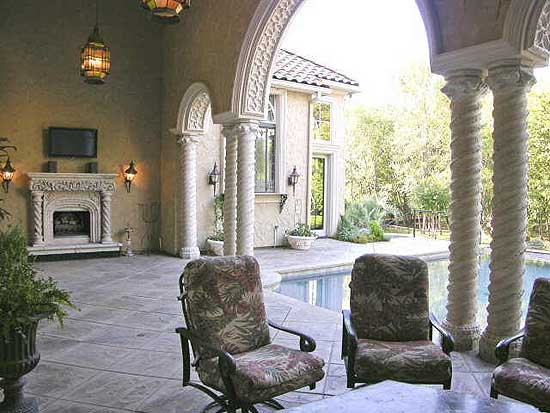

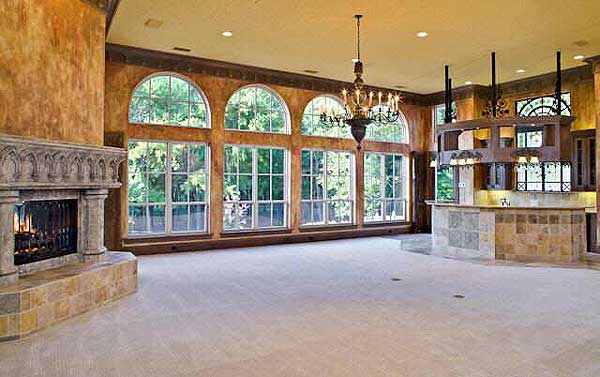

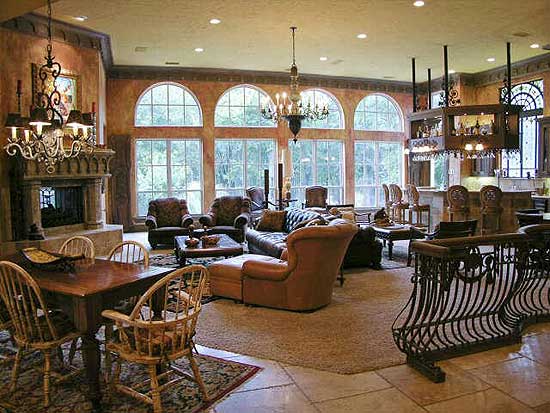

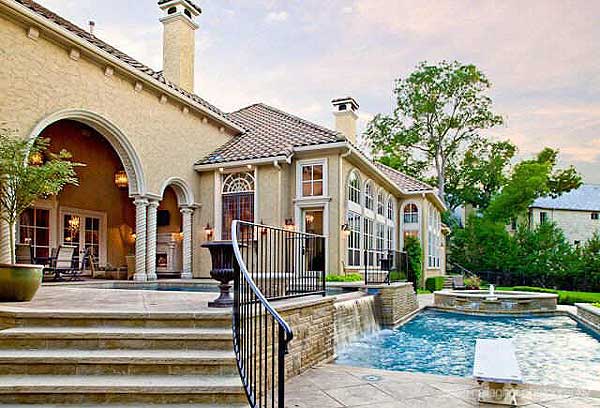

  • The 40' x 40' great room opens to the loggia and boasts a double-sided fireplace.

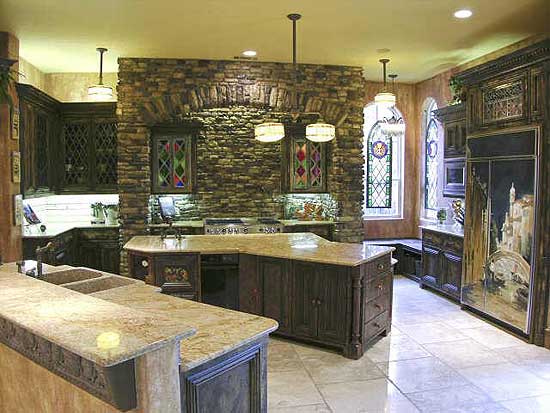

  • Close by is the spacious kitchen. Also included in this wing are an intimate dining room with sunken wine grotto, breakfast area, and two spacious guest bedrooms with full baths.

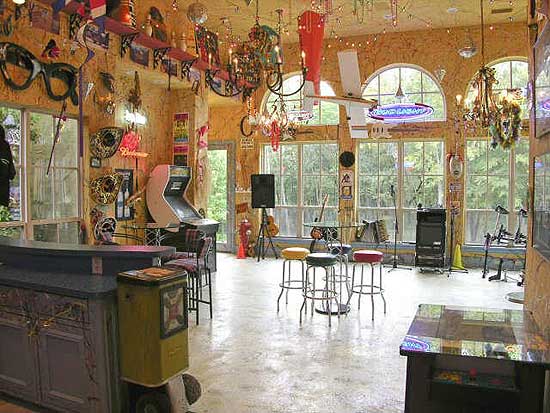

  • There is an office area and walk-out balcony, a large laundry room and a party/game room complete with wet bar.

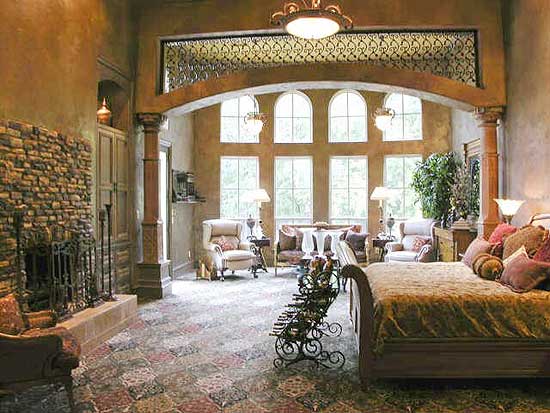

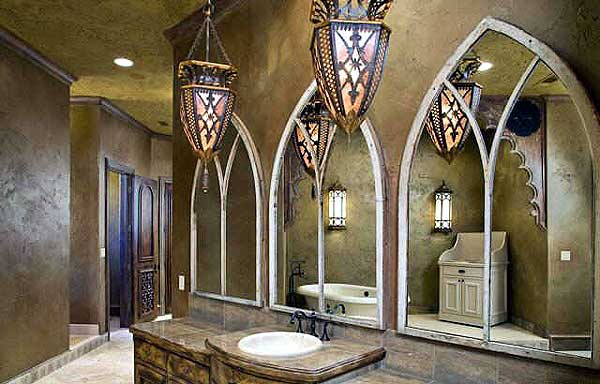

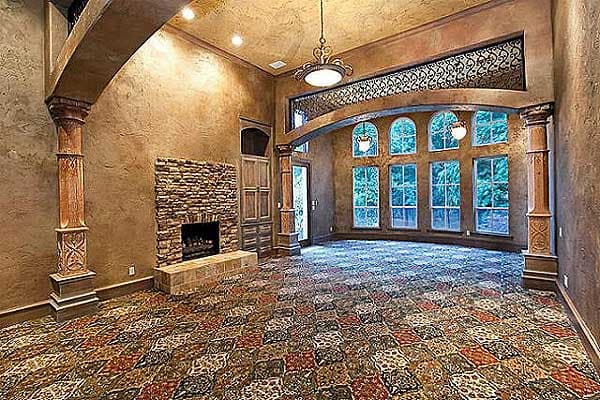

  • The West side of the home is dedicated to the master Suite. Gorgeous columns and an oversized sitting area make this area an inviting retreat. The master bath is both elegant and functional featuring His and Her vanities, two water closets, walk-in shower and special fixtures.

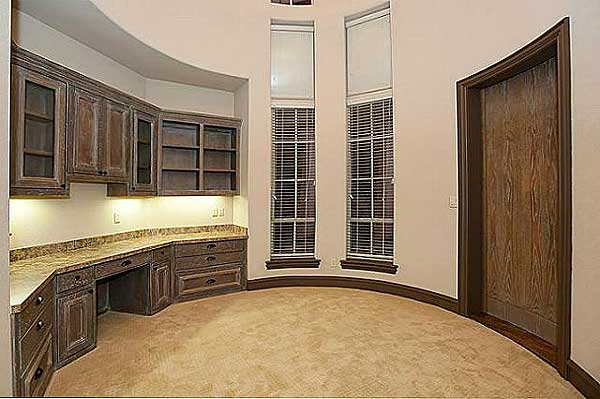

  • This wing also includes a private office, exercise room, second laundry room and an approximate 600 square foot upstairs bedroom suite suitable for children or as a second master.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Palatial Estate of Your Own

  • 9,253

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 5

    Car garage

Buy This Plan
  • PDF - single-use $4,180
  • 5 Sets $4,380
  • CAD $6,270
  • View all purchase option online

About This Plan

  • From the stucco exterior and tile roof, to the striking drive-up grandeur of this impressive residence, you will be amazed at this architectural masterpiece.
  • You are welcomed inside via a dramatic foyer with a groin vault ceiling, just one of the many custom ceiling treatments found inside.
  • To the right find the stately library with floor-to-ceiling bookshelves and dramatic fireplace. To your left is the elegant main dining room, which comfortably seats 12, featuring a unique tray ceiling.
  • The 40' x 40' great room opens to the loggia and boasts a double-sided fireplace.
  • Close by is the spacious kitchen. Also included in this wing are an intimate dining room with sunken wine grotto, breakfast area, and two spacious guest bedrooms with full baths.
  • There is an office area and walk-out balcony, a large laundry room and a party/game room complete with wet bar.
  • The West side of the home is dedicated to the master Suite. Gorgeous columns and an oversized sitting area make this area an inviting retreat. The master bath is both elegant and functional featuring His and Her vanities, two water closets, walk-in shower and special fixtures.
  • This wing also includes a private office, exercise room, second laundry room and an approximate 600 square foot upstairs bedroom suite suitable for children or as a second master.

Floor Plans

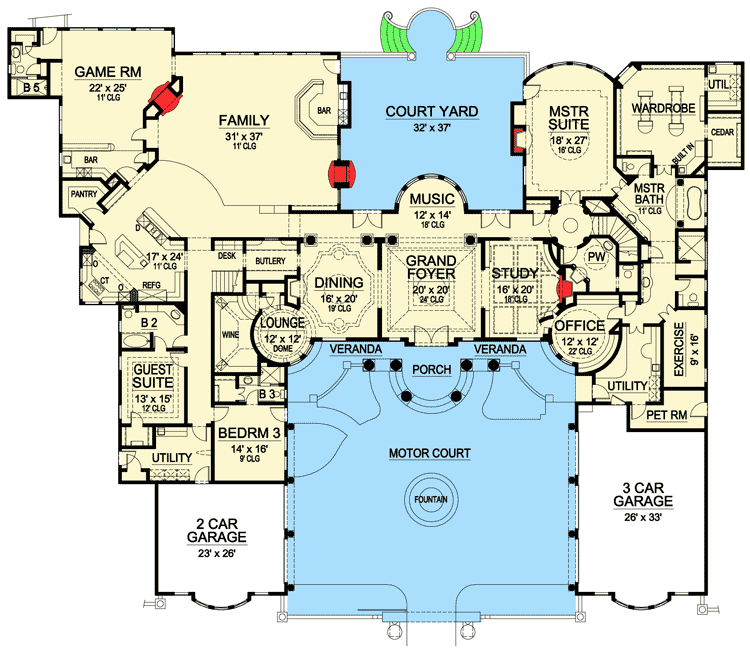

  • Main Level

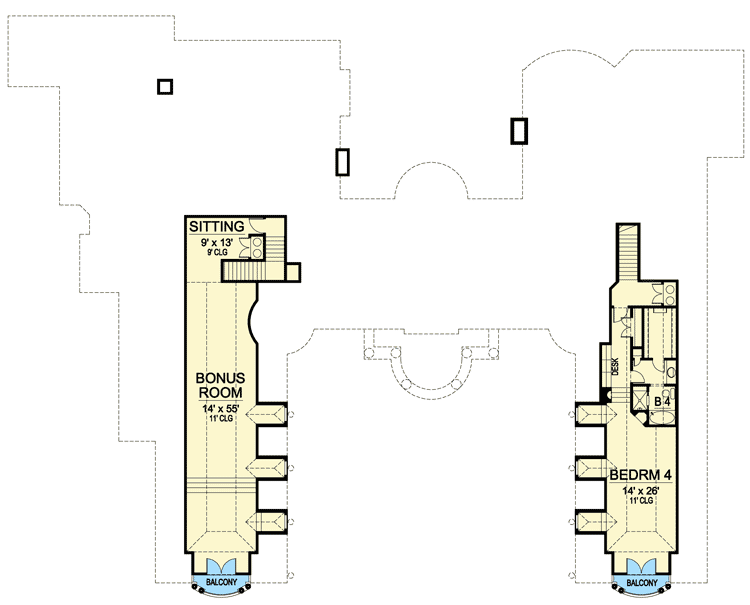

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 9,253 sq. ft.
  • 1st Floor: 8,273 sq. ft.
  • 2nd Floor: 980 sq. ft.
  • Bonus: 1,185 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 151' 0"
  • Depth: 120' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 1750 sq. ft.
  • Count: 5 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"
