Palatial Traditional Home Plan with Fabulous Master Suite

Pageloader

Palatial Traditional Home Plan with Fabulous Master Suite

Plan 42838MJ

  • 8,375

    Heated s.f.

  • 5

    Beds

  • 7.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Get the best of the best in this palatial Traditional house plan that comes with all the bells and whistles.

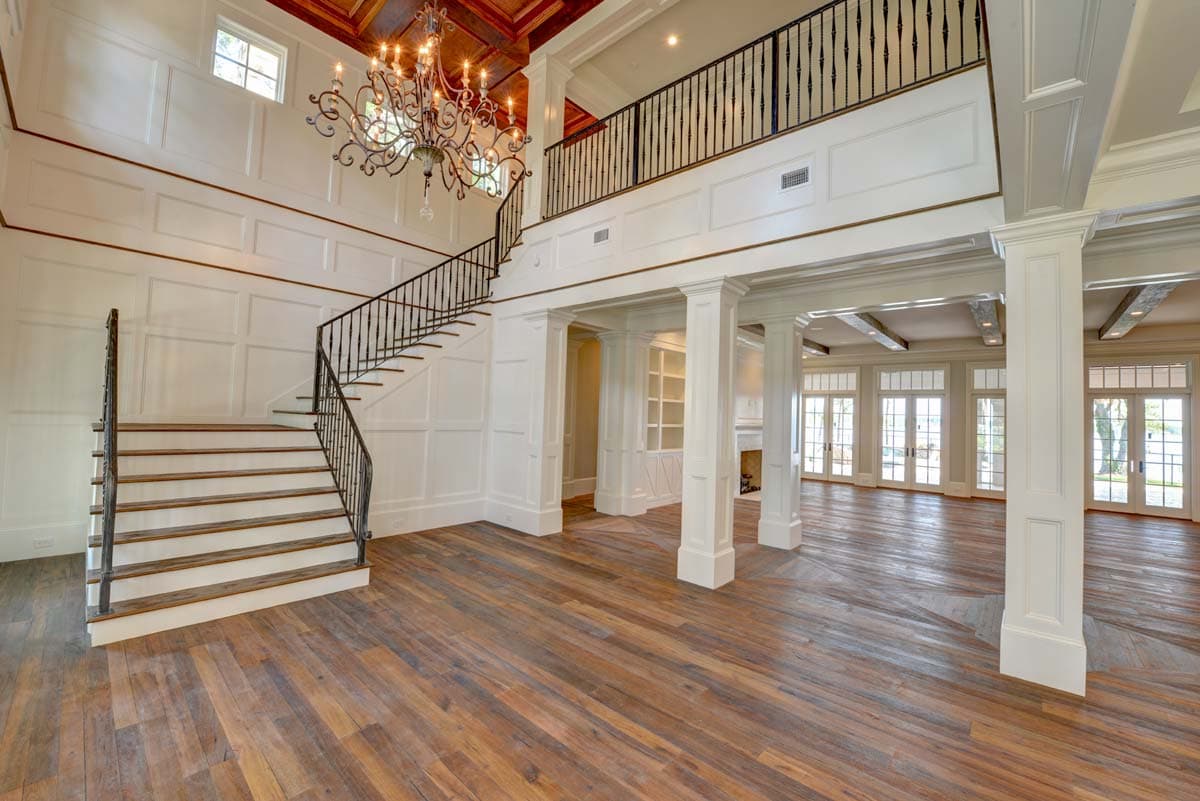

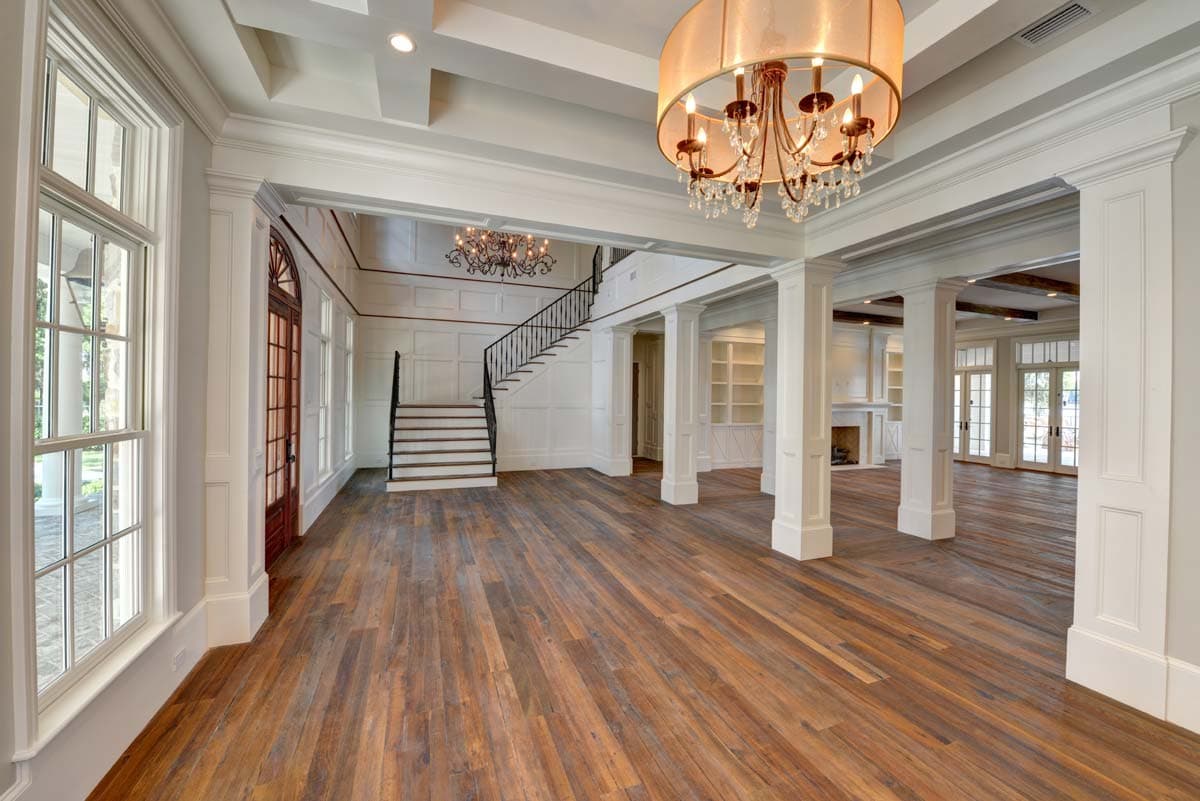

  • Interior columns are used throughout the first floor to keep the sight lines open between rooms.

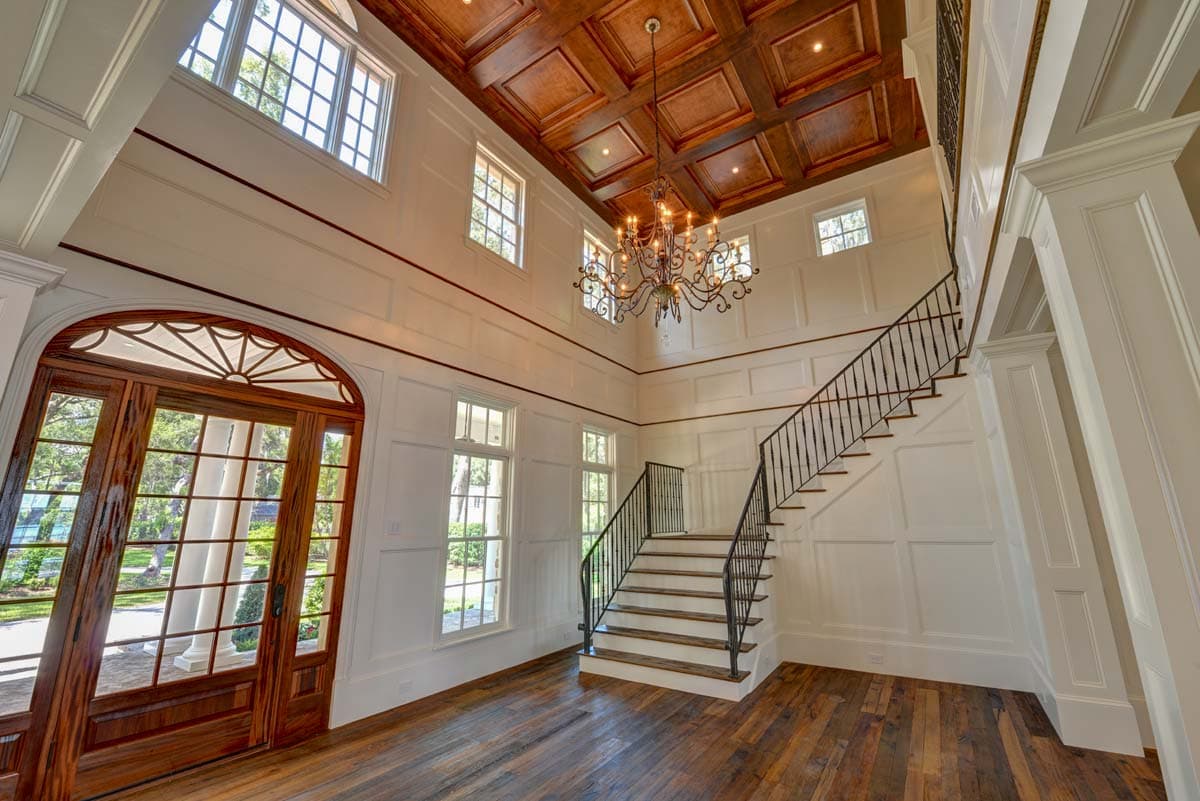

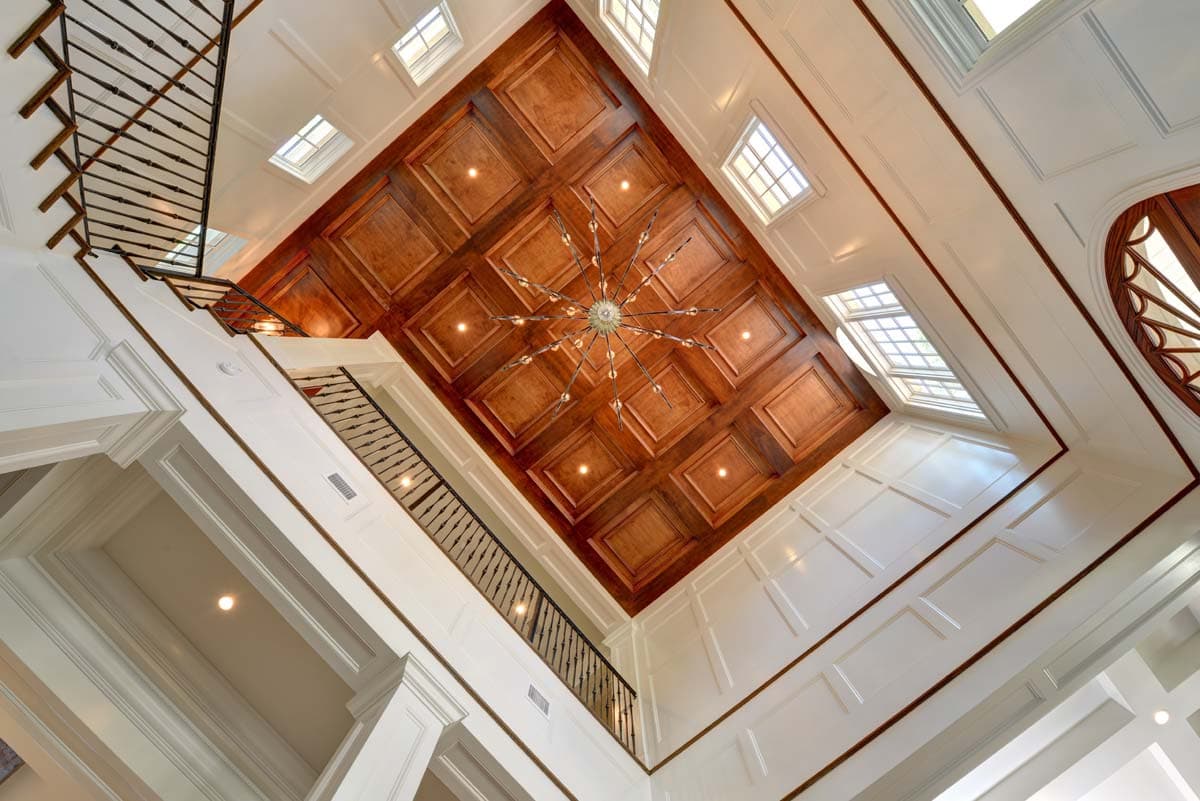

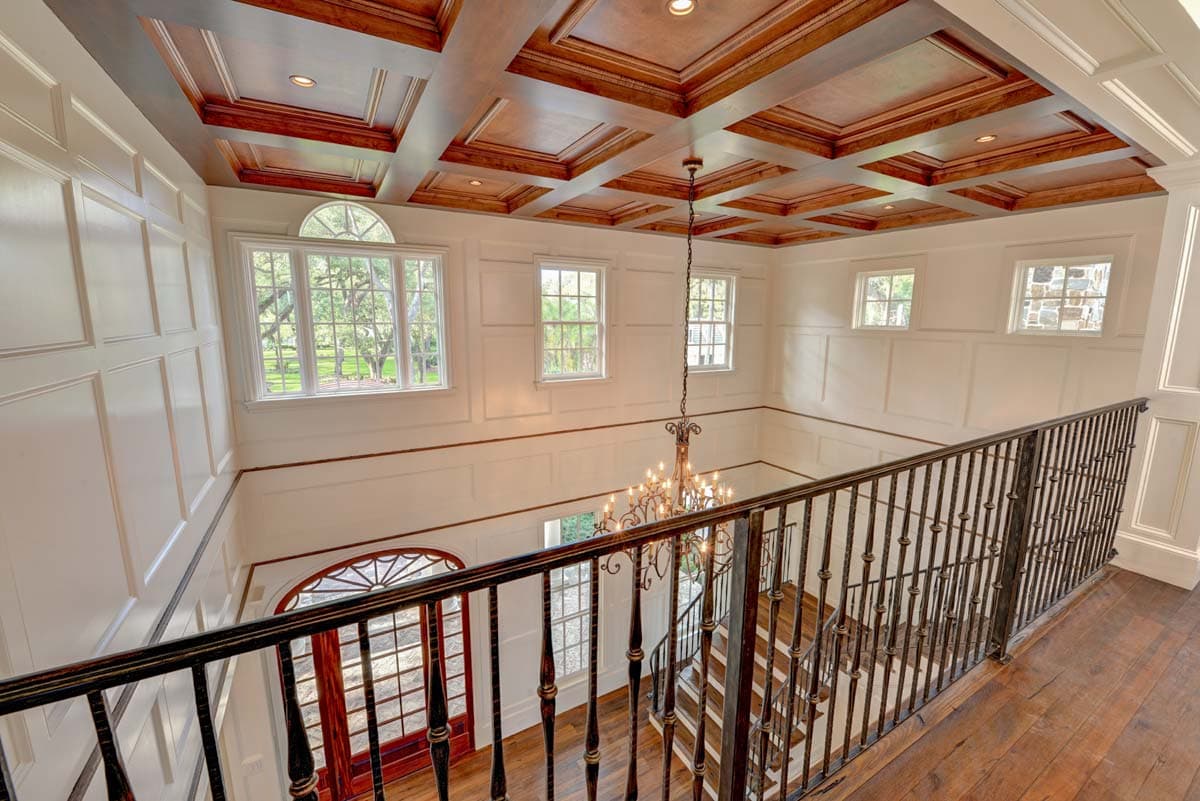

  • The two-story foyer has a coffered ceiling and makes a wonderful first impression.

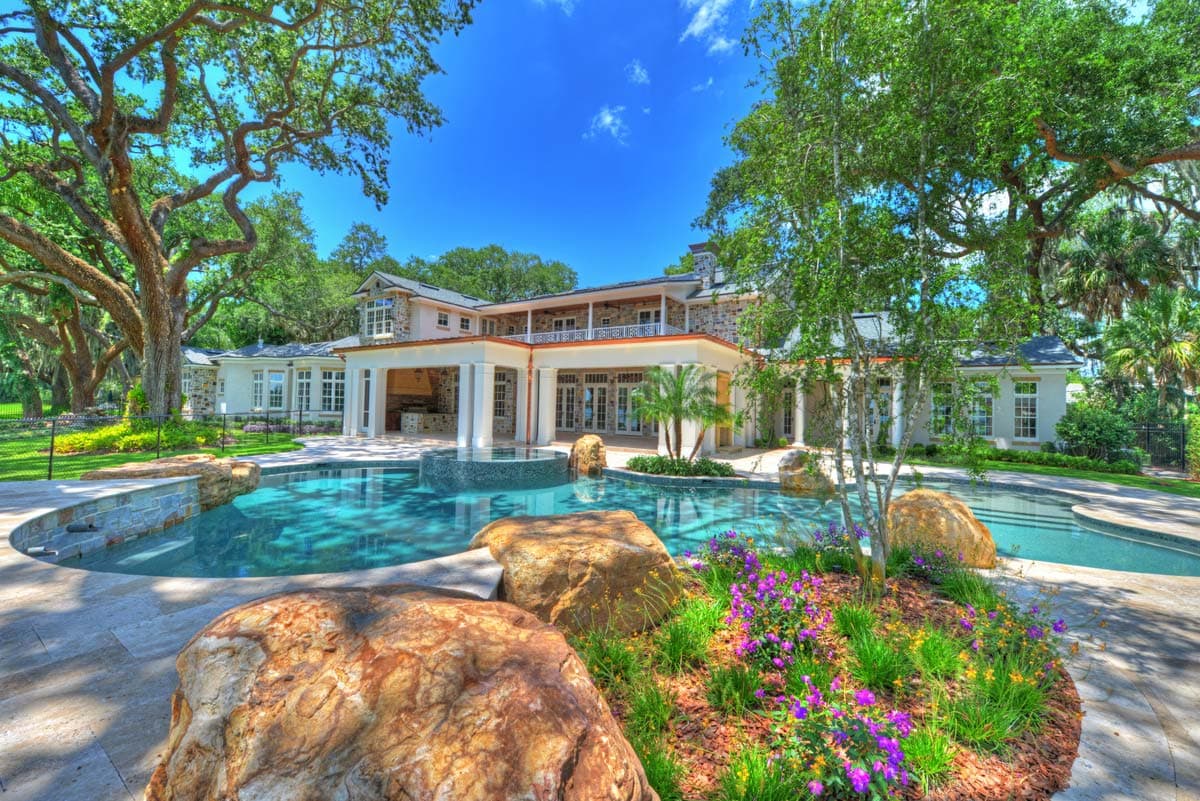

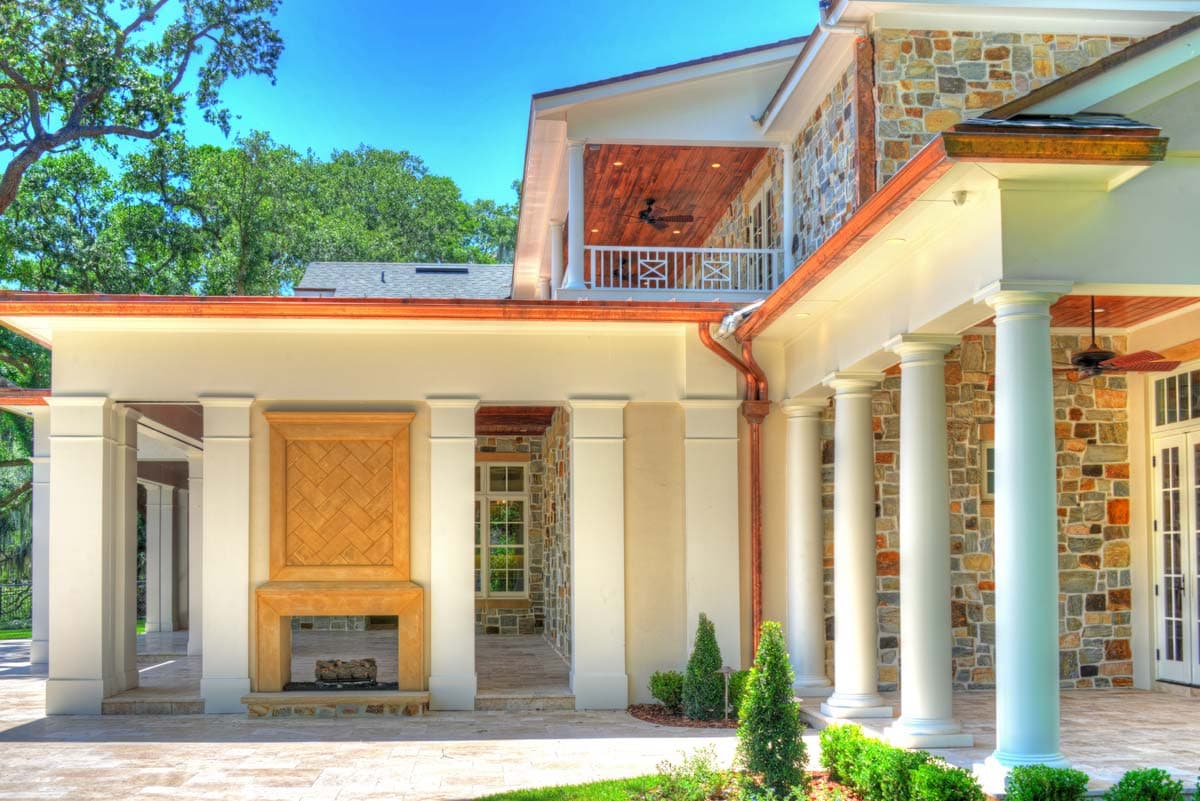

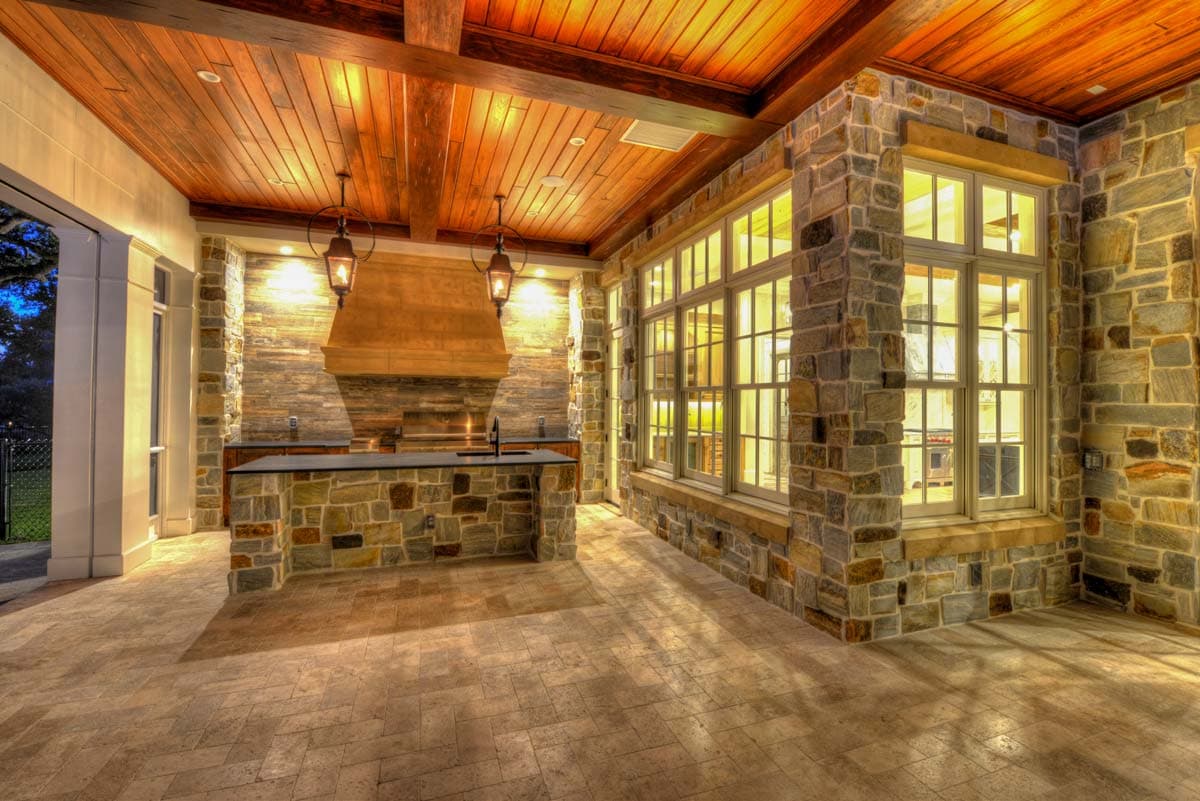

  • Four sets of double doors in the massive gathering room overlook the huge covered patio with its outdoor fireplace and kitchen.
  • Built-ins, a wine cellar and a residential elevator are added amenities for this high-end home.
  • The spacious master suite is the only bedroom on the first floor and it is simply spectacular.
  • Boasting a private gym and walled garden area, the suite also has his and her bathroom areas near their individual walk-in closets - hers come with an island for extra storage.

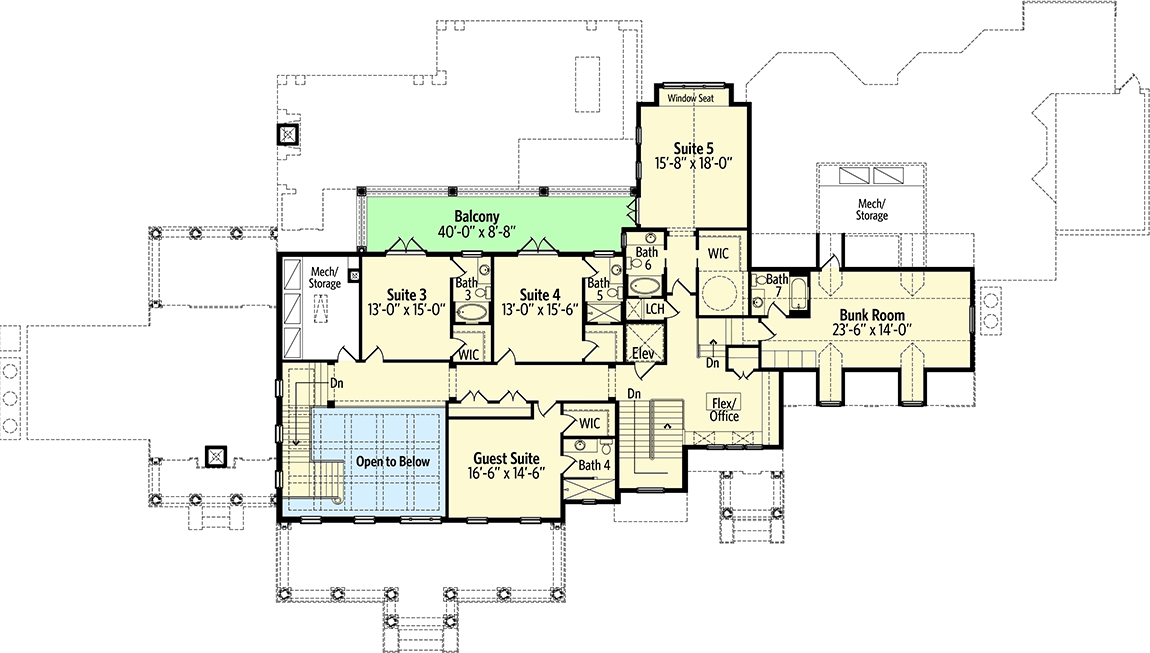

  • Up on the lavish second floor, suites 3, 4 and 5 have double doors to a big balcony and bedroom 5 gets a vaulted ceiling and window seat.
  • The sunken bunk room over the garage has a private bathroom and charming dormer windows.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Plan details



Palatial Traditional Home Plan with Fabulous Master Suite

  • 8,375

    Heated s.f.

  • 5

    Beds

  • 8

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $2,995
  • CAD $3,495
  • View all purchase option online

About This Plan

  • Get the best of the best in this palatial Traditional house plan that comes with all the bells and whistles.
  • Interior columns are used throughout the first floor to keep the sight lines open between rooms.
  • The two-story foyer has a coffered ceiling and makes a wonderful first impression.
  • Four sets of double doors in the massive gathering room overlook the huge covered patio with its outdoor fireplace and kitchen.
  • Built-ins, a wine cellar and a residential elevator are added amenities for this high-end home.
  • The spacious master suite is the only bedroom on the first floor and it is simply spectacular.
  • Boasting a private gym and walled garden area, the suite also has his and her bathroom areas near their individual walk-in closets - hers come with an island for extra storage.
  • Up on the lavish second floor, suites 3, 4 and 5 have double doors to a big balcony and bedroom 5 gets a vaulted ceiling and window seat.
  • The sunken bunk room over the garage has a private bathroom and charming dormer windows.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

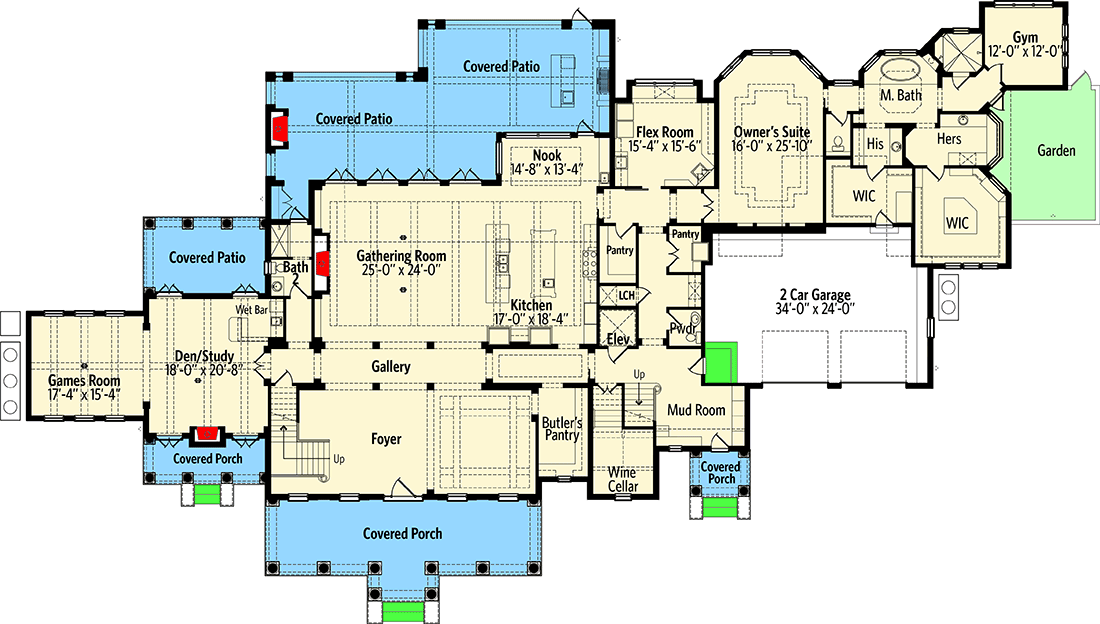

Floor Plans
