Plan 57209HA

Perfect Home Design for a Narrow Lot

Heated S.F.
1,112
Beds
3
Baths
1
Stories
1

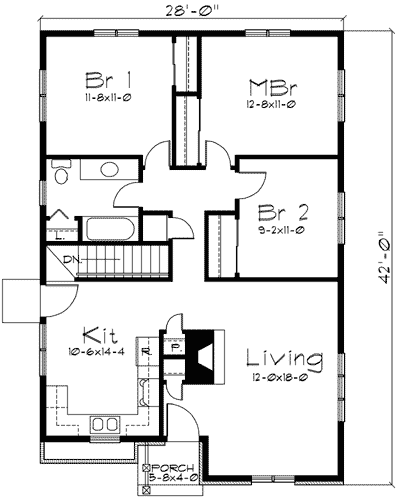

Floor Plan

Plan 57209HA

Main Level
Main Level

Plan 57209HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 57209HA: Perfect Home Design for a Narrow Lot - Floor Plan - Main Level - Cottage, Traditional

Plan Details

  • Brick, an arched window and planter box decorate the facade of this lovely ranch home.
  • The eat-in kitchen offers an abundance of counter space and enjoys access to the outdoors.
  • Three bedrooms are situated together for easy family living.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

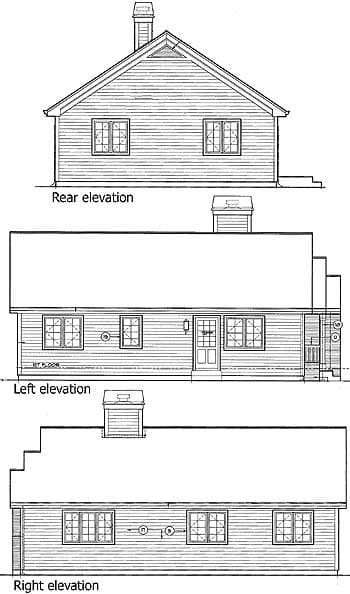

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,112 sq. ft.

1st Floor

1,112 sq. ft.

Basement Unfinished

1,112 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

42' 0"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,112 sq. ft.

1st Floor

1,112 sq. ft.

Basement Unfinished

1,112 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

42' 0"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
