Pick Your Size

Plan 9342EL

  • 4,113

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Related Plans: Need more room? See house plan 9345EL (4,782 sq. ft.) and 9347EL (5,170 sq. ft.).
  • Get a rounded turret with house plan 93020EL.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

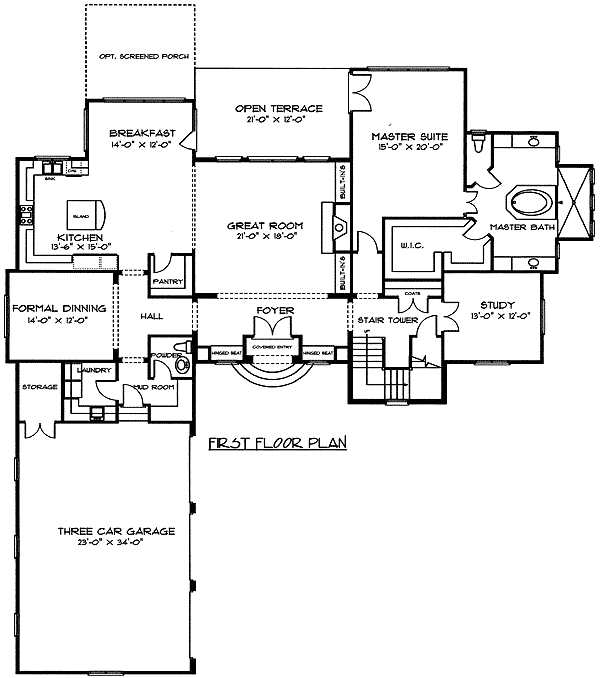

Pick Your Size - 9342EL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

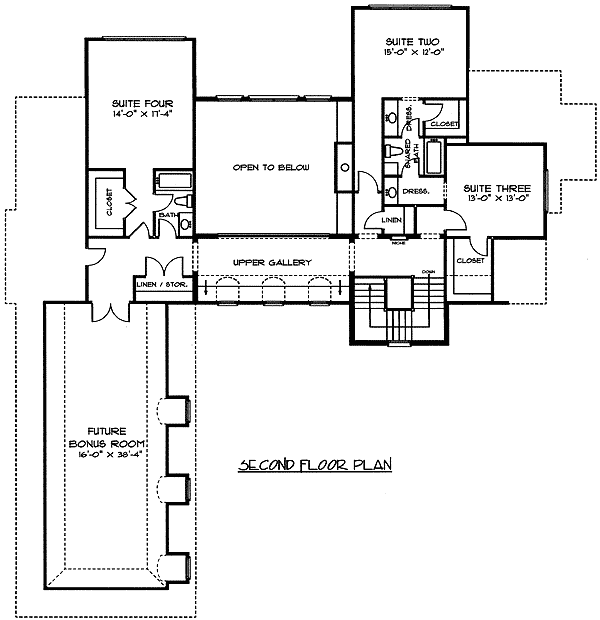

Pick Your Size - 9342EL floor plan - 2nd Floor

Plan details

Pick Your Size

  • 4,113

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,295
  • 5 Sets $2,920
  • CAD - Single-Build $2,920
  • View all purchase option online

About This Plan

  • Related Plans: Need more room? See house plan 9345EL (4,782 sq. ft.) and 9347EL (5,170 sq. ft.).
  • Get a rounded turret with house plan 93020EL.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,113 sq. ft.
  • 1st Floor: 2,631 sq. ft.
  • 2nd Floor: 1,482 sq. ft.
  • Bonus: 683 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 79' 0"
  • Depth: 84' 9"
  • Max ridge height: 36' 3"

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
