Plan 911056JVD

Pool House with Outdoor Fireplace - 255 Sq Ft

Heated S.F.
255
Beds
0
Baths
0
Stories
1

Floor Plan

Plan 911056JVD

Main Level
Main Level

Plan 911056JVD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

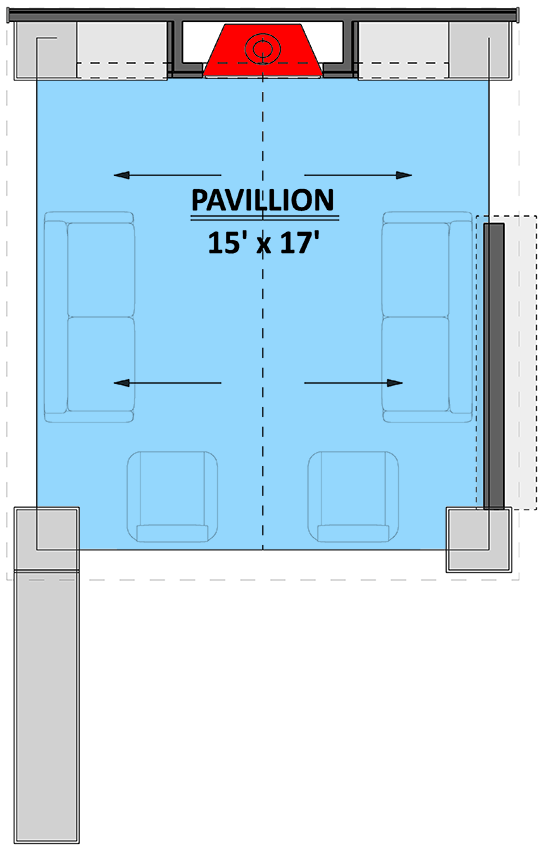

Plan 911056JVD: Pool House with Outdoor Fireplace - 255 Sq Ft - Floor Plan - Main Level

Plan Details

  • This 255 square foot open-air Block/CMU Pool House Plan provides an exceptional outdoor retreat, featuring a spacious pavilion for leisure and entertainment.
  • Designed for seamless outdoor living, the central pavilion offers ample space for comfortable seating arrangements, perfect for relaxing poolside or hosting gatherings.

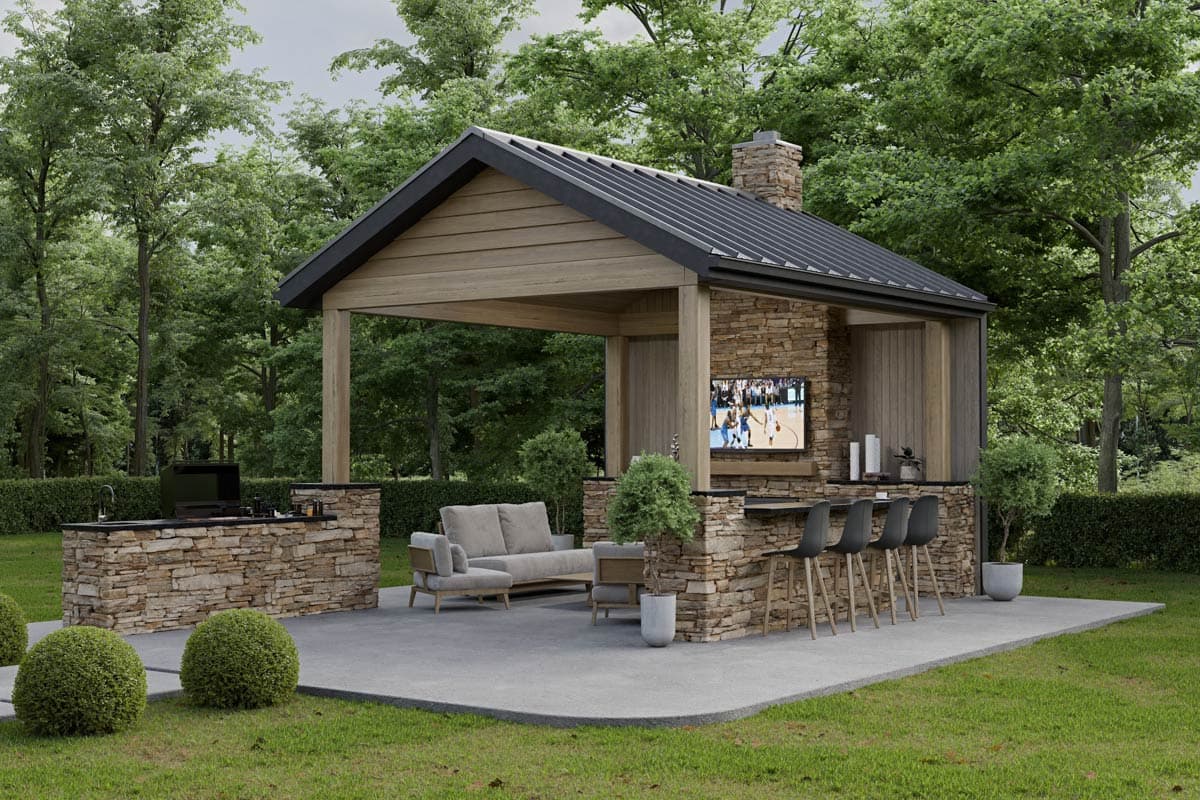

  • The layout thoughtfully integrates a full outdoor kitchen, complete with a convenient wet bar, enabling effortless al fresco dining and refreshing beverages for guests.

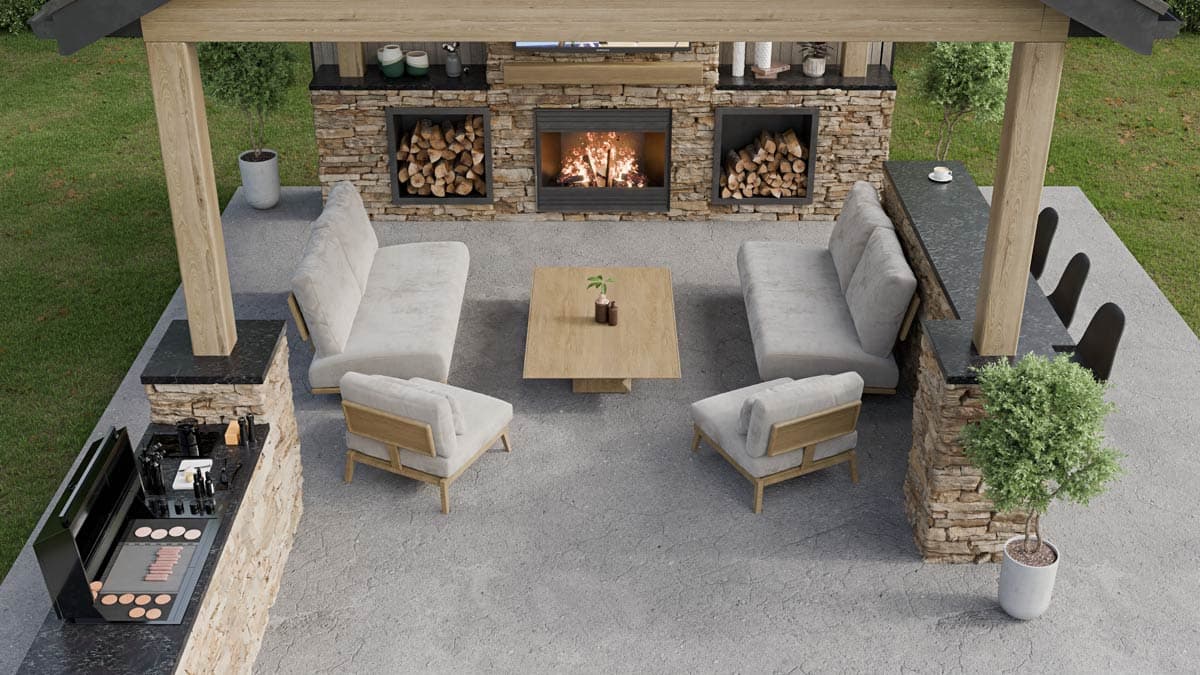

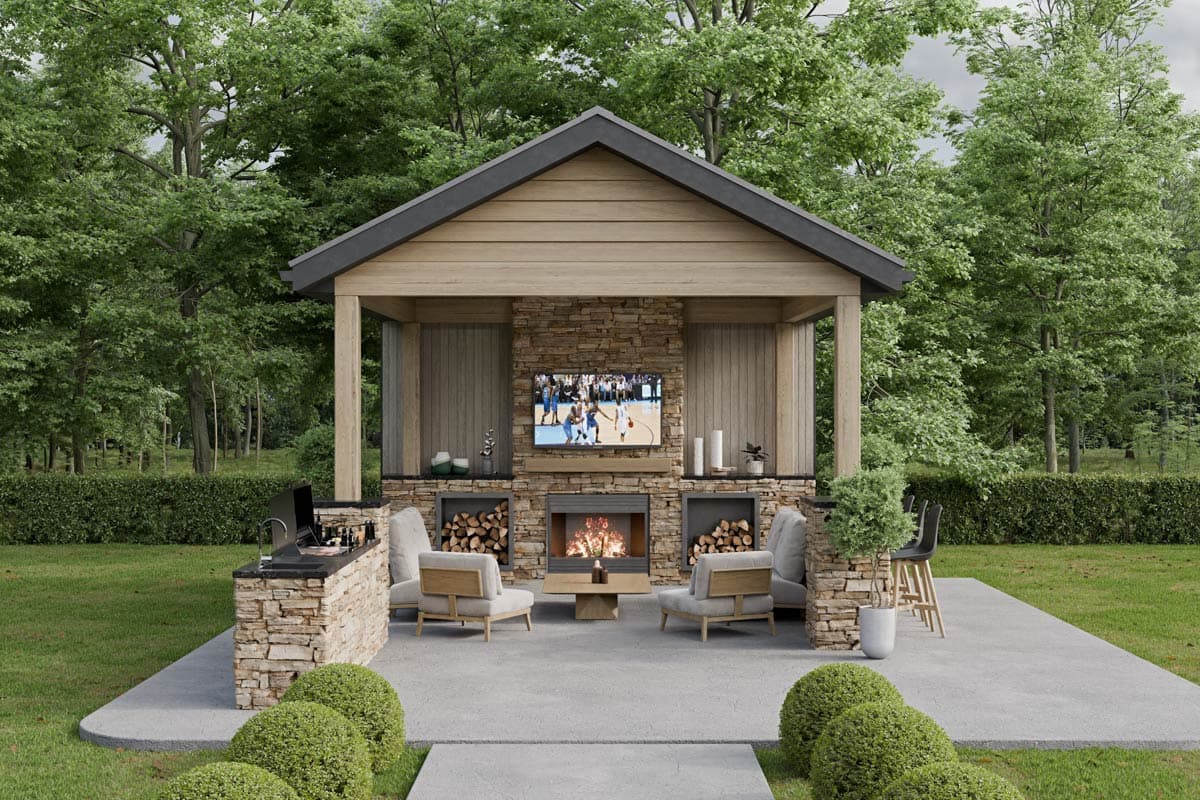

  • Anchoring the space, a grand fireplace creates a captivating focal point, inviting cozy evenings and memorable conversations under the stars.
  • This dedicated outdoor structure is ideal for enhancing any backyard, providing a luxurious extension for recreation and relaxation near your main residence or pool area.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

255 sq. ft.

1st Floor

255 sq. ft.

Porch, Combined

255 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

16' 10"

Depth

28' 0"

Max Ridge Height

14' 0"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Special Features

Outdoor Fireplace

Outdoor Kitchen

Wet Bar

Square Footage Breakdown

Total Heated Area

255 sq. ft.

1st Floor

255 sq. ft.

Porch, Combined

255 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

16' 10"

Depth

28' 0"

Max Ridge Height

14' 0"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Special Features

Outdoor Fireplace

Outdoor Kitchen

Wet Bar
