Plan 5552BR

Porches and Decks

2,360 3 2.5 2 2
Print
Compare
...

Porches and Decks

Plan 5552BR

  • 2,360

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

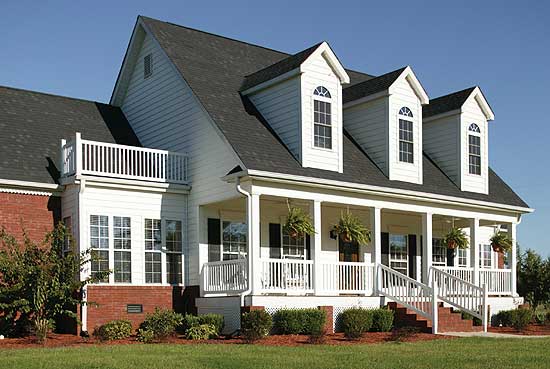

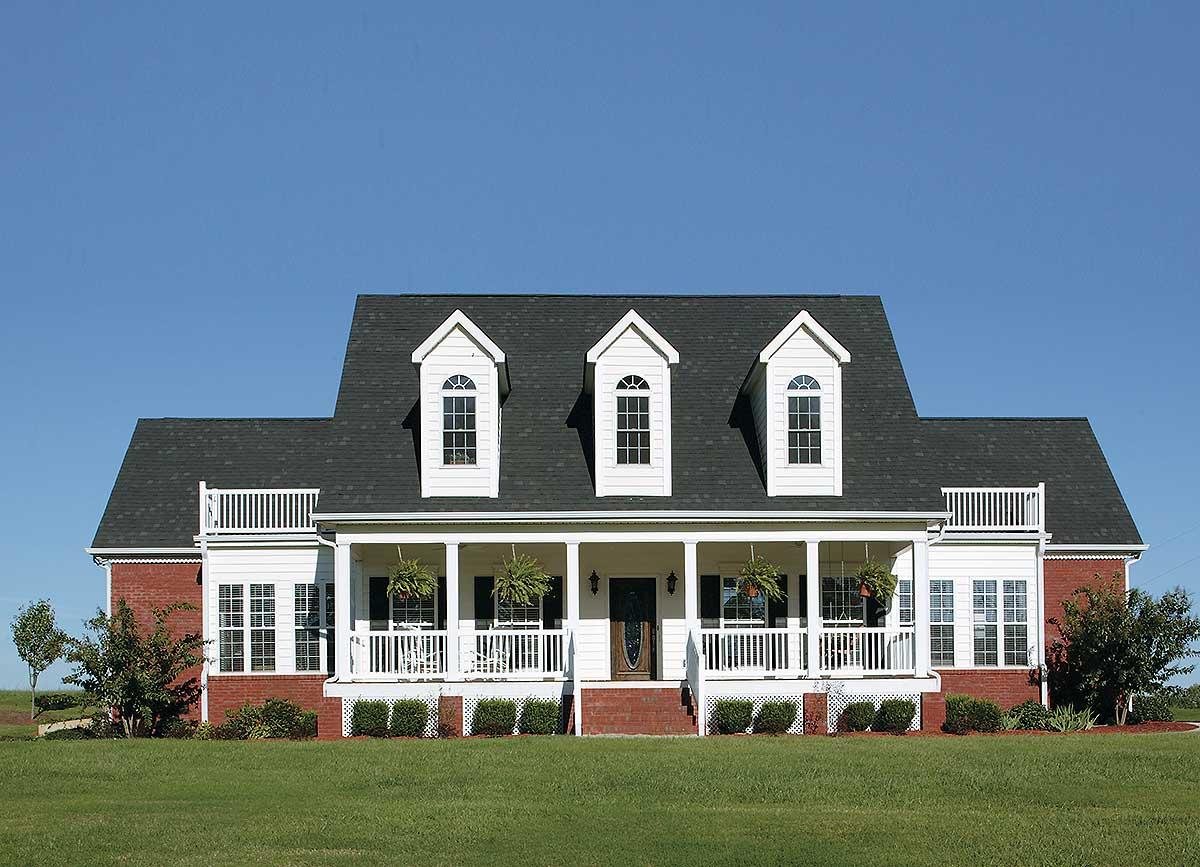

  • Besides the covered porch in front, in the rear this plan includes another covered porch and a large wrap-around deck. Another deck, partly covered, connects the house to the side-entry garage.
  • The living room ceiling is sloped to provide a view from the upstairs balcony, reached by a circular stairway. Two family bedrooms and a bath open to the balcony.
  • Downstairs, the spacious master suite includes a sitting area and a deluxe bath with a large garden tub and walk-in closet.
  • A gallery separates the dining room from the family room with its fireplace and high ceiling.
  • In the kitchen, there is a huge walk-in pantry and an angled eating bar.
  • Ceilings: 8' standard.
  • Foundation options: basement, slab or crawl space. Please specify when ordering.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

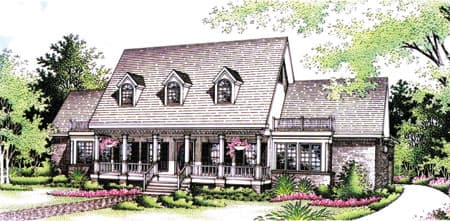

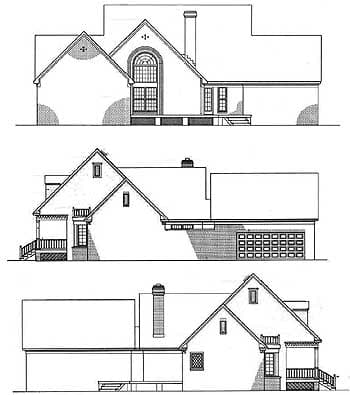

  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations



Floor Plan

Main Level

Reverse Floor Plan

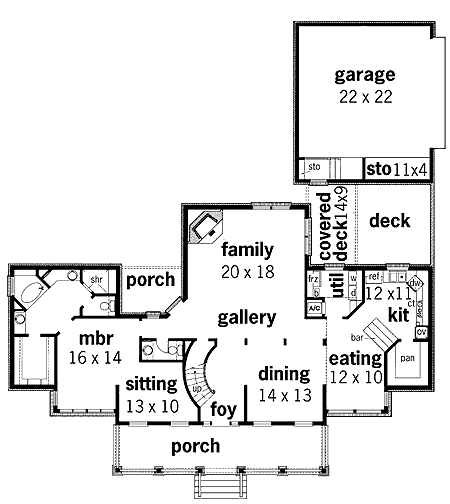

Porches and Decks - 5552BR floor plan - Main Level

2nd Floor

Reverse Floor Plan
Porches and Decks - 5552BR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,360 sq. ft.
  • 1st Floor: 1,765 sq. ft.
  • 2nd Floor: 595 sq. ft.
  • Deck: 126 sq. ft.
  • Storage: 44 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 74' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections



Porches and Decks

  • 2,360

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $950
  • 5 Sets $1,030
  • 8 Sets $1,090
  • Reproducible Set $1,110
  • CAD $1,900
  • View all purchase option online

About This Plan

  • Besides the covered porch in front, in the rear this plan includes another covered porch and a large wrap-around deck. Another deck, partly covered, connects the house to the side-entry garage.
  • The living room ceiling is sloped to provide a view from the upstairs balcony, reached by a circular stairway. Two family bedrooms and a bath open to the balcony.
  • Downstairs, the spacious master suite includes a sitting area and a deluxe bath with a large garden tub and walk-in closet.
  • A gallery separates the dining room from the family room with its fireplace and high ceiling.
  • In the kitchen, there is a huge walk-in pantry and an angled eating bar.
  • Ceilings: 8' standard.
  • Foundation options: basement, slab or crawl space. Please specify when ordering.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,360 sq. ft.
  • 1st Floor: 1,765 sq. ft.
  • 2nd Floor: 595 sq. ft.
  • Deck: 126 sq. ft.
  • Storage: 44 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 74' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
