Plan 72687DA

Prairie Home Plan for Sloping Lot

Pageloader

Prairie Home Plan for Sloping Lot

Plan 72687DA

  • 3,867

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This spacious Prairie-style home plan is designed for construction on land that slopes up at the rear.
  • On the main (upper) floor, a large great room with a fireplace is completely open to an even larger room that comprises the dining room and kitchen.
  • The owners' suite is on the main floor, and more bedrooms are below.
  • The lower level rec room is huge and opens to a covered patio thru sliding glass doors.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Prairie Home Plan for Sloping Lot

  • 3,867

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $995
  • PDF Light $1,245
  • 5 Sets $1,245
  • 5 Sets PLUS $1,375
  • 8 Sets $1,440
  • PDF - single-use $2,375
  • CAD $2,595
  • CAD - multi-use $2,855
  • View all purchase option online

About This Plan

  • This spacious Prairie-style home plan is designed for construction on land that slopes up at the rear.
  • On the main (upper) floor, a large great room with a fireplace is completely open to an even larger room that comprises the dining room and kitchen.
  • The owners' suite is on the main floor, and more bedrooms are below.
  • The lower level rec room is huge and opens to a covered patio thru sliding glass doors.

Floor Plans

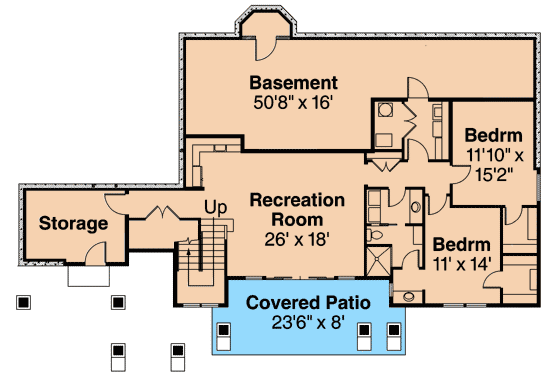

  • Basement

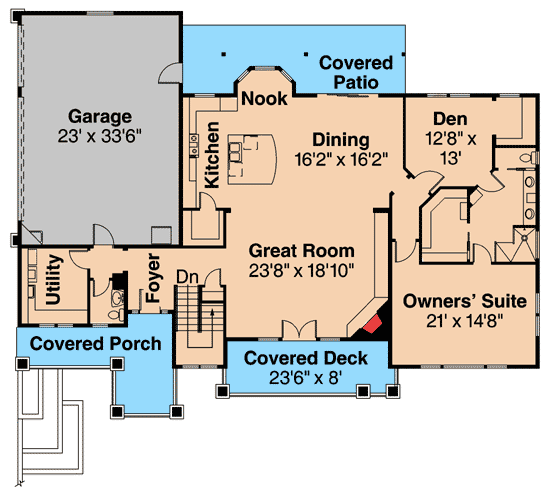

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,867 sq. ft.
  • Lower Level: 1,556 sq. ft.
  • 1st Floor: 2,311 sq. ft.
  • Basement Unfinished: 666 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 0"
  • Depth: 59' 0"
  • Max ridge height: 31' 5"

Garage

  • Type: Attached
  • Area: 805 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
