Plan 57284HA

Prairie Style Duplex

Heated S.F.
2,040
Units
2
Width
Depth

Floor Plan

Plan 57284HA

Main Level
Main Level

Plan 57284HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

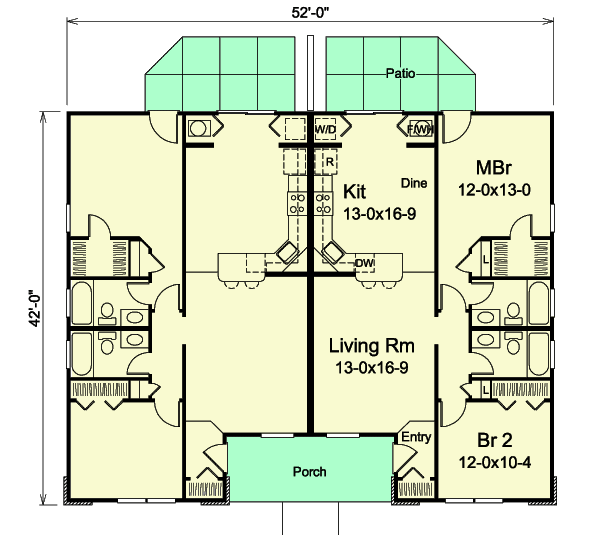

Plan 57284HA: Prairie Style Duplex - Floor Plan - Main Level - Prairie

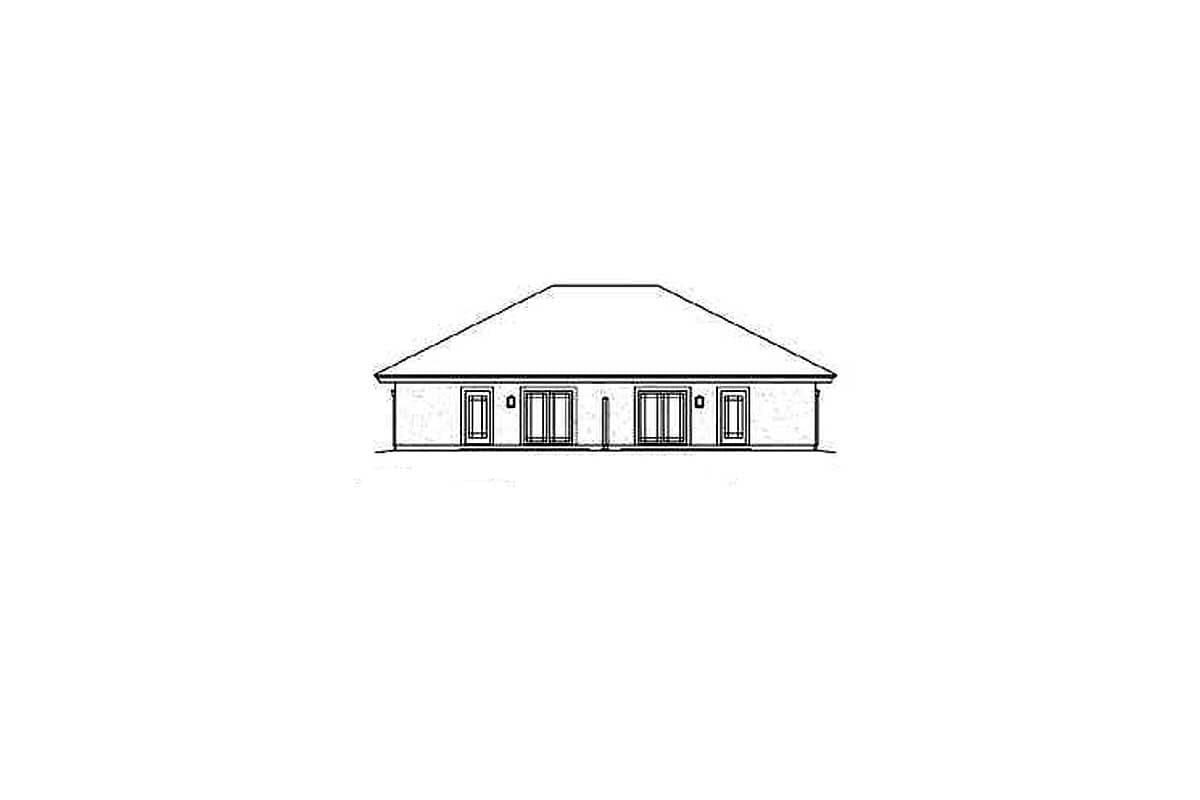

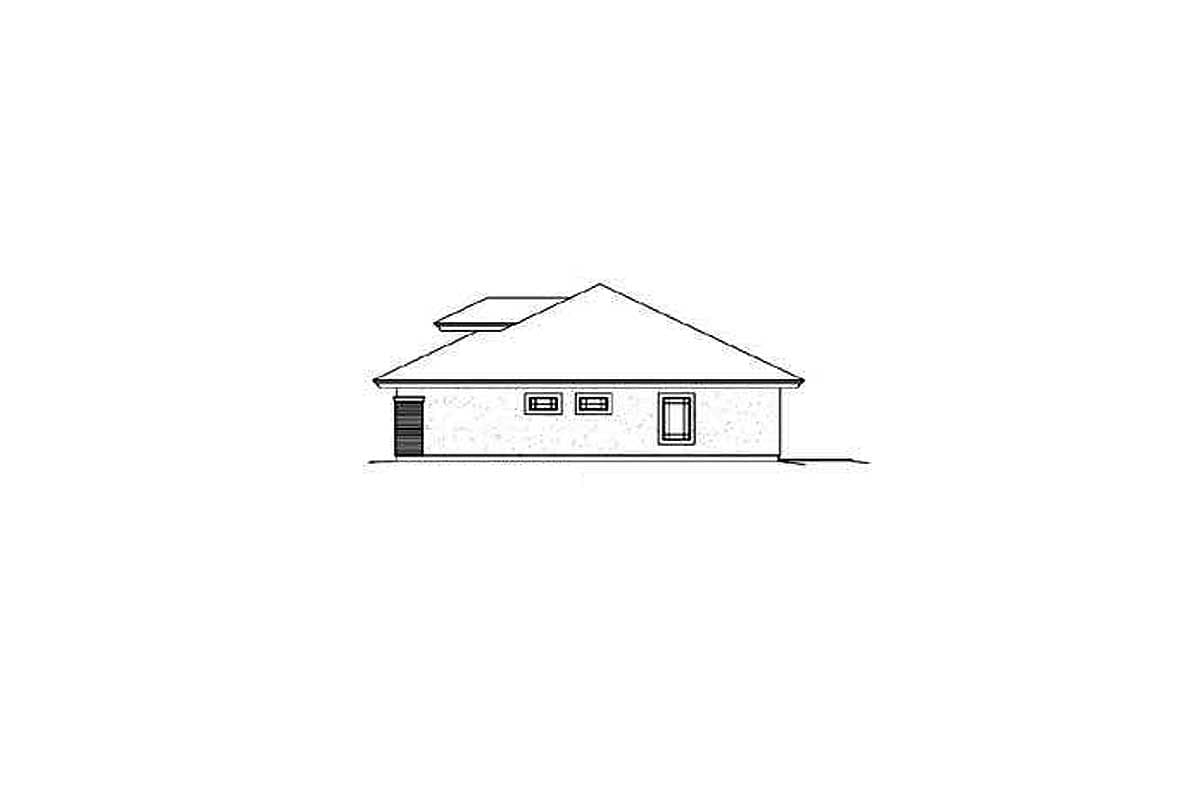

Plan Details

  • A shared front porch leads to the two separate entrances in this Prairie style duplex home plan. Each unit has 1,020 square feet of living space.
  • Inside each unit, a large open space gives you views of the living room, dining area and kitchen with its peninsula eating bar.
  • The master suite is set in the rear and has a private bathroom and walk-in closet.
  • The second guest bedroom faces front and has access to a hall bath.
  • Rear patios can be reached from either the dining area or the master suite.
Unit Unit A
Heated Area
1,020Sq. Ft.
1020 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
26'width
42'depth
Unit Unit B
Heated Area
1,020Sq. Ft.
2040 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
26'width
42'depth

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,040 sq. ft.

1st Floor

2,040 sq. ft.

Entry

45 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

52' 8"

Depth

42' 0"

Max Ridge Height

20' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Prairie

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,040 sq. ft.

1st Floor

2,040 sq. ft.

Entry

45 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

52' 8"

Depth

42' 0"

Max Ridge Height

20' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Prairie

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
