Plan 720088DA

Prairie-Style Duplex House Plan with One 1 Bed Unit and One 2 Bed Unit - 2045 Sq Ft

Heated S.F.
2,045
Units
2
Width
Depth

Floor Plan

Plan 720088DA

Unit A - Main Level
Unit A - Main Level
Unit B - Lower Level
Unit B - Lower Level

Plan 720088DA

M-F 9am-5pm EST |

1-203-761-8500

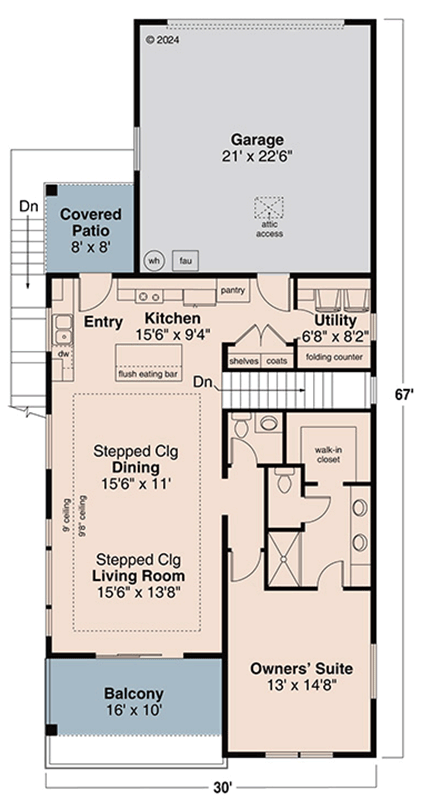

Unit A - Main Level

Plan 720088DA: Prairie-Style Duplex House Plan with One 1 Bed Unit and One 2 Bed Unit - 2045 Sq Ft - Floor Plan - Unit A - Main Level - Prairie, Traditional

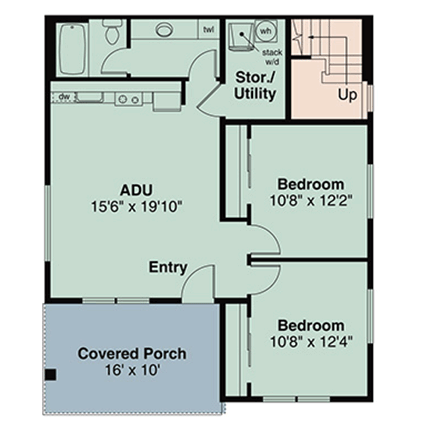

Unit B - Lower Level

Plan 720088DA: Prairie-Style Duplex House Plan with One 1 Bed Unit and One 2 Bed Unit - 2045 Sq Ft - Floor Plan - Unit B - Lower Level - Prairie, Traditional

Plan Details

  • This Prairie-style duplex is designed for narrow, sloped lots and offers two separate living spaces—ideal for multigenerational living or rental income.
  • The main-level unit spans 1,200 sq. ft. and features an open layout with a great room, stepped ceilings, a wall of windows, a covered balcony, one bedroom, and one bathroom.
  • Below, the 845 sq. ft. accessory dwelling unit (ADU) includes two bedrooms, one bathroom, and its own private entrance.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,200Sq. Ft.
1200 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
506 Sq. Ft.
Dimensions
30'width
67'depth
Unfinished Areas
506 Sq. Ft. Garage
160 Sq. Ft. Balcony / Veranda
160 Sq. Ft. Porch, Front
Unit B
Heated Area
845Sq. Ft.
845 Sq. Ft. LL
845 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
0
Unfinished Areas
160 Sq. Ft. Porch, Front

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

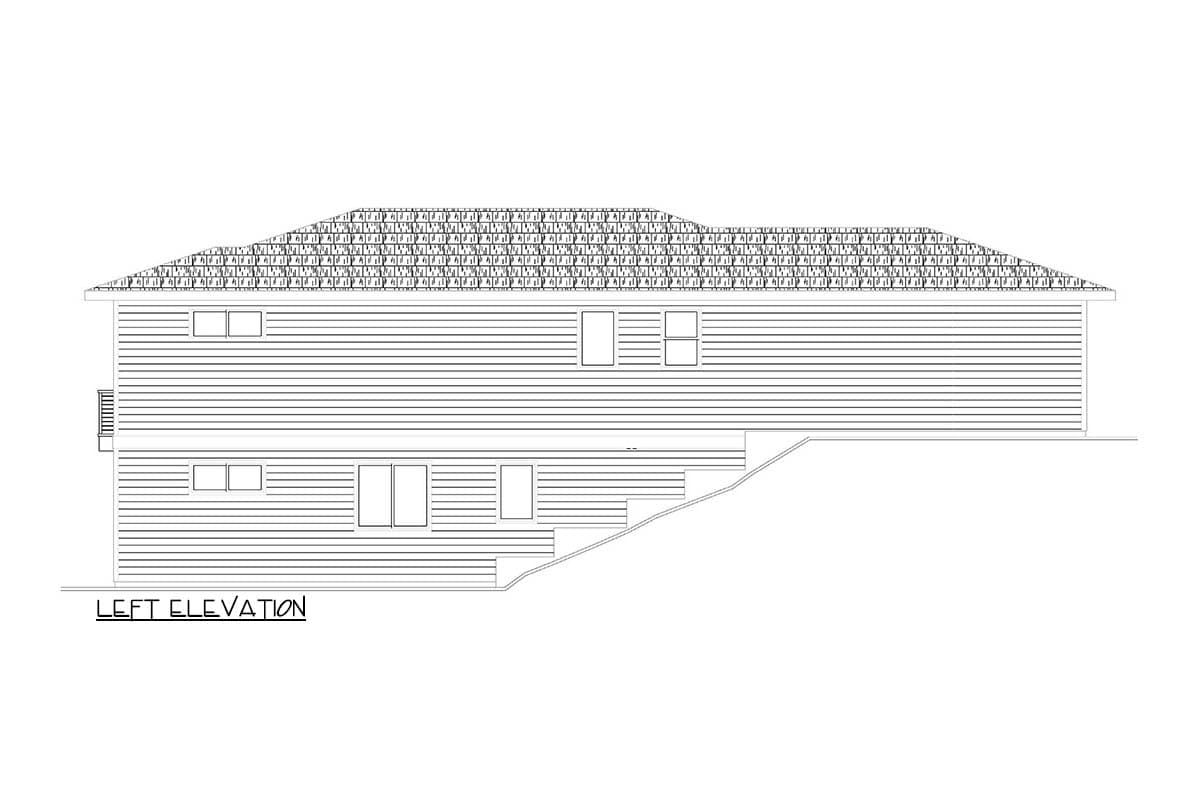

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,045 sq. ft.

Lower Level

845 sq. ft.

1st Floor

1,200 sq. ft.

Porch, Combined

336 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

67' 0"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

506 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Prairie

Traditional

Special Features

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Lower Level

Mudroom

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area

2,045 sq. ft.

Lower Level

845 sq. ft.

1st Floor

1,200 sq. ft.

Porch, Combined

336 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

67' 0"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

506 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Prairie

Traditional

Special Features

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Lower Level

Mudroom

Plan Collections

Attached Apartments
