Plan 69556AM Private Baths For All

5,033 4 4.5+ 1 3
Print
Compare
...

Private Baths For All

Plan 69556AM

  • 5,033

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Stories

  • 3

    Cars

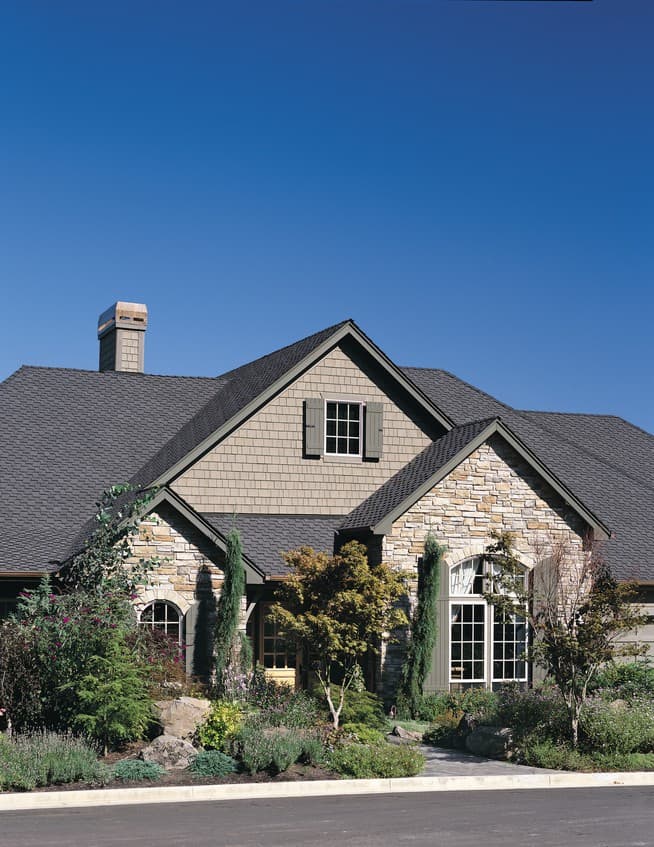

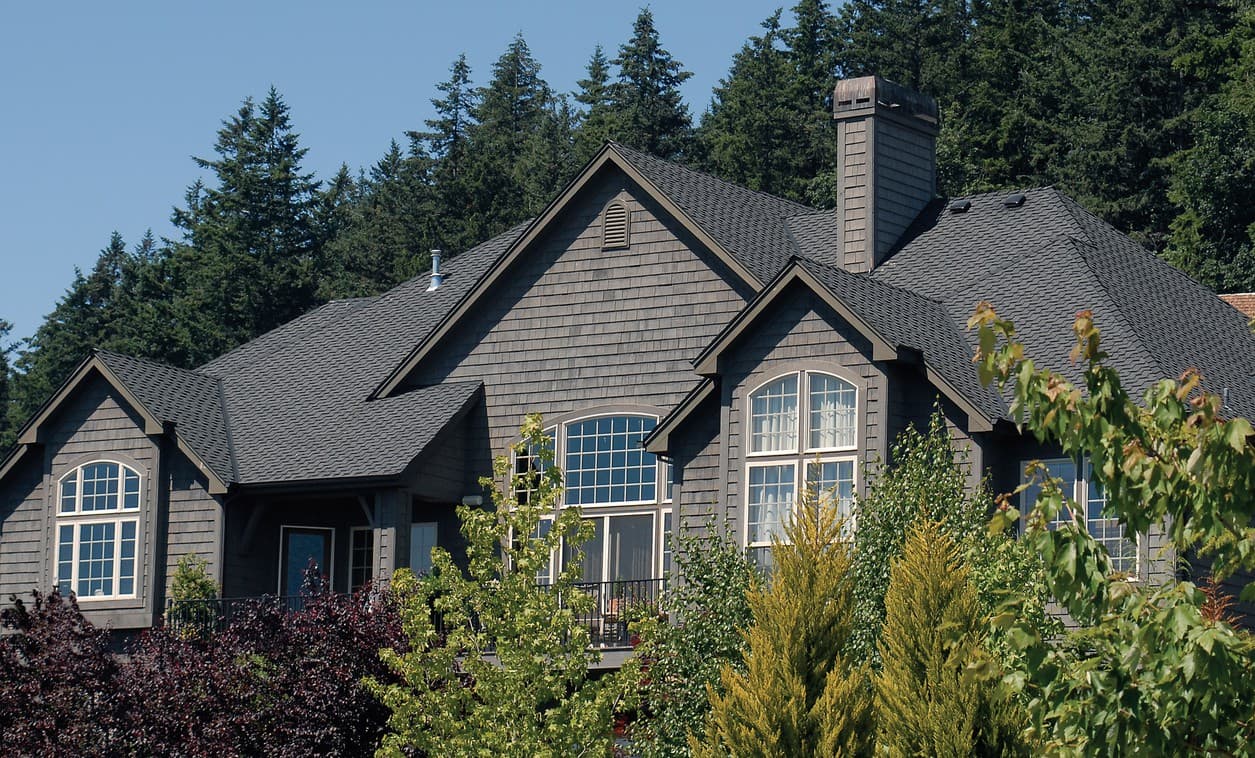

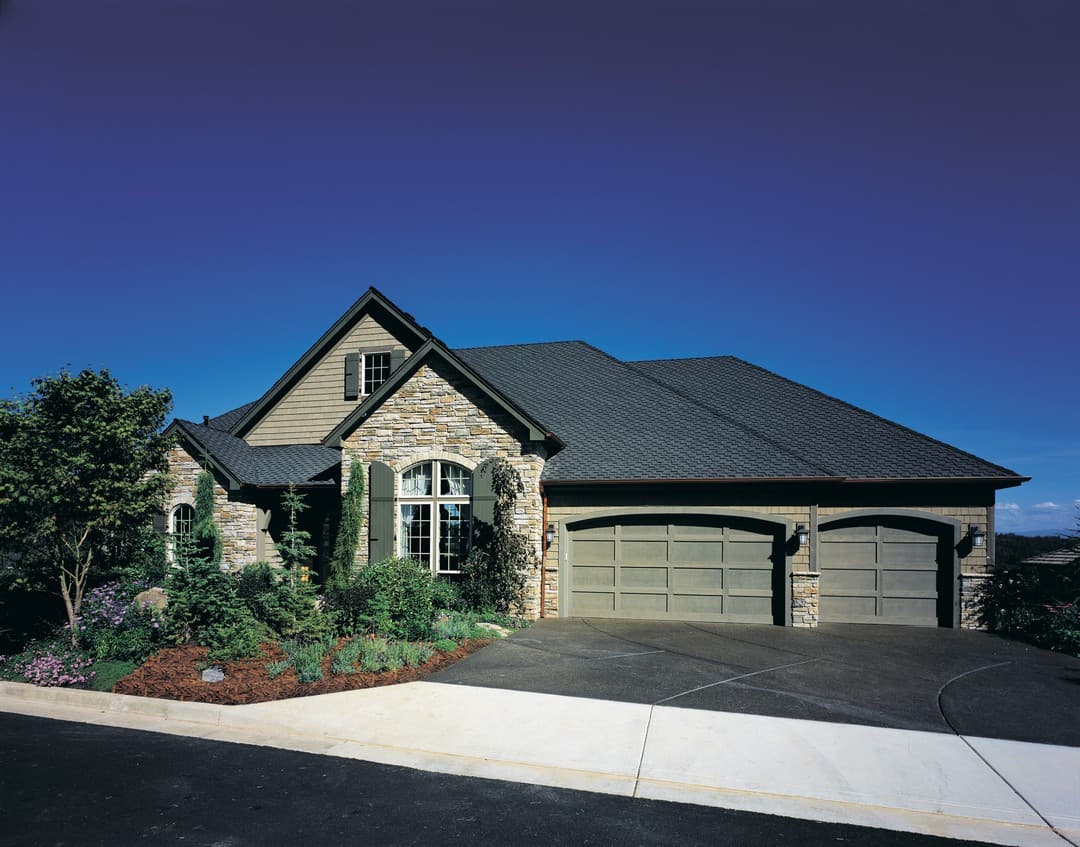

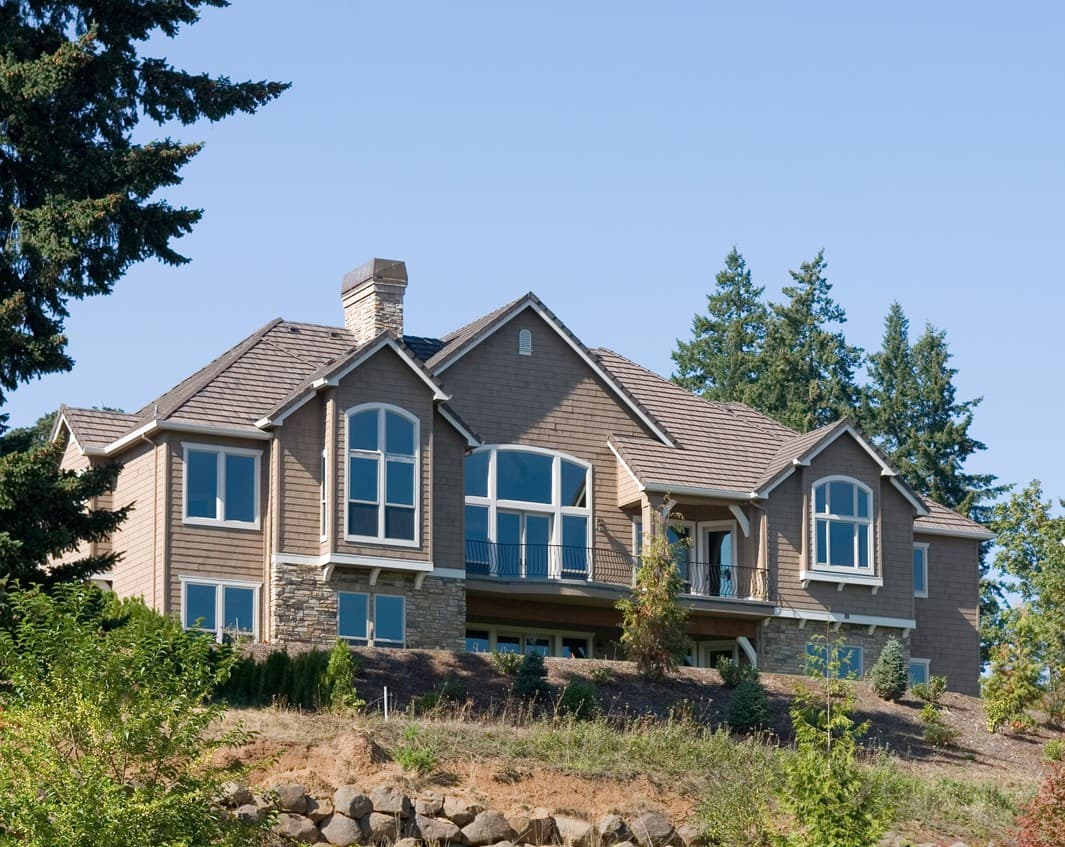

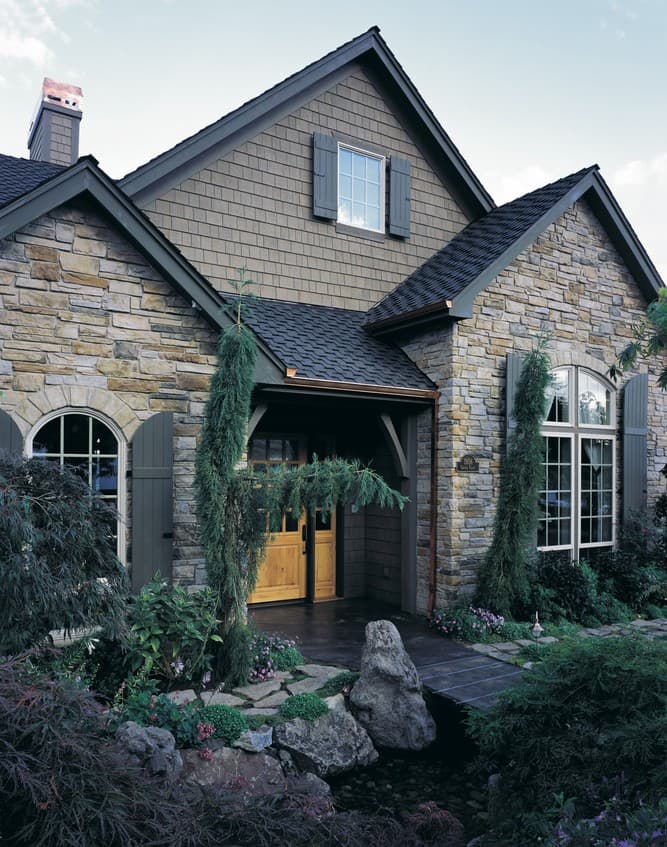

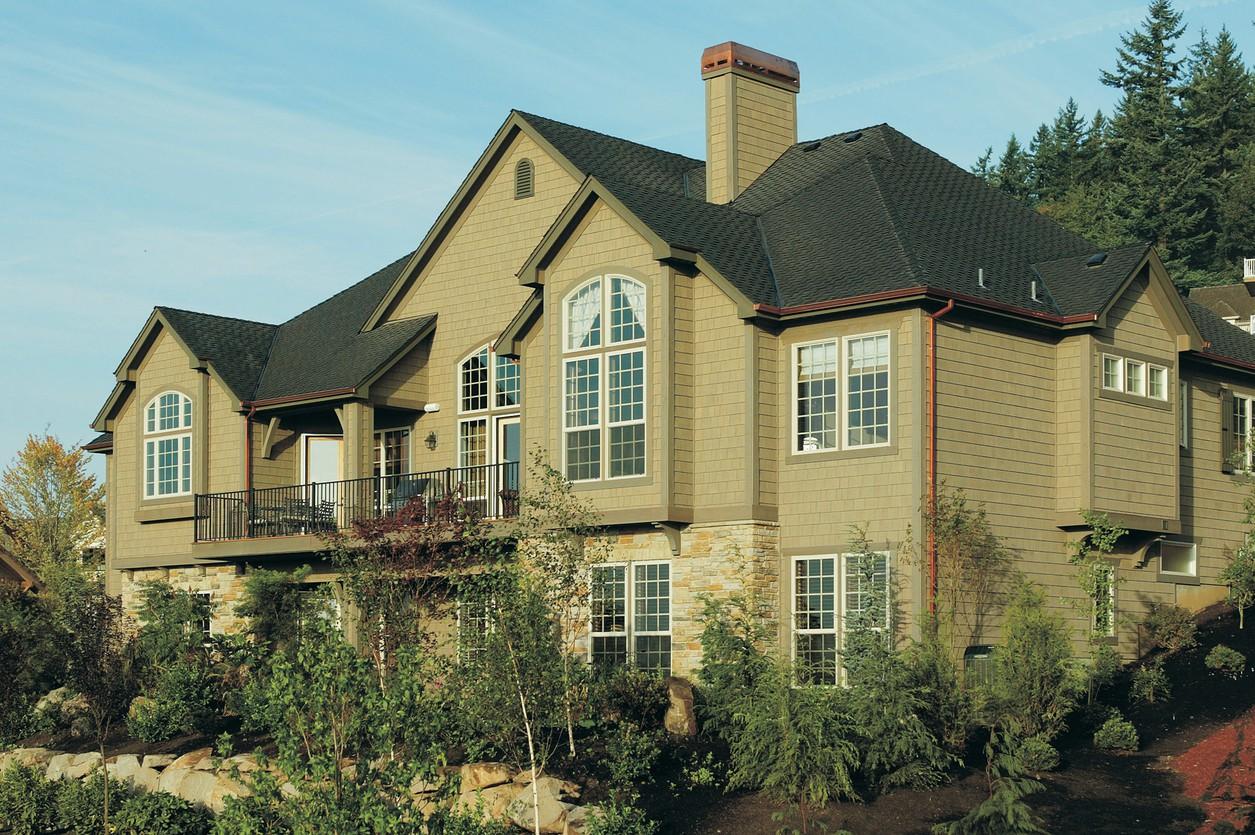

  • Take advantage of views and make best use of a hillside lot by selecting this impressive French country home plan.
  • High ceilings grace the rooms on the main level, including vaulted ceilings in the kitchen and master bedroom.

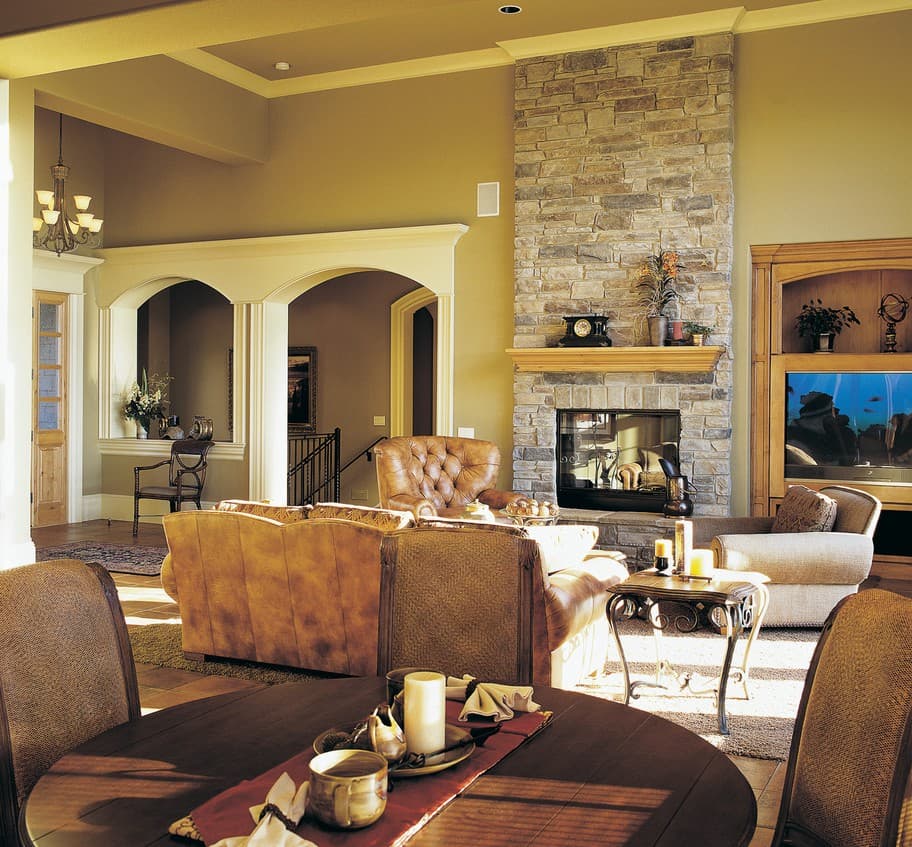

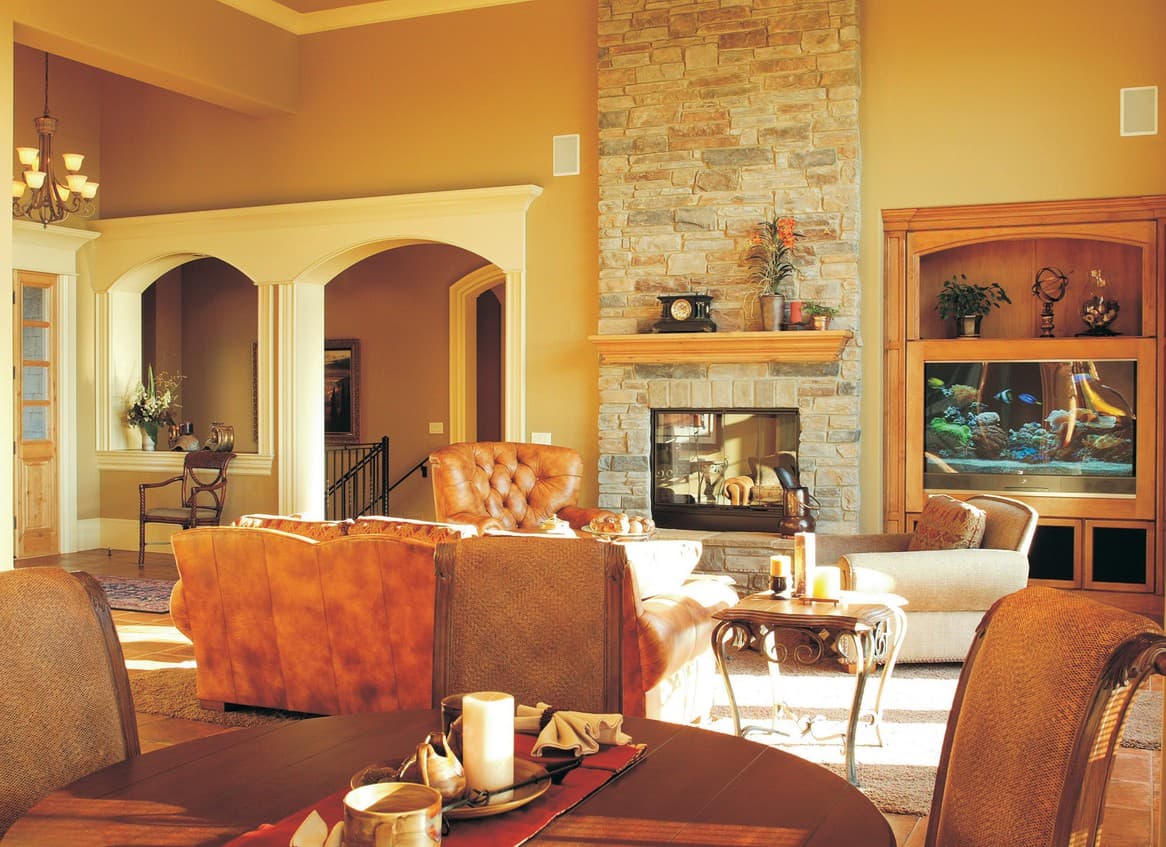

  • The great room features a fireplace, a media center and double doors to the rear deck.

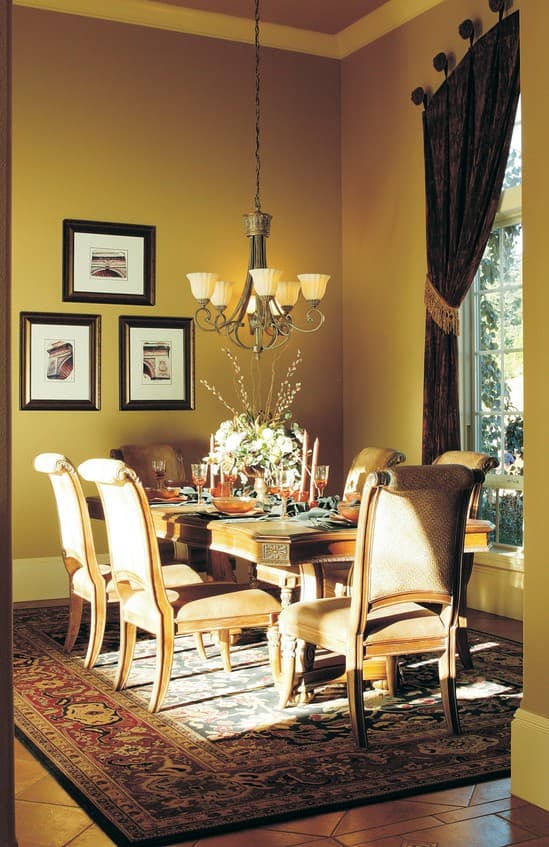

  • A butler's pantry, with wine storage, separates the formal dining room from the everyday breakfast nook and if you want to go downstairs, use elevator just around the corner.

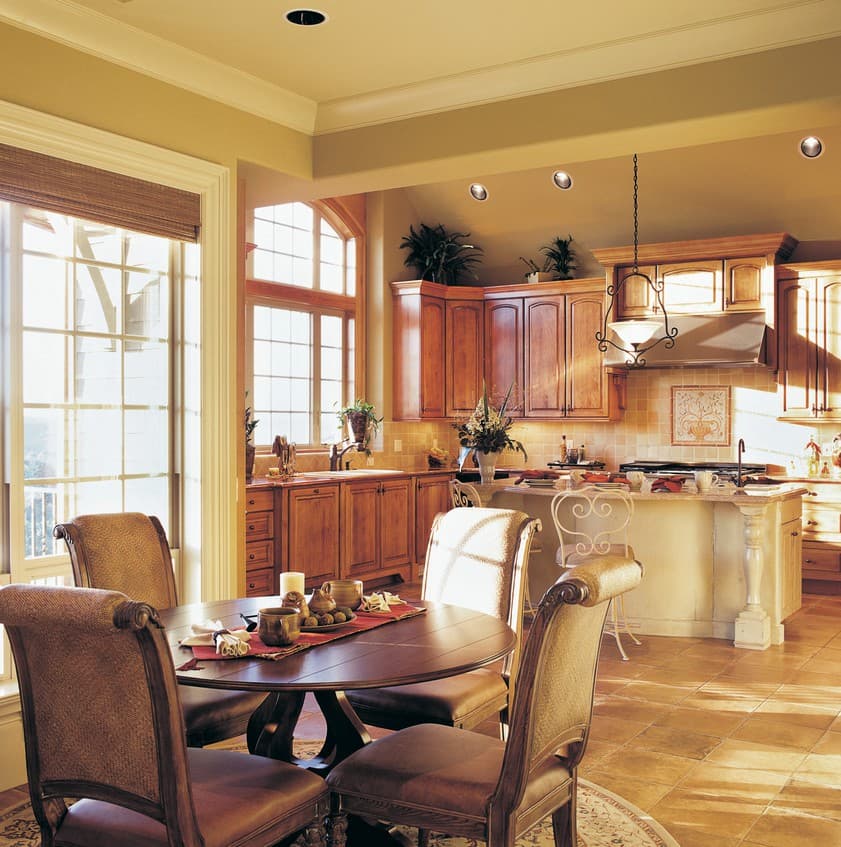

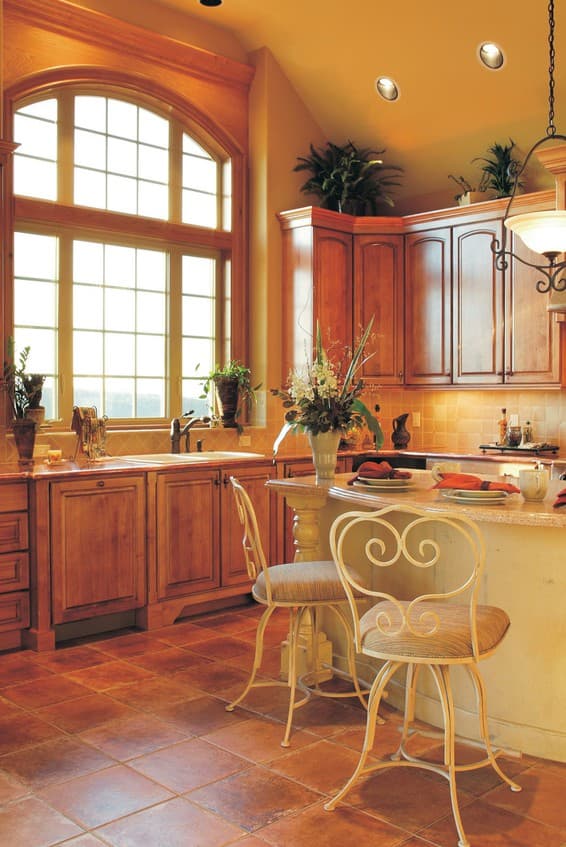

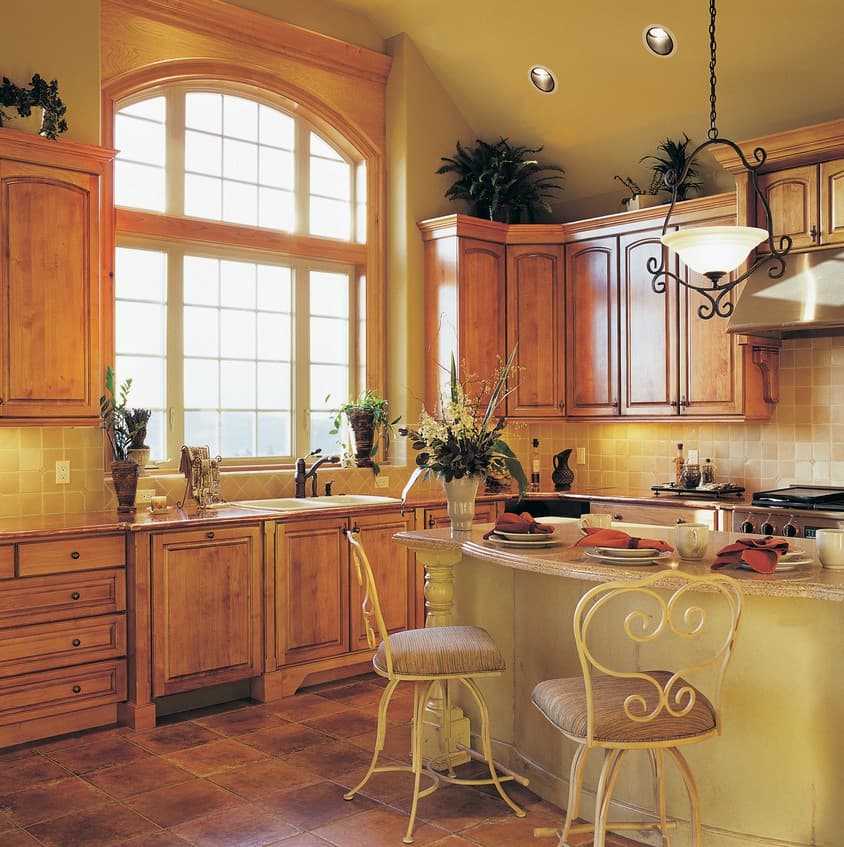

  • The kitchen has an island work center and a built-in desk and allows access to the deck.

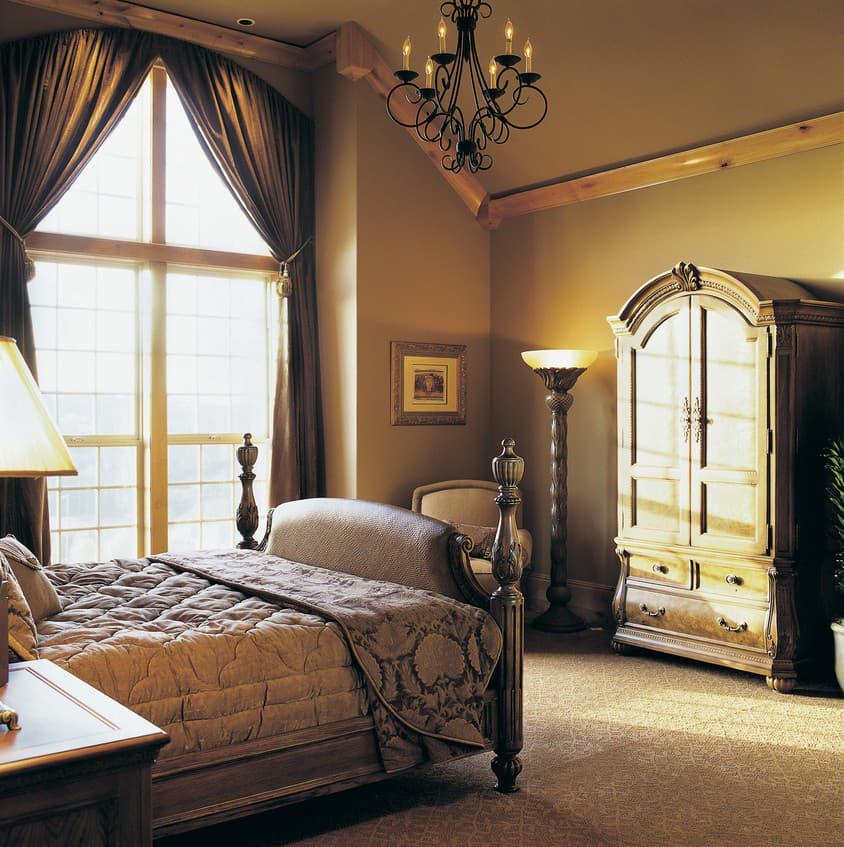

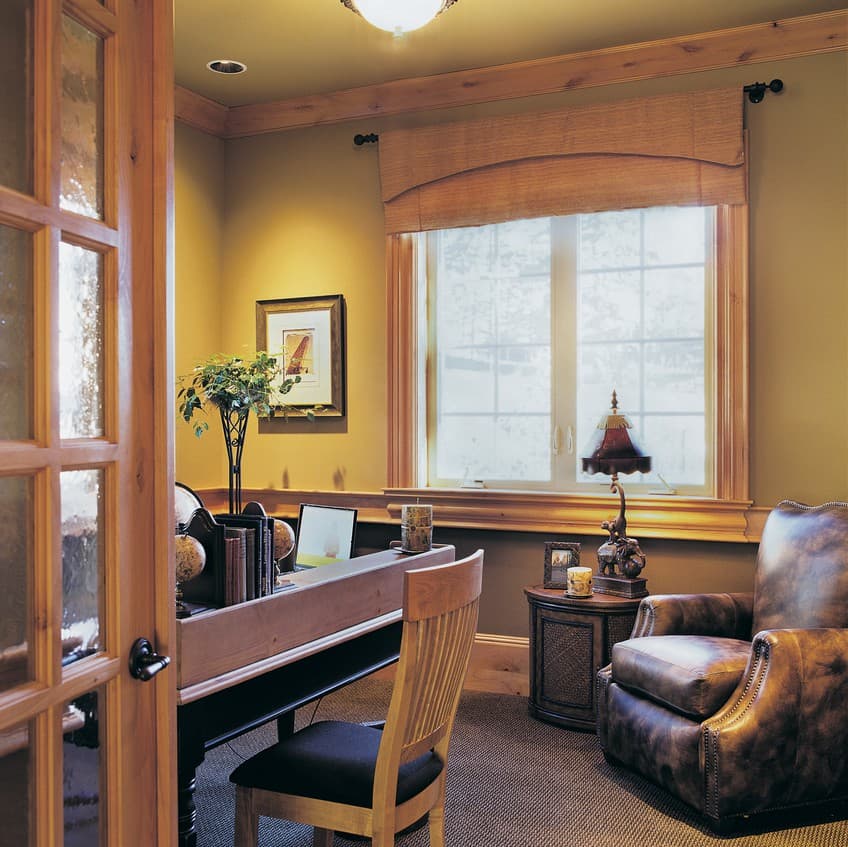

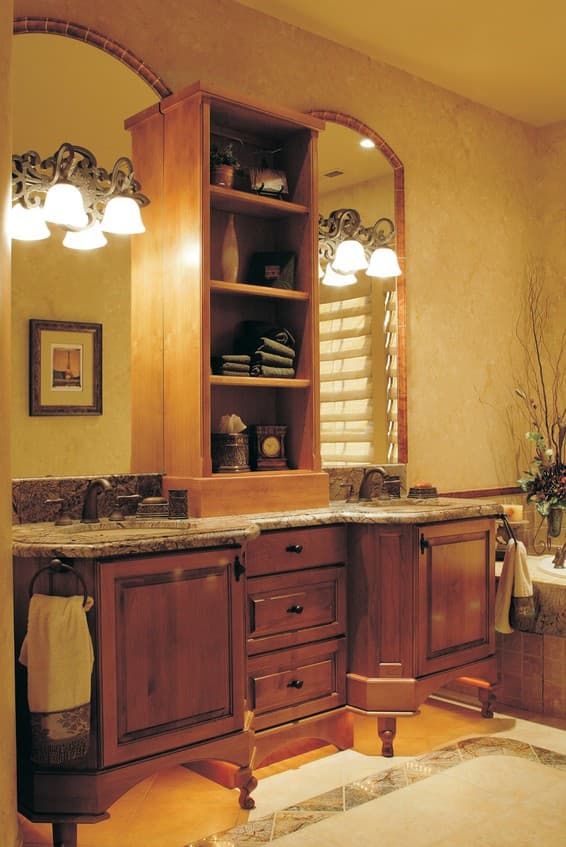

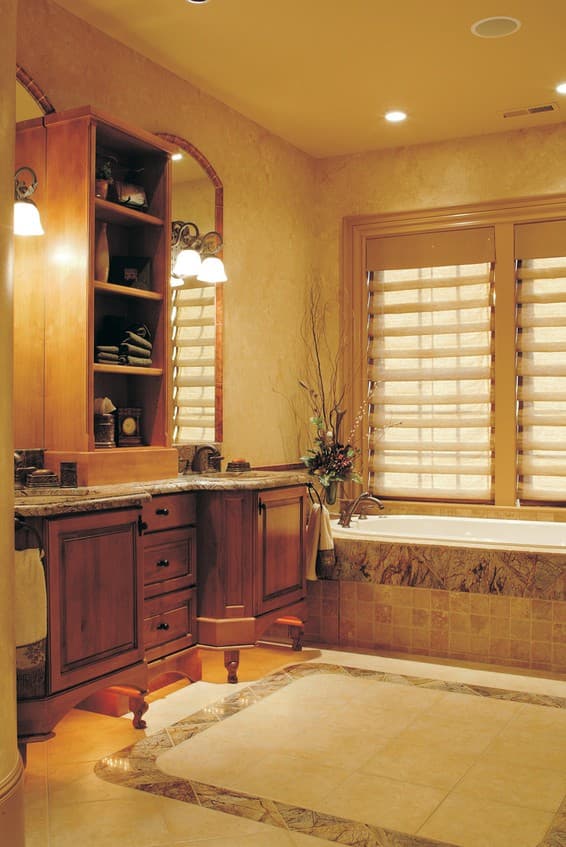

  • A sumptuous bath complements the master bedroom. It features a walk-in closet with ironing center, space for a stacked washer/dryer, a spa tub, and a curved shower fashioned of glass block. A den and half-bath round out the main level.

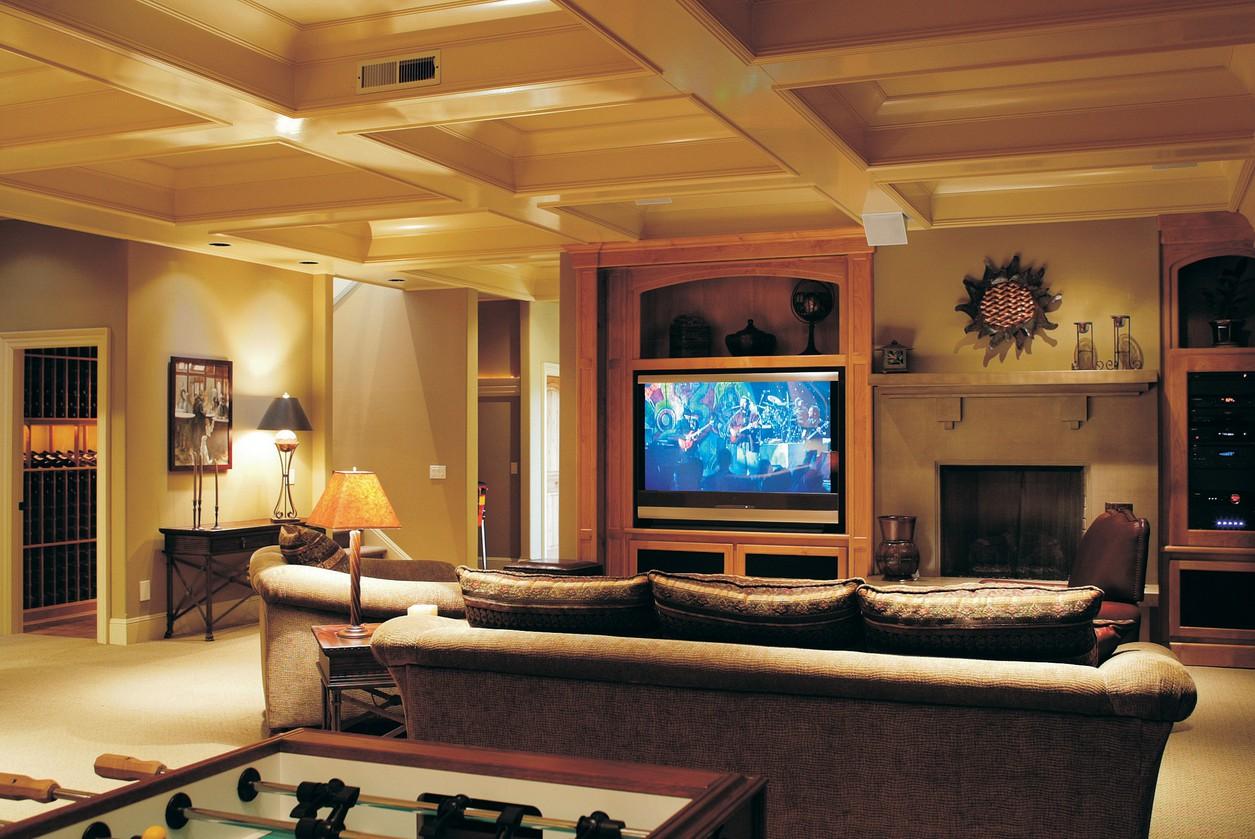

  • A games room, laundry or craft room, and three family bedrooms are on the lower level. Special elements on this floor include a wet bar, a wine cellar and art niches. All lower-level bedrooms have private baths.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Basement

Reverse Floor Plan

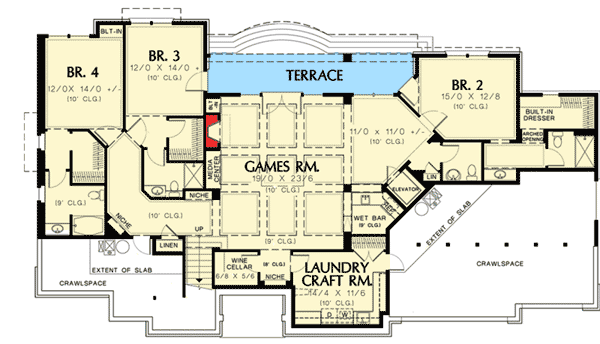

Private Baths For All - 69556AM floor plan - Basement

Main Level

Reverse Floor Plan

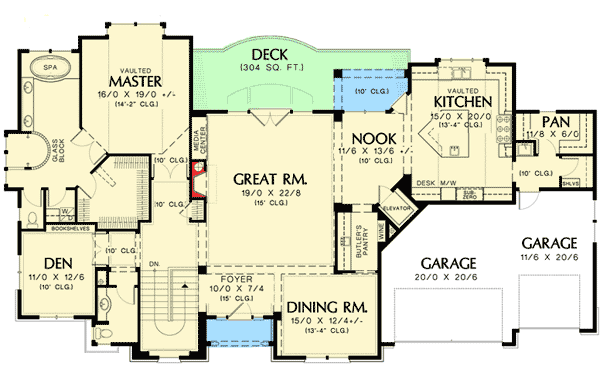

Private Baths For All - 69556AM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,033 sq. ft.
  • Lower Level: 2,429 sq. ft.
  • 1st Floor: 2,604 sq. ft.
  • Deck: 304 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 50' 0"
  • Max ridge height: 27' 11"

Garage

  • Type: Attached
  • Area: 648 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Private Baths For All

  • 5,033

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $1,900
  • PDF - Single-Build $2,250
  • 5 Sets $2,425
  • 5 Sets + PDF $2,475
  • CAD - Unlimited Build $4,500
  • View all purchase option online

About This Plan

  • Take advantage of views and make best use of a hillside lot by selecting this impressive French country home plan.
  • High ceilings grace the rooms on the main level, including vaulted ceilings in the kitchen and master bedroom.
  • The great room features a fireplace, a media center and double doors to the rear deck.
  • A butler's pantry, with wine storage, separates the formal dining room from the everyday breakfast nook and if you want to go downstairs, use elevator just around the corner.
  • The kitchen has an island work center and a built-in desk and allows access to the deck.
  • A sumptuous bath complements the master bedroom. It features a walk-in closet with ironing center, space for a stacked washer/dryer, a spa tub, and a curved shower fashioned of glass block. A den and half-bath round out the main level.
  • A games room, laundry or craft room, and three family bedrooms are on the lower level. Special elements on this floor include a wet bar, a wine cellar and art niches. All lower-level bedrooms have private baths.

Floor Plans

  • Basement

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,033 sq. ft.
  • Lower Level: 2,429 sq. ft.
  • 1st Floor: 2,604 sq. ft.
  • Deck: 304 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 50' 0"
  • Max ridge height: 27' 11"

Garage

  • Type: Attached
  • Area: 648 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Framing Type: Stick

Plan 69556AM
