Plan: 15779GE

Private Master Suite

2,942 4-5 4 2 2
Pageloader

Private Master Suite

Plan 15779GE

  • 2,942

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • Stone, brick and shakes combine to give this Country home plan a rustic appeal.
  • A well-thought out floor plan locates the big pantry near the formal dining room and separates the bedrooms to give the master suite privacy.
  • Coffered ceiling in the family room add a wonderful charm and the fireplace will draw everyone in to enjoy its warmth.
  • The master suite has a sitting area with a cozy fireplace and a huge walk-in closet with an island.
  • Upstairs, another bedroom shares space with the bonus room that could become bedroom 5.

The plan set includes the following:

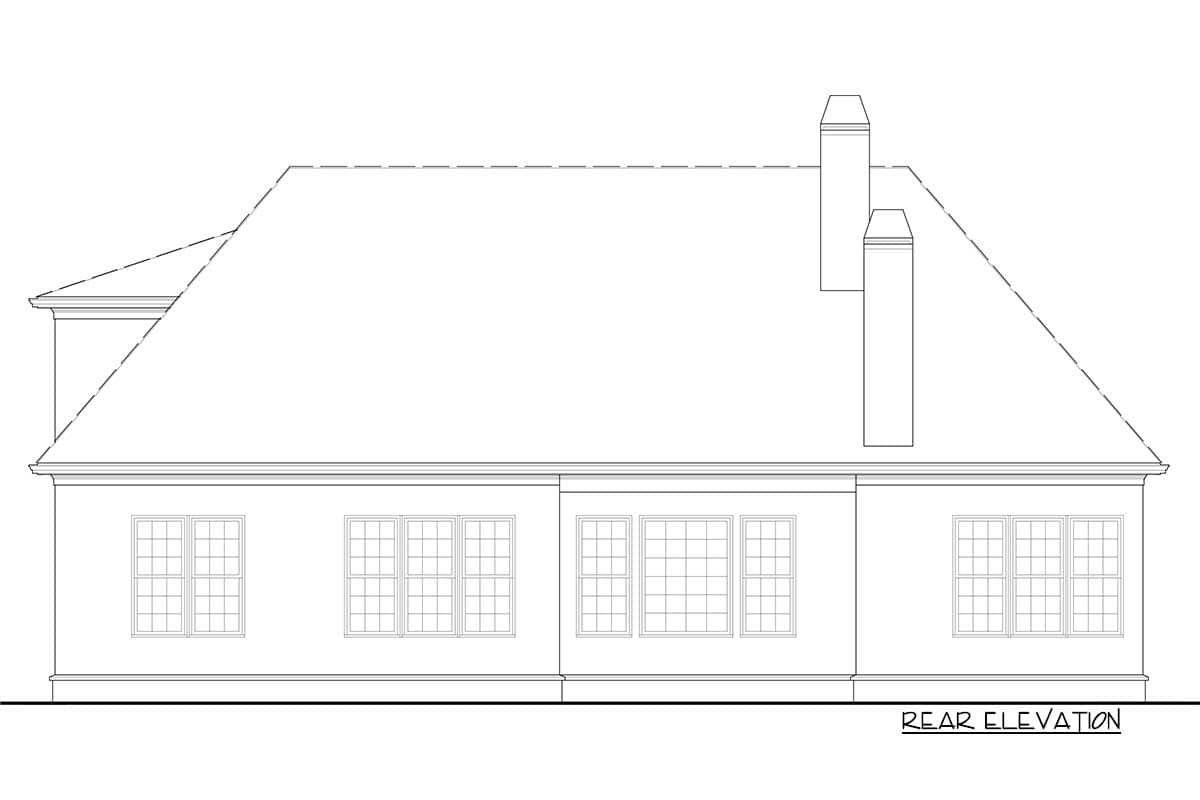

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • The plans are designed to meet the International Residential Code but are not designed for a specific area.  These plans do not come engineered or with structural drawings. They do not include framing plans.
  • Plans do include wall and cornice sections, general foundation sections and details.



Floor Plan

Plan details



Private Master Suite

  • 2,942

    Heated s.f.

  • 4 - 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $950
  • CAD $1,800
  • View all purchase option online

About This Plan

  • Stone, brick and shakes combine to give this Country home plan a rustic appeal.
  • A well-thought out floor plan locates the big pantry near the formal dining room and separates the bedrooms to give the master suite privacy.
  • Coffered ceiling in the family room add a wonderful charm and the fireplace will draw everyone in to enjoy its warmth.
  • The master suite has a sitting area with a cozy fireplace and a huge walk-in closet with an island.
  • Upstairs, another bedroom shares space with the bonus room that could become bedroom 5.

Floor Plans

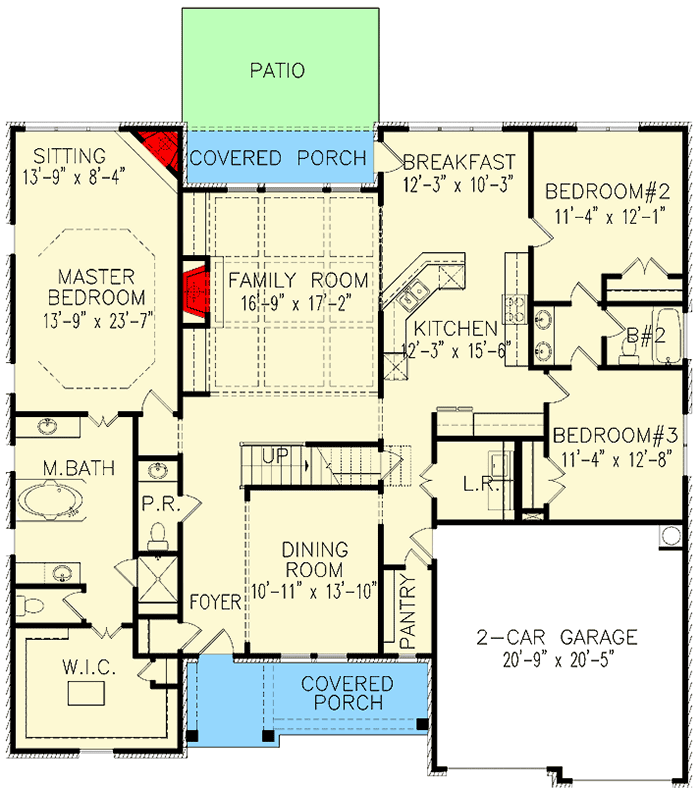

  • Main Level

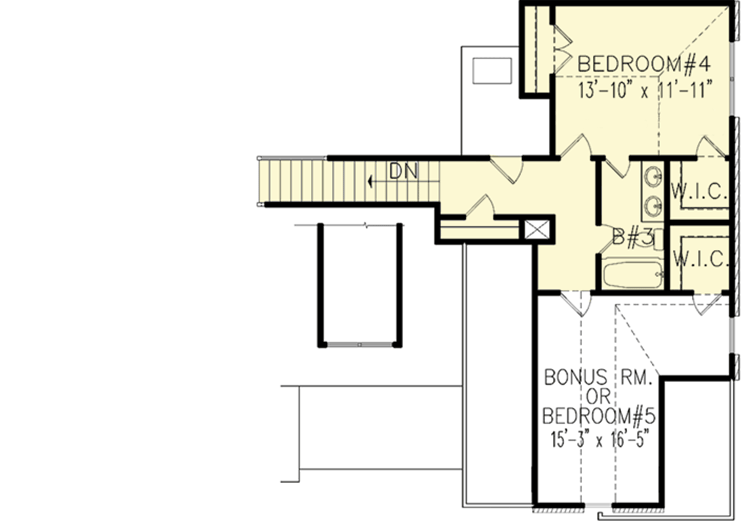

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,942 sq. ft.
  • 1st Floor: 2,316 sq. ft.
  • 2nd Floor: 626 sq. ft.
  • Bonus: 250 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 56' 8"
  • Depth: 55' 0"

Garage

  • Type: Attached
  • Area: 423 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Architectural Style

  • Country
  • European

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Jack & Jill Bath
  • MBR Sitting Area
  • PDF
  • Split Bedrooms
