Private Side Courtyard

Plan 59082ND

  • 1,660

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This home plan is wonderful for raising children. The gorgeous courtyard is certain to be a favorite for family cookouts and is viewed by several rooms.
  • Your spacious kitchen, with fluid access to the dining room, makes preparing meals a breeze.
  • The open great room, complete with fireplace, allows get-togethers and family time all the more simple.
  • If you're concerned about room for the kids, don't worry. They'll have abundant space in the two extra bedrooms- one with walk-in closet.
  • Your master suite includes a corner whirlpool bath, a separate shower and double vanities.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

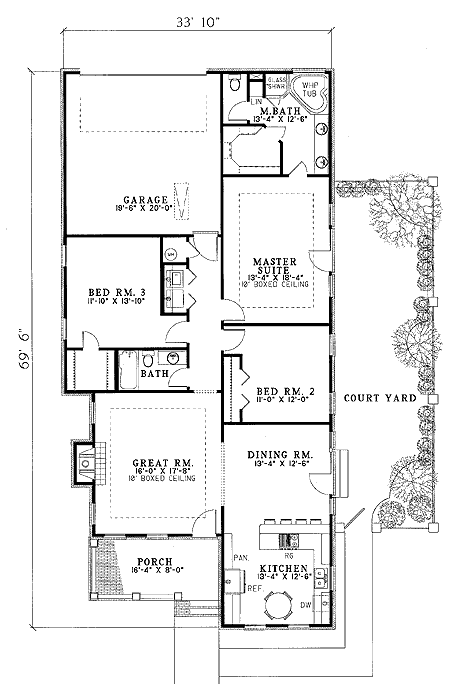

Floor Plan

Plan details

Architectural Style



Private Side Courtyard

  • 1,660

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $650
  • 5 Sets $750
  • CAD $1,364
  • View all purchase option online

About This Plan

  • This home plan is wonderful for raising children. The gorgeous courtyard is certain to be a favorite for family cookouts and is viewed by several rooms.
  • Your spacious kitchen, with fluid access to the dining room, makes preparing meals a breeze.
  • The open great room, complete with fireplace, allows get-togethers and family time all the more simple.
  • If you're concerned about room for the kids, don't worry. They'll have abundant space in the two extra bedrooms- one with walk-in closet.
  • Your master suite includes a corner whirlpool bath, a separate shower and double vanities.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,660 sq. ft.
  • 1st Floor: 1,660 sq. ft.
  • Porch, Front: 143 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 33' 10"
  • Depth: 69' 6"
  • Max ridge height: 23' 9"

Garage

  • Type: Attached
  • Area: 780 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
