Quaint 2-Bed Cottage Under 1000 Square Feet

Plan 52314WM

This plan plants 3 trees

788
Heated s.f.
2
Beds
1
Baths
1
Stories
1
Cars

This quaint 2-bedroom Cottage plan presents a charming exterior, complete with brick accents and horizontal siding beneath nested gables.
Inside, a 9' tray ceiling expands the space vertically above the living room, which freely flows into the kitchen and dining area.
The island kitchen allows you to easily maneuver in and around the space and a door nearby leads to the single garage bay.
In the hallway near the bedrooms, discover the utility room with a stacked washer / dryer unit.
Both of the bedrooms are similar in size, while one includes a 6' by 5' closet.

Front elevation and construction notes
Rear and side elevations
Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Most plans have an optional full building section--only available upon request--at no extra cost. This section is not typically required in the US but can be a requirement in Canada

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

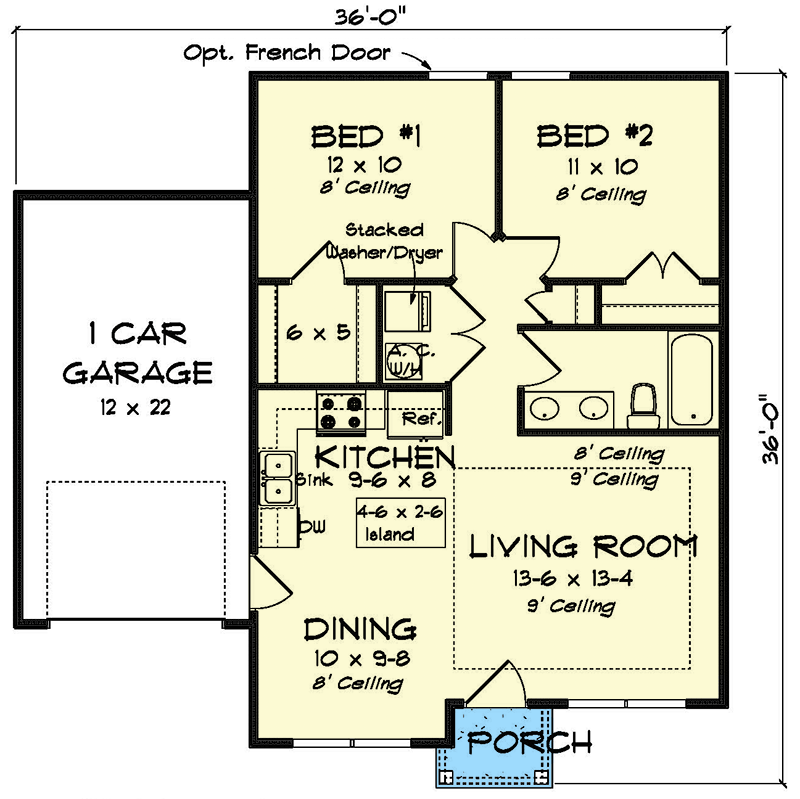

Quaint 2-Bed Cottage Under 1000 Square Feet - 52314WM floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 788 sq. ft.
1st Floor: 788 sq. ft.

Porch, Front: 21 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 1

Foundation Type

Standard Foundations: Slab

Optional Foundations: Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 36' 0"
Depth: 36' 0"
Max ridge height: 16' 8"

Garage

Type: Attached
Area: 264 sq. ft.
Count: 1 Cars
Entry Location: Front

Roof Details

Primary Pitch: 8 on 12
Secondary Pitch: 8 on 12

Framing Type: Truss

Architectural Style

Special features
