Quaint And Functional Craftsman Home Plan

Plan 69053AM

  • 2,032

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

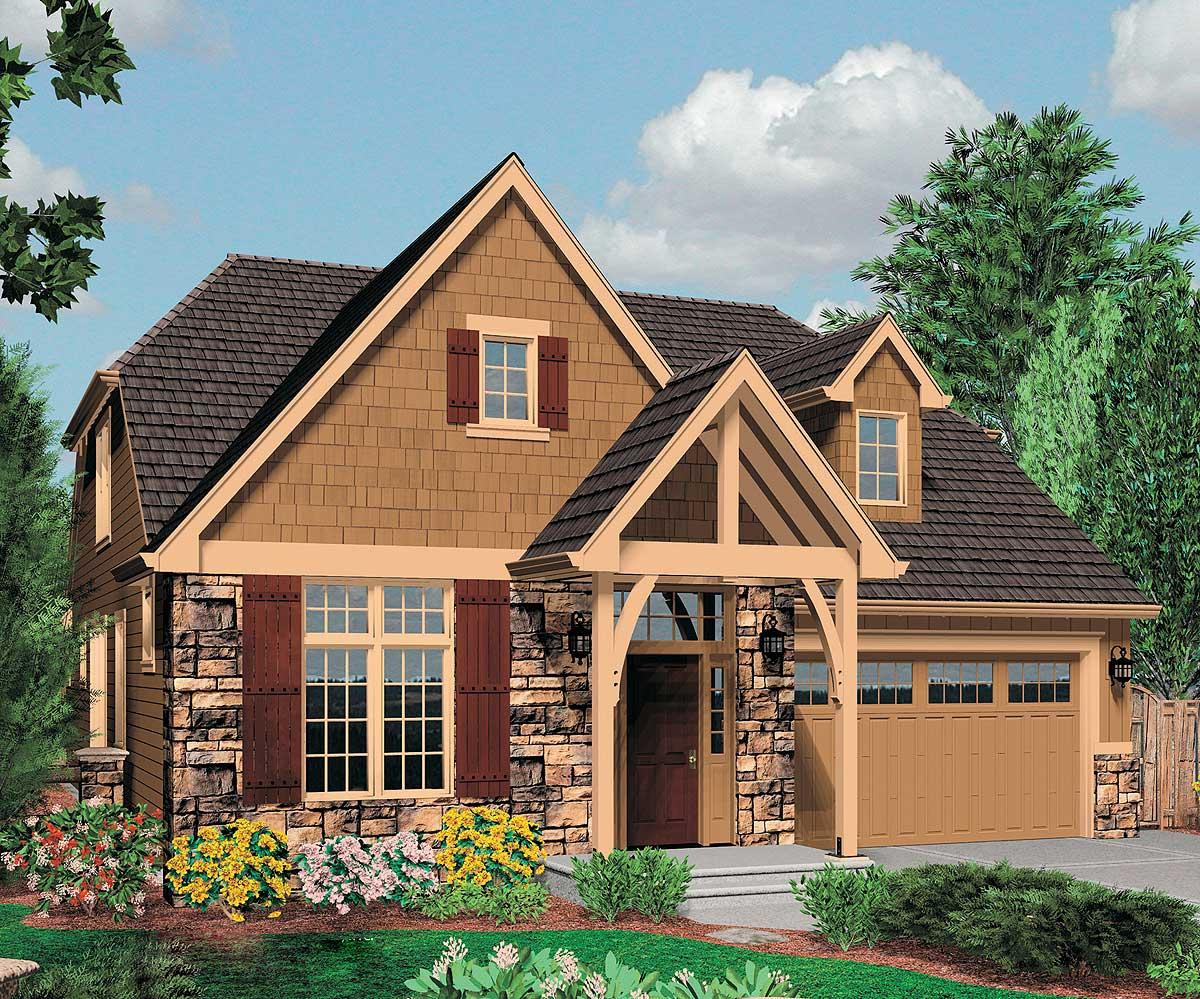

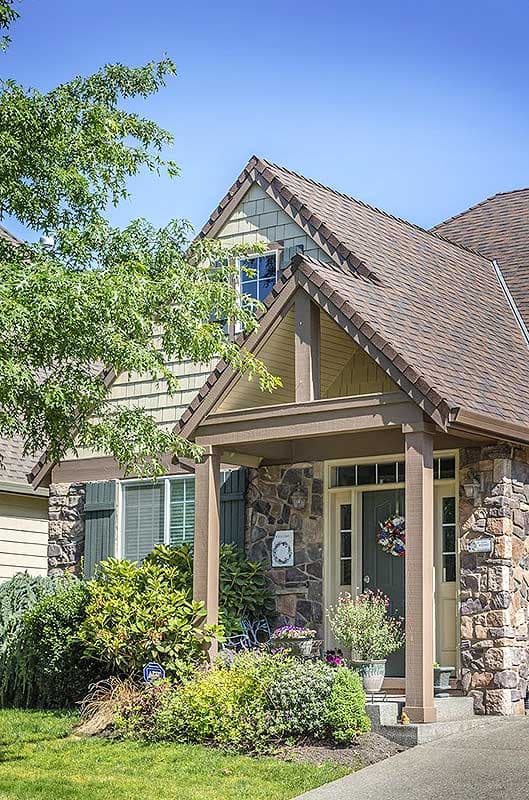

  • Captivating and just the right size, this striking home is sided in a pleasing mix of materials: cedar shingles, lap siding, cedar battens and stone. A dormer window over the garage complements the charming exterior. A covered entry gives way to a center hallway leading to main-level accommodations. To the left of the hall is a versatile home office with built-ins and a storage area.
  • The stairway climbs to an upper level that holds two bedrooms with built-in counters. A shared hall bath has the use of a huge walk-in linen closet. The living and dining areas are to the back of the main level and are spacious and open.
  • Nice touches in the living room include a vaulted ceiling, a fireplace and a built-in media center. The dining room has a recessed niche for a hutch. The master suite is also on the main level. Its special appointments? A vaulted salon, a bath with spa tub and separate shower, and a massive walk-in closet. Look for a laundry room and half-bath nearby.
  • Related Plan: Get an alternate exterior with house plan 69054AM.

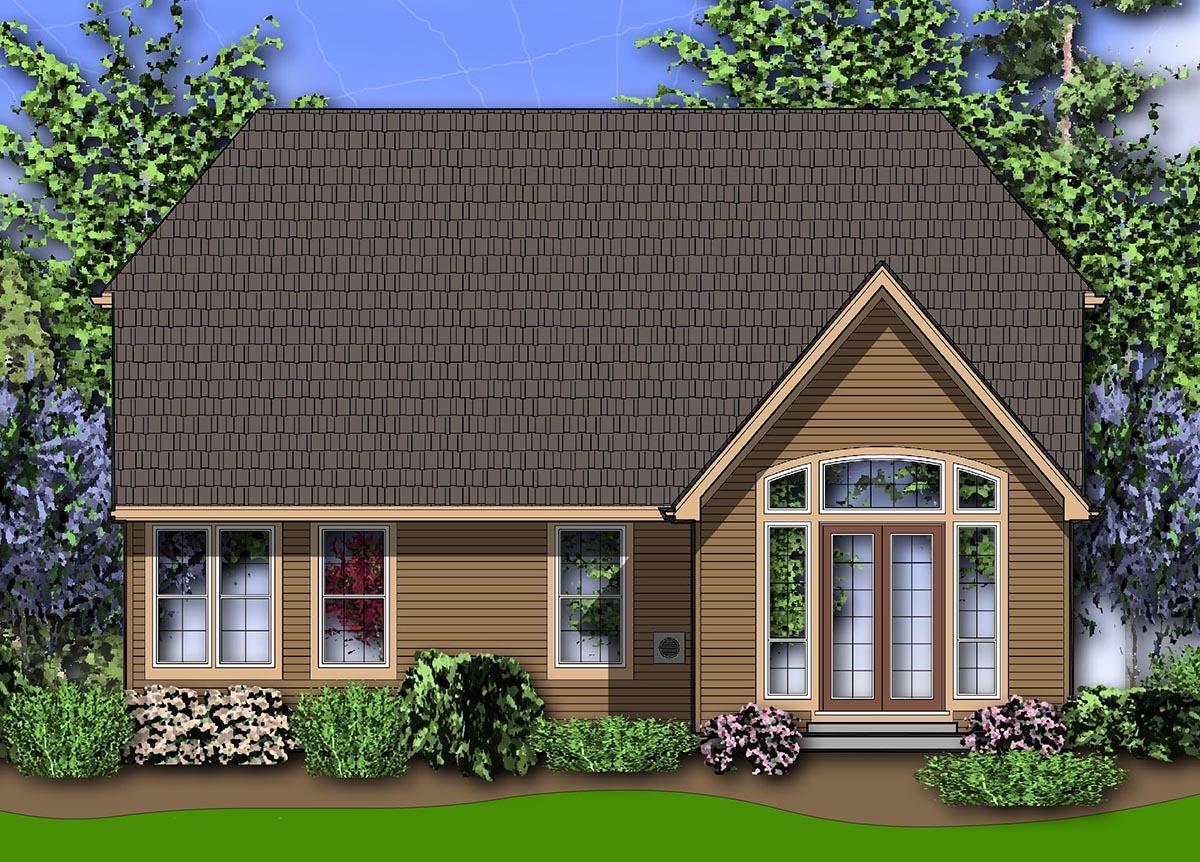

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Basement stairs

Pinit white
Quaint And Functional Craftsman Home Plan - 69053AM floor plan - Basement stairs

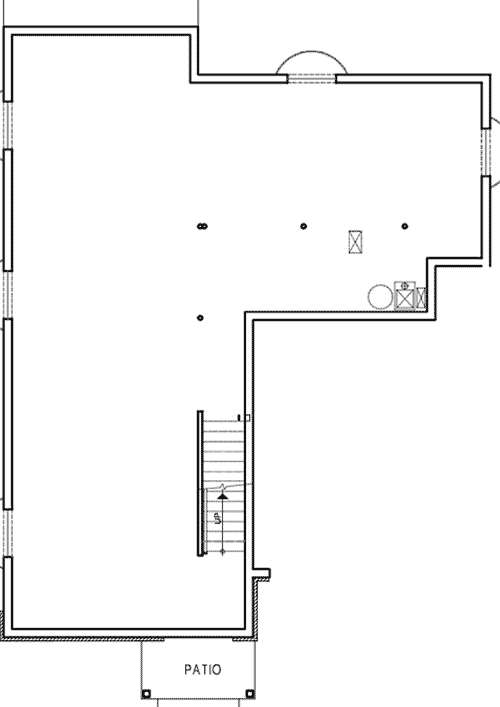

Unfinished Basement

Pinit white
Quaint And Functional Craftsman Home Plan - 69053AM floor plan - Unfinished Basement

Plan details

Architectural Style

Plan Collections



Quaint And Functional Craftsman Home Plan

  • 2,032

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $752
  • PDF - single-use $1,102
  • 5 Sets $1,252
  • 5 Sets PLUS $1,302
  • CAD - multi-use $2,204
  • View all purchase option online

About This Plan

  • Captivating and just the right size, this striking home is sided in a pleasing mix of materials: cedar shingles, lap siding, cedar battens and stone. A dormer window over the garage complements the charming exterior. A covered entry gives way to a center hallway leading to main-level accommodations. To the left of the hall is a versatile home office with built-ins and a storage area.
  • The stairway climbs to an upper level that holds two bedrooms with built-in counters. A shared hall bath has the use of a huge walk-in linen closet. The living and dining areas are to the back of the main level and are spacious and open.
  • Nice touches in the living room include a vaulted ceiling, a fireplace and a built-in media center. The dining room has a recessed niche for a hutch. The master suite is also on the main level. Its special appointments? A vaulted salon, a bath with spa tub and separate shower, and a massive walk-in closet. Look for a laundry room and half-bath nearby.
  • Related Plan: Get an alternate exterior with house plan 69054AM.

Floor Plans

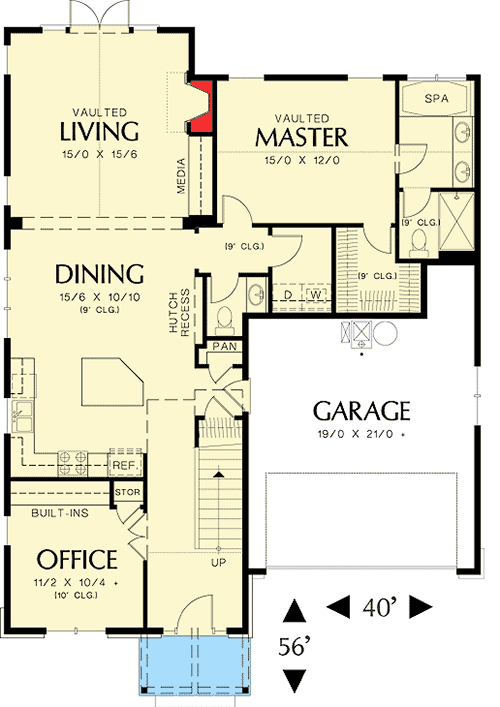

  • Main Level

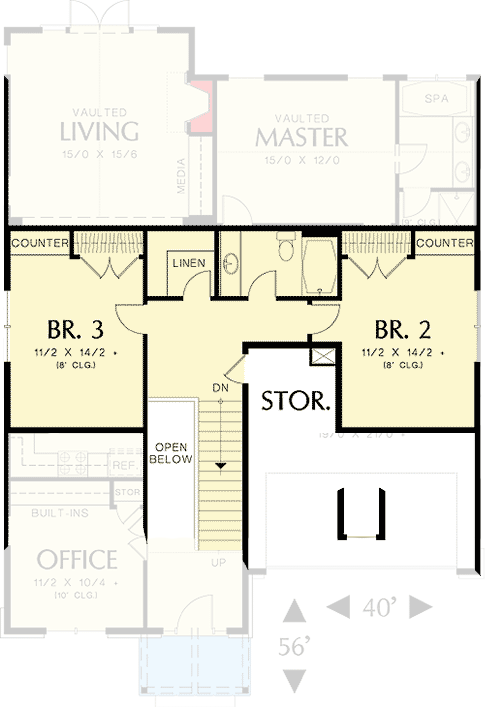

  • 2nd Floor

  • Basement stairs

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,032 sq. ft.
  • 1st Floor: 1,407 sq. ft.
  • 2nd Floor: 625 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 56' 0"
  • Max ridge height: 25' 5"

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
