Plan 26610GG Quaint Cottage Detailing

1,613 2-4 2 - 4 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Quaint Cottage Detailing

Plan 26610GG

  • 1,613

    Heated s.f.

  • 2-4

    Beds

  • 2 - 4

    Baths

  • 1

    Stories

  • 2

    Cars

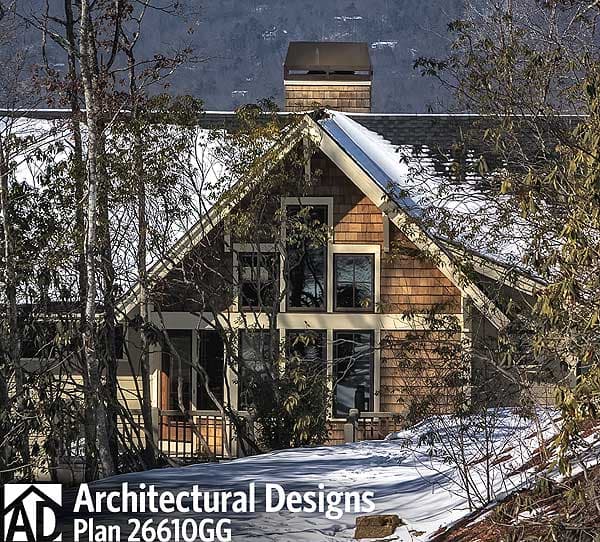

  • Corner windows, gabled glass, brackets and cedar shingle siding are just a few of the details that give this house plan its mountain charm and grace. With its quaint cottage detailing and bright open spaces is a charming mountain home perfect for a weekend getaway or an empty nesters retreat.
  • The angled entry provides just enough space to get out of the rain. Once inside you will enjoy the vaulted ceiling that extends through the living room to the porch.
  • The living room is separated from the foyer area by an angled staircase descending to the lower level.

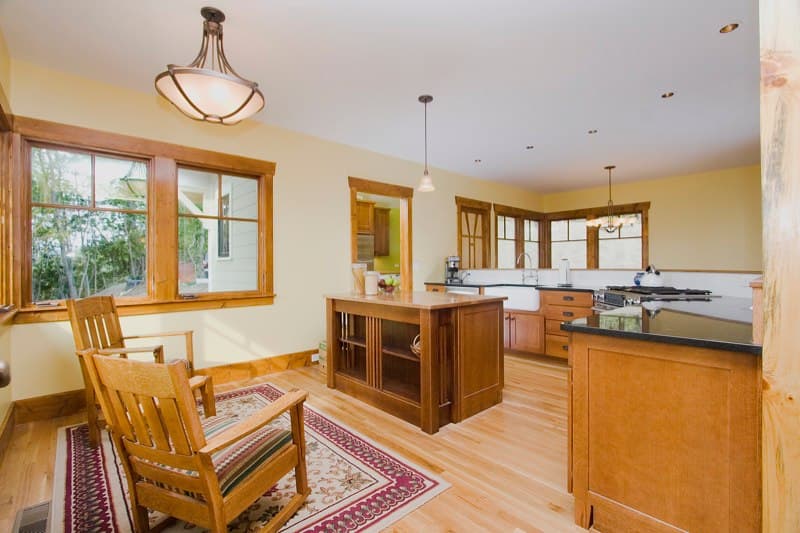

  • The kitchen and eating areas are open to the living room, with the kitchen island facing the view side of the home.

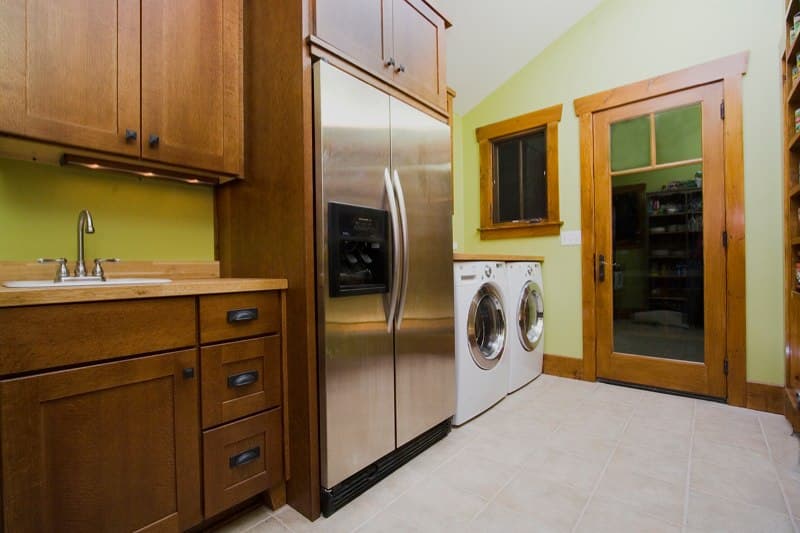

  • A laundry room is conveniently located just off the kitchen where a breezeway connects the house to an open carport.
  • The master bedroom is cozy and comfortable and includes a large bath and walk-in closet along with French door access to the deck and porch. The main floor also offers a second bedroom with bath and walk-in closet.

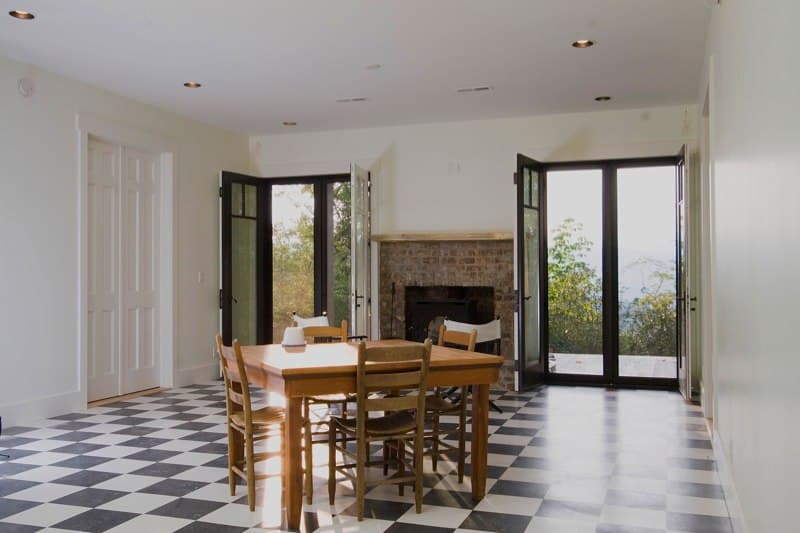

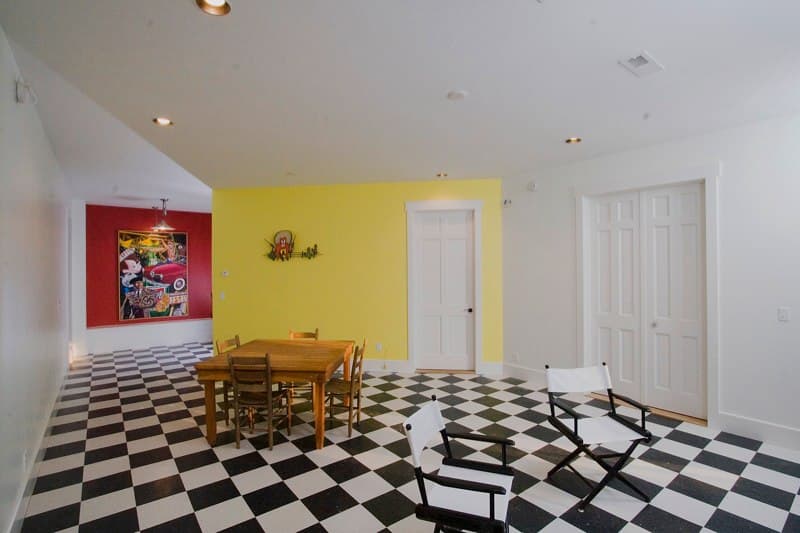

  • The lower level can be finished with two additional bedrooms and baths, a den/rec room and home theater if desired.
  • The plan comes with a breezeway attached to a 2-car carport.
  • Related Plans: Move the living room fireplace to the master bedroom wall and build in reverse with house plans 26666GG (1,662 sq. ft.) and 26695GG (1,754 sq. ft.).
  • Attach the garage with house plans 26693GG (straight) and 26694GG (angled).

This plan includes the following details:

Page 1 - lower level floor plan, stair and wall sections
Page 2 - main level floor plan
Page 3 - front and rear elevations, foyer gable window elevation and deck/rail detail

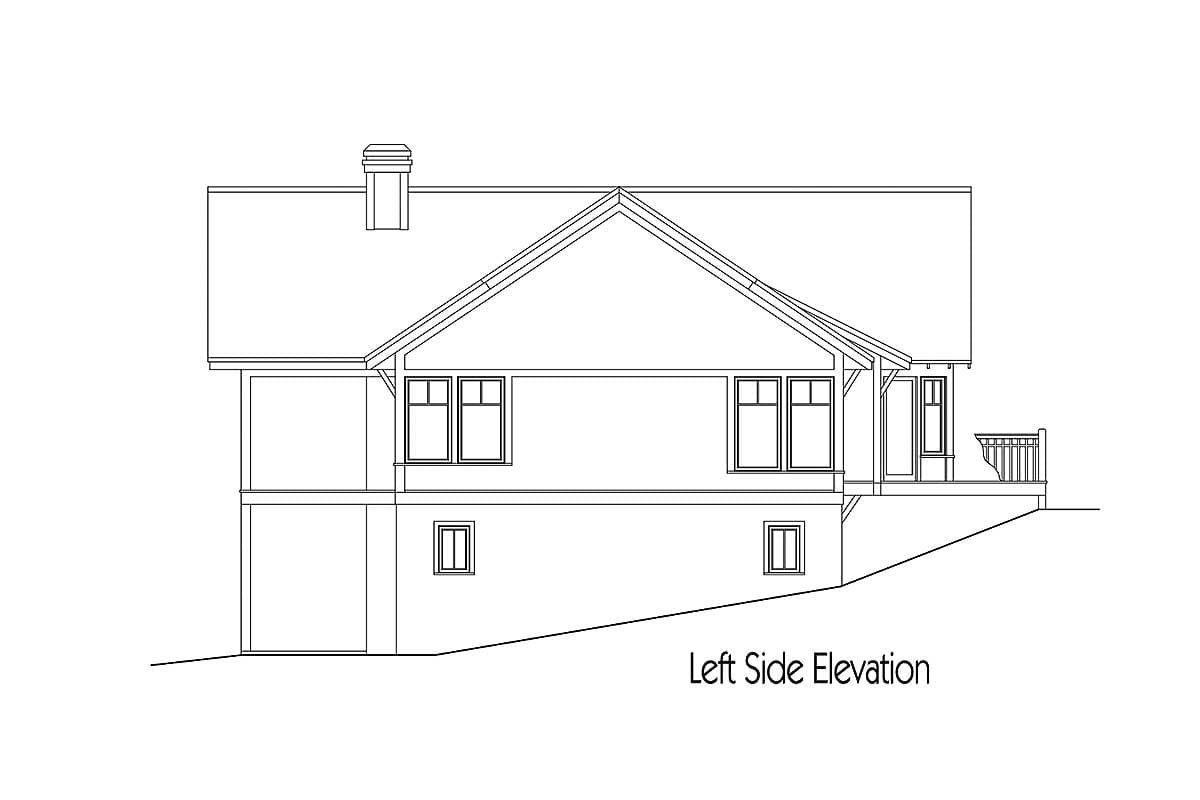

Page 4 - right and left elevations
Page 5 - Cross sections, roof plan and moulding details
Page 6 - window and door types, eave details
Page 7 - detached garage floor plan and elevations, window and door schedules

Floor Plan

Main Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

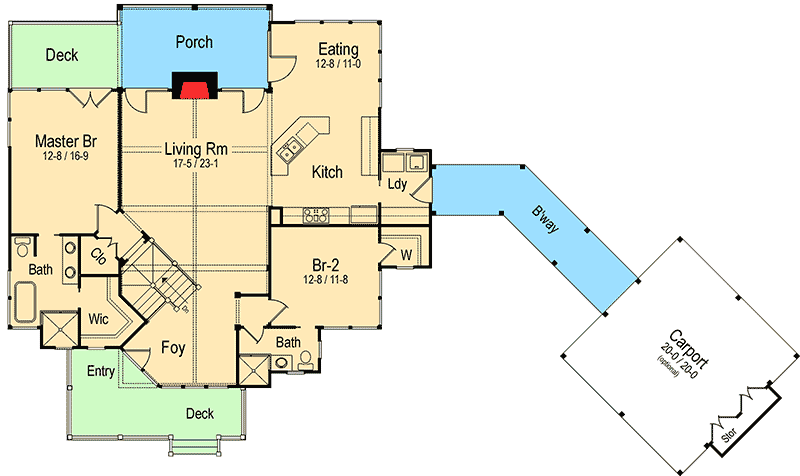

Quaint Cottage Detailing - 26610GG floor plan - Main Floor

Optional Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Quaint Cottage Detailing - 26610GG floor plan - Optional Finished Lower Level

Garage

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Quaint Cottage Detailing - 26610GG floor plan - Garage

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,613 sq. ft.
  • 1st Floor: 1,613 sq. ft.
  • Deck: 268 sq. ft.
  • Porch, Combined: 334 sq. ft.
  • Carport: 420 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, & 4
  • Full bathrooms: 2, 3, & 4

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 44' 0"
  • Depth: 43' 3"
  • Max ridge height: 19' 5"

Garage

  • Type: Detached, Carport
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Quaint Cottage Detailing

  • 1,613

    Heated s.f.

  • 2 - 4

    Beds

  • 2 +

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $995
  • 8 Sets $1,145
  • PDF - Single-Build $1,295
  • CAD - Single-Build $1,995
  • View all purchase option online

About This Plan

  • Corner windows, gabled glass, brackets and cedar shingle siding are just a few of the details that give this house plan its mountain charm and grace. With its quaint cottage detailing and bright open spaces is a charming mountain home perfect for a weekend getaway or an empty nesters retreat.
  • The angled entry provides just enough space to get out of the rain. Once inside you will enjoy the vaulted ceiling that extends through the living room to the porch.
  • The living room is separated from the foyer area by an angled staircase descending to the lower level.
  • The kitchen and eating areas are open to the living room, with the kitchen island facing the view side of the home.
  • A laundry room is conveniently located just off the kitchen where a breezeway connects the house to an open carport.
  • The master bedroom is cozy and comfortable and includes a large bath and walk-in closet along with French door access to the deck and porch. The main floor also offers a second bedroom with bath and walk-in closet.
  • The lower level can be finished with two additional bedrooms and baths, a den/rec room and home theater if desired.
  • The plan comes with a breezeway attached to a 2-car carport.
  • Related Plans: Move the living room fireplace to the master bedroom wall and build in reverse with house plans 26666GG (1,662 sq. ft.) and 26695GG (1,754 sq. ft.).
  • Attach the garage with house plans 26693GG (straight) and 26694GG (angled).

Floor Plans

  • Main Floor

  • Optional Finished Lower Level

  • Garage

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,613 sq. ft.
  • 1st Floor: 1,613 sq. ft.
  • Deck: 268 sq. ft.
  • Porch, Combined: 334 sq. ft.
  • Carport: 420 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, & 4
  • Full bathrooms: 2, 3, & 4

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 44' 0"
  • Depth: 43' 3"
  • Max ridge height: 19' 5"

Garage

  • Type: Detached, Carport
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Truss
