Plan 59384ND

Quaint Traditional Design

Heated S.F.
2,618
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 59384ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59384ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

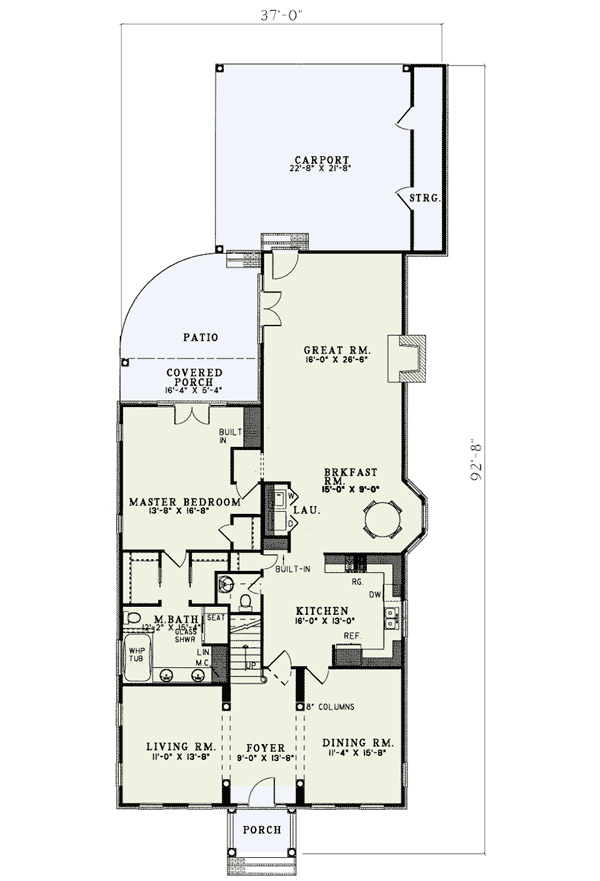

Plan 59384ND: Quaint Traditional Design - Floor Plan - Main Level - Cottage, Traditional

2nd Floor

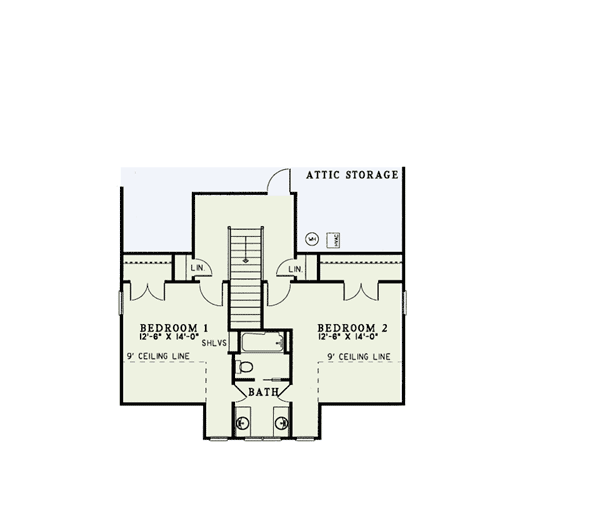

Plan 59384ND: Quaint Traditional Design - Floor Plan - 2nd Floor - Cottage, Traditional

Plan Details

  • Magnificent columns frame the entries to the living and dining rooms of this home plan.
  • Entertaining for the evening will be pleasurable in your dining room with easy access to the kitchen.
  • After dinner, lead guests into the open great room with fireplace. Convenient French doors lead you to a rear porch from the great room.
  • Retire to the master suite and bath, complete with double vanities, glass shower and whilrpool bath.
  • Upstairs, the bedrooms share a walk-thru bath and have their own window seats.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,618 sq. ft.

1st Floor

1,865 sq. ft.

2nd Floor

753 sq. ft.

Porch, Combined

305 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 0"

Depth

92' 8"

Max Ridge Height

32' 1"

Garage

Type

Carport

Area

484 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cottage

Traditional

Special Features

Jack & Jill Bath

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,618 sq. ft.

1st Floor

1,865 sq. ft.

2nd Floor

753 sq. ft.

Porch, Combined

305 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 0"

Depth

92' 8"

Max Ridge Height

32' 1"

Garage

Type

Carport

Area

484 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cottage

Traditional

Special Features

Jack & Jill Bath

Master Suite - 1st Floor
