Plan 59447ND
Radiating Elegance
Heated S.F.
1,627
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Elegance radiates through this traditional home plan. Through a traditional foyer, enter a tasteful sitting area- perfect for greeting guests before continuing into the great room with intricate ten foot boxed ceiling.
  • Set off by magnificently crafted wooden columns, the dining room area provides an excellent atmosphere for graceful dinner parties- business or pleasure.
  • A wonderfully open kitchen with island and bright bay window nook will ensure you have all the tools you need.
  • The master suite has a 10-foot boxed ceiling and access to the rear. The master bath has a corner whirlpool tub with glass blocks, double vanities and shower.
  • Related Plan: Prefer brick? See house plan 59101ND.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Radiating Elegance

  • 1,627

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

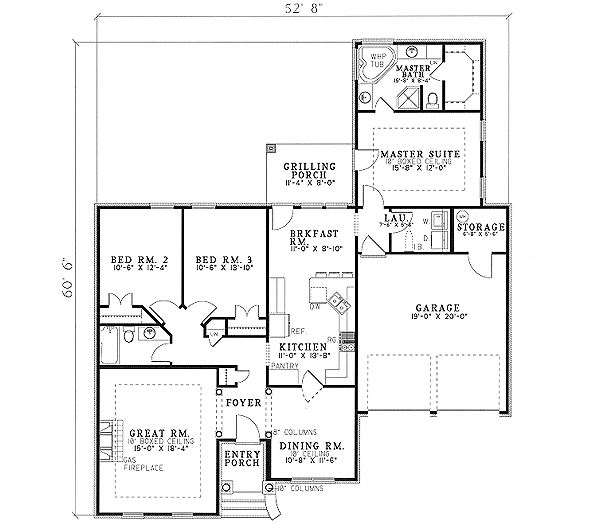

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,627 sq. ft.
  • 1st Floor: 1,627 sq. ft.

Dimensions

  • Width: 52' 8"
  • Depth: 60' 6"
  • Max ridge height: 24' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 392 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
