Plan 57294HA

Ranch Home with Vaulted Ceilings

Heated S.F.
1,281
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 57294HA

Main Level
Main Level

Plan 57294HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 57294HA: Ranch Home with Vaulted Ceilings - Floor Plan - Main Level - Cottage, Traditional

Plan Details

  • Small but mighty, this adorable Ranch home plan has vaulted ceilings that boost the feeling of spaciousness.
  • A big fireplace is the focal point of the great room, where you can see the dining area and kitchen with its eating bar.
  • All the bedrooms are tucked in the rear for quiet.
  • The master suite has a private bathroom and big walk-in closet.
  • Related Plan: Get an alternate exterior with house plan 57295HA.

What's Included

  • Front Cover Sheet

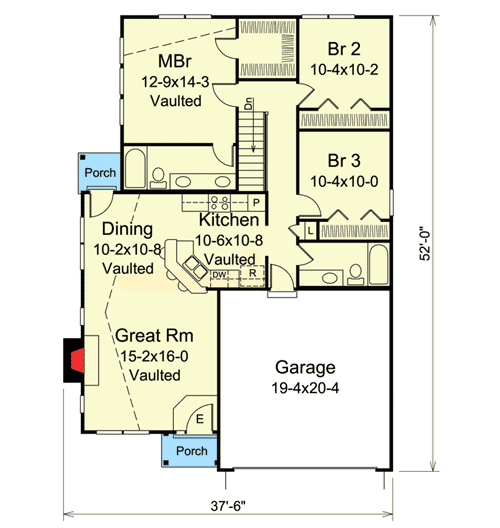

  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

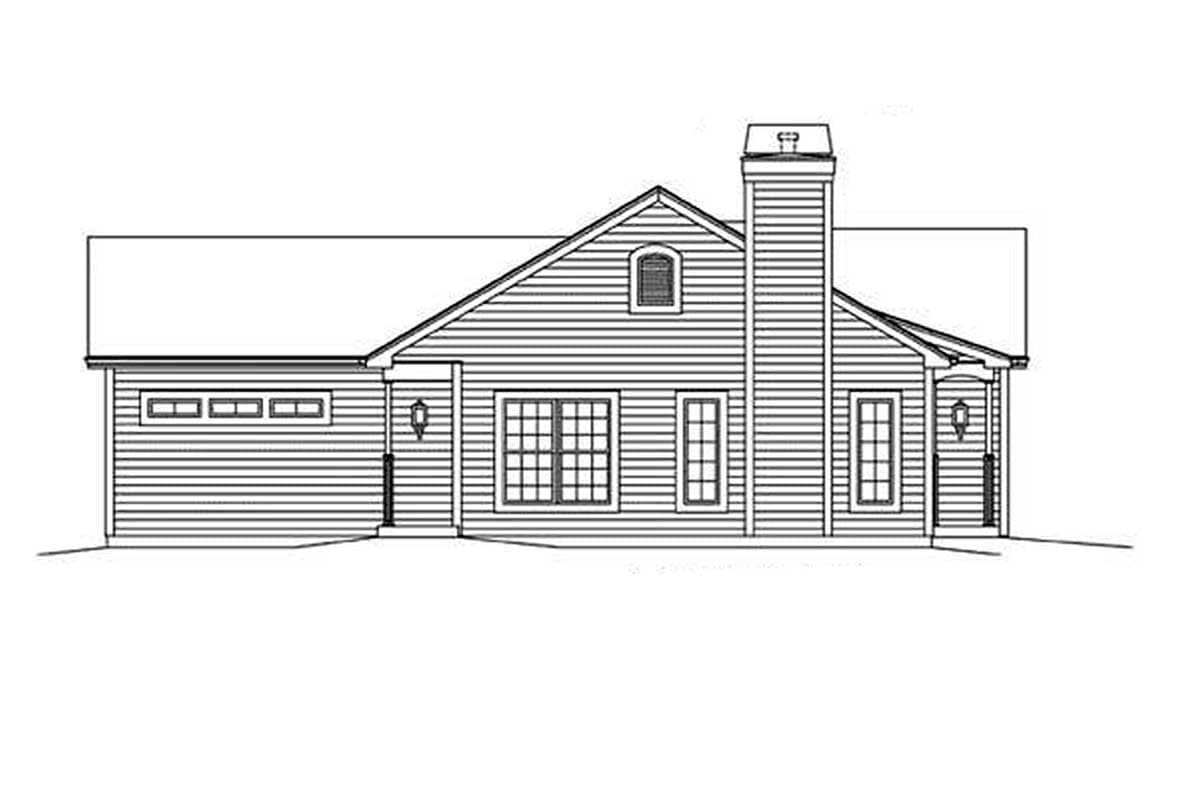

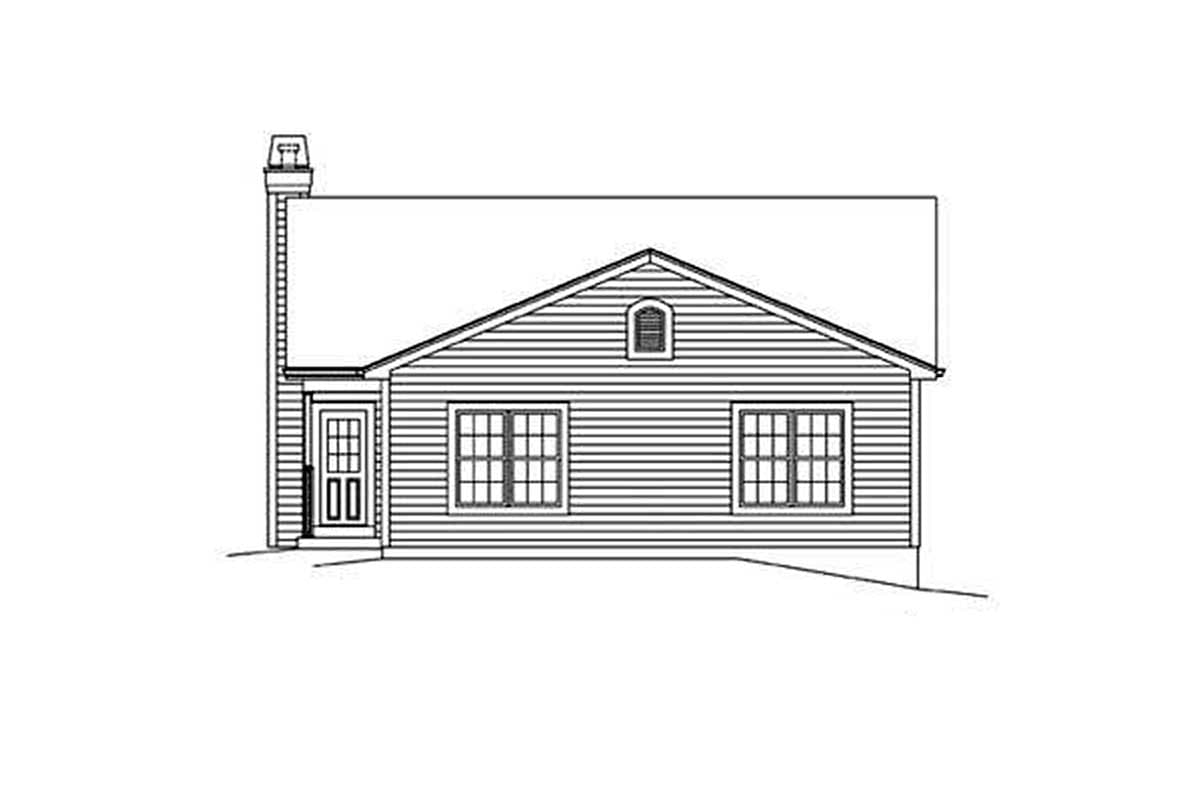

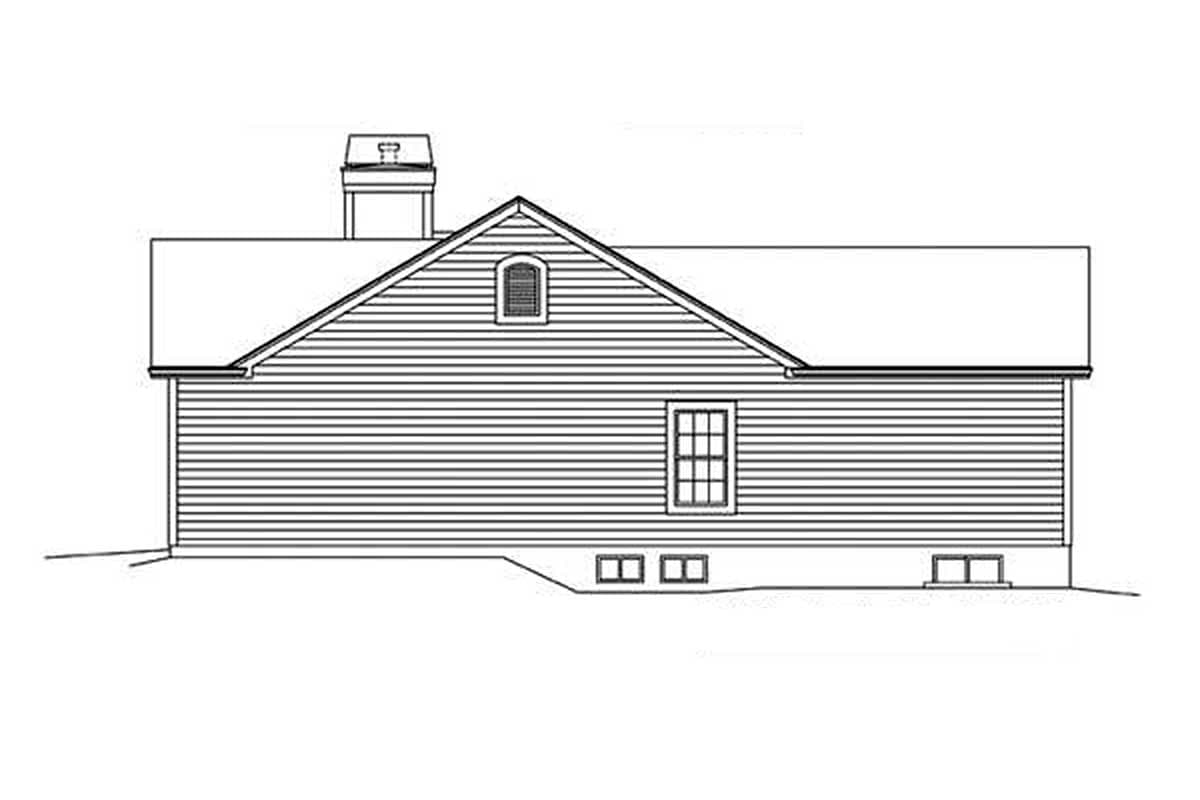

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,281 sq. ft.

1st Floor

1,281 sq. ft.

Basement Unfinished

1,178 sq. ft.

Entry

39 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 6"

Depth

52' 0"

Max Ridge Height

20' 2"

Garage

Type

Attached

Area

408 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,281 sq. ft.

1st Floor

1,281 sq. ft.

Basement Unfinished

1,178 sq. ft.

Entry

39 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 6"

Depth

52' 0"

Max Ridge Height

20' 2"

Garage

Type

Attached

Area

408 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
