Plan 57338HA

Ranch Style Duplex

Heated S.F.
1,536
Units
2
Width
Depth

Floor Plan

Plan 57338HA

Main Level
Main Level

Plan 57338HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

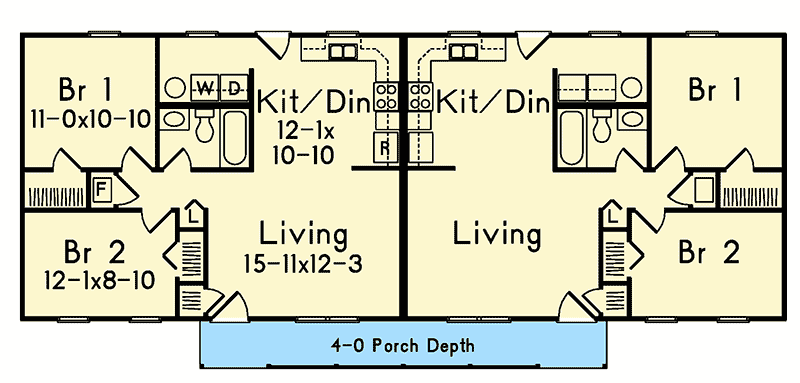

Plan 57338HA: Ranch Style Duplex - Floor Plan - Main Level

Plan Details

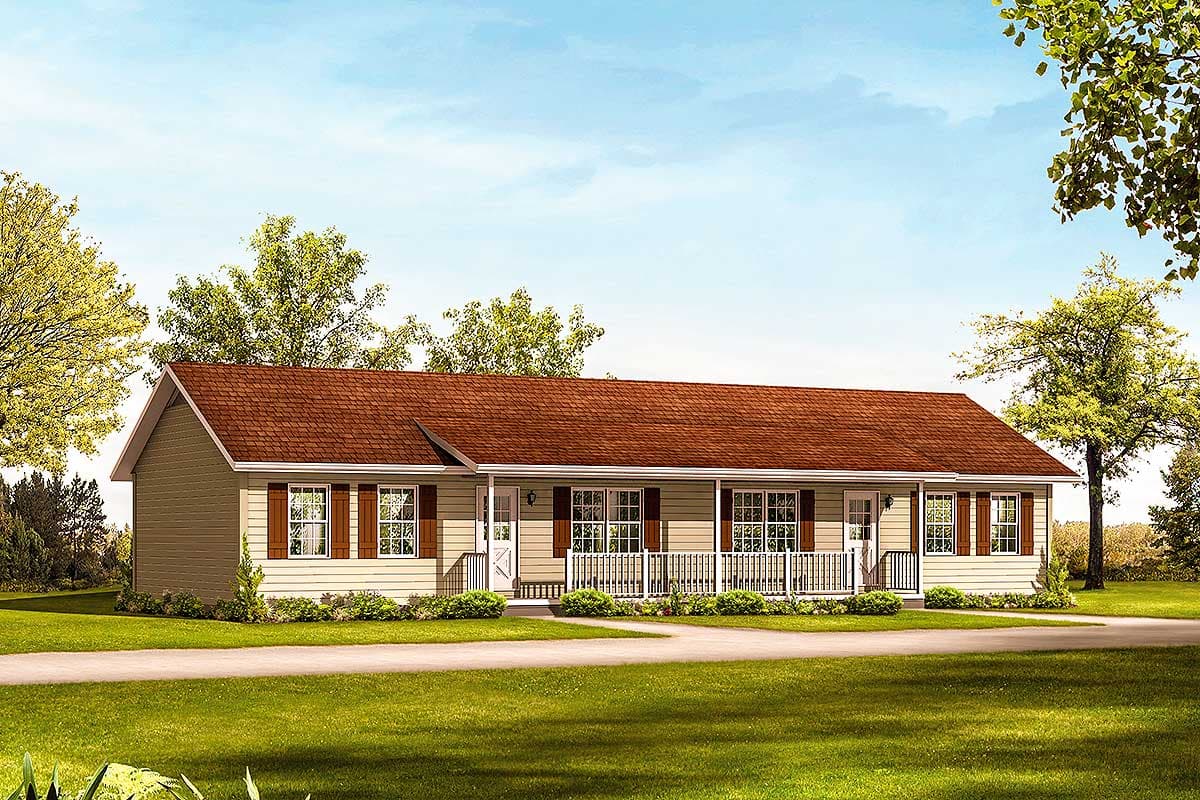

  • A 4' deep covered front porch joins the two units of this Ranch style duplex.
  • Each unit has an open layout and two bedrooms.
  • A door in the dining area takes you out to the back yard.
Unit A
Heated Area
768Sq. Ft.
768 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
32'width
24'depth
19' 2"height
Unit B
Heated Area
768Sq. Ft.
768 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
32'width
24'depth
19' 2"height

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,536 sq. ft.

1st Floor

1,536 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

24' 0"

Max Ridge Height

19' 2"

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Truss

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,536 sq. ft.

1st Floor

1,536 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

24' 0"

Max Ridge Height

19' 2"

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Truss

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
