Plan 60644ND

Ranch Style Duplex

Heated S.F.
2,688
Units
2
Width
Depth

Floor Plan

Plan 60644ND

Main Level
Main Level

Plan 60644ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

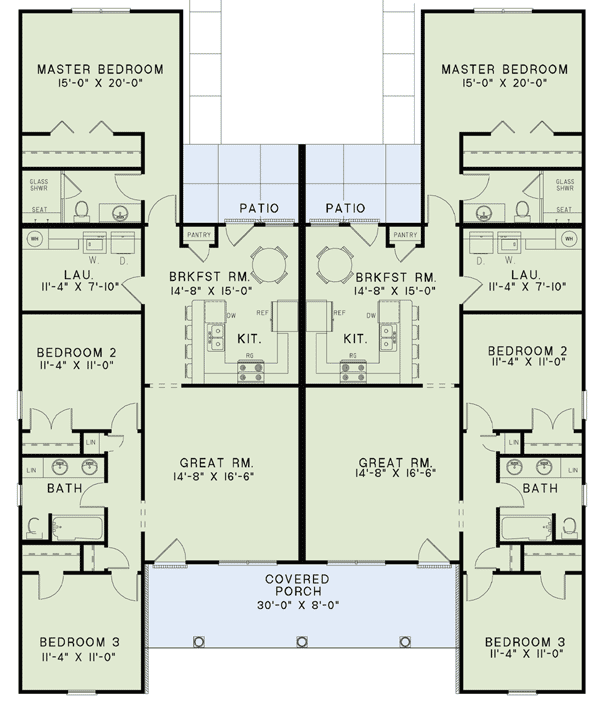

Plan 60644ND: Ranch Style Duplex - Floor Plan - Main Level - Traditional

Plan Details

  • This ranch style duplex gives you two matching units each delivering 1,344 square feet of living space, 3 beds, and 2 baths.
  • Each family has front porch space and their own private rear patios.
  • You'll be welcomed by the tiled entrance leading into the comfortable great room.
  • Start family traditions in the cozy kitchen with eat-at bar and breakfast room with access to rear patio.
  • Two bedrooms are at the front of the house with a full bathroom in between.
  • The master bedroom offers privacy at the rear of the home with a near-by laundry room.
  • This traditional neighborhood design will accommodate you and your family comfortably.
Unit A
Heated Area
1,344Sq. Ft.
1344 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
27'width
65' 2"depth
23'height
Unit B
Heated Area
1,344Sq. Ft.
1344 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
27'width
65' 2"depth
23'height

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
