Plan 59483ND

Refined House Plan with 3-Car Garage 3-5 Beds 3947 Sq Ft

Heated S.F.
3,947
Beds
3 - 5
Baths
3.5+
Stories
2
Cars
3

Floor Plan

Plan 59483ND

Main Level
Main Level
2nd Floor
2nd Floor
Basement
Basement

Plan 59483ND

M-F 9am-5pm EST |

1-203-761-8500

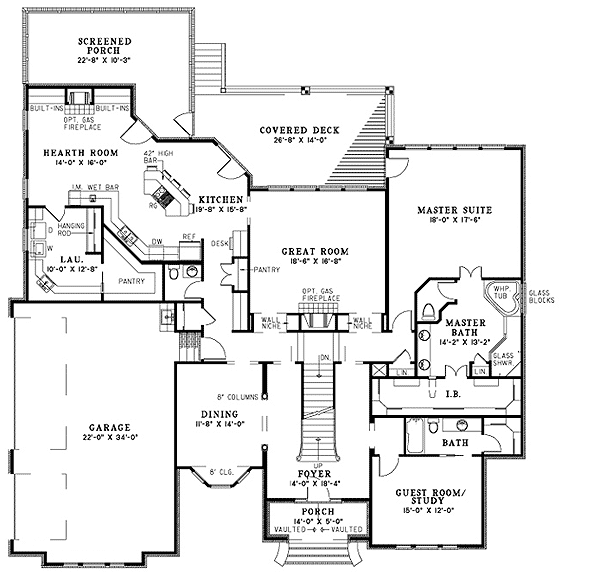

Main Level

Plan 59483ND: Refined House Plan with 3-Car Garage 3-5 Beds 3947 Sq Ft - Floor Plan - Main Level - Traditional

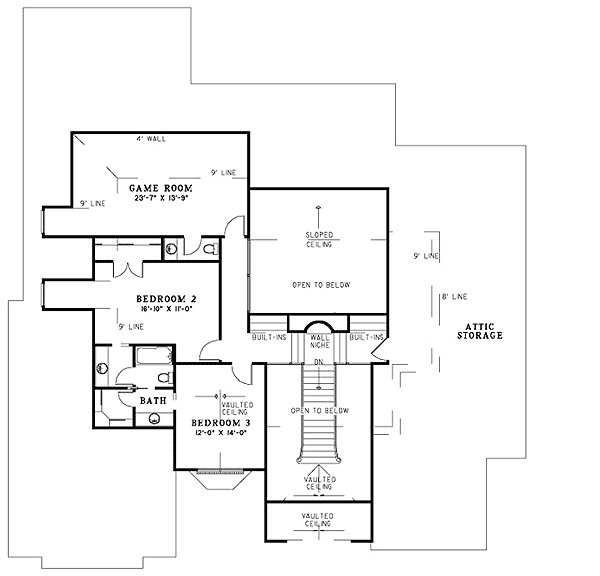

2nd Floor

Plan 59483ND: Refined House Plan with 3-Car Garage 3-5 Beds 3947 Sq Ft - Floor Plan - 2nd Floor - Traditional

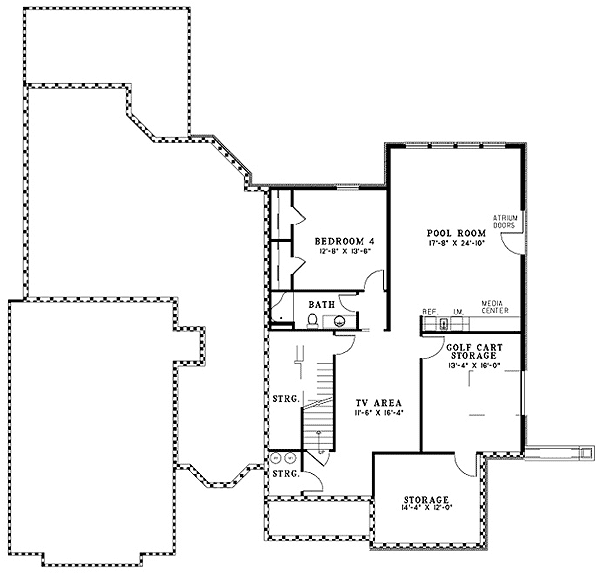

Basement

Plan 59483ND: Refined House Plan with 3-Car Garage 3-5 Beds 3947 Sq Ft - Floor Plan - Basement - Traditional

Plan Details

  • This stately home, boasting 3,947 square feet, features 3-5 bedrooms, 3 full and 2 half bathrooms, and a 3-car garage, all wrapped in a timeless brick exterior.
  • Upon entry, a grand foyer introduces the home, with a formal dining room and a convenient home office or guest suite to the sides.
  • The main floor unfolds seamlessly, with an open-concept great room and kitchen designed for both everyday living and grand entertaining. A hearth room and covered deck offer additional spaces for relaxation and socializing.
  • The primary suite is a true sanctuary, complete with a luxurious en-suite bathroom, walk in closet and sitting area. Secondary bedrooms on the second floor share a bathroom and feature ample closet space.
  • Upstairs, a game room provides additional space for relaxation.
  • Outdoor living is elevated with a screened porch and a covered deck, perfect for enjoying the outdoors in comfort and style.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,947 sq. ft.

1st Floor

2,777 sq. ft.

2nd Floor

1,170 sq. ft.

Bonus

1,616 sq. ft.

Porch, Combined

704 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Daylight, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

75' 10"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

794 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Game/Rec Room

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,947 sq. ft.

1st Floor

2,777 sq. ft.

2nd Floor

1,170 sq. ft.

Bonus

1,616 sq. ft.

Porch, Combined

704 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Daylight, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

75' 10"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

794 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Game/Rec Room

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Sloping Lot
