Plan: 35436GH

Remarkable Sightlines

5,342 3 3 1-2 3
Pageloader

Remarkable Sightlines

Plan 35436GH

  • 5,342

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • From the moment you enter the foyer of this spacious Craftsman home, the sightlines go straight back to the vaulted and beamed great room with glimpses of the kitchen off to the side.
  • Two sets of double doors open to the rear covered deck.
  • The large formal dining room is set apart yet close to both the kitchen and great room when entertaining.
  • Beams top the ' suite with its romantic corner fireplace, private deck and enormous ' bathroom.
  • Two sola tubes bring natural light into the walk-in closet.
  • This home was designed with a residential elevator that takes you down to the lower level where you have two more bedrooms, a wine vault, rec room and home gym.
  • Extra space can be found in the bonus room over the garage.

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

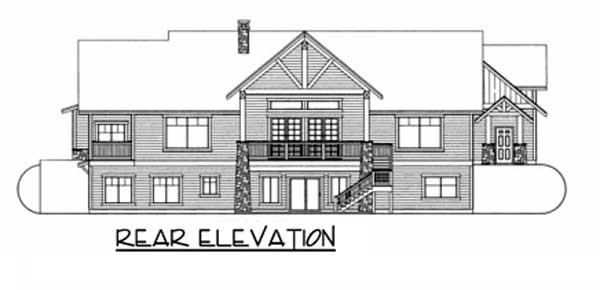

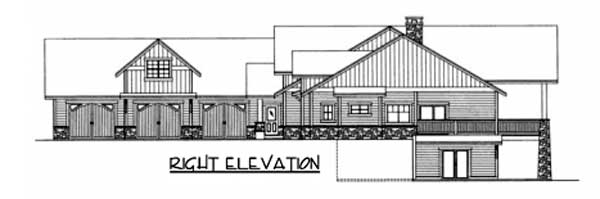

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

Plan details



Remarkable Sightlines

  • 5,342

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,725
  • 8 Sets $1,950
  • Reproducible Set $2,300
  • PDF - single-use $3,000
  • CAD $3,000
  • View all purchase option online

About This Plan

  • From the moment you enter the foyer of this spacious Craftsman home, the sightlines go straight back to the vaulted and beamed great room with glimpses of the kitchen off to the side.
  • Two sets of double doors open to the rear covered deck.
  • The large formal dining room is set apart yet close to both the kitchen and great room when entertaining.
  • Beams top the ' suite with its romantic corner fireplace, private deck and enormous ' bathroom.
  • Two sola tubes bring natural light into the walk-in closet.
  • This home was designed with a residential elevator that takes you down to the lower level where you have two more bedrooms, a wine vault, rec room and home gym.
  • Extra space can be found in the bonus room over the garage.

Floor Plans

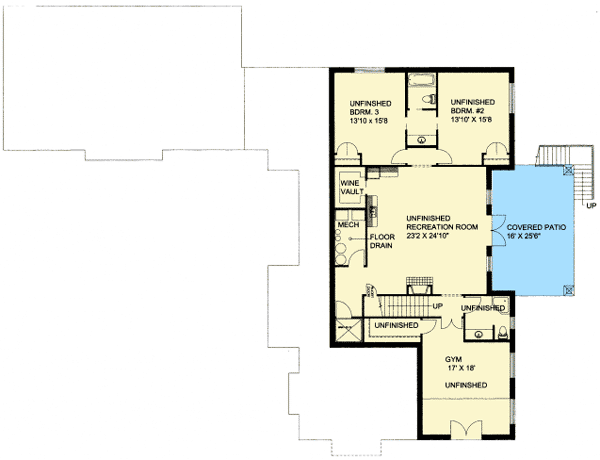

  • Basement

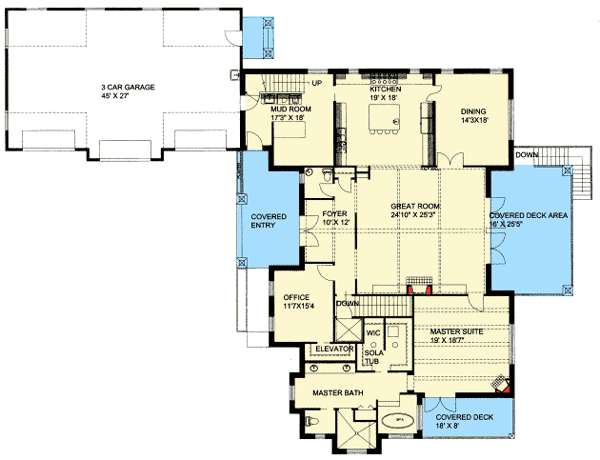

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,342 sq. ft.
  • Lower Level: 2,198 sq. ft.
  • 1st Floor: 3,144 sq. ft.
  • Bonus: 884 sq. ft.
  • Screened Porch: 1,212 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): ICF

Dimensions

  • Width: 99' 0"
  • Depth: 87' 6"
  • Max ridge height: 23' 4"

Garage

  • Type: Attached
  • Area: 1310 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" 0' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: N on N

Architectural Style

  • Craftsman
  • Northwest

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Metric
  • Sloping Lot
