Right-Sized House Plan with Vaulted Great Room and Open Concept Plan

Plan 24366TW

  • 2,303

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

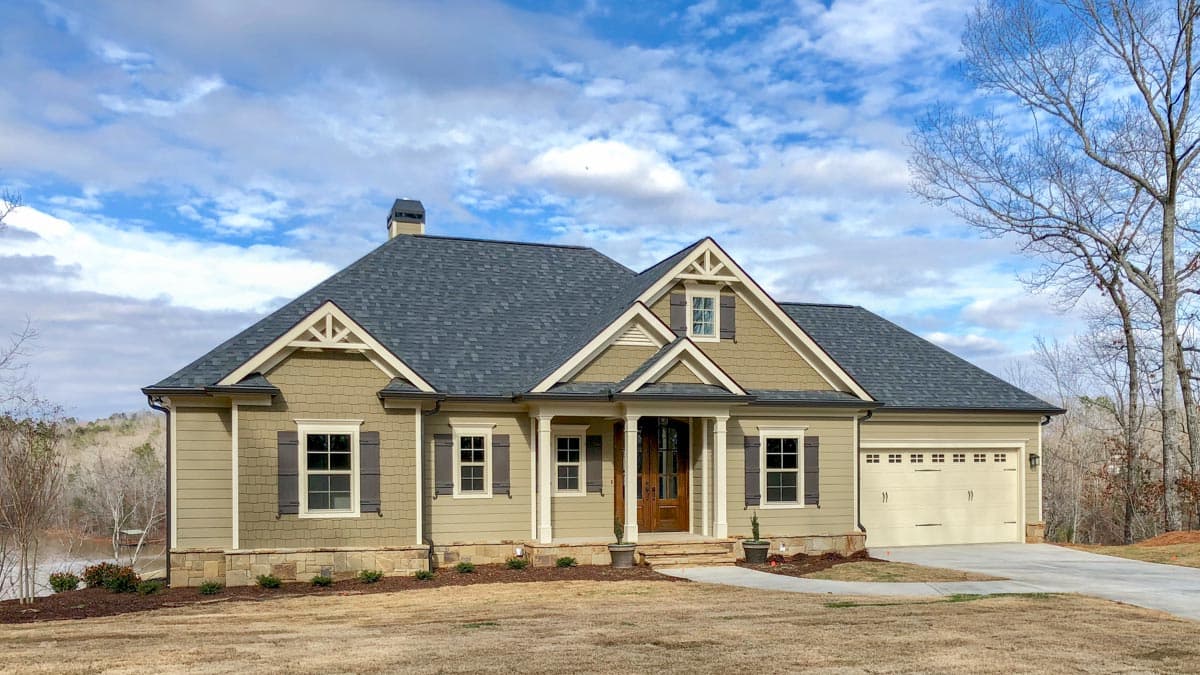

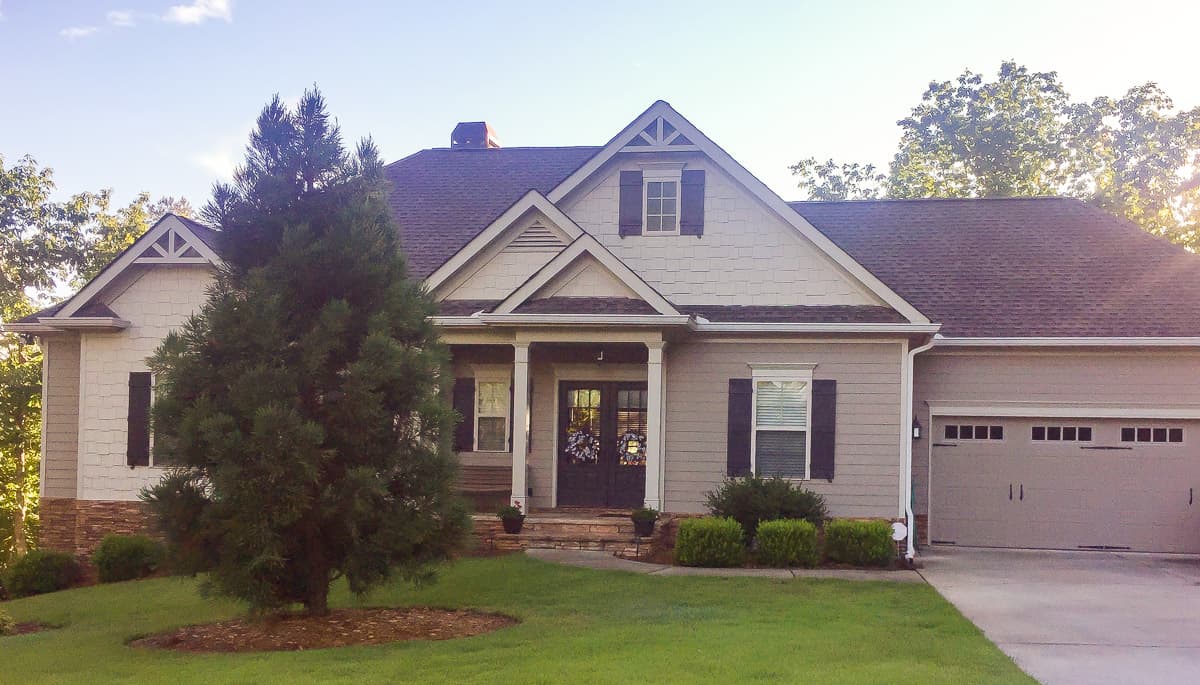

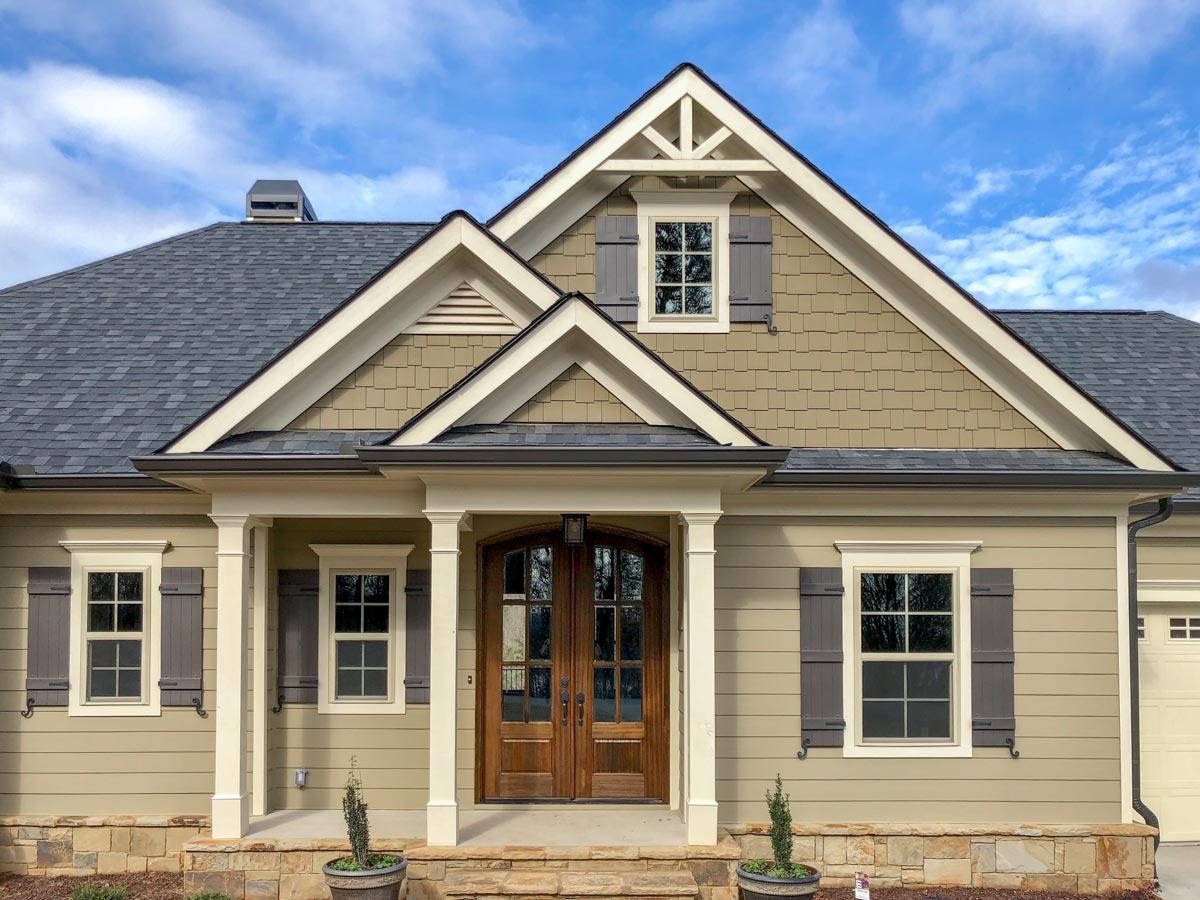

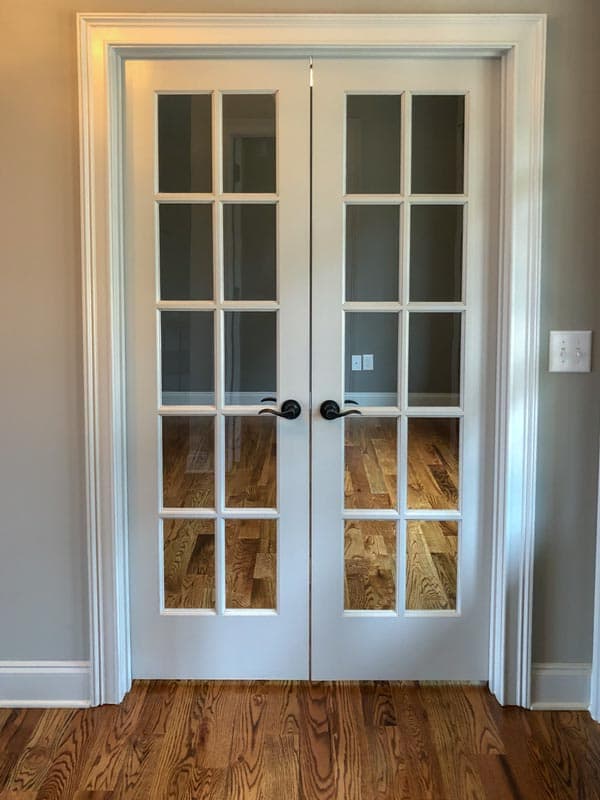

  • A porch is centered in front of this 3 bed house plan perfect for your rear-sloping lot. French doors open to the foyer where your views extend through to the back of the home.

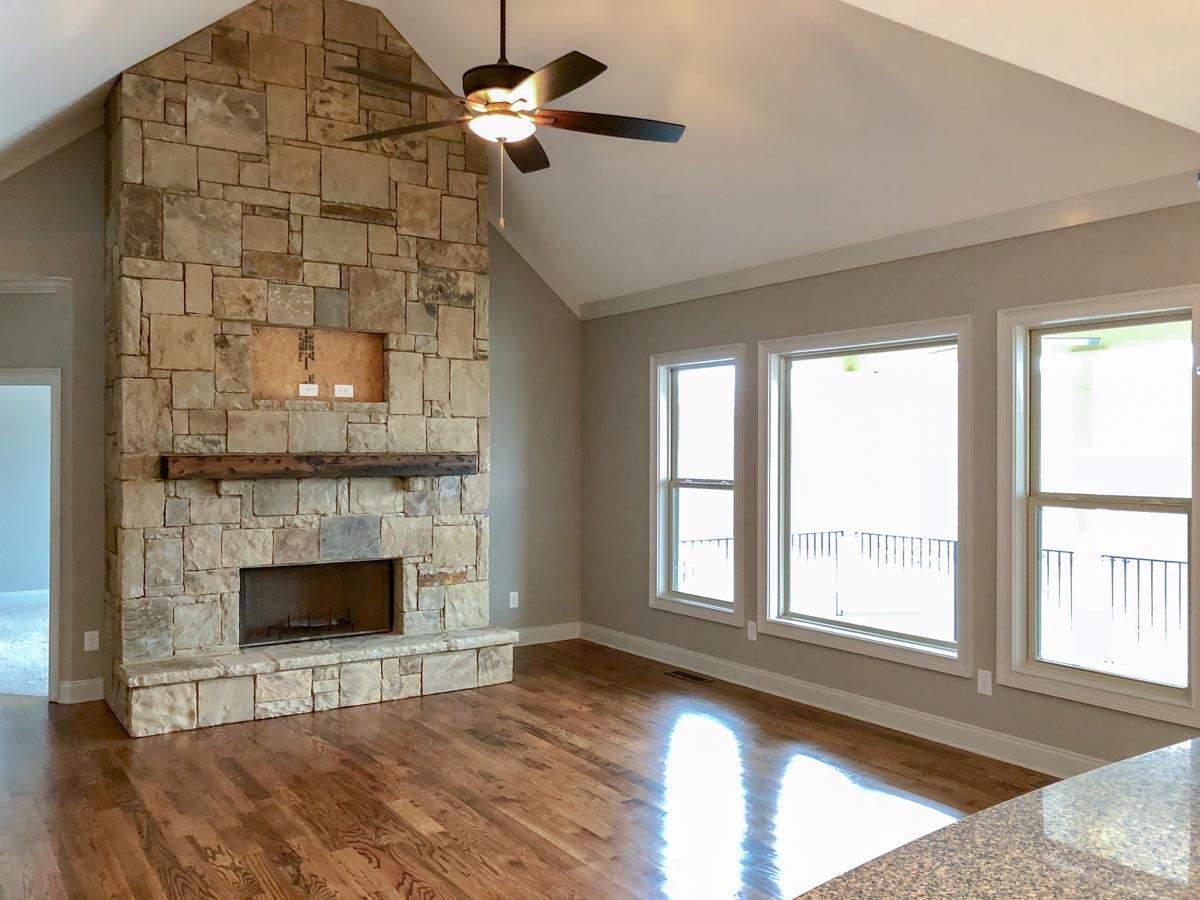

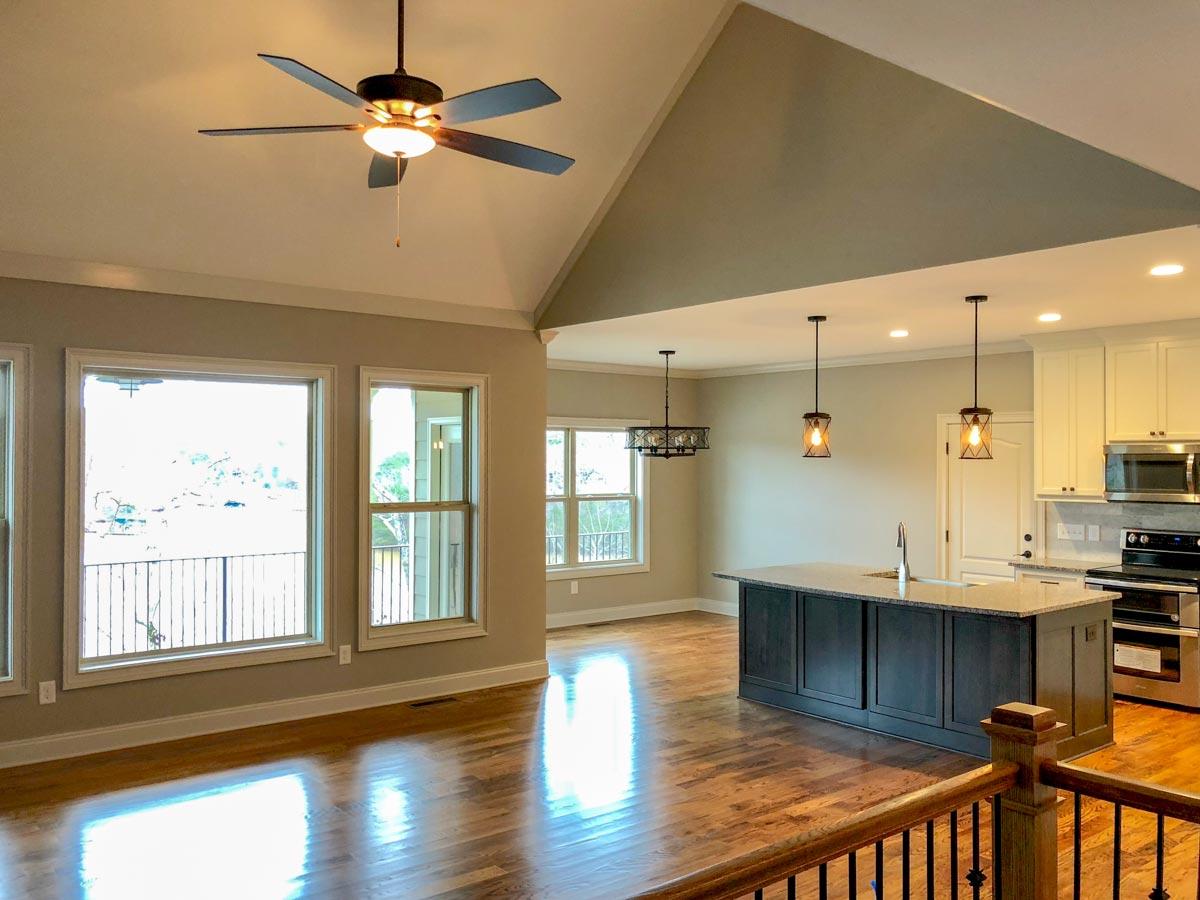

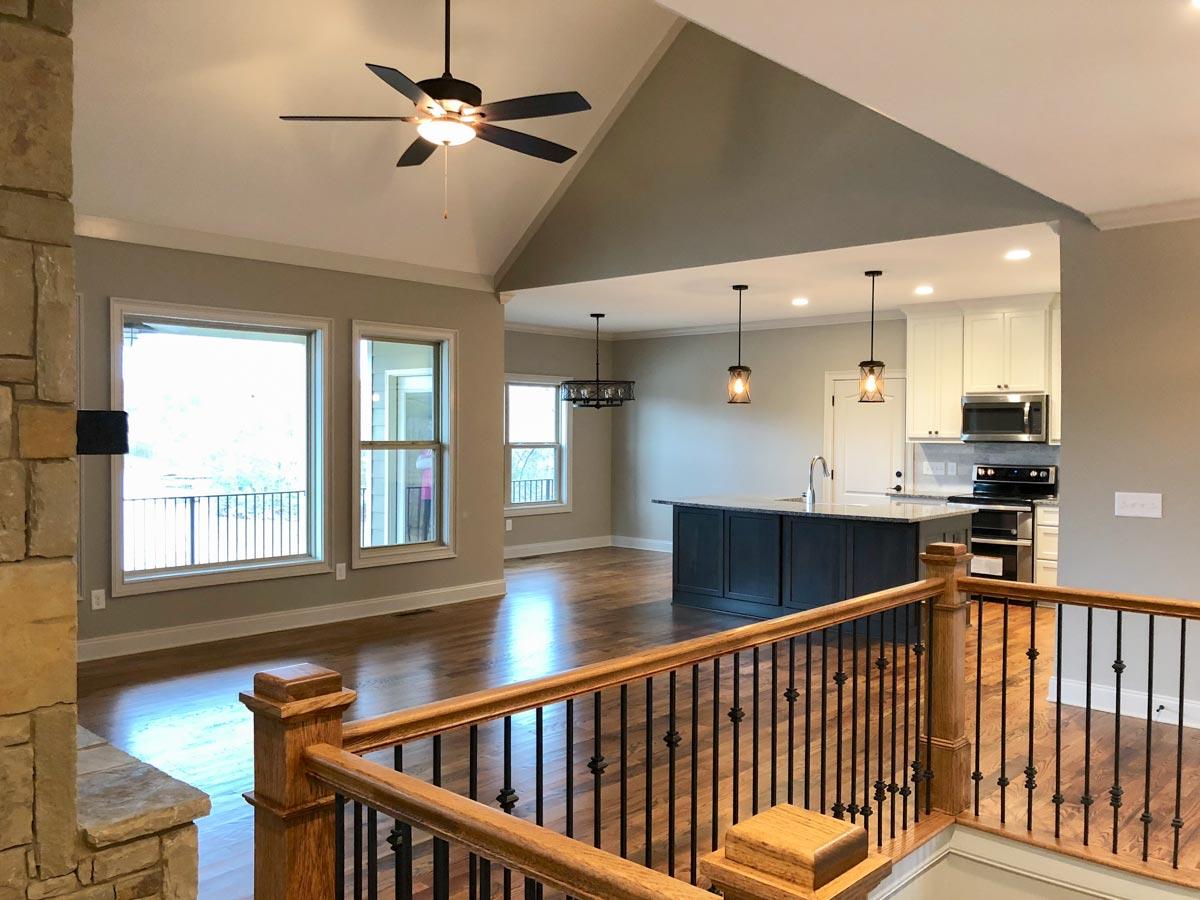

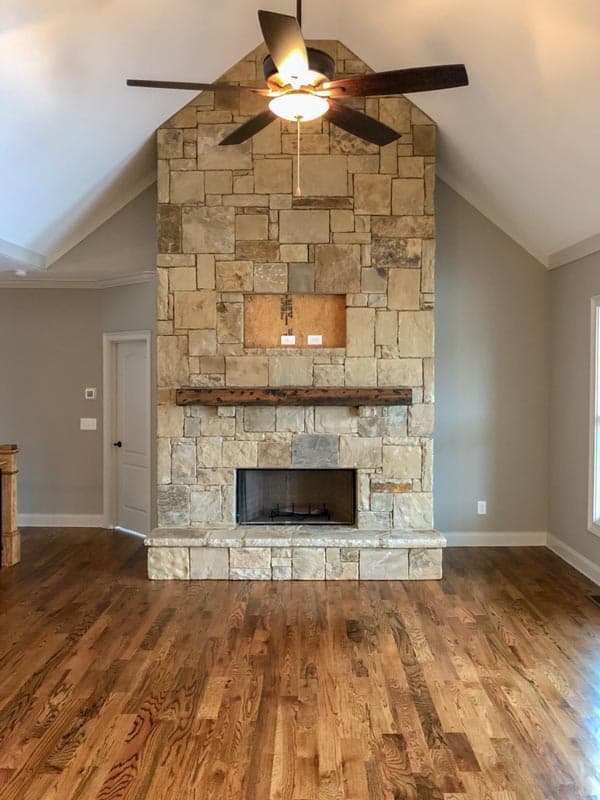

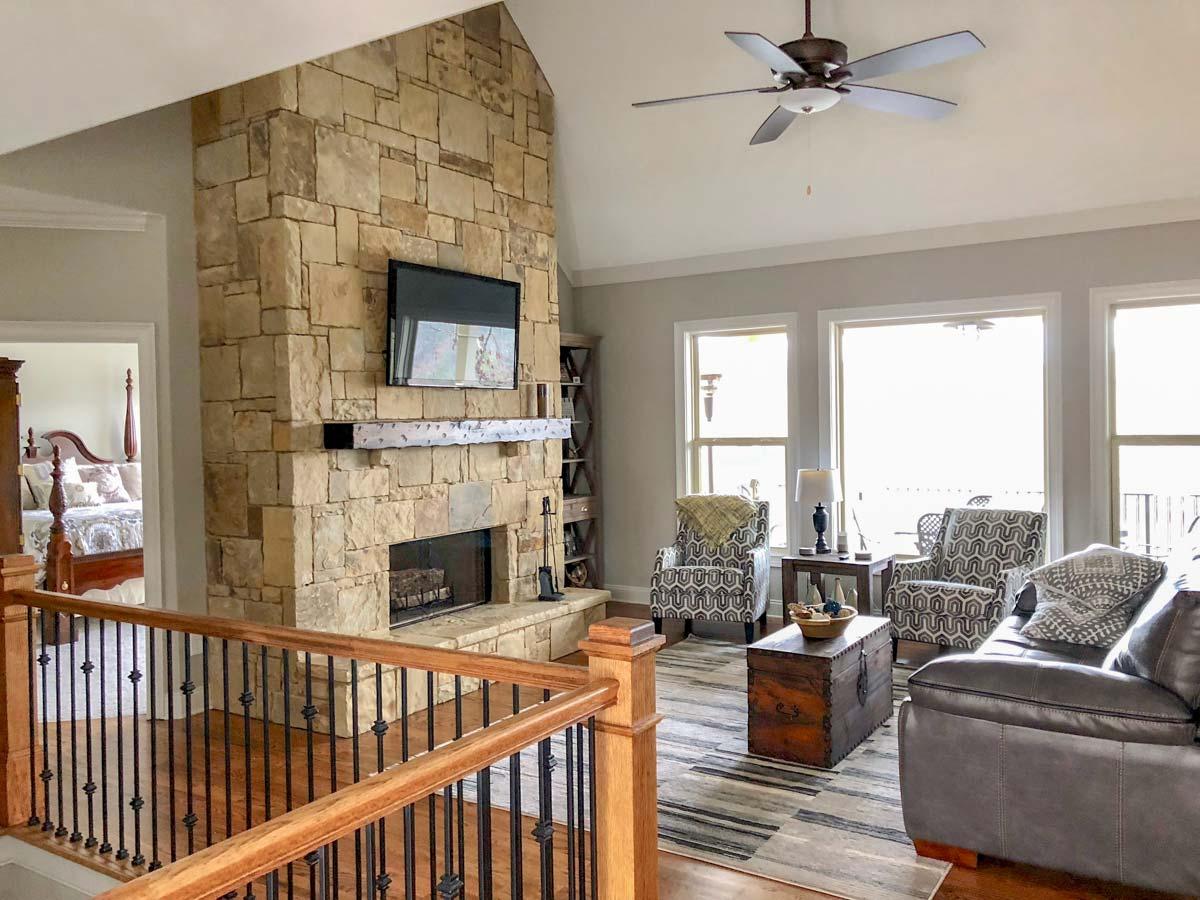

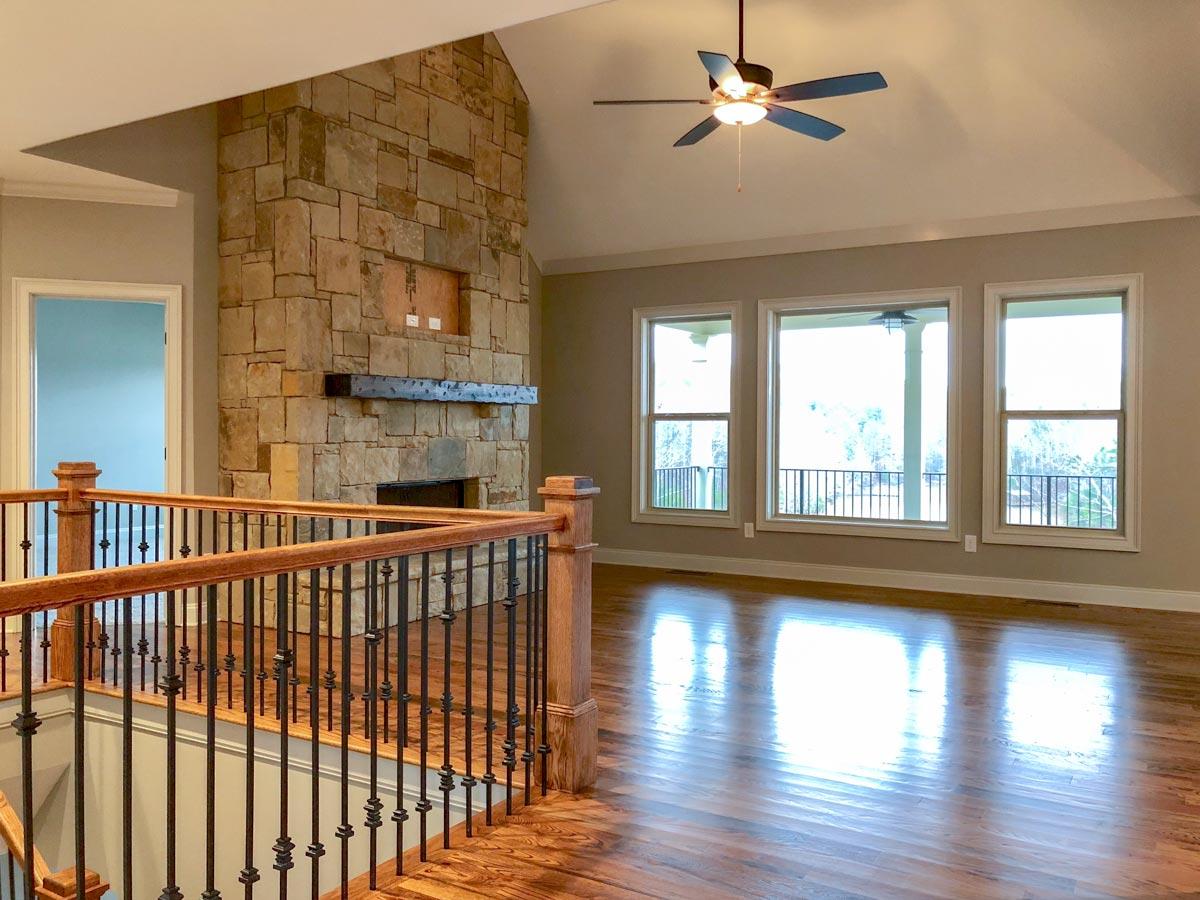

  • The great room has a vaulted ceiling with a fireplace anchoring the left wall and is open to the kitchen.

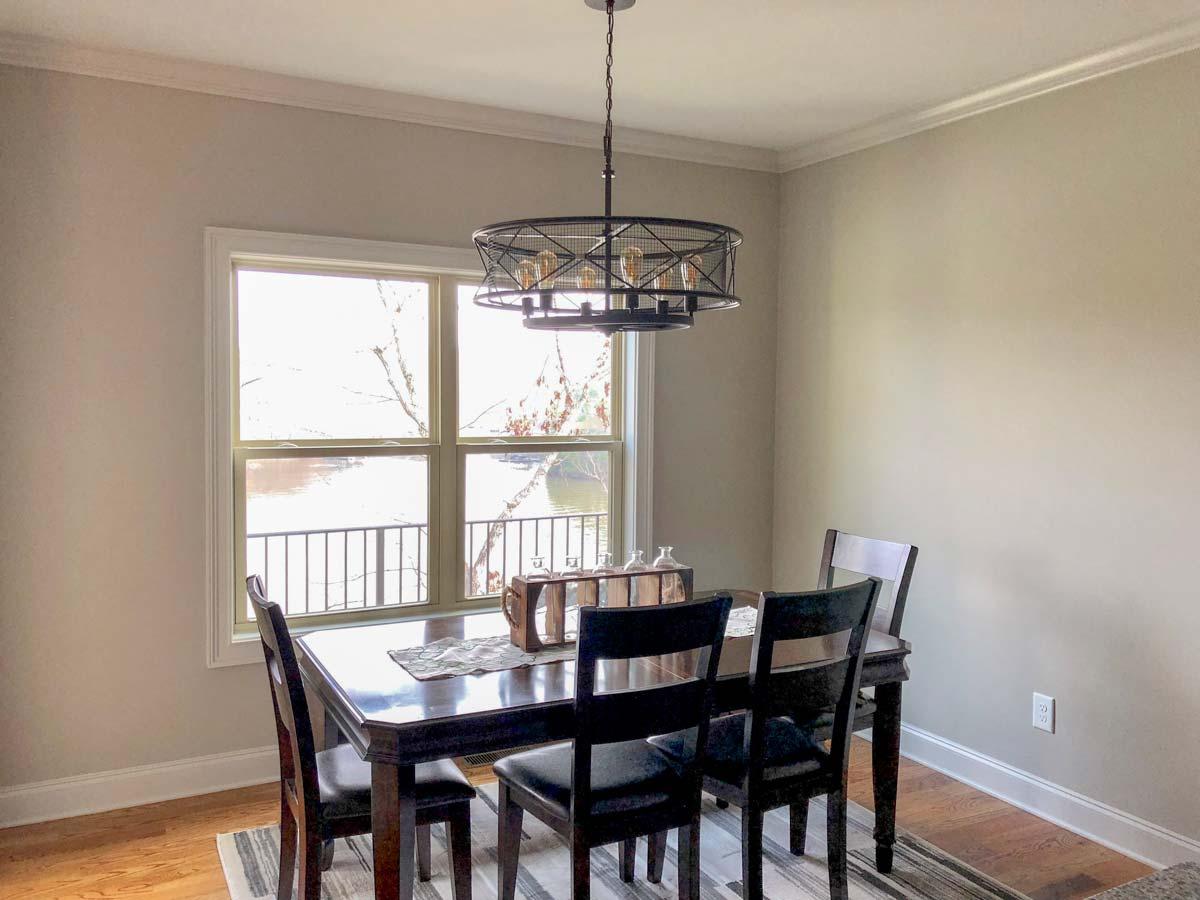

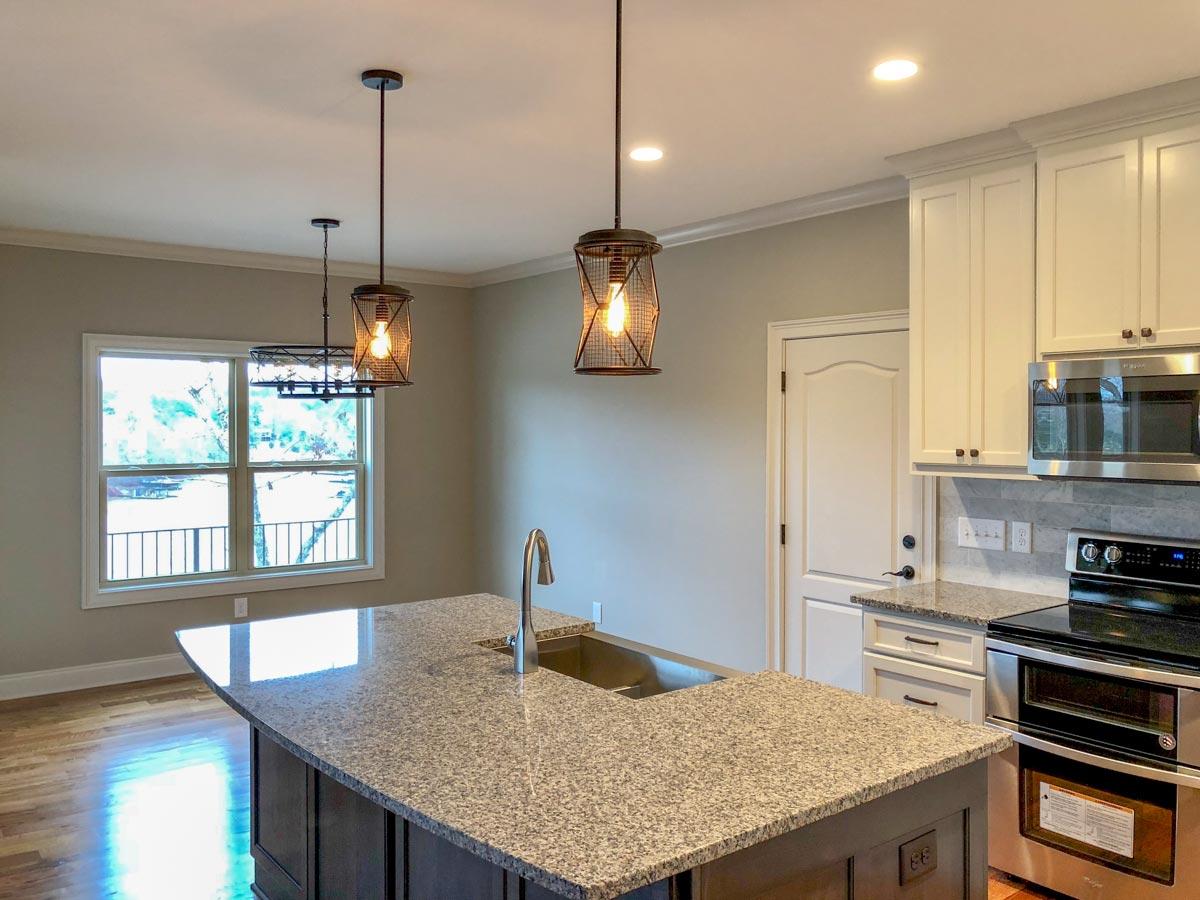

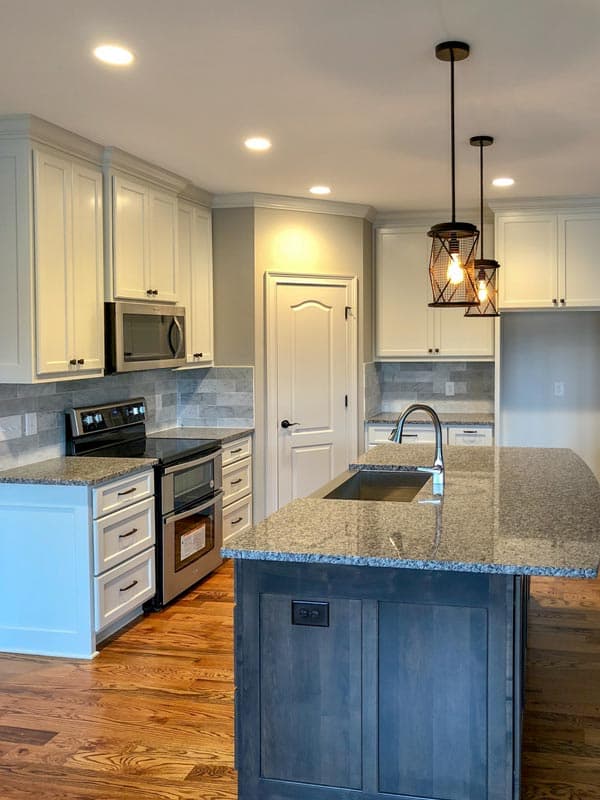

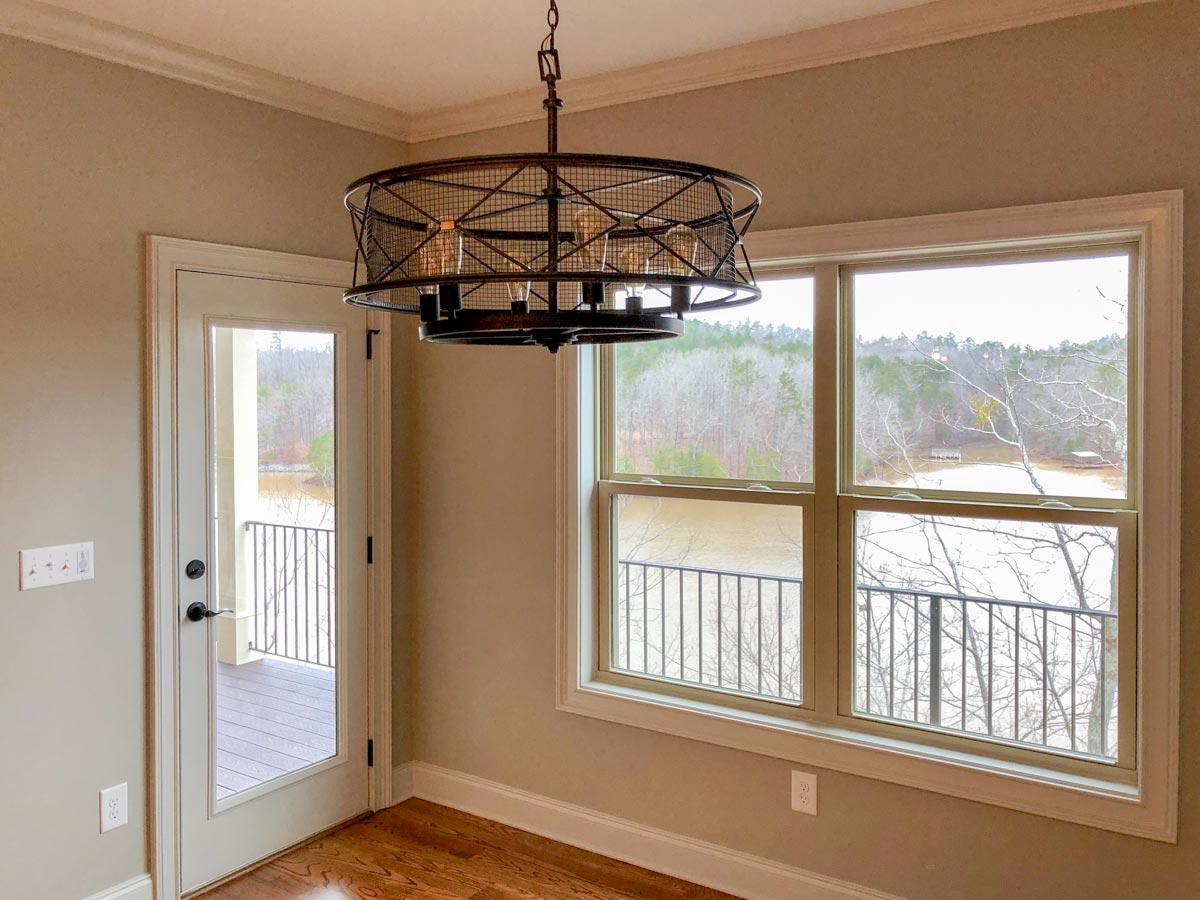

  • A large island in the kitchen gives you casual seating and great workspace. Serve meals in the adjacent dining room or even outside on the covered porch in back.
  • A quiet study is tucked away in the front of the home.

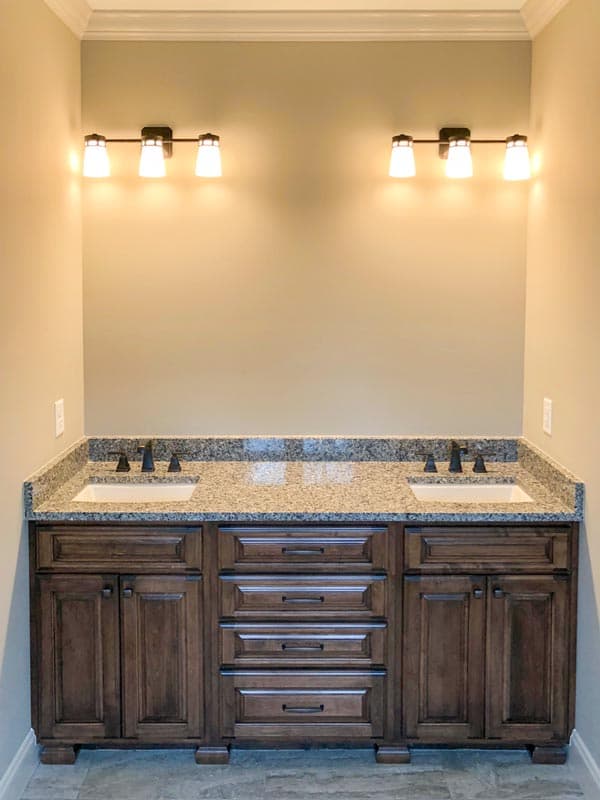

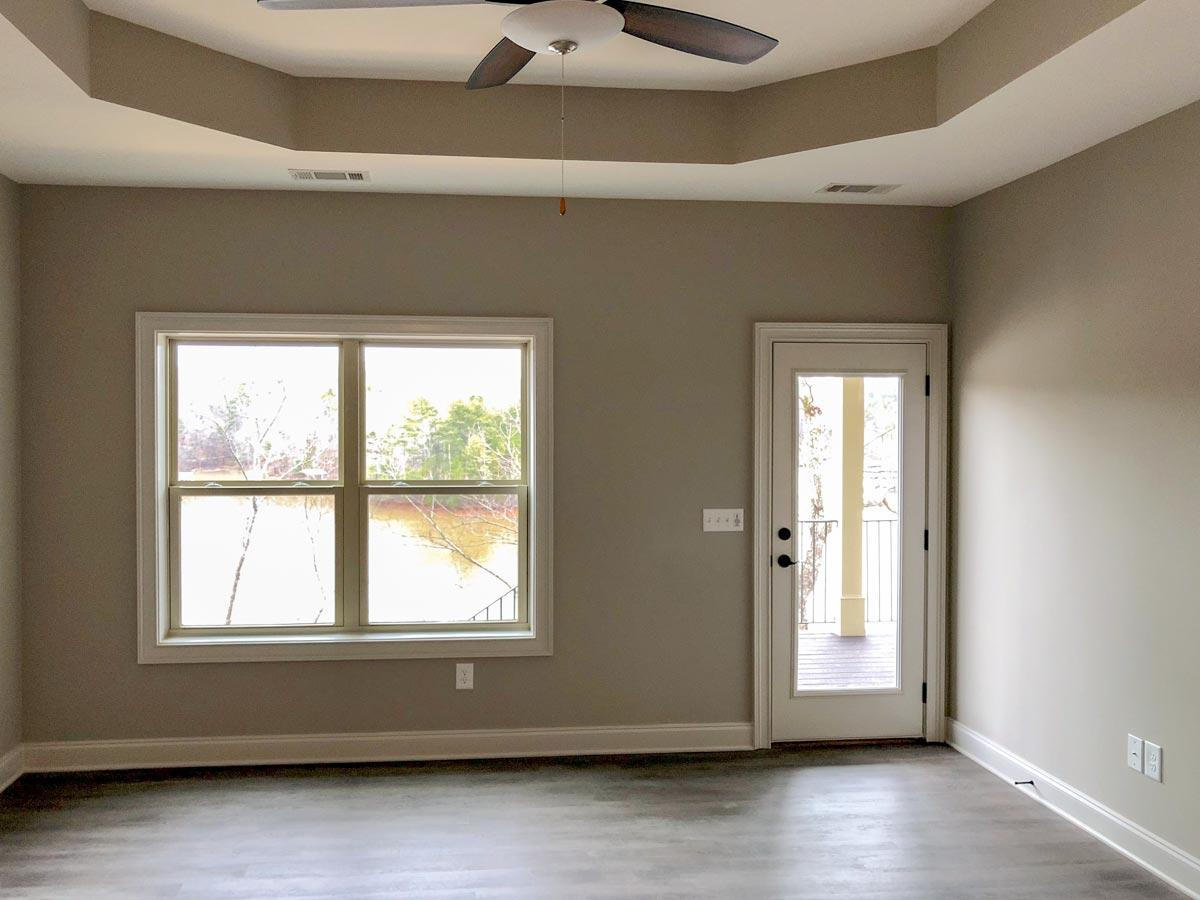

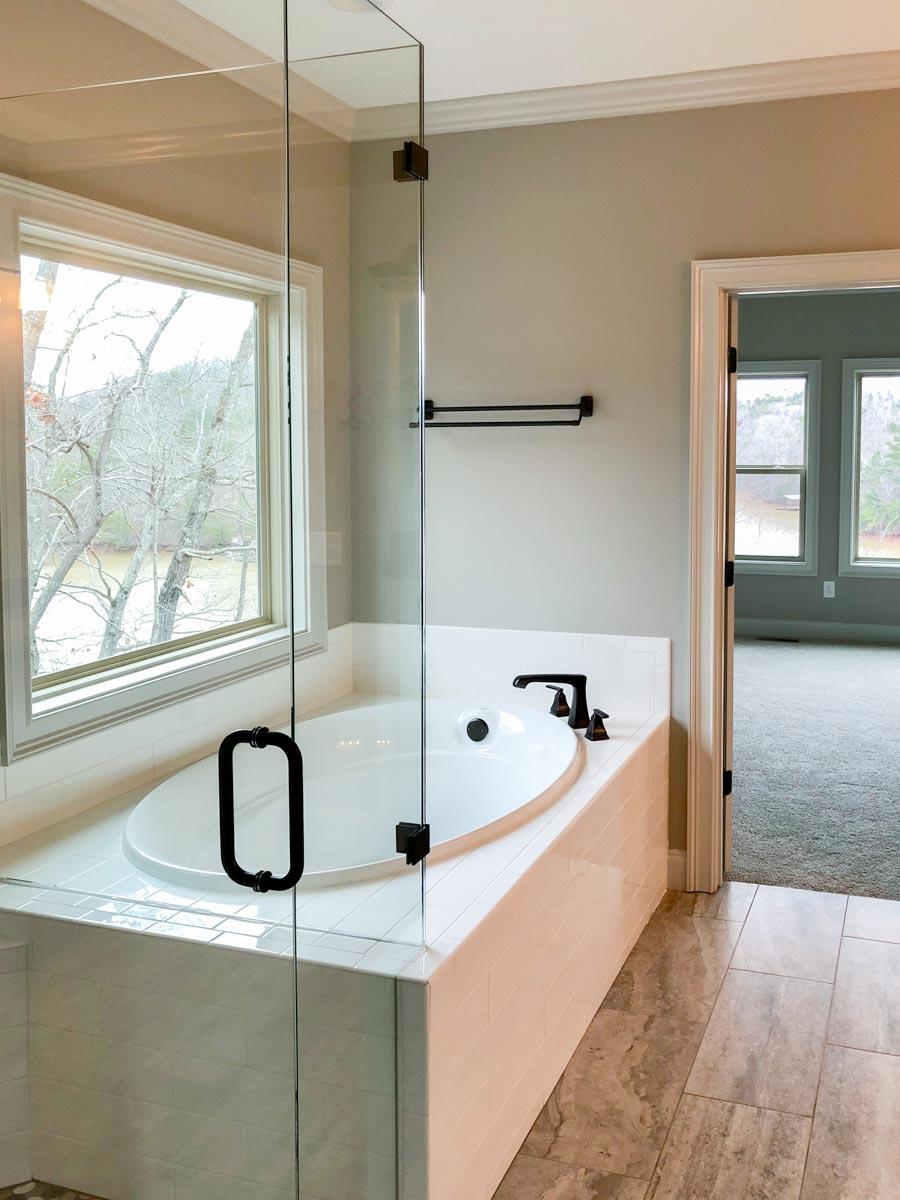

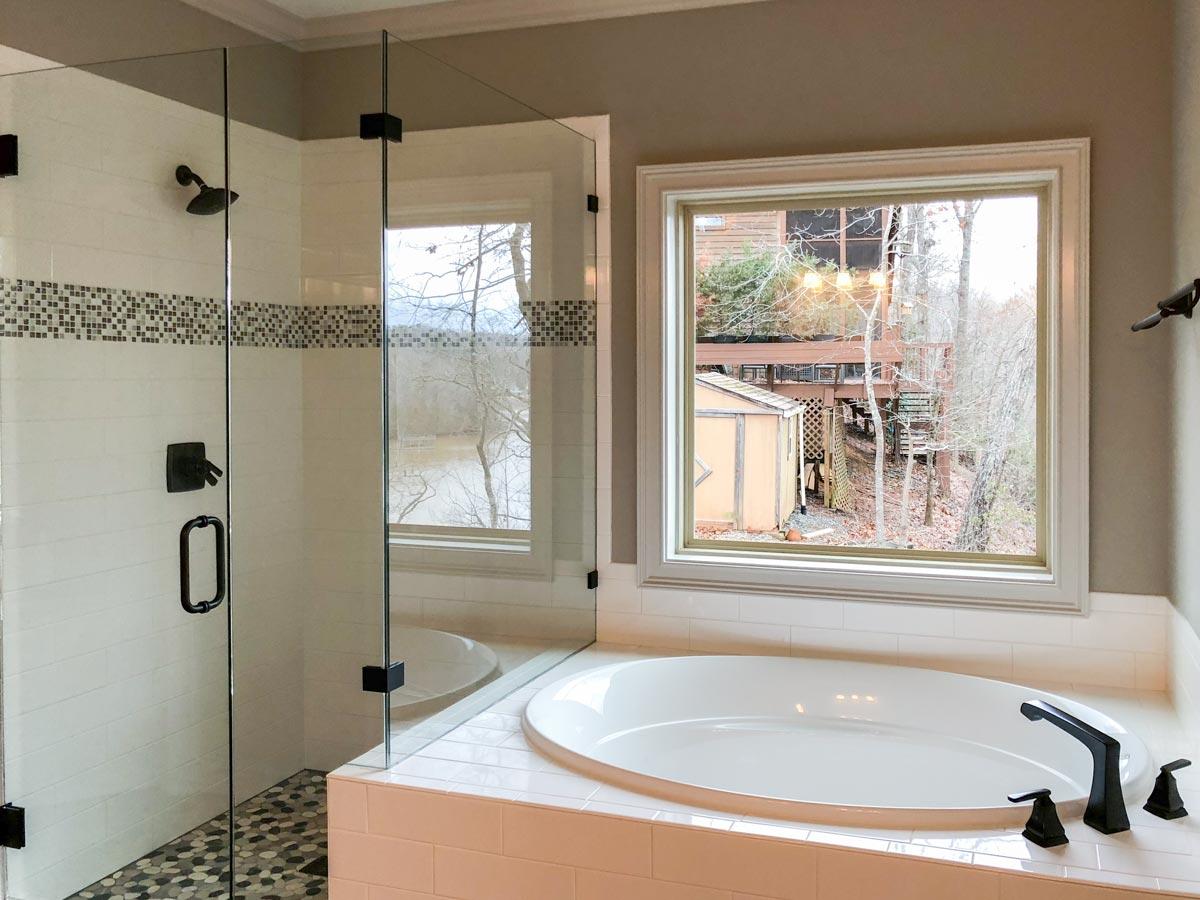

  • The master suite has a tray ceiling and views to the back. His and her walk-in closets and a five-fixture bath complete the master suite.

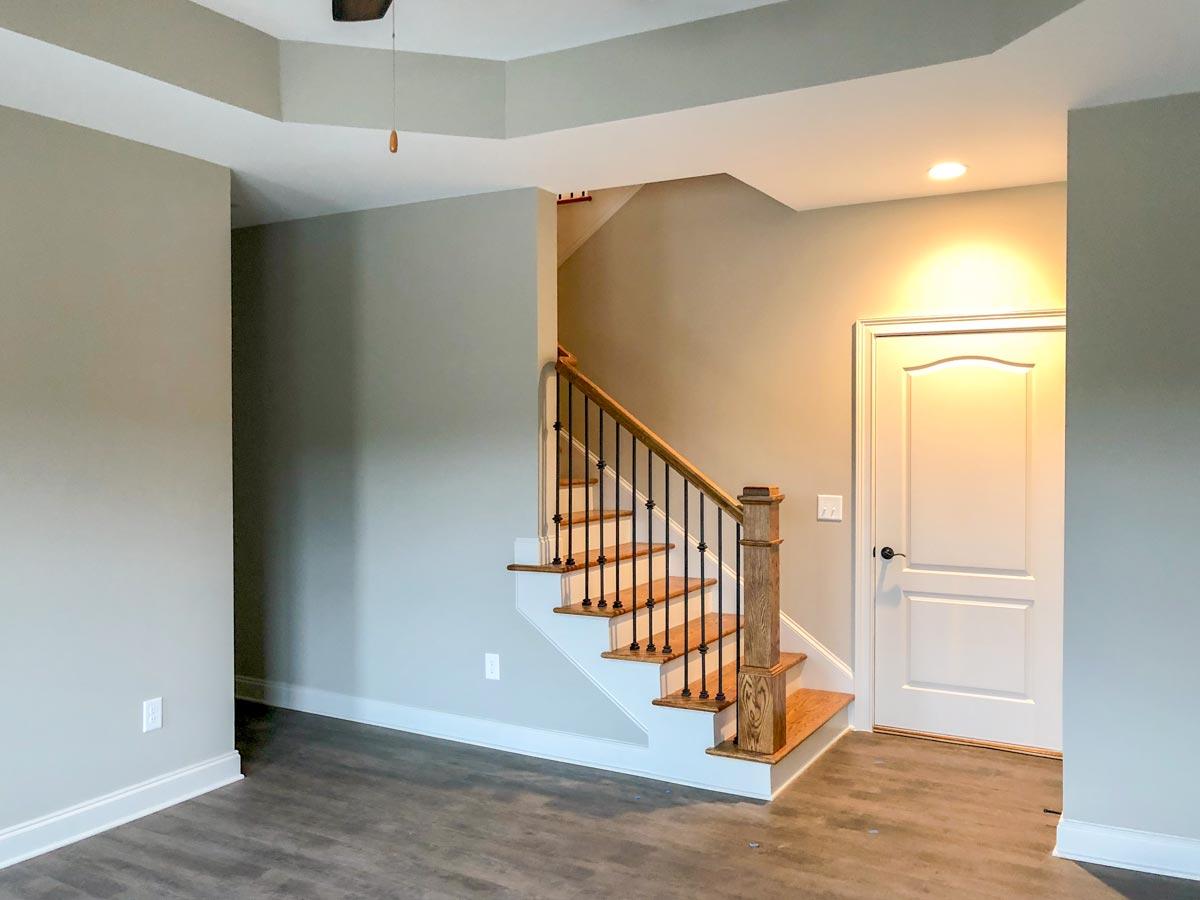

  • The lower level gives you two more beds and a family rec room, a space your kids will love. If your lot slopes you'll enjoy having patio access.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.

The plans include the following:

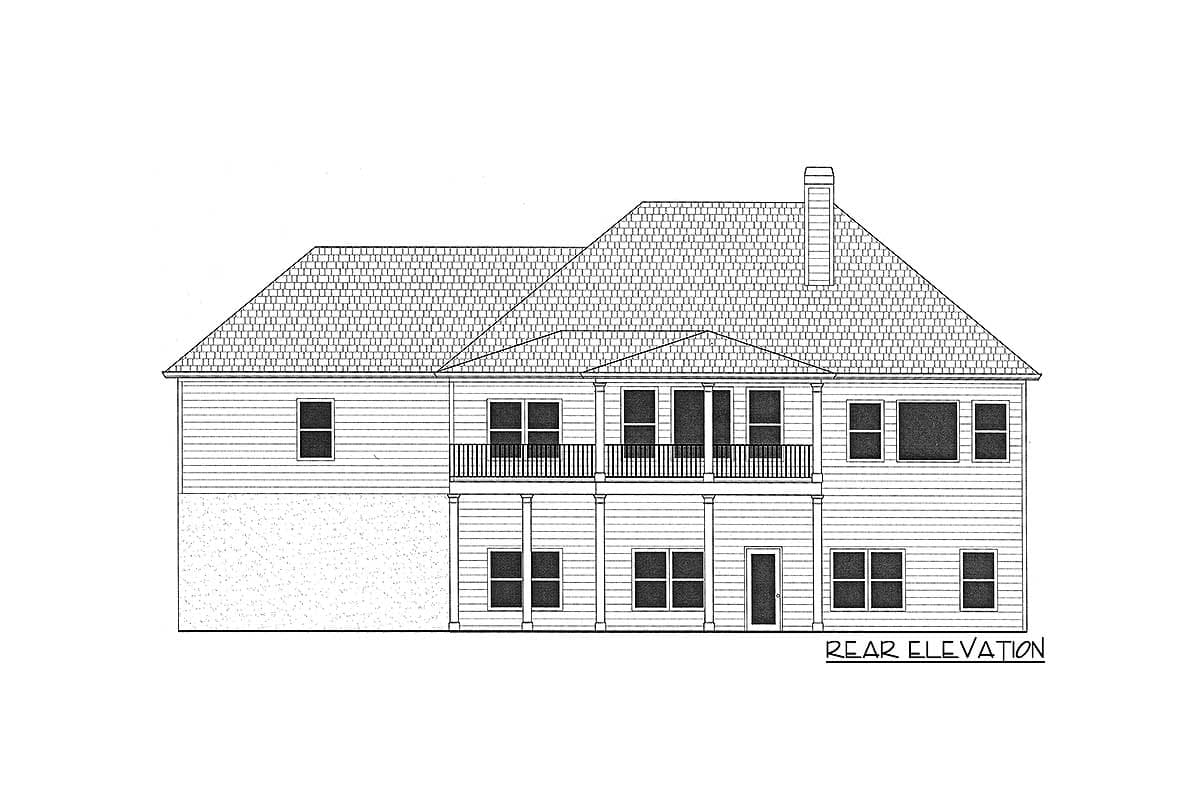

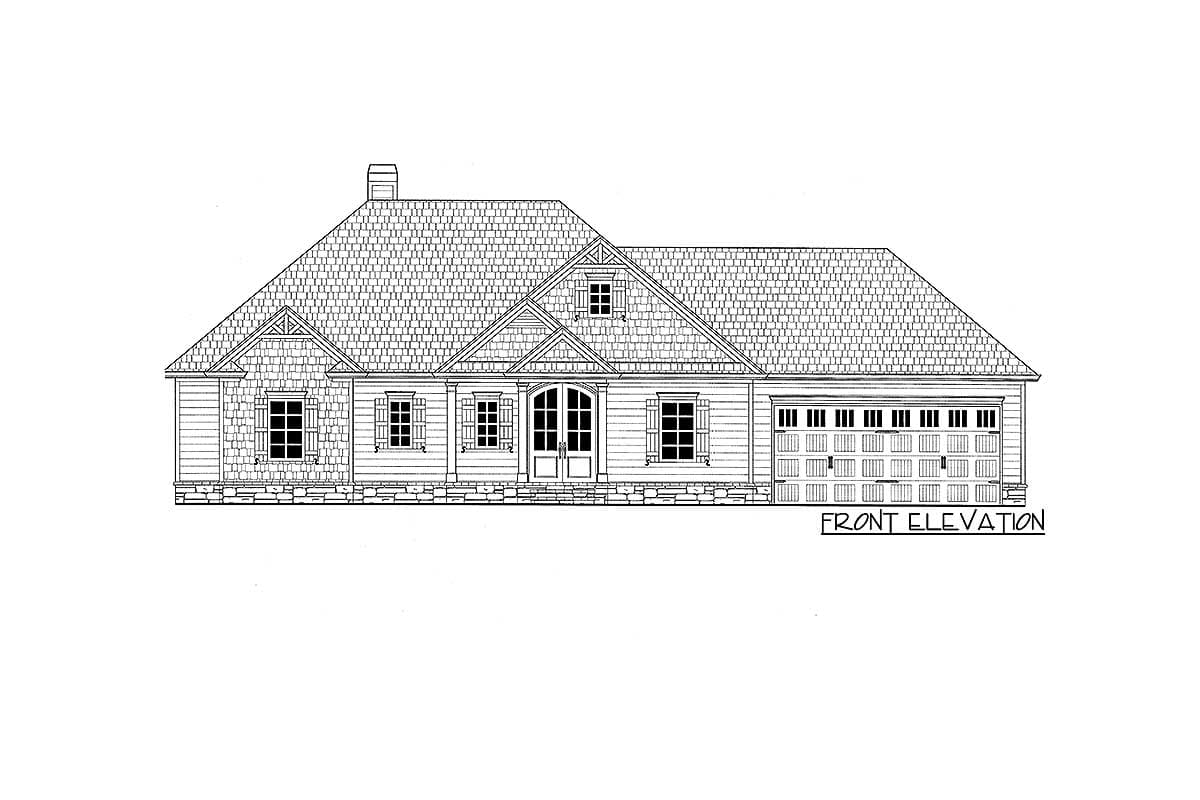

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

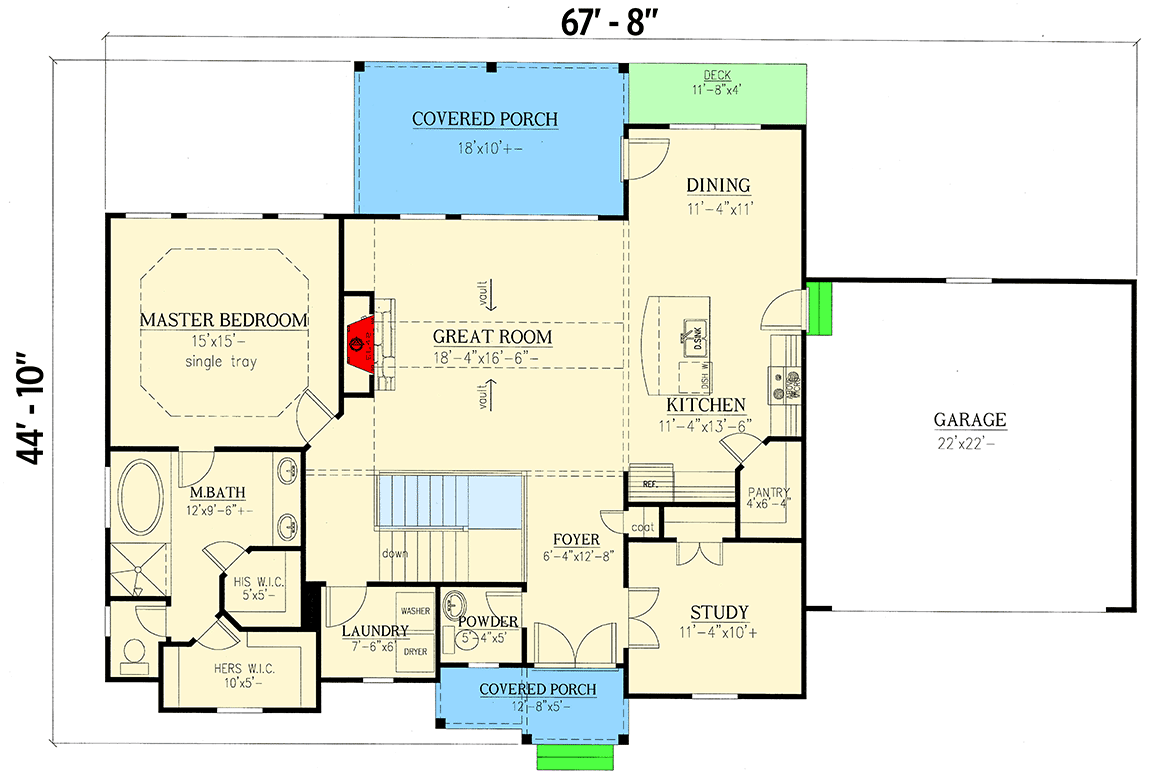

Right-Sized House Plan with Vaulted Great Room and Open Concept Plan - 24366TW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

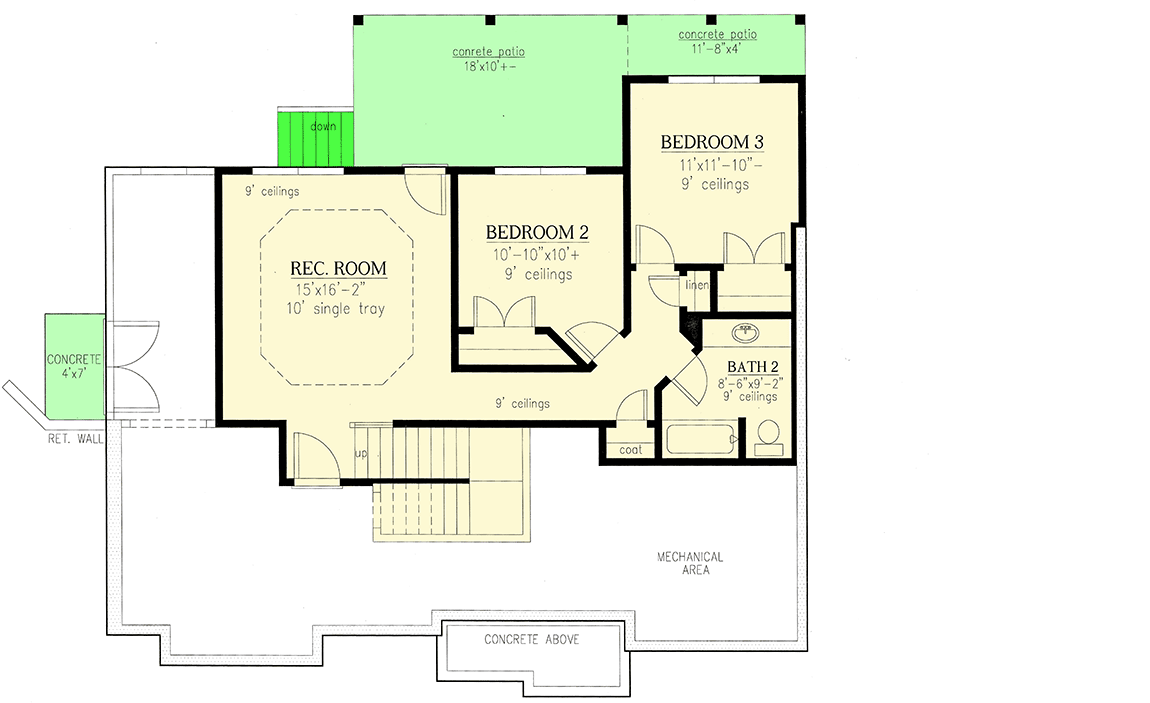

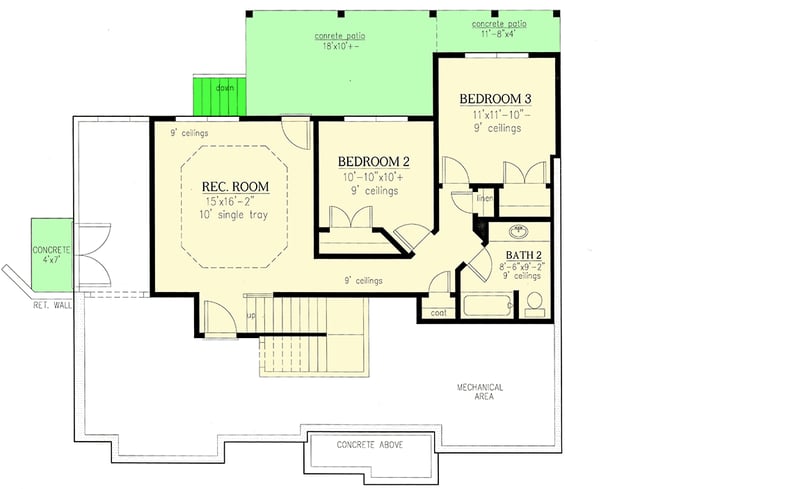

Right-Sized House Plan with Vaulted Great Room and Open Concept Plan - 24366TW floor plan - Lower Level

Right-Sized House Plan with Vaulted Great Room and Open Concept Plan

  • 2,303

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,303 sq. ft.
  • Lower Level: 791 sq. ft.
  • 1st Floor: 1,512 sq. ft.

Dimensions

  • Width: 67' 8"
  • Depth: 44' 10"
  • Max ridge height: 22' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 477 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
