Plan 430001LY

Rockin' 3 Bed Hill Country with Catwalk Overlook

Heated S.F.
2,313
Beds
3
Baths
2.5
Stories
2

Floor Plan

Plan 430001LY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 430001LY

M-F 9am-5pm EST |

1-203-761-8500

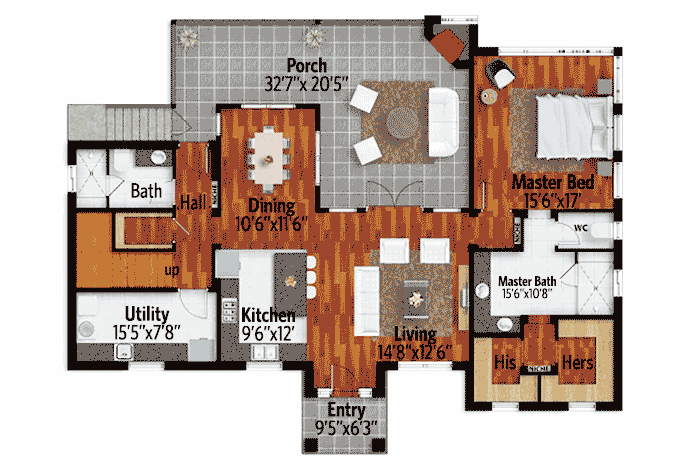

Main Level

Plan 430001LY: Rockin' 3 Bed Hill Country with Catwalk Overlook - Floor Plan - Main Level - Country, Farmhouse, Vacation

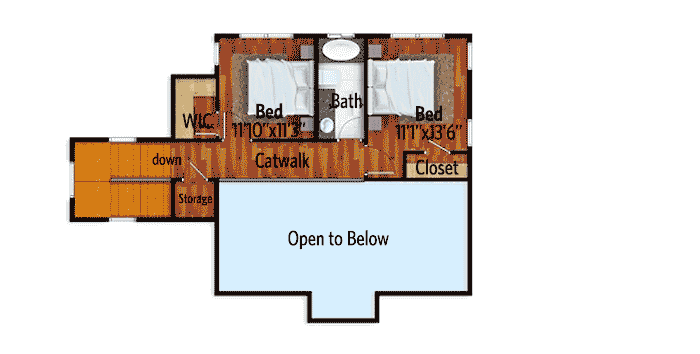

2nd Floor

Plan 430001LY: Rockin' 3 Bed Hill Country with Catwalk Overlook - Floor Plan - 2nd Floor - Country, Farmhouse, Vacation

Plan Details

  • A contemporary exterior with two dormers, metal roof and stone and stucco gives this 3 bed hill country house plan great curb appeal.
  • The master bedroom with a huge walk-in closet is on the main level for your privacy leaving the kids upstairs. A catwalk overlook looks down upon the living room below.
  • The kitchen has an island with seating and is open to the living and dining rooms.
  • The back porch is accessible from both the back hall and the living room, the latter via French doors.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,313 sq. ft.

1st Floor

1,765 sq. ft.

2nd Floor

548 sq. ft.

Porch, Front

59 sq. ft.

Deck

556 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 5"

Depth

48' 3"

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Living Room

Second Story

0' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Farmhouse

Vacation

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,313 sq. ft.

1st Floor

1,765 sq. ft.

2nd Floor

548 sq. ft.

Porch, Front

59 sq. ft.

Deck

556 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 5"

Depth

48' 3"

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Living Room

Second Story

0' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Farmhouse

Vacation

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
