Plan 72237DA

Roomy Craftsman Bungalow

Pageloader

Roomy Craftsman Bungalow

Plan 72237DA

  • 4,090

    Heated s.f.

  • 2-3

    Beds

  • 3.5+

    Baths

  • 1

    Stories

  • 3

    Cars

  • Columns highlight a broad front porch that wraps across the bayed front windows of the living room and dining room. Inside, these rooms open off of an equally high-ceilinged foyer.
  • The bright and expansive family room is the largest and most central living area. Its richly glassed rear wall has sliding glass doors that lead out onto the partially covered patio. These doors are flanked by two equally large glass panels plus another set of windows on both sides. Then the entire glassy expanse is crowned by a multi-paned transom. The clean-burning gas fireplace provides warmth and light on dreary days and dark nights.
  • Two arched openings lead to the kitchen, dining room, and a hallway to the owners' suite. The family room also has a set of double doors that open into a study that links with the owners' suite.
  • In addition to built-in appliances and abundant cupboard and counter space, kitchen amenities include: a deep walk-in pantry, cook-top island rimmed with a raised eating bar, appliance garage, and beverage bar with under-counter refrigerator. Natural light washes into its sunny nook through windows on four sides.
  • Two more bedrooms (or one and a hobby room) are nearby, along with a large utility room. The luxurious owners' suite at the opposite side of the house has a large walk-in closet and a smaller one. Bathroom features include a spa tub, walk-in shower, dual vanity, and private toilet.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Roomy Craftsman Bungalow

  • 4,090

    Heated s.f.

  • 2 - 3

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $1,325
  • PDF Light $1,655
  • 5 Sets $1,655
  • 5 Sets PLUS $1,805
  • 8 Sets $1,880
  • PDF - single-use $3,350
  • CAD $3,675
  • CAD - multi-use $4,045
  • View all purchase option online

About This Plan

  • Columns highlight a broad front porch that wraps across the bayed front windows of the living room and dining room. Inside, these rooms open off of an equally high-ceilinged foyer.
  • The bright and expansive family room is the largest and most central living area. Its richly glassed rear wall has sliding glass doors that lead out onto the partially covered patio. These doors are flanked by two equally large glass panels plus another set of windows on both sides. Then the entire glassy expanse is crowned by a multi-paned transom. The clean-burning gas fireplace provides warmth and light on dreary days and dark nights.
  • Two arched openings lead to the kitchen, dining room, and a hallway to the owners' suite. The family room also has a set of double doors that open into a study that links with the owners' suite.
  • In addition to built-in appliances and abundant cupboard and counter space, kitchen amenities include: a deep walk-in pantry, cook-top island rimmed with a raised eating bar, appliance garage, and beverage bar with under-counter refrigerator. Natural light washes into its sunny nook through windows on four sides.
  • Two more bedrooms (or one and a hobby room) are nearby, along with a large utility room. The luxurious owners' suite at the opposite side of the house has a large walk-in closet and a smaller one. Bathroom features include a spa tub, walk-in shower, dual vanity, and private toilet.

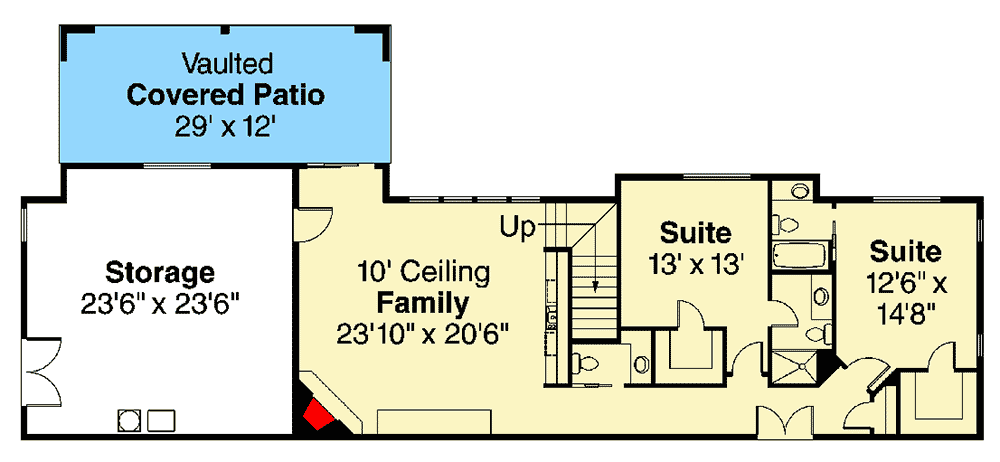

Floor Plans

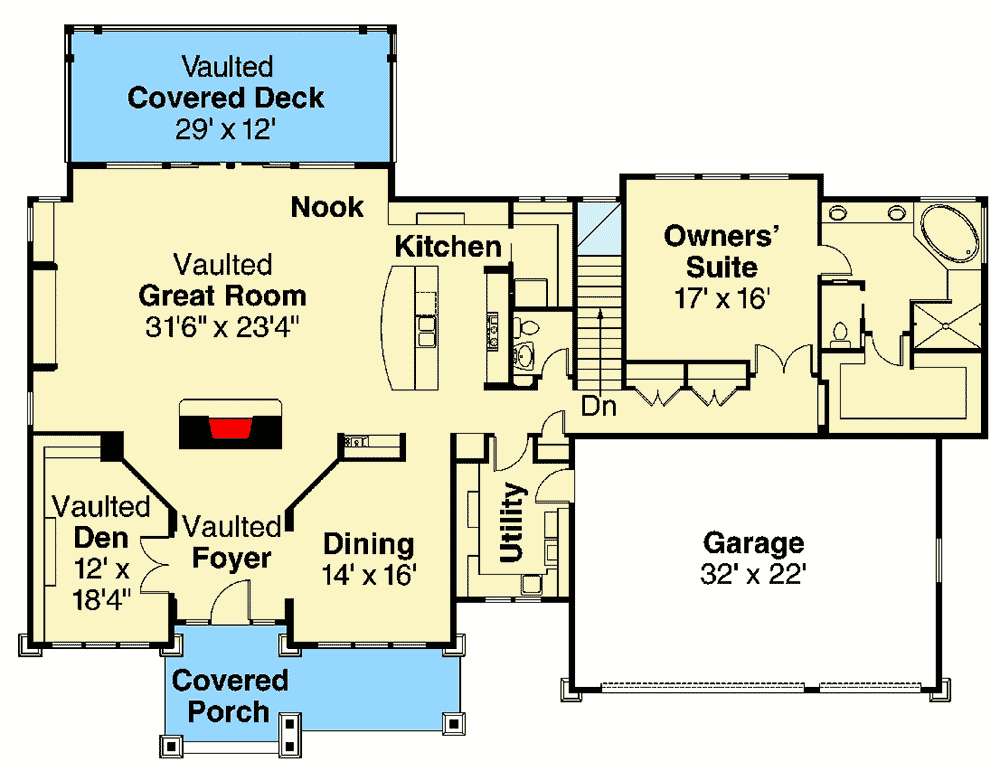

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,090 sq. ft.
  • Lower Level: 1,373 sq. ft.
  • 1st Floor: 2,717 sq. ft.
  • Storage: 735 sq. ft.
  • Covered Patio: 348 sq. ft.
  • Deck: 348 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 85' 0"
  • Depth: 64' 0"
  • Max ridge height: 26' 2"

Garage

  • Type: Attached
  • Area: 578 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
