Roomy Duplex - 59328ND | Architectural Designs - House Plans

VIEW ALL

Plan 59328ND

Roomy Duplex

Heated S.F.

2,884

Units

2

Width

88'

Depth

71' 2"

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

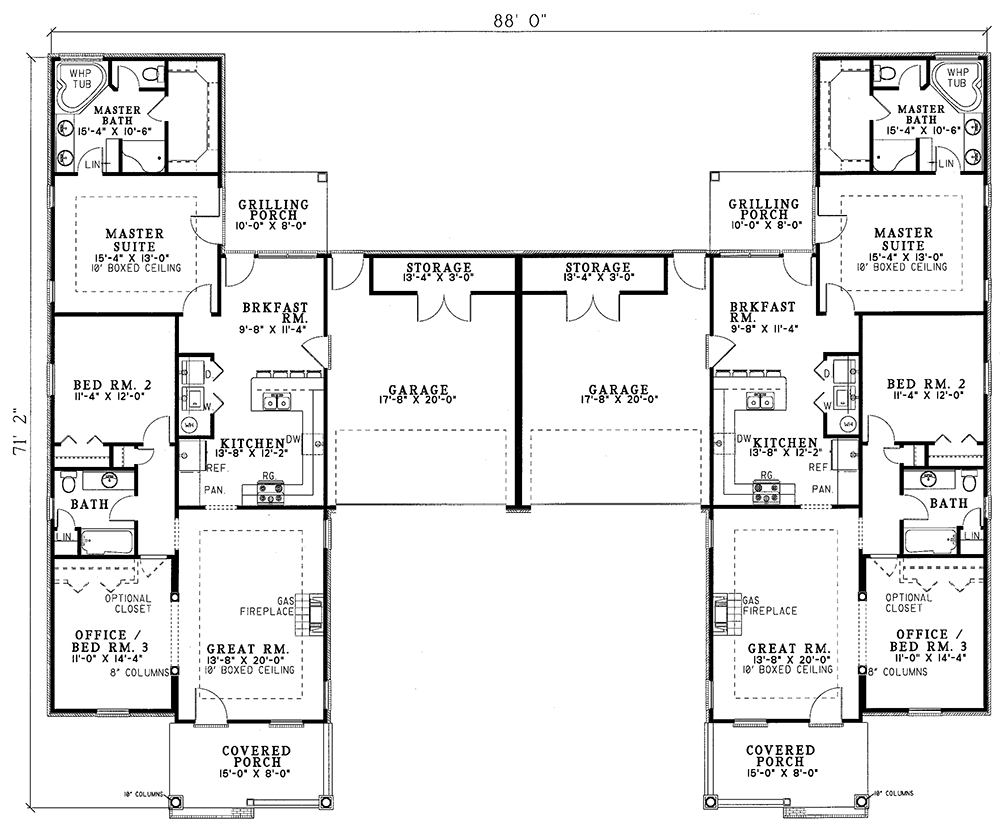

Roomy Duplex - 59328ND floor plan - Main Level

Plan Details

This duplex unit is designed with the garages separating the units for privacy and noise reduction.
Large, comfortable rooms and covered front and rear porches are added pluses.
Each unit has a gas fireplace and tray ceiling in the spacious great room.
Use bedroom 3 as an office, if desired.
Each master suite has a tray ceiling, large walk-in closet and french doors that give you access to the rear grilling porch.

Unit A

1,444 Sq. Ft.

1444 Sq. Ft. 1st Floor

3 Beds

2 Full Baths

1 Vehicle

Attached

435 Sq. Ft.

44' w 71' 2" d 22' h

Unit B

1,444 Sq. Ft.

1444 Sq. Ft. 1st Floor

3 Beds

2 Full Baths

1 Vehicle

Attached

435 Sq. Ft.

44' w 71' 2" d 22' h

What's Included

Foundation Plan** (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
An electrical diagram showing a birdseye view of rooms with lights, fans to switches

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,884 sq. ft.

1st Floor:

2,884 sq. ft.

Porch, Combined:

402 sq. ft.

Beds/Baths

Bedrooms:

5 or 6

Full bathrooms:

4

Foundation Type

Standard Foundations:

Crawl, Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

88' 0"

Depth:

71' 2"

Max Ridge Height:

22' 10"

Garage

Type:

Attached

Area:

870 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch:

14 on 12

Framing Type:

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
